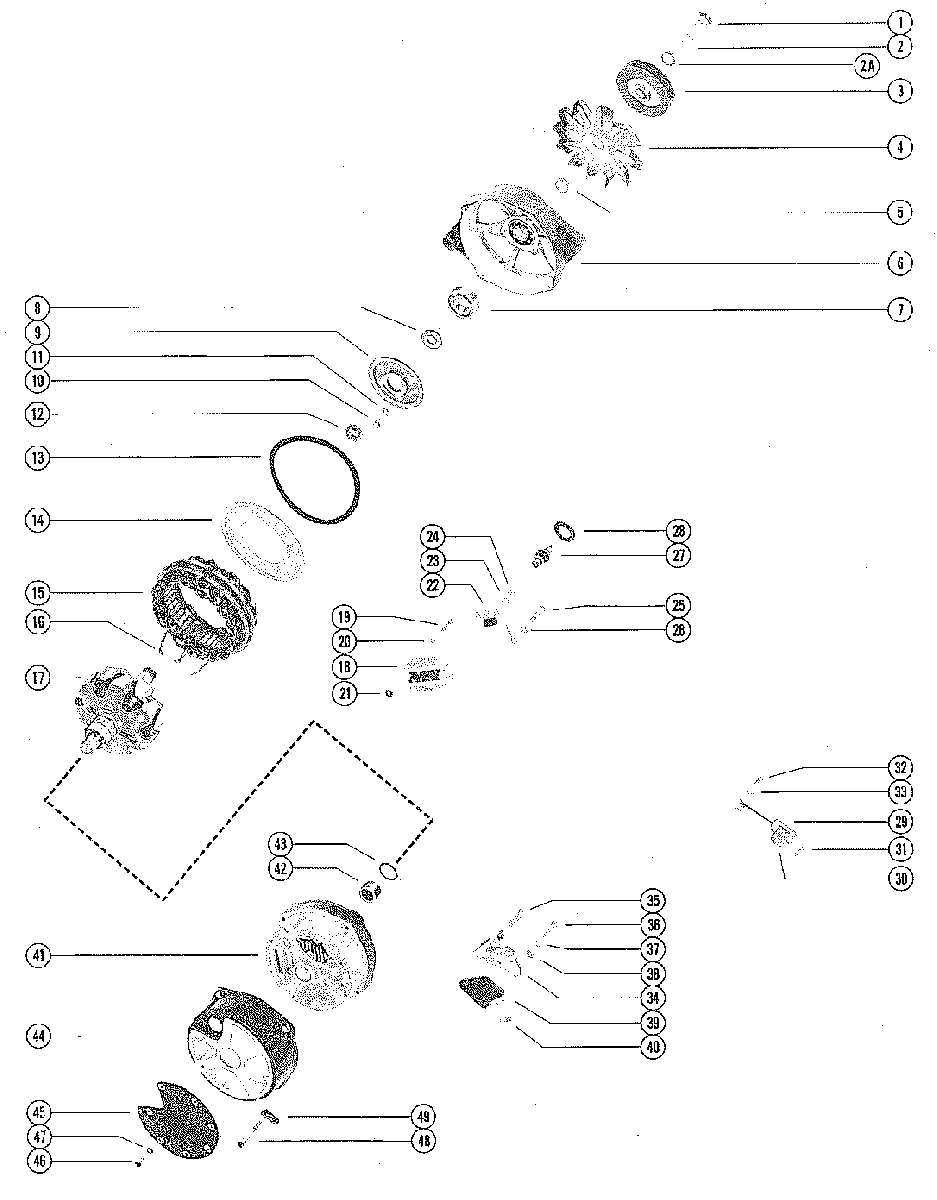

ALTERNATOR ASSEMBLY, COMPLETE для Mercruiser - 140 GM 181 I/L4 1979-1982 5157669 THRU 6229717

  • №
    Артикул
    Название
  • -
    N.S.S. ALTERNATOR ASSEMBLY, COMPLETE (DELCO REMY #1102939)
    ALTERNATOR ASSEMBLY, COMPLETE (DELCO REMY #1102939)
  • -
    N.S.S. ALTERNATOR ASSEMBLY, COMPLETE (DELCO REMY #1103113)
    ALTERNATOR ASSEMBLY, COMPLETE (DELCO REMY #1103113)
  • 1
    11-33272 NUT, FAN AND PULLEY TO ROTOR
    NUT, FAN AND PULLEY TO ROTOR
  • 2
    13-33309 LOCKWASHER, FAN AND PULLEY NUT
    LOCKWASHER, FAN AND PULLEY NUT
  • 2A
    90667 COLLAR, SHAFT - BETWEEN FAN AND PULLEY
    COLLAR, SHAFT - BETWEEN FAN AND PULLEY
  • 3
    38766 PULLEY, DRIVE END FRAME
    PULLEY, DRIVE END FRAME
  • 3
    90669 PULLEY, DRIVE END FRAME
    PULLEY, DRIVE END FRAME
  • 4
    33336 PAN, DRIVE END FRAME
    PAN, DRIVE END FRAME
  • 5
    N.S.S. COLLAR, DRIVE END FRAME - OUTER (DELCO REMY #1959991)
    COLLAR, DRIVE END FRAME - OUTER (DELCO REMY #1959991)
  • 6
    42792 FRAME, DRIVE END
    FRAME, DRIVE END
  • 6
    71704 FRAME, DRIVE END
    FRAME, DRIVE END
  • 7
    30-56955 BALL BEARING, DRIVE END FRAME
    BALL BEARING, DRIVE END FRAME
  • 7
    30-90665 BALL BEARING, DRIVE END FRAME
    BALL BEARING, DRIVE END FRAME
  • 8
    12-56958 WASHER, GREASE SLINGER - DRIVE END FRAME
    WASHER, GREASE SLINGER - DRIVE END FRAME
  • 9
    56956 PLATE, BALL BEARING RETAINER
    PLATE, BALL BEARING RETAINER
  • 10
    10-27304 SCREW, RETAINER PLATE TO DRIVE END FRAME
    SCREW, RETAINER PLATE TO DRIVE END FRAME
  • 10
    10-38028 SCREW, RETAINER PLATE TO DRIVE END FRAME
    SCREW, RETAINER PLATE TO DRIVE END FRAME
  • 11
    13-35208 LOCKWASHER, RETAINER PLATE SCREW
    LOCKWASHER, RETAINER PLATE SCREW
  • 12
    N.S.S. COLLAR, DRIVE END FRAME - INNER (DELCO REMY #1963139)
    COLLAR, DRIVE END FRAME - INNER (DELCO REMY #1963139)
  • 14
    60694 SCREEN, DRIVE END FRAME
    SCREEN, DRIVE END FRAME
  • 14
    90668 SCREEN, DRIVE END FRAME
    SCREEN, DRIVE END FRAME
  • 15
    56935 STATOR ASSEMBLY
    STATOR ASSEMBLY
  • 16
    54-33329 CLIP, TERMINAL - STATOR LEADS
    CLIP, TERMINAL - STATOR LEADS
  • 17
    56934 ROTOR
    ROTOR
  • 18
    56939 RECTIFIER BRIDGE
    RECTIFIER BRIDGE
  • 19
    10-71702 SCREW, RECTIFIER BRIDGE ATTACHING
    SCREW, RECTIFIER BRIDGE ATTACHING
  • 20
    13-34383 LOCKERWASHER, RECTIFIER BRIDGE ATTACHING SCREW
    LOCKERWASHER, RECTIFIER BRIDGE ATTACHING SCREW
  • 22
    56938 DIODE TRIO
    DIODE TRIO
  • 23
    13-34383 LOCKWASHER, DIODE TRIO TO RECTIFIER BRIDGE TERMINAL
    LOCKWASHER, DIODE TRIO TO RECTIFIER BRIDGE TERMINAL
  • 24
    11-21923T NUT, DIODE TRIO TO RECTIFIER BRIDGE TERMINAL
    NUT, DIODE TRIO TO RECTIFIER BRIDGE TERMINAL
  • 25
    10-71703 SCREW, BRUSH HOLDER ATTACHING - GROUND
    SCREW, BRUSH HOLDER ATTACHING - GROUND
  • 26
    13-34383 LOCKWASHER, GROUND BRUSH HOLDER SCREW
    LOCKWASHER, GROUND BRUSH HOLDER SCREW
  • 27
    60692 TERMINAL PACAGE, BATTERY
    TERMINAL PACAGE, BATTERY
  • 28
    12-56947 WASHER, SPONGE NEOPRENE - BATTERY TERMINAL (1-1/4" O.D.)
    WASHER, SPONGE NEOPRENE - BATTERY TERMINAL (1-1/4" O.D.)
  • 29
    58296 CONDENSER
    CONDENSER
  • 30
    393-2730 BRACKET, CONDENSER
    BRACKET, CONDENSER
  • 31
    10-60693 SCREW, CONDENSER ATTACHING
    SCREW, CONDENSER ATTACHING
  • 32
    10-60693 SCREW, CONDENSER LEAD TERMINAL ATTACHING
    SCREW, CONDENSER LEAD TERMINAL ATTACHING
  • 34
    42791 HOLDER AND BRUSH ASSEMBLY
    HOLDER AND BRUSH ASSEMBLY
  • 35
    24-56943 SPRING, TENSION - BRUSHES
    SPRING, TENSION - BRUSHES
  • 36
    10-60691 SCREW, BRUSH HOLDER ATTACHING - INSULATED
    SCREW, BRUSH HOLDER ATTACHING - INSULATED
  • 39
    78385 VOLTAGE REGULATOR, TRANSISTOR
    VOLTAGE REGULATOR, TRANSISTOR
  • 40
    54-56933 CLIP, SHORTING - VOLTAGE REGULATOR
    CLIP, SHORTING - VOLTAGE REGULATOR
  • 41
    60689 FRAME ASSEMBLY, SLIP RING END
    FRAME ASSEMBLY, SLIP RING END
  • 42
    31-60690 ROLLER BEARING, SLIP RING END FRAME
    ROLLER BEARING, SLIP RING END FRAME
  • 44
    78387 COVER ASSEMBLY, SLIP RING END
    COVER ASSEMBLY, SLIP RING END
  • 44
    90670 COVER ASSEMBLY, SLIP RING END
    COVER ASSEMBLY, SLIP RING END
  • 45
    35-60696 SCREEN, COVER
    SCREEN, COVER
  • 46
    10-56963 SCREW, SCREEN TO COVER
    SCREW, SCREEN TO COVER
  • 47
    13-35208 LOCKWASHER, CREEN SCREW
    LOCKWASHER, CREEN SCREW
  • 48
    10-33322 BOLT, THRU - SLIP RING END FRAME TO DRIVE END FRAME
    BOLT, THRU - SLIP RING END FRAME TO DRIVE END FRAME
  • 49
    54-56953 CLIP, GROUND - THRU BOLT
    CLIP, GROUND - THRU BOLT
  • --
    78386 BOOT, VOLTAGE REGULATOR TERMINALS
    BOOT, VOLTAGE REGULATOR TERMINALS
  • --
    78388 CONNECTOR
    CONNECTOR
  • --
    90671 CONNECTOR
    CONNECTOR
  • --
    78389 BRACKET, CONNECTOR ATTACHING
    BRACKET, CONNECTOR ATTACHING
  • --
    11-71701 NUT, BRACKET ATTACHING
    NUT, BRACKET ATTACHING
