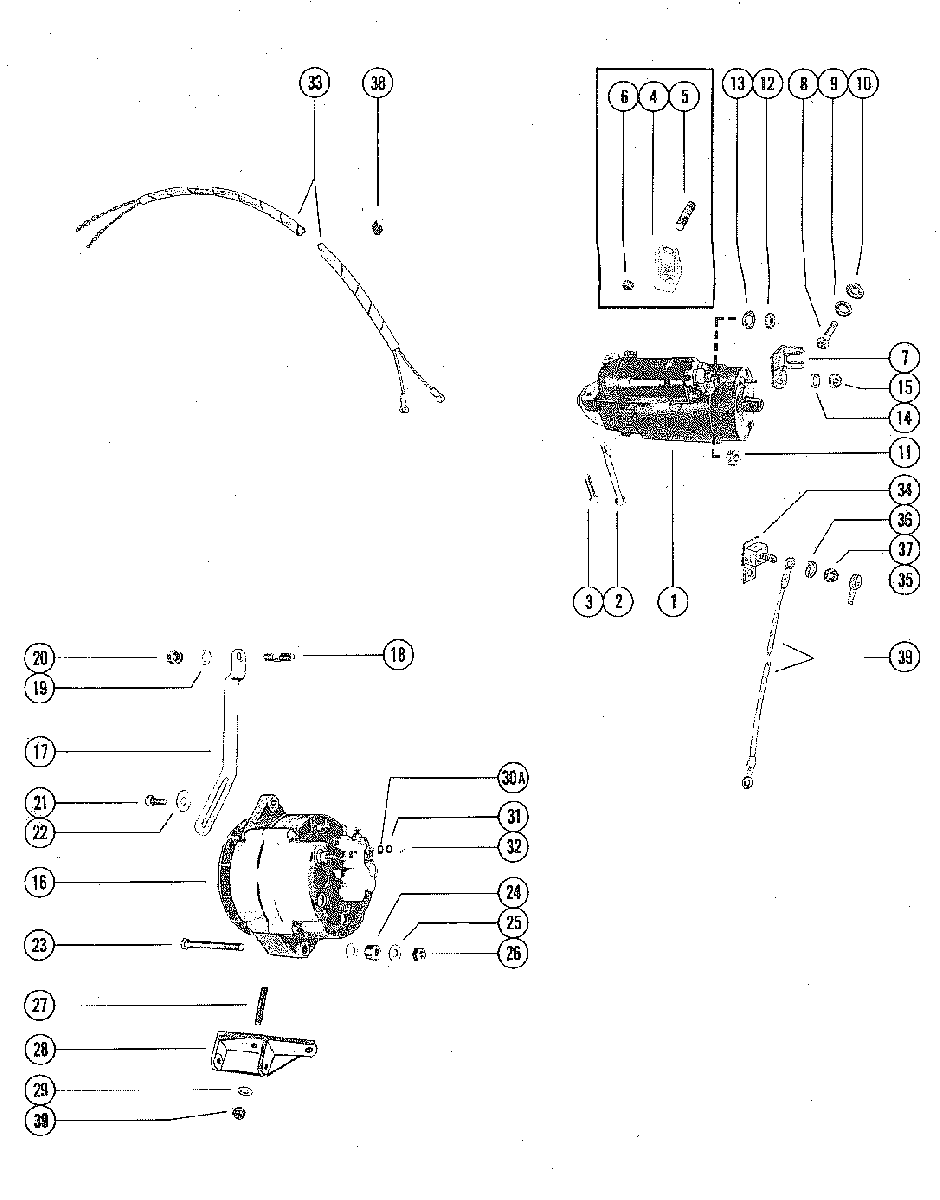

STARTER MOTOR AND ALTERNATOR для Mercruiser - 140 GM 181 I/L4 1979-1982 5157669 THRU 6229717

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY (DELCO REMY #1108756)
    STARTER MOTOR ASSEMBLY (DELCO REMY #1108756)
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY (DELCO REMY #1109490)
    STARTER MOTOR ASSEMBLY (DELCO REMY #1109490)
  • 2
    10-94435001 BOLT, STARTER MOTOR MOUNTING (4 21/32")
    BOLT, STARTER MOTOR MOUNTING (4 21/32")
  • 3
    10-8053433 BOLT, STARTER MOTOR MOUNTING (1 15/16")
    BOLT, STARTER MOTOR MOUNTING (1 15/16")
  • 4
    54671T BRACE, STARTER MOTOR
    USE WITH B-50-69863A1 STARTER MOTOR
    BRACE, STARTER MOTOR
    USE WITH B-50-69863A1 STARTER MOTOR
  • 5
    16-52387 STUD, BRACE TO MOTOR AND CYLINDER BLOCK
    USE WITH B-50-69863A1 STARTER MOTOR
    STUD, BRACE TO MOTOR AND CYLINDER BLOCK
    USE WITH B-50-69863A1 STARTER MOTOR
  • 6
    11-64809 NUT, BRACE STUD
    USE WITH B-50-69863A1 STARTER MOTOR
    NUT, BRACE STUD
    USE WITH B-50-69863A1 STARTER MOTOR
  • 7
    87300T BRACKET, STARTER MOTOR
    USE WITH B-50-79821A2 STARTER MOTOR
    BRACKET, STARTER MOTOR
    USE WITH B-50-79821A2 STARTER MOTOR
  • 8
    10-26487 SCREW, STARTER MOTOR BRACKET TO CYL. BLOCK
    USE WITH B-50-79821A2 STARTER MOTOR
    SCREW, STARTER MOTOR BRACKET TO CYL. BLOCK
    USE WITH B-50-79821A2 STARTER MOTOR
  • 9
    13-35048 LOCKWASHER, BRACKET SCREW
    USE WITH B-50-79821A2 STARTER MOTOR
    LOCKWASHER, BRACKET SCREW
    USE WITH B-50-79821A2 STARTER MOTOR
  • 10
    12-55149 WASHER, STARTER MOTOR BRACKET SCREW
    USE WITH B-50-79821A2 STARTER MOTOR
    WASHER, STARTER MOTOR BRACKET SCREW
    USE WITH B-50-79821A2 STARTER MOTOR
  • 11
    11-32219 NUT, SOLENOID SWITCH TERMINAL (3/8-16)
    NUT, SOLENOID SWITCH TERMINAL (3/8-16)
  • 11
    11-400214 NUT, SOLENOID SWITCH TERMINAL (METRIC M10 X 1.5)
    NUT, SOLENOID SWITCH TERMINAL (METRIC M10 X 1.5)
  • 12
    11-26419 NUT, SOLENOID SWITCH TERMINAL (8-32)
    NUT, SOLENOID SWITCH TERMINAL (8-32)
  • 13
    13-26995 LOCKWASHER, SOLENOID SWITCH TERMINAL
    LOCKWASHER, SOLENOID SWITCH TERMINAL
  • 14
    13-26996 LOCKWASHER, STARTER MOTOR TERM (#10)
    USE WITH B-50-69863A1 STARTER MOTOR
    LOCKWASHER, STARTER MOTOR TERM (#10)
    USE WITH B-50-69863A1 STARTER MOTOR
  • 15
    11-68219 NUT, STARTER MOTOR TERMINAL (10-32)
    USE WITH B-50-69863A1 STARTER MOTOR
    NUT, STARTER MOTOR TERMINAL (10-32)
    USE WITH B-50-69863A1 STARTER MOTOR
  • 14
    12-27985 WASHER, STARTER MOTOR TERMINAL (1/4")
    USE WITH B-50-79821A2 STARTER MOTOR
    WASHER, STARTER MOTOR TERMINAL (1/4")
    USE WITH B-50-79821A2 STARTER MOTOR
  • 15
    11-68219 NUT, STARTER MOTOR TERMINAL (1/4-20)
    USE WITH B-50-79821A2 STARTER MOTOR
    NUT, STARTER MOTOR TERMINAL (1/4-20)
    USE WITH B-50-79821A2 STARTER MOTOR
  • 16
    78403A2 ALTERNATOR ASSEMBLY
    ALTERNATOR ASSEMBLY
  • 17
    58333 BRACE, ALTERNATOR TO EXHAUSE MANIFOLD (FRONT)
    BRACE, ALTERNATOR TO EXHAUSE MANIFOLD (FRONT)
  • 18
    16-54177 STUD, ALTERNATOR BRACE TO EXHAUST MANIFOLD (1 3/8")
    STUD, ALTERNATOR BRACE TO EXHAUST MANIFOLD (1 3/8")
  • 19
    12-20553 WASHER, ALTERNATOR BRACE STUD
    WASHER, ALTERNATOR BRACE STUD
  • 20
    11-23161 NUT, ALTERNATOR BRACE STUD
    NUT, ALTERNATOR BRACE STUD
  • 21
    10-29198 SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
    SCREW, ALTERNATOR BRACE TO ALTERNATOR (7/8")
  • 22
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 23
    10-37626 SCREW, ALTERNATOR TO BRACKET (4 1/4")
    SCREW, ALTERNATOR TO BRACKET (4 1/4")
  • 24
    23-63894 SPACER, ALTERNATOR TO BRACKET
    SPACER, ALTERNATOR TO BRACKET
  • 25
    12-20553 WASHER, ALTERNATOR TO BRACKET
    WASHER, ALTERNATOR TO BRACKET
  • 26
    11-23161 NUT, ALTERNATOR SCREW
    NUT, ALTERNATOR SCREW
  • 27
    16-56826 STUD, ALTERNATOR BRK. (1 1/2")
    STUD, ALTERNATOR BRK. (1 1/2")
  • 28
    16738A1 BRACKET ASSEMBLY, ALTERNATOR MOUNTING
    BRACKET ASSEMBLY, ALTERNATOR MOUNTING
  • 29
    12-20553 WASHER, MOUNTING BRACKET STUD
    WASHER, MOUNTING BRACKET STUD
  • 30
    11-23161 NUT, MOUNTING BRACKET STUD
    NUT, MOUNTING BRACKET STUD
  • 30A
    12-96457 WASHER, BOOT ATTACHING (PHENOLIC)
    WASHER, BOOT ATTACHING (PHENOLIC)
  • 31
    13-26992 LOCKWASHER, ALTERNATOR TERMINAL
    LOCKWASHER, ALTERNATOR TERMINAL
  • 32
    11-20890 NUT, ALTERNATOR TERMINAL
    NUT, ALTERNATOR TERMINAL
  • 33
    84-78581A1 WIRING HARNESS ASSEMBLY, ALTERNATOR
    USE WITH B-84-66962A2 WIRING HARNESS
    WIRING HARNESS ASSEMBLY, ALTERNATOR
    USE WITH B-84-66962A2 WIRING HARNESS
  • 34
    88-79023T90 FUSE ASSEMBLY, SOLENOID - 90 AMP
    USE WITH B-84-66962A2 WIRING HARNESS
    FUSE ASSEMBLY, SOLENOID - 90 AMP
    USE WITH B-84-66962A2 WIRING HARNESS
  • 35
    85-79695T BOOT, INSULATOR
    USE WITH B-84-66962A2 WIRING HARNESS
    BOOT, INSULATOR
    USE WITH B-84-66962A2 WIRING HARNESS
  • 36
    13-26992 LOCKWASHER, SOLENOID ATTACHING SCREW
    USE WITH B-84-66962A2 WIRING HARNESS
    LOCKWASHER, SOLENOID ATTACHING SCREW
    USE WITH B-84-66962A2 WIRING HARNESS
  • 37
    11-21825 NUT, SOLENOID ATTACHING SCREW
    USE WITH B-84-66962A2 WIRING HARNESS
    NUT, SOLENOID ATTACHING SCREW
    USE WITH B-84-66962A2 WIRING HARNESS
  • 38
    54-73668 "J" CLIB, HARNESS TO FLYWHEEL HOUSING
    USE WITH B-84-66962A2 WIRING HARNESS
    "J" CLIB, HARNESS TO FLYWHEEL HOUSING
    USE WITH B-84-66962A2 WIRING HARNESS
  • 39
    84-79139A5 WIRE, 90 AMP FUSE TO CIRCUIT BREAKER
    USE WITH B-84-66962A2 WIRING HARNESS
    WIRE, 90 AMP FUSE TO CIRCUIT BREAKER
    USE WITH B-84-66962A2 WIRING HARNESS
