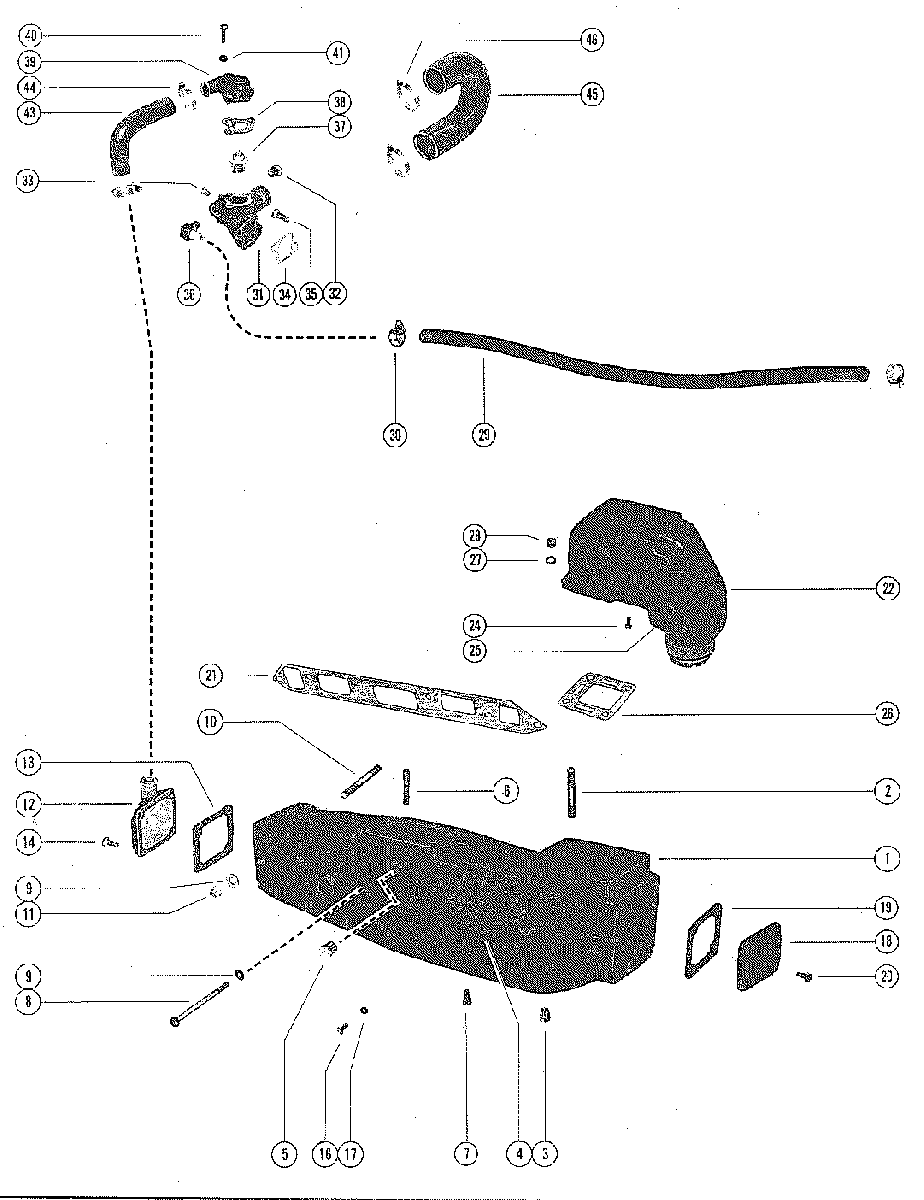

EXHAUST MANIFOLD ASSEMBLY для Mercruiser - 140 GM 181 I/L4 1979-1982 5157669 THRU 6229717

  • №
    Артикул
    Название
  • 1
    96705A1 EXHAUST MANIFOLD ASSEMBLY
    EXHAUST MANIFOLD ASSEMBLY
  • 2
    43-46545 STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
    STUD, EXHAUST MANIFOLD TO EXHAUST ELBOW (1 3/4")
  • 3
    22-328022 PLUG, PIPE - EXHAUST MANIFOLD (1/8-27)
    PLUG, PIPE - EXHAUST MANIFOLD (1/8-27)
  • 4
    22-48118 PLUG, EXHAUST MANIFOLD
    PLUG, EXHAUST MANIFOLD
  • 5
    22-32561 PLUG, PIPE - EXHAUST MANIFOLD (1/4-18)
    PLUG, PIPE - EXHAUST MANIFOLD (1/4-18)
  • 6
    32-53370 TUBE, HEAD - EXHAUST MANIFOLD
    TUBE, HEAD - EXHAUST MANIFOLD
  • 7
    10-98257 SCREW, PLUG - EXHAUST MANIFOLD (1/2")
    SCREW, PLUG - EXHAUST MANIFOLD (1/2")
  • 8
    10-52143 SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (4 3/4")
    SCREW, EXHAUST MANIFOLD TO CYLINDER HEAD (4 3/4")
  • 9
    12-20553 WASHER, EXHAUST MANIFOLD SCREW
    WASHER, EXHAUST MANIFOLD SCREW
  • 10
    16-52093 STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (5 1/4")
    STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (5 1/4")
  • 11
    11-49838 NUT, EXHAUST MANIFOLD STUD
    NUT, EXHAUST MANIFOLD STUD
  • 12
    60252A2 END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
    END CAP/CONNECTOR, EXHAUST MANIFOLD (FRONT)
  • 13
    27-480431 GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
    GASKET, END CAP/CONNECTOR TO EXHAUST MANIFOLD
  • 14
    10-35386 SCREW, END CAP/CONNECTOR TO EXH. MANIFOLD (1")
    SCREW, END CAP/CONNECTOR TO EXH. MANIFOLD (1")
  • 16
    10-32228 SCREW, WIRING HARNESS CLAMP FASTENING (5/8")
    SCREW, WIRING HARNESS CLAMP FASTENING (5/8")
  • 17
    12-24676 WASHER, WIRING HARNESS CLAMP SCREW
    WASHER, WIRING HARNESS CLAMP SCREW
  • 18
    73813A1 END CAP, EXHAUST MANIFOLD (REAR)
    END CAP, EXHAUST MANIFOLD (REAR)
  • 19
    27-807218 GASKET, END CAP TO ECHAUST MANIFOLD
    GASKET, END CAP TO ECHAUST MANIFOLD
  • 20
    10-25299 SCREW, END CAP TO EXHAUST MANIFOLD (3/4")
    SCREW, END CAP TO EXHAUST MANIFOLD (3/4")
  • 21
    27-53354 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 22
    76351A04 EXHAUST ELBOW ASSEMBLY
    EXHAUST ELBOW ASSEMBLY
  • 24
    22-328022 PLUG, PIPE - EXHAUST ELBOW
    PLUG, PIPE - EXHAUST ELBOW
  • 25
    22-416223 PLUG, EXHAUST ELBOW
    PLUG, EXHAUST ELBOW
  • 26
    27-997772 GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
    GASKET, EXHAUST ELBOW TO EXHAUST MANIFOLD
  • 27
    13-35048 LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    LOCKWASHER, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 28
    11-49838 NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
    NUT, EXHAUST ELBOW TO EXHAUST MANIFOLD STUD
  • 29
    32-47642 HOSE ASSEMBLY, INLET - DIST. BLOCK TO DRIVE UNIT (33 1/2")
    HOSE ASSEMBLY, INLET - DIST. BLOCK TO DRIVE UNIT (33 1/2")
  • 30
    54-815504310 CLAMP, INLET HOSE TO WATER DIST. BLOCK TO DRIVE UNIT
    CLAMP, INLET HOSE TO WATER DIST. BLOCK TO DRIVE UNIT
  • 31
    861493A07 BLOCK ASSEMBLY, WATER DISTRIBUTION - CYLINDER HEAD
    BLOCK ASSEMBLY, WATER DISTRIBUTION - CYLINDER HEAD
  • 32
    22-32803 PLUG, PIPE - WATER DISTRIBUTION BLOCK
    PLUG, PIPE - WATER DISTRIBUTION BLOCK
  • 33
    22-328022 PLUG, PIPE - WATER DISTRIBUTION BLOCK
    PLUG, PIPE - WATER DISTRIBUTION BLOCK
  • 34
    27-8146801 GASKET, WATER DISTRIBUTION BLOCK
    GASKET, WATER DISTRIBUTION BLOCK
  • 35
    10-21077 SCREW, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (7/8")
    SCREW, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (7/8")
  • 36
    22-53509 ELBOW, WATER DISTRIBUTION BLOCK
    ELBOW, WATER DISTRIBUTION BLOCK
  • 37
    59078 THERMOSTAT
    THERMOSTAT
  • 38
    27-475901 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 39
    861493A07 COVER ASSEMBLY, THERMOSTAT - WATER DIST. BLOCK
    COVER ASSEMBLY, THERMOSTAT - WATER DIST. BLOCK
  • 40
    10-881892 SCREW, THERMOSTAT COVER ATTACHING (1 3/4")
    SCREW, THERMOSTAT COVER ATTACHING (1 3/4")
  • 41
    12-36533 WASHER, THERMOSTAT COVER SCREW
    WASHER, THERMOSTAT COVER SCREW
  • 43
    32-52481 HOSE, WATER DIST. BLOCK TO END CAP/CONNECTOR
    HOSE, WATER DIST. BLOCK TO END CAP/CONNECTOR
  • 44
    54-815504220 CLAMP, HOSE TO WATER DIST. BLOCK AND END CAP/CONNECTOR
    CLAMP, HOSE TO WATER DIST. BLOCK AND END CAP/CONNECTOR
  • 45
    32-8M0071007 HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
    HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
  • 46
    54-815504228 CLAMP, HOSE TO WATER DIST. BLOCK AND WATER PUMP
    CLAMP, HOSE TO WATER DIST. BLOCK AND WATER PUMP
