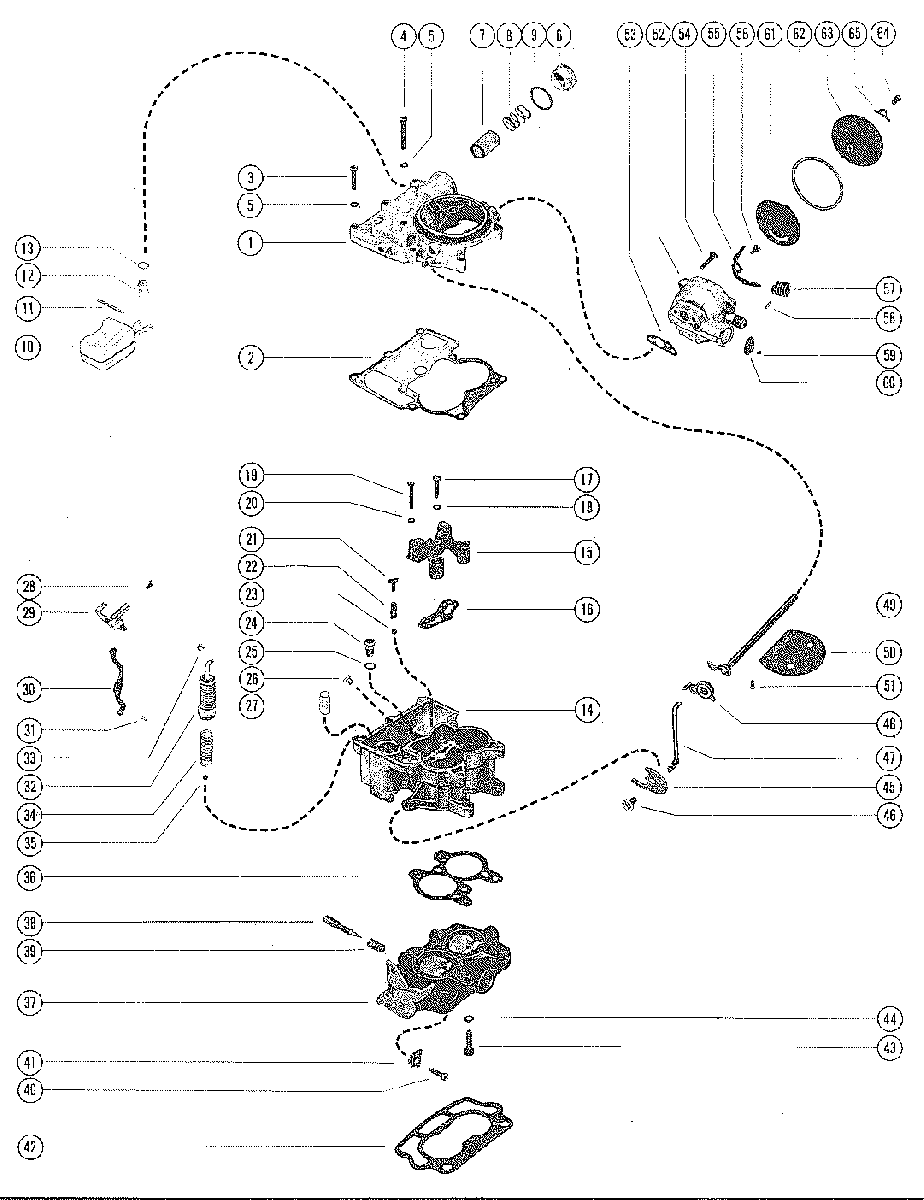

CARBURETOR ASSEMBLY для Mercruiser - 140 GM 181 I/L4 1979-1982 5157669 THRU 6229717

  • №
    Артикул
    Название
  • -
    1347-818620R02 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 1
    N.S.S. AIR HORN (ROCHESTER #7041370)
    AIR HORN (ROCHESTER #7041370)
  • 2
    90-8M0143356 GASKET, AIR HORN
    GASKET, AIR HORN
  • 3
    10-33043 SCREW, AIR HORN TO FLOAT BOWL (SHORT)
    SCREW, AIR HORN TO FLOAT BOWL (SHORT)
  • 4
    10-33048 SCREW, AIR HORN TO FLOAT BOWL (LONG)
    SCREW, AIR HORN TO FLOAT BOWL (LONG)
  • 5
    13-26996 LOCKWASHER, AIR HORN SCREW
    LOCKWASHER, AIR HORN SCREW
  • 6
    1397-3330 NUT, FUEL INLET
    NUT, FUEL INLET
  • 7
    35-53336Q FILTER, FUEL INLET
    FILTER, FUEL INLET
  • 8
    3302-9032 SPRING, FUEL FILTER
    SPRING, FUEL FILTER
  • 9
    90-8M0143356 GASKET< FUEL INLET NUT
    GASKET< FUEL INLET NUT
  • 10
    1397-2060 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 11
    N.S.S. PIN, HINGE - FLOAT TO AIR HORN (ROCHESTER #7002081)
    PIN, HINGE - FLOAT TO AIR HORN (ROCHESTER #7002081)
  • 12
    90-8M0143356 INLET NEEDLE AND SEAT ASSEMBLY
    INLET NEEDLE AND SEAT ASSEMBLY
  • 13
    90-8M0143356 GASKET, INLET NEEDLE AND SEAT
    GASKET, INLET NEEDLE AND SEAT
  • 14
    1397-4258 FLOAT BOWL ASSEMBLY
    FLOAT BOWL ASSEMBLY
  • 15
    N.S.S. VENTURI CLUSTER ASSEMBLY, FLOAT BOWL (ROCHESTER #7031949)
    VENTURI CLUSTER ASSEMBLY, FLOAT BOWL (ROCHESTER #7031949)
  • 16
    90-8M0143356 GASKET, VENTURI CLUSTER
    GASKET, VENTURI CLUSTER
  • 17
    N.S.S. SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)--ROCHESTER #7
    SCREW, VENTURI CLUSTER TO FLOAT BOWL (CENTER)--ROCHESTER #7
  • 18
    90-8M0143356 GASKET, VENTURI CLUSTER SCREW (CENTER)
    GASKET, VENTURI CLUSTER SCREW (CENTER)
  • 19
    N.S.S. SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)--ROCHESTER #70
    SCREW, VENTURI CLUSTER TO FLOAT BOWL (OUTER)--ROCHESTER #70
  • 20
    13-26995 LOCKWASHER, VENTURI CLUSTER SCREW (OUTER)
    LOCKWASHER, VENTURI CLUSTER SCREW (OUTER)
  • 21
    90-8M0143356 GUIDE, PUMP DISCHARGE - FLOAT BOWL
    GUIDE, PUMP DISCHARGE - FLOAT BOWL
  • 22
    90-8M0143356 SPRING, PUMP DISCHARGE - FLOAT BOWL
    SPRING, PUMP DISCHARGE - FLOAT BOWL
  • 23
    90-8M0143356 BALL, PUMP DISCHARGE - FLOAT BOWL
    BALL, PUMP DISCHARGE - FLOAT BOWL
  • 24
    90-8M0143356 POWER VALVUE ASSEMBLY, FLOAT BOWL
    POWER VALVUE ASSEMBLY, FLOAT BOWL
  • 25
    90-8M0143356 GASKET, POWER VALVE
    GASKET, POWER VALVE
  • 26
    1397-2448 JET, FLOAT BOWL (STANDARD)
    JET, FLOAT BOWL (STANDARD)
  • 27
    90-8M0143356 STRAINER, PUMP INLET
    STRAINER, PUMP INLET
  • 28
    10-33047 SCREW, AIR HORN PUMP LEVER
    SCREW, AIR HORN PUMP LEVER
  • 29
    N.S.S. PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN (ROCHESTER #7036764)
    PUMP SHAFT AND LEVER ASSEMBLY, AIR HORN (ROCHESTER #7036764)
  • 30
    N.S.S. ROD, PUMP (ROCHESTER #7036759)
    ROD, PUMP (ROCHESTER #7036759)
  • 31
    90-8M0143356 CLIP, RETAINER - PUMP ROD
    CLIP, RETAINER - PUMP ROD
  • 32
    90-8M0143356 PUMP ASSEMBLY, FLOAT BOWL
    PUMP ASSEMBLY, FLOAT BOWL
  • 33
    90-8M0143356 CLIP, RETAINER - FLOAT BOWL PUMP
    CLIP, RETAINER - FLOAT BOWL PUMP
  • 34
    90-8M0143356 SPRING, PUMP RETURN - FLOAT BOWL
    SPRING, PUMP RETURN - FLOAT BOWL
  • 35
    90-8M0143356 BALL, CHECK - PUMP INLET - FLOAT BOWL
    BALL, CHECK - PUMP INLET - FLOAT BOWL
  • 36
    90-8M0143356 GASKET, THROTTLE BODY
    GASKET, THROTTLE BODY
  • 37
    1397-2639 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 38
    90-8M0143356 IDLE ADJUSTING NEEDLE, THROTTLE BODY
    IDLE ADJUSTING NEEDLE, THROTTLE BODY
  • 39
    24-33050 SPRING, IDLE ADJUSTING NEEDLE
    SPRING, IDLE ADJUSTING NEEDLE
  • 40
    1397-2638 IDLE STOP SCREW, THROTTLE BODY
    IDLE STOP SCREW, THROTTLE BODY
  • 41
    54-39108 CLIP, IDLE STOP SCREW
    CLIP, IDLE STOP SCREW
  • 42
    90-8M0143356 GASKET, CARBURETOR FLANGE
    GASKET, CARBURETOR FLANGE
  • 43
    10-33052 SCREW, THROTTLE BODY TO FLOAT BOWL
    SCREW, THROTTLE BODY TO FLOAT BOWL
  • 44
    13-21547 LOCKWASHER, THROTTLE BODY SCREW
    LOCKWASHER, THROTTLE BODY SCREW
  • 45
    1397-8877 CAM, FAST IDLE - FLOAT BOWL
    CAM, FAST IDLE - FLOAT BOWL
  • 46
    10-33042 SCREW, FAST IDLE CAM TO FLOAT BOWL
    SCREW, FAST IDLE CAM TO FLOAT BOWL
  • 47
    N.S.S. ROD, CHOKE (ROCHESTER #7025667)
    ROD, CHOKE (ROCHESTER #7025667)
  • 48
    1397-4257 CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
    CHOKE LEVER AND COLLAR ASSEMBLY, CHOKE SHAFT
  • 49
    1397-2632 CHOKE SHAFT ASSEMBLY
    CHOKE SHAFT ASSEMBLY
  • 50
    1397-4358 VALVE, CHOKE - CHOKE SHAFT
    VALVE, CHOKE - CHOKE SHAFT
  • 51
    10-33045 SCREW, CHOKE VALVE TO CHOKE SHAFT
    SCREW, CHOKE VALVE TO CHOKE SHAFT
  • 52
    1397-2630 CHOKE HOUSING ASSEMBLY
    CHOKE HOUSING ASSEMBLY
  • 53
    90-8M0143356 GASKET, CHOKE HOUSING
    GASKET, CHOKE HOUSING
  • 54
    10-33053 SCREW, CHOKE HOUSING TO AIR HORN
    SCREW, CHOKE HOUSING TO AIR HORN
  • 55
    N.S.S. LEVER ASSEMBLY, CHOCKE PISTON (ROCHESTER #7010051)
    LEVER ASSEMBLY, CHOCKE PISTON (ROCHESTER #7010051)
  • 56
    10-33056 SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING
    SCREW, CHOKE PISTON LEVER TO CHOKE HOUSING
  • 57
    1397-2059 CHOKE PISTON, CHOKE HOUSING
    CHOKE PISTON, CHOKE HOUSING
  • 58
    17-33049 PIN, CHOKE PISTON TO CHOKE PISTON LEVER
    PIN, CHOKE PISTON TO CHOKE PISTON LEVER
  • 59
    1397-2050 PLUG, BALL - CHOKE HOUSING
    PLUG, BALL - CHOKE HOUSING
  • 60
    19-33041 WELCH PLUG, CHOKE HOUSING
    WELCH PLUG, CHOKE HOUSING
  • 61
    1397-2057 PLATE, BAFFLE - CHOKE HOUSING
    PLATE, BAFFLE - CHOKE HOUSING
  • 62
    90-8M0143356 GASKET, STAT COVER AND COIL
    GASKET, STAT COVER AND COIL
  • 63
    1397-2648 STAT COVER AND COIL ASSEMBLY
    STAT COVER AND COIL ASSEMBLY
  • 64
    10-33047 SCREW, STAT COVER AND COIL TO CHOKE HOUSING
    SCREW, STAT COVER AND COIL TO CHOKE HOUSING
  • 65
    54-33036 RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW
    RETAINER, STAT COVER AND COIL TO CHOKE HOUSING SCREW
  • --
    823427A1 OVERHAUL KIT
    OVERHAUL KIT
  • --
    823427A1 GASKET KIT
    GASKET KIT
  • --
    1397-2992 ALTITUDE KIT (5,000 FT.)
    ALTITUDE KIT (5,000 FT.)
  • --
    N.S.S. ALTITUDE KIT ( 10,000 FT.) - ROCHESTER #7025962
    ALTITUDE KIT ( 10,000 FT.) - ROCHESTER #7025962
