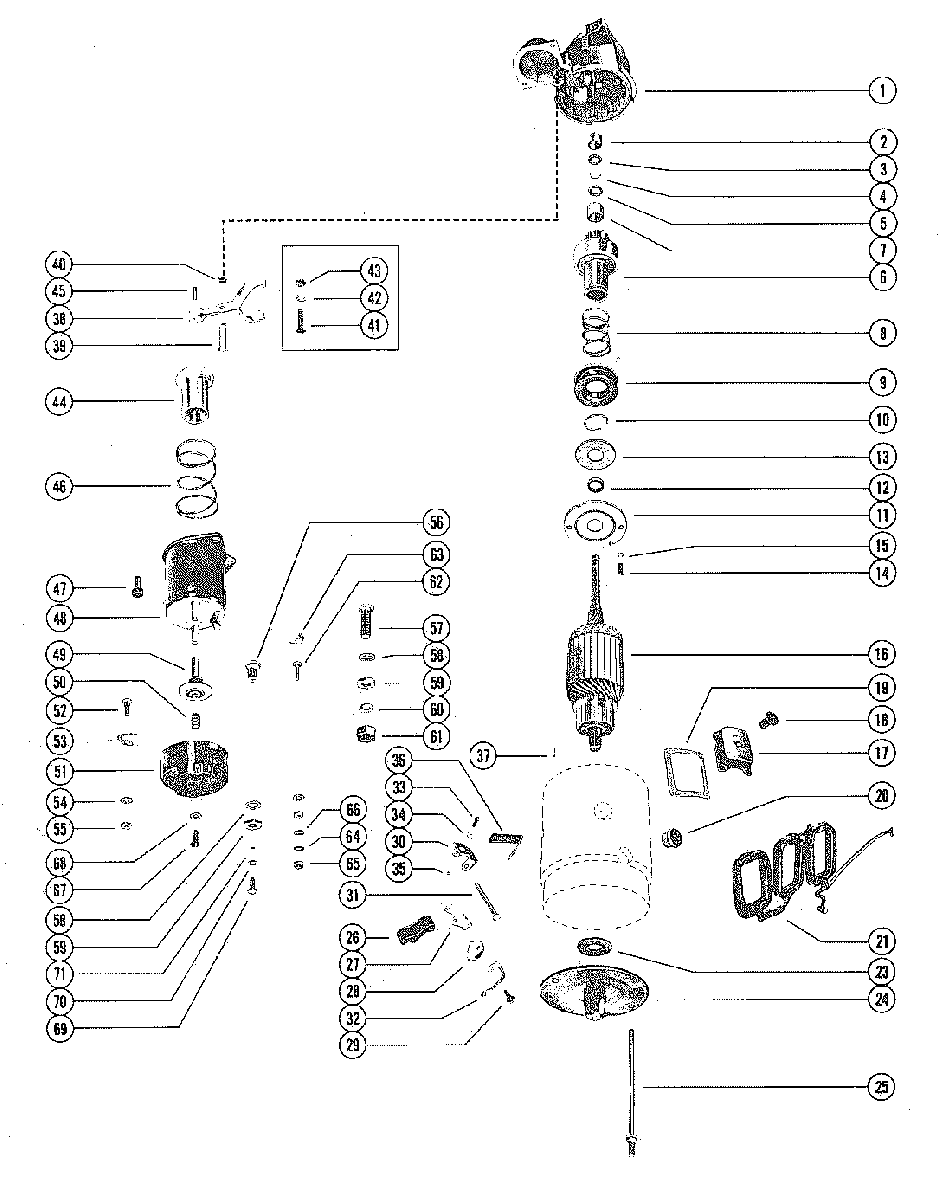

STARTER MOTOR ASSEMBLY, COMPLETE (B-50-76965A1) для Mercruiser - 140 GM 181 I/L4 1979-1982 5157669 THRU 6229717

  • №
    Артикул
    Название
  • -
    50-808011A05 STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109485)
    STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109485)
  • -
    50-97499R3 STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109484)
    STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109484)
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY, COMPLETE DELCO REMY #1109488)
    STARTER MOTOR ASSEMBLY, COMPLETE DELCO REMY #1109488)
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109490)
    STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109490)
  • 1
    79206 HOUSING, DRIVE END
    HOUSING, DRIVE END
  • 1
    71696 HOUSING, DRIVE END
    HOUSING, DRIVE END
  • 2
    23-33369 BUSHING, DRIVE END HOUSING
    BUSHING, DRIVE END HOUSING
  • 3
    23-809457 COLLAR, THRUST - DRIVE END HOUSING
    COLLAR, THRUST - DRIVE END HOUSING
  • 4
    53-33290 RING, RETAINING - PINION STOP COLLAR
    RING, RETAINING - PINION STOP COLLAR
  • 5
    33291 COLLAR, PINION STOP - DRIVE END HOUSING
    COLLAR, PINION STOP - DRIVE END HOUSING
  • 6
    68608 DRIVE ASSEMBLY, CLUTCH - ARMATURE
    DRIVE ASSEMBLY, CLUTCH - ARMATURE
  • 6
    68609 DRIVE ASSEMBLY, CLUTCH - ARMATURE
    DRIVE ASSEMBLY, CLUTCH - ARMATURE
  • 6
    79205T DRIVE ASSEMBLY, CLUTCH - ARMATURE
    DRIVE ASSEMBLY, CLUTCH - ARMATURE
  • 7
    23-33369 BUSHING, GEAR END - CLUTCH DRIVE (1 9/16")
    BUSHING, GEAR END - CLUTCH DRIVE (1 9/16")
  • 8
    24-33368 SPRING, CLUTCH DRIVE
    SPRING, CLUTCH DRIVE
  • 9
    N.S.S. COLLAR, CLUTCH DRIVE (DELCO REMY #1904443)
    COLLAR, CLUTCH DRIVE (DELCO REMY #1904443)
  • 10
    33367 LOCKWIRE, COLLARD AND SPRING RETAINING
    LOCKWIRE, COLLARD AND SPRING RETAINING
  • 11
    79396 PLATE, BEARING
    PLATE, BEARING
  • 11
    N.S.S. PLATE, BEARING (DELCO REMY #1956939)
    PLATE, BEARING (DELCO REMY #1956939)
  • 12
    23-71694 BUSHING, BEARING PLATE
    BUSHING, BEARING PLATE
  • 13
    12-68614 WASHER, BEARING PLATE
    WASHER, BEARING PLATE
  • 14
    10-75659 SCREW, BEARING PLATE
    SCREW, BEARING PLATE
  • 14
    10-79209 SCREW, BEARING PLATE ATTACHING
    SCREW, BEARING PLATE ATTACHING
  • 15
    13-26996 LOCKWASHER, BEARING PLATE SCREW
    LOCKWASHER, BEARING PLATE SCREW
  • 16
    75665 ARMATURE
    ARMATURE
  • 16
    68606 ARMATURE
    ARMATURE
  • 16
    68607 ARMATURE
    ARMATURE
  • 16
    71693 ARMATURE
    ARMATURE
  • 17
    N.S.S. SHOE, POLE - FIELD COIL (DELCO REMY #810601)
    SHOE, POLE - FIELD COIL (DELCO REMY #810601)
  • 17
    N.S.S. SHOE, POLE _ FIELD SOIL (DELCO REMY #1931129)
    SHOE, POLE _ FIELD SOIL (DELCO REMY #1931129)
  • 18
    N.S.S. SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396)
    SCREW, POLE SHOE TO FIELD COIL (DELCO REMY #1968396)
  • 19
    33293 INSULATION, FIELD COIL
    INSULATION, FIELD COIL
  • 20
    25-68619 GROMMET, FIELD COIL - FIELD FRAME
    GROMMET, FIELD COIL - FIELD FRAME
  • 20
    25-79208 GROMMET, FIELD COIL - FIELD FRAME
    GROMMET, FIELD COIL - FIELD FRAME
  • 21
    75664 FIELD COIL ASSEMBLY
    FIELD COIL ASSEMBLY
  • 21
    48272 FIELD COIL ASSMELBY
    FIELD COIL ASSMELBY
  • 21
    79212 FIELD COIL ASSEMBLY
    FIELD COIL ASSEMBLY
  • 23
    12-33258 WASHER, LEATHER - COMMUTATOR END FRAME
    WASHER, LEATHER - COMMUTATOR END FRAME
  • 24
    79211 FRAME, COMMUTATOR END - LOWER
    FRAME, COMMUTATOR END - LOWER
  • 24
    79211 FRAME, COMMUTATOR END - LOWER
    FRAME, COMMUTATOR END - LOWER
  • 25
    10-33296 BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING
    BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING
  • 25
    10-33286 BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING
    BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING
  • 26
    33284 HOLDER, INSULATED - FIELD FRAME BRUSH
    HOLDER, INSULATED - FIELD FRAME BRUSH
  • 27
    33283 HOLDER, FIELD FRAME BRUSH GROUND
    HOLDER, FIELD FRAME BRUSH GROUND
  • 28
    33270 BRUSH, FIELD FRAME
    BRUSH, FIELD FRAME
  • 29
    10-52904 SCREW, BRUSH LEAD TO FIELD FRAME BRUSH (8-18 X 5/8")
    SCREW, BRUSH LEAD TO FIELD FRAME BRUSH (8-18 X 5/8")
  • 29
    10-60685 SCREW, BRUSH LEAD TO FIELD FRAME BRUSH
    SCREW, BRUSH LEAD TO FIELD FRAME BRUSH
  • 30
    33294 SUPPORT PACKAGE, GROUND AND INSULATED HOLDERS
    SUPPORT PACKAGE, GROUND AND INSULATED HOLDERS
  • 31
    17-33280 PIN, GROUND AND INSULATED HOLDER TO SUPPORT
    PIN, GROUND AND INSULATED HOLDER TO SUPPORT
  • 32
    33294 LEAD, FIELD FRAME BRUSH
    LEAD, FIELD FRAME BRUSH
  • 33
    N.S.S. SCREW, SUPPORT TO FIELD FRAME (DELCO REMY #274738)
    SCREW, SUPPORT TO FIELD FRAME (DELCO REMY #274738)
  • 34
    13-26996 LOCKWASHER, SUPPORT SCREW
    LOCKWASHER, SUPPORT SCREW
  • 35
    11-30968 NUT, SUPPORT SCREW
    NUT, SUPPORT SCREW
  • 36
    24-33285 SPRING, FIELD FRAME BRUSH
    SPRING, FIELD FRAME BRUSH
  • 37
    17-33257 PIN, DOWEL - FIELD FRAME TO DRIVE END HOUSING
    PIN, DOWEL - FIELD FRAME TO DRIVE END HOUSING
  • -
    50-808011A05 STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109485)
    STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109485)
  • -
    50-97499R3 STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109484)
    STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109484)
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109488)
    STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109488)
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109490)
    STARTER MOTOR ASSEMBLY, COMPLETE (DELCO REMY #1109490)
  • 38
    71698 LEVER, SHIFT
    LEVER, SHIFT
  • 39
    33310 SHAFT, SHIFT LEVER TO DRIVE END HOUSING
    SHAFT, SHIFT LEVER TO DRIVE END HOUSING
  • 40
    53-33354 RING, RETAINING - SHIFT LEVER SHAFT
    RING, RETAINING - SHIFT LEVER SHAFT
  • 38
    33297 LEVER, SHIFT
    LEVER, SHIFT
  • 41
    N.S.S. STUD, SHIFT LEVER TO DRIVE END HOUSING
    STUD, SHIFT LEVER TO DRIVE END HOUSING
  • 42
    12-68615 WASHER, SHIFT LEVER STUD
    WASHER, SHIFT LEVER STUD
  • 43
    11-26484 NUT, SHIFT LEVER STUD
    NUT, SHIFT LEVER STUD
  • 44
    33317 PLUNGER, SHIFT LEVER - SOLENOID SWITCH
    PLUNGER, SHIFT LEVER - SOLENOID SWITCH
  • 45
    17-79207 PIN, PLUNGER TO SHIFT LEVER
    PIN, PLUNGER TO SHIFT LEVER
  • 46
    24-46889 SPRING, PLUNGER RETURN - SOLENOID SWITCH
    SPRING, PLUNGER RETURN - SOLENOID SWITCH
  • 47
    10-28713 SCREW, SOLENOID SWITCH TO DRIVE END HOUSING
    SCREW, SOLENOID SWITCH TO DRIVE END HOUSING
  • 47
    10-76621 SCREW, SOLENOID SWITCH TO DRIVE END HOUSING
    SCREW, SOLENOID SWITCH TO DRIVE END HOUSING
  • 48
    33261 SOLENOID SWITCH ASSEMBLY
    SOLENOID SWITCH ASSEMBLY
  • 48
    33261 SOLENOID SWITCH ASSEMBLY
    SOLENOID SWITCH ASSEMBLY
  • 49
    33261 CONTRACT AND PUSH ROD ASSEMBLY
    CONTRACT AND PUSH ROD ASSEMBLY
  • 50
    24-33265 SPRING, CONTRACT AND PUSH ROD TENSION
    SPRING, CONTRACT AND PUSH ROD TENSION
  • 51
    45537 COVER, SOLENOID SWITCH
    COVER, SOLENOID SWITCH
  • 52
    16-33304 STUD, RESISTOR TERMINAL (10-32)
    STUD, RESISTOR TERMINAL (10-32)
  • 53
    33305 CONTRACT, RESISTOR TERMINAL STUD
    CONTRACT, RESISTOR TERMINAL STUD
  • 54
    13-26996 LOCKWASHER, RESISTOR TERMINAL STUD (#10)
    LOCKWASHER, RESISTOR TERMINAL STUD (#10)
  • 55
    11-68219 NUT, RESISTOR TERMINAL STUD (10-32)
    NUT, RESISTOR TERMINAL STUD (10-32)
  • 56
    16-33299 STUD, MOTOR TERMINAL (3/8-16)
    STUD, MOTOR TERMINAL (3/8-16)
  • 57
    45537 STUD, BATTERY TERMINAL (3/8-16)
    STUD, BATTERY TERMINAL (3/8-16)
  • 58
    12-33289 WASHER, BATTERY AND MOTOR TERMINAL STUD (3/8")
    WASHER, BATTERY AND MOTOR TERMINAL STUD (3/8")
  • 59
    11-32219 NUT, BATTERY AND MOTOR TERMINAL STUD (3/8-16)
    NUT, BATTERY AND MOTOR TERMINAL STUD (3/8-16)
  • 60
    13-35048 LOCKWASHER, BATTERY TERMINAL STUD (3/8")
    LOCKWASHER, BATTERY TERMINAL STUD (3/8")
  • 61
    11-32219 NUT, BATTERY TERMINAL STUD (3/8-16)
    NUT, BATTERY TERMINAL STUD (3/8-16)
  • 62
    16-33262 STUD, SWITCH TERMINAL (8-32)
    STUD, SWITCH TERMINAL (8-32)
  • 63
    54-33307 CLIP, SWITCH TERMINAL STUD
    CLIP, SWITCH TERMINAL STUD
  • 64
    12-33279 WASHER, PLATIC - SWITCH TERMINAL STUD (#8)
    WASHER, PLATIC - SWITCH TERMINAL STUD (#8)
  • 65
    11-21923T NUT, SWITCH TERMINAL STUD (8-32)
    NUT, SWITCH TERMINAL STUD (8-32)
  • 66
    13-26995 LOCKWASHER, SWITCH TERMINAL STUD (#8)
    LOCKWASHER, SWITCH TERMINAL STUD (#8)
  • 67
    32248 SCREW, COVER TO SOLENOID SWITCH (7/16")
    SCREW, COVER TO SOLENOID SWITCH (7/16")
  • 68
    12-33279 WASHER, PLATIC - COVER SCREW
    WASHER, PLATIC - COVER SCREW
  • 69
    10-48266 SCREW, FIELD COIL LEAD TO SOLENOID SWITCH (7/16")
    SCREW, FIELD COIL LEAD TO SOLENOID SWITCH (7/16")
  • 69
    10-45546 SCREW, FIELD COIL LEAD TO SOLENOID SWITCH (1")
    SCREW, FIELD COIL LEAD TO SOLENOID SWITCH (1")
  • 70
    13-26995 LOCKWASHER, FIELD COIL LEAD SCREW
    LOCKWASHER, FIELD COIL LEAD SCREW
  • 71
    N.S.S. CONNECTOR, FIELD COIL LEAD SCREW (DELCO REMY #1963519)
    CONNECTOR, FIELD COIL LEAD SCREW (DELCO REMY #1963519)
