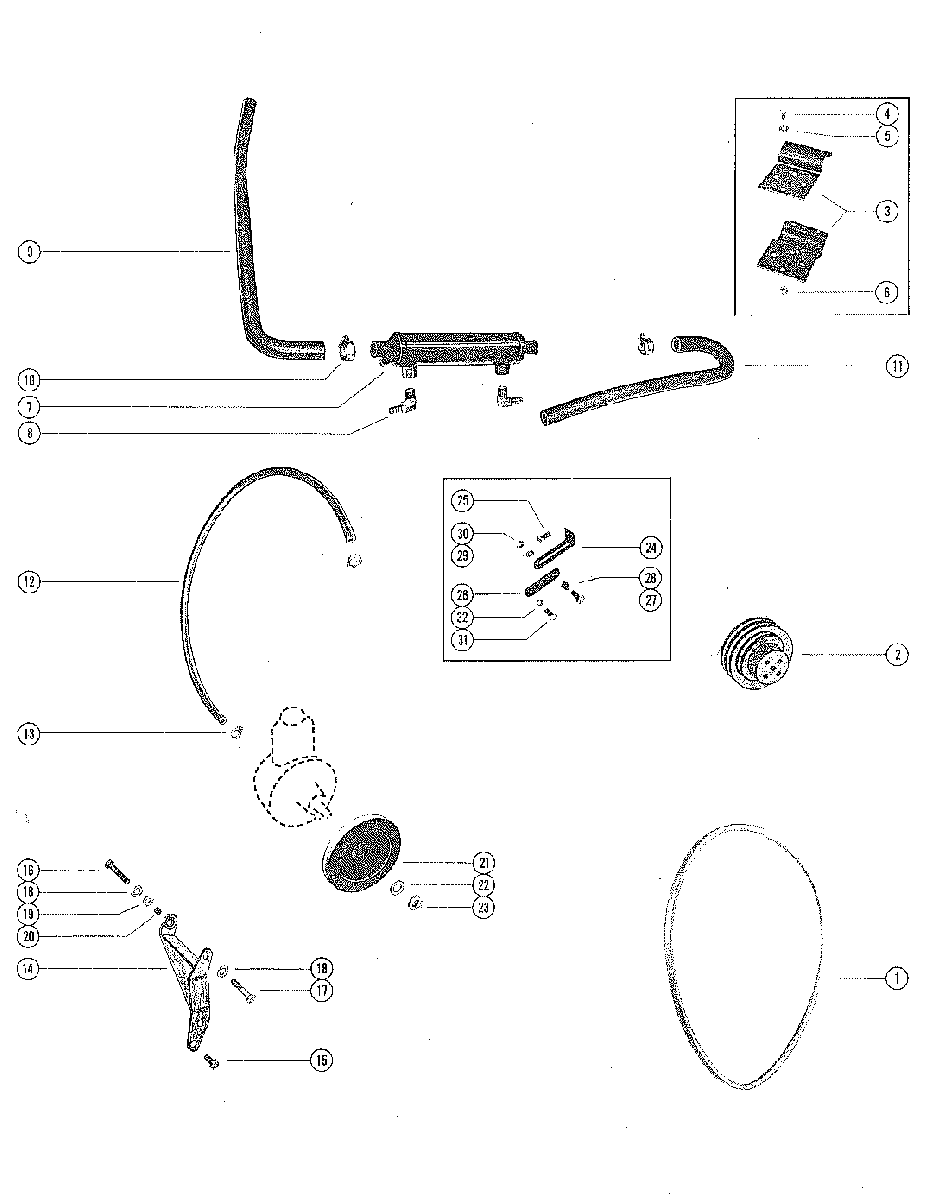

POWER STEERING MOUNTING KITS (MARINE 120, 140 AND 165) для Mercruiser - 140 GM 181 I/L4 1979-1982 5157669 THRU 6229717

  • №
    Артикул
    Название
  • -
    65515A2 POWER STEERING MOUNTING KIT SEE NOTE
    POWER STEERING MOUNTING KIT SEE NOTE
  • -
    65515A2 POWER STEERING MOUNTING KIT SEE NOTE
    POWER STEERING MOUNTING KIT SEE NOTE
  • 1
    57-65607Q "V" BELT, HYDRAULIC PUMP DRIVE (37")
    "V" BELT, HYDRAULIC PUMP DRIVE (37")
  • 1
    57-69143Q "V" BELT, HYDRAULIC PUMP DRIVE (40")
    "V" BELT, HYDRAULIC PUMP DRIVE (40")
  • 2
    73483T PULLEY, WATER CIRCULATING PUMP (1-3/4" PULLEY BOLT PATTERN)
    PULLEY, WATER CIRCULATING PUMP (1-3/4" PULLEY BOLT PATTERN)
  • 2
    73483T PULLEY, WATER CIRCULATING PUMP (2-1/8" PULLEY BOLT PATTERN)
    PULLEY, WATER CIRCULATING PUMP (2-1/8" PULLEY BOLT PATTERN)
  • 3
    56430 BRACKET, OIL COOLER
    BRACKET, OIL COOLER
  • 4
    10-35765A1 SCREW, COOLER MOUNTING (5/16-18 X 3/4") - 120 & 140
    SCREW, COOLER MOUNTING (5/16-18 X 3/4") - 120 & 140
  • 4
    10-60300 SCREW, COOLER MOUNTING (1/4-28 X 3/4") - 165
    SCREW, COOLER MOUNTING (1/4-28 X 3/4") - 165
  • 5
    13-26992 LOCKWASHER, OIL COOLER MOUNTING SCREW
    LOCKWASHER, OIL COOLER MOUNTING SCREW
  • 4
    10-35765A1 SCREW, OIL COOLER BRACKET (5/16-18 X 3/4")
    SCREW, OIL COOLER BRACKET (5/16-18 X 3/4")
  • 6
    11-26484 NUT, OIL COOLER BRACKET SCREW
    NUT, OIL COOLER BRACKET SCREW
  • 7
    49535 OIL COOLER
    OIL COOLER
  • 8
    22-37760 ELBOW, RETURN HOSE TO OIL COOLER
    ELBOW, RETURN HOSE TO OIL COOLER
  • 9
    32-49528 HOSE, OUTLET - ENGINE TO OIL COOLER (33")
    HOSE, OUTLET - ENGINE TO OIL COOLER (33")
  • 10
    54-815504412 CLAMP, INTAKE AND OUTLET HOSE TO OIL COOLER
    CLAMP, INTAKE AND OUTLET HOSE TO OIL COOLER
  • 11
    32-64909 HOSE, INTAKE - OIL COOLER TO TRANSOM PLATE (18")
    HOSE, INTAKE - OIL COOLER TO TRANSOM PLATE (18")
  • 12
    32-8M0062341 HOSE, RETURN - OIL COOLER TO HYDRAULIC PUMP (48")
    HOSE, RETURN - OIL COOLER TO HYDRAULIC PUMP (48")
  • 13
    54-815504206 CLAMP, RETURN HOSE TO OIL COOLER AND HYDRAULIC PUMP
    CLAMP, RETURN HOSE TO OIL COOLER AND HYDRAULIC PUMP
  • 14
    65606T BRACKET, MOUNTING - HYDRAULIC PUMP
    BRACKET, MOUNTING - HYDRAULIC PUMP
  • 15
    10-47688 SCREW, MOUNTING BRACKET TO ENGINE (3/8-16 X 2 3/4")
    SCREW, MOUNTING BRACKET TO ENGINE (3/8-16 X 2 3/4")
  • 16
    10-37612 SCREW, BRACKET TO HYDRAULIC PUMP (3/8-16 X 1 1/4")
    SCREW, BRACKET TO HYDRAULIC PUMP (3/8-16 X 1 1/4")
  • 17
    10-34353 SCREW, BRACKET TO HYDRAULIC PUMP (3/8-16 X 1")
    SCREW, BRACKET TO HYDRAULIC PUMP (3/8-16 X 1")
  • 18
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 19
    12-25909 WASHER, MOUNTING BRACKET SCREW
    WASHER, MOUNTING BRACKET SCREW
  • 20
    23-33186 SPACER, MOUNTING BRACKET SCREW (1/4")
    SPACER, MOUNTING BRACKET SCREW (1/4")
  • 21
    49181T PULLEY, HYDRAULIC PUMP
    PULLEY, HYDRAULIC PUMP
  • 22
    10-21907 WASHER, HYDRAULIC PUMP PULLEY
    WASHER, HYDRAULIC PUMP PULLEY
  • 23
    11-25899 NUT, PULLEY TO HYDRAULIC PUMP
    NUT, PULLEY TO HYDRAULIC PUMP
  • 24
    48786 BRACKET, MOUNTING - HYDRAULIC PUMP (90)
    BRACKET, MOUNTING - HYDRAULIC PUMP (90)
  • 25
    10-37612 SCREW, MOUNTING BRACKET TO ENGINE (3/8-16 X 1 1/4")
    SCREW, MOUNTING BRACKET TO ENGINE (3/8-16 X 1 1/4")
  • 26
    48787 BRACE, ADJUSTING - HYDRAULIC PUMP
    BRACE, ADJUSTING - HYDRAULIC PUMP
  • 27
    10-54689 SCREW, BRACKET TO ADJUSTING BRACE (3/8-24 X 1 3/4")
    SCREW, BRACKET TO ADJUSTING BRACE (3/8-24 X 1 3/4")
  • 28
    23-90523 BUSHING, MOUNTING BRACKET SCREW
    BUSHING, MOUNTING BRACKET SCREW
  • 29
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 30
    11-25269 NUT, MOUNTING BRACKET SCREW
    NUT, MOUNTING BRACKET SCREW
  • 31
    10-34353 SCREW, ADJ. BRACE TO HYDRAULIC PUMP (3/8-16 X 1")
    SCREW, ADJ. BRACE TO HYDRAULIC PUMP (3/8-16 X 1")
  • 32
    13-35048 LOCKWASHER, ADJUSTING BRACE SCREW
    LOCKWASHER, ADJUSTING BRACE SCREW
