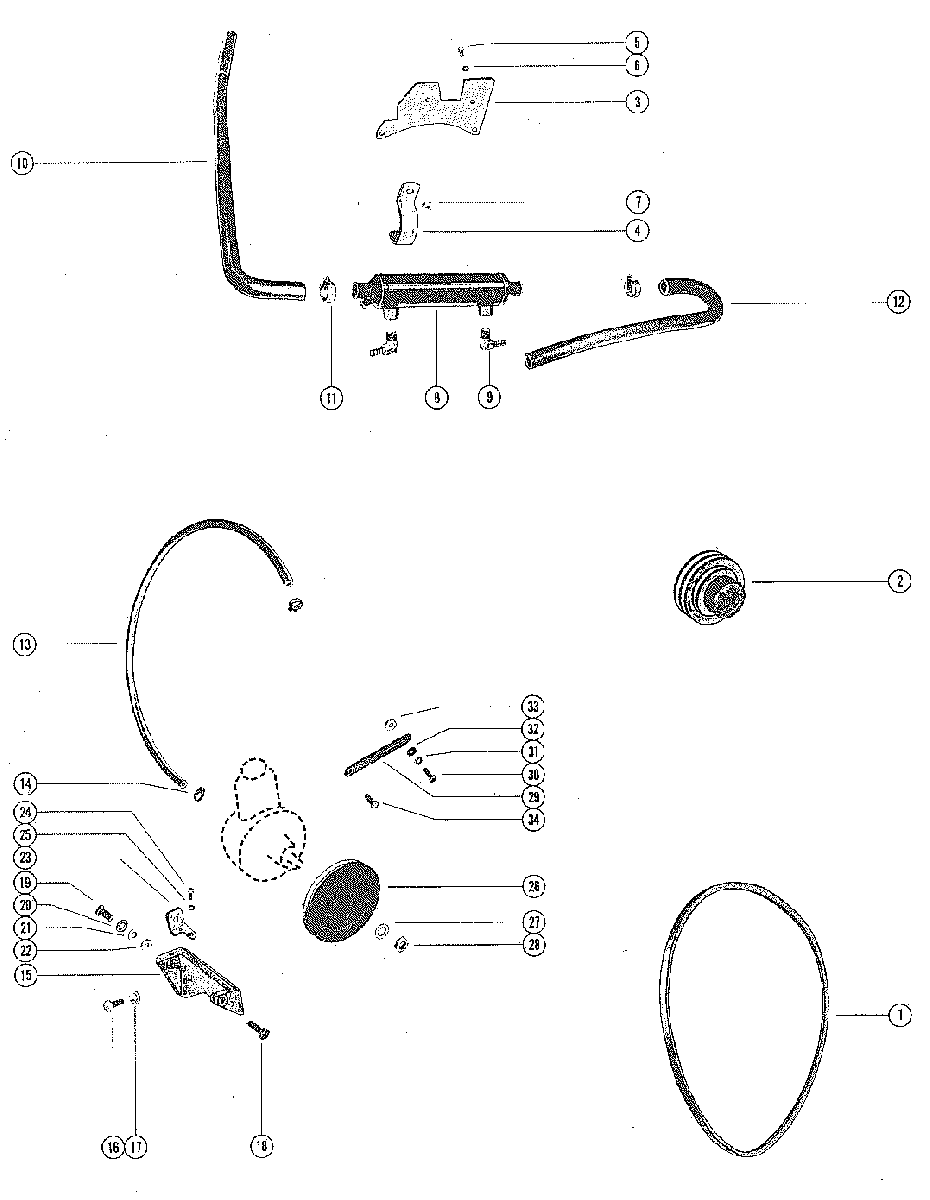

POWER STEERING MOUNTING KIT (MARINE 120, 140 AND 165) для Mercruiser - 140 GM 181 I/L4 1979-1982 5157669 THRU 6229717

  • №
    Артикул
    Название
  • -
    65897A2 POWER STEERING MOUNTING KIT SEE NOTE
    POWER STEERING MOUNTING KIT SEE NOTE
  • -
    65897A2 POWER STEERING MOUNTING KIT SEE NOTE
    POWER STEERING MOUNTING KIT SEE NOTE
  • 1
    57-68038 "V" BELT, HYDRAULIC PUMP DRIVE (34")
    "V" BELT, HYDRAULIC PUMP DRIVE (34")
  • 1
    57-69143Q "V" BELT, ALTERNATOR DRIVE (40")
    "V" BELT, ALTERNATOR DRIVE (40")
  • 2
    73483T PULLEY, WATER CIRCULATING PUMP (1-3/4" PULLEY BOLT PATTERN)
    PULLEY, WATER CIRCULATING PUMP (1-3/4" PULLEY BOLT PATTERN)
  • 2
    73483T PULLEY, WATER CIRCULATING PUMP (2-1/8" PULLEY BOLT PATTERN)
    PULLEY, WATER CIRCULATING PUMP (2-1/8" PULLEY BOLT PATTERN)
  • 3
    62253 BRACKET, OIL COOLER
    BRACKET, OIL COOLER
  • 4
    54-37631 CLAMP, OIL COOLER TO ENGINE
    CLAMP, OIL COOLER TO ENGINE
  • 5
    10-98261 SCREW, CLUMB FASTENING (3/8-16 X 3/4")
    SCREW, CLUMB FASTENING (3/8-16 X 3/4")
  • 6
    13-35048 LOCKWASHER, OIL COOLER CLAMP SCREW
    LOCKWASHER, OIL COOLER CLAMP SCREW
  • 7
    11-32219 NUT, OIL COOLER CLAMP SCREW
    NUT, OIL COOLER CLAMP SCREW
  • 8
    49535 OIL COOLER
    OIL COOLER
  • 9
    22-37760 ELBOW, RETURN HOSE TO OIL COOLER
    ELBOW, RETURN HOSE TO OIL COOLER
  • 10
    32-66348 HOSE, OUTLET - OIL COOLER TO HEAT EXCHANGER (26")
    HOSE, OUTLET - OIL COOLER TO HEAT EXCHANGER (26")
  • 11
    54-815504220 CLAMP, INTAKE AND OUTLET HOSE TO OIL COOLER
    CLAMP, INTAKE AND OUTLET HOSE TO OIL COOLER
  • 12
    32-64909 HOSE, INTAKE - OIL COOLER TO TRANSOM PLATE (22")
    HOSE, INTAKE - OIL COOLER TO TRANSOM PLATE (22")
  • 13
    32-8M0062341 HOSE, RETURN - OIL COOLER TO HYDRAULIC PUMP (48")
    HOSE, RETURN - OIL COOLER TO HYDRAULIC PUMP (48")
  • 14
    54-815504206 CLAMP, RETURN HOSE TO OIL COOLER AND HYDRAULIC PUMP
    CLAMP, RETURN HOSE TO OIL COOLER AND HYDRAULIC PUMP
  • 15
    68040 BRACKET, MOUNTING - HYDRAULIC PUMP
    BRACKET, MOUNTING - HYDRAULIC PUMP
  • 16
    10-34354 SCREW, MOUNTING BRACKET TO ENGINE (3/8-16 X 1 1/2")
    SCREW, MOUNTING BRACKET TO ENGINE (3/8-16 X 1 1/2")
  • 17
    13-35048 WASHER, MOUNTING BRACKET SCREW
    WASHER, MOUNTING BRACKET SCREW
  • 18
    10-34353 SCREW, BRACKET TO HYDRAULIC PUMP (3/8-16 X 1")
    SCREW, BRACKET TO HYDRAULIC PUMP (3/8-16 X 1")
  • 19
    10-34354 SCREW, BRACKET TO HYDRAULIC PUMP (3/8-16 X 1 1/2")
    SCREW, BRACKET TO HYDRAULIC PUMP (3/8-16 X 1 1/2")
  • 20
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 21
    12-20553 WASHER, MOUNTING BRACKET SCREW
    WASHER, MOUNTING BRACKET SCREW
  • 22
    23-90518 SPACER, MOUNTING BRACKET SCREW (1")
    SPACER, MOUNTING BRACKET SCREW (1")
  • 23
    68039 BRACKET, CIRCUIT BREAKER
    BRACKET, CIRCUIT BREAKER
  • 24
    10-98256 SCREW, BREAKER TO PUMP MOUNT (1/4-28 X 1/2")
    SCREW, BREAKER TO PUMP MOUNT (1/4-28 X 1/2")
  • 25
    13-26992 LOCKWASHER, CIRCUIT BREAKER SCREW
    LOCKWASHER, CIRCUIT BREAKER SCREW
  • 26
    49181T PULLEY, HYDRAULIC PUMP
    PULLEY, HYDRAULIC PUMP
  • 27
    12-21901 WASHER, HYDRAULIC PUMP PALLEY
    WASHER, HYDRAULIC PUMP PALLEY
  • 28
    11-25899 NUT, PULLEY TO HYDRAULIC PUMP
    NUT, PULLEY TO HYDRAULIC PUMP
  • 29
    90508 BRACE, TENSION - HYDRAULIC PUMP
    BRACE, TENSION - HYDRAULIC PUMP
  • 30
    10-37612 SCREW, BRACE TO HYDRAULIC PUMP (3/8-16 X 1 1/4")
    SCREW, BRACE TO HYDRAULIC PUMP (3/8-16 X 1 1/4")
  • 31
    13-35048 LOCKWASHER, TENSION BRACE SCREW
    LOCKWASHER, TENSION BRACE SCREW
  • 32
    12-20553 WASHER, MOUNTING BRACKET SCREW
    WASHER, MOUNTING BRACKET SCREW
  • 33
    23-90523 SPACER, TENSION BRACE SCREW (7/16")
    SPACER, TENSION BRACE SCREW (7/16")
  • 34
    10-63826 SCREW, BRACE TO ENGINE MOUNT (3/8-16 X 2 1/2")
    SCREW, BRACE TO ENGINE MOUNT (3/8-16 X 2 1/2")
