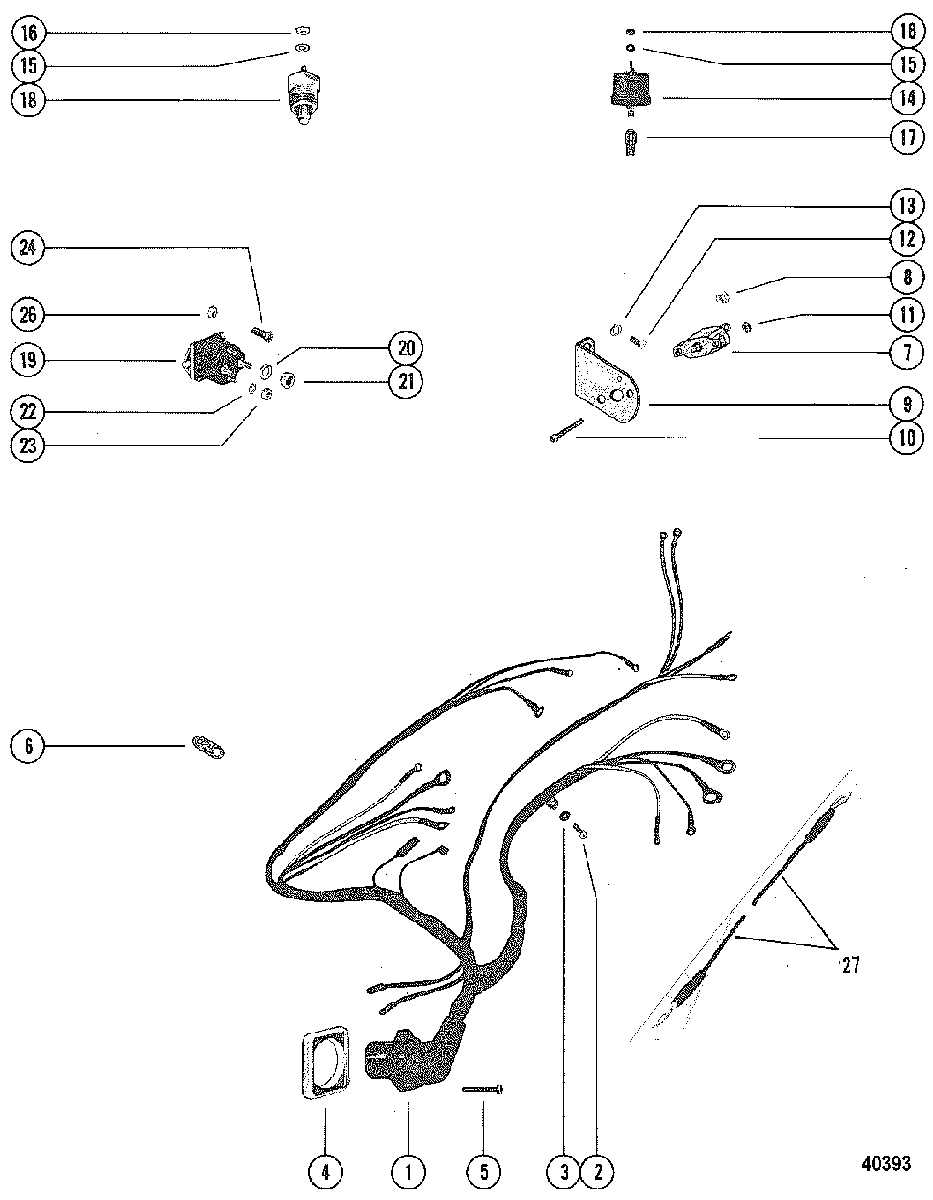

WIRING HARNESS, CIRCUIT BREAKER & STARTER SOLENOID для Mercruiser - 120 GM 153 I/L4 1979-1982 5192049 THRU 6229717

  • №
    Артикул
    Название
  • 1
    84-86673A2 HARNESS ASSEMBLY, EXTERNAL (USE WITH FUSE)
    HARNESS ASSEMBLY, EXTERNAL (USE WITH FUSE)
  • 1
    84-86673A2 HARNESS ASSEMBLY, EXTERNAL
    SN# 5811268 & Below
    HARNESS ASSEMBLY, EXTERNAL
    SN# 5811268 & Below
  • 1
    84-93179A1 HARNESS ASSEMBLY, EXTERNAL
    SN# 5811269 & Up
    HARNESS ASSEMBLY, EXTERNAL
    SN# 5811269 & Up
  • 2
    10-32228 SCREW, WIRING HARNESS ATTACHING
    USED WITH 84-66962A1
    SCREW, WIRING HARNESS ATTACHING
    USED WITH 84-66962A1
  • 3
    12-24676 WASHER, (.200 x .440 x .032), WIRING HARNESS ATTACHING SCREW
    USED WITH 84-66962A1
    WASHER, (.200 x .440 x .032), WIRING HARNESS ATTACHING SCREW
    USED WITH 84-66962A1
  • 4
    26079A2 PLATE, WIRING HARNESS TO FLYWHEEL HOUSING
    PLATE, WIRING HARNESS TO FLYWHEEL HOUSING
  • 5
    10-46718 SCREW, (#8-32 x 3/4), WIRING HARNESS PLATE TO FLYWHEEL HOUSING
    SCREW, (#8-32 x 3/4), WIRING HARNESS PLATE TO FLYWHEEL HOUSING
  • 6
    63770 TAB, HARNESS ATTACHING
    (USED WITH 84-66962A1)
    TAB, HARNESS ATTACHING
    (USED WITH 84-66962A1)
  • 7
    88-11178A01 BREAKER, Circuit
    BREAKER, Circuit
  • 8
    11-68219 NUT, (#10-32) Stainless Steel, HARNESS TO CIRCUIT BREAKER
    NUT, (#10-32) Stainless Steel, HARNESS TO CIRCUIT BREAKER
  • 9
    90923 BRACKET, CIRCUIT BREAKER
    SN# 5514733 & Below
    BRACKET, CIRCUIT BREAKER
    SN# 5514733 & Below
  • 9
    90923 BRACKET, CIRCUIT BREAKER
    SN# 5514734 & Up
    BRACKET, CIRCUIT BREAKER
    SN# 5514734 & Up
  • 10
    10-24637 SCREW, (#10-32 x .875), CIRCUIT BREAKER TO BRACKET
    SCREW, (#10-32 x .875), CIRCUIT BREAKER TO BRACKET
  • 11
    11-46438 NUT, (#10-32), CIRCUIT BREAKER SCREW
    NUT, (#10-32), CIRCUIT BREAKER SCREW
  • 12
    10-21077 SCREW, (.375-16 x .88), CIRCUIT BREAKER BRACKET TO ENGINE
    SCREW, (.375-16 x .88), CIRCUIT BREAKER BRACKET TO ENGINE
  • 13
    13-35048 LOCKWASHER, (3/8), CIRCUIT BREAKER BRACKET SCREW
    LOCKWASHER, (3/8), CIRCUIT BREAKER BRACKET SCREW
  • 14
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel, SENDER TERMINALS
    LOCKWASHER, (#10) Stainless Steel, SENDER TERMINALS
  • 16
    11-68219 NUT, (#10-32) Stainless Steel, SENDER TERMINALS
    NUT, (#10-32) Stainless Steel, SENDER TERMINALS
  • 17
    22-32974 FITTING, (.125-27) Adaptor, OIL PRESSURE SENDER
    FITTING, (.125-27) Adaptor, OIL PRESSURE SENDER
  • 18
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 19
    89-853654A1 SOLENOID, Starter
    SOLENOID, Starter
  • 20
    13-26993 LOCKWASHER, (.312), STARTER SOLENOID TERMINAL
    LOCKWASHER, (.312), STARTER SOLENOID TERMINAL
  • 21
    11-68292 NUT, (.312-18), STARTER SOLENOID TERMINAL
    NUT, (.312-18), STARTER SOLENOID TERMINAL
  • 22
    13-26996 LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TERMINAL
    LOCKWASHER, (#10) Stainless Steel, STARTER SOLENOID TERMINAL
  • 23
    11-68219 NUT, (#10-32) Stainless Steel, STARTER SOLENOID TERMINAL
    NUT, (#10-32) Stainless Steel, STARTER SOLENOID TERMINAL
  • 24
    10-69028 SCREW, (.250-28 x .750) Stainless Steel, STARTER SOLENOID MOUNTING
    SCREW, (.250-28 x .750) Stainless Steel, STARTER SOLENOID MOUNTING
  • 26
    11-826709109 NUT, STARTER SOLENOID SCREW
    NUT, STARTER SOLENOID SCREW
  • 27
    84-94227A2 RESISTOR WIRE KIT
    RESISTOR WIRE KIT
