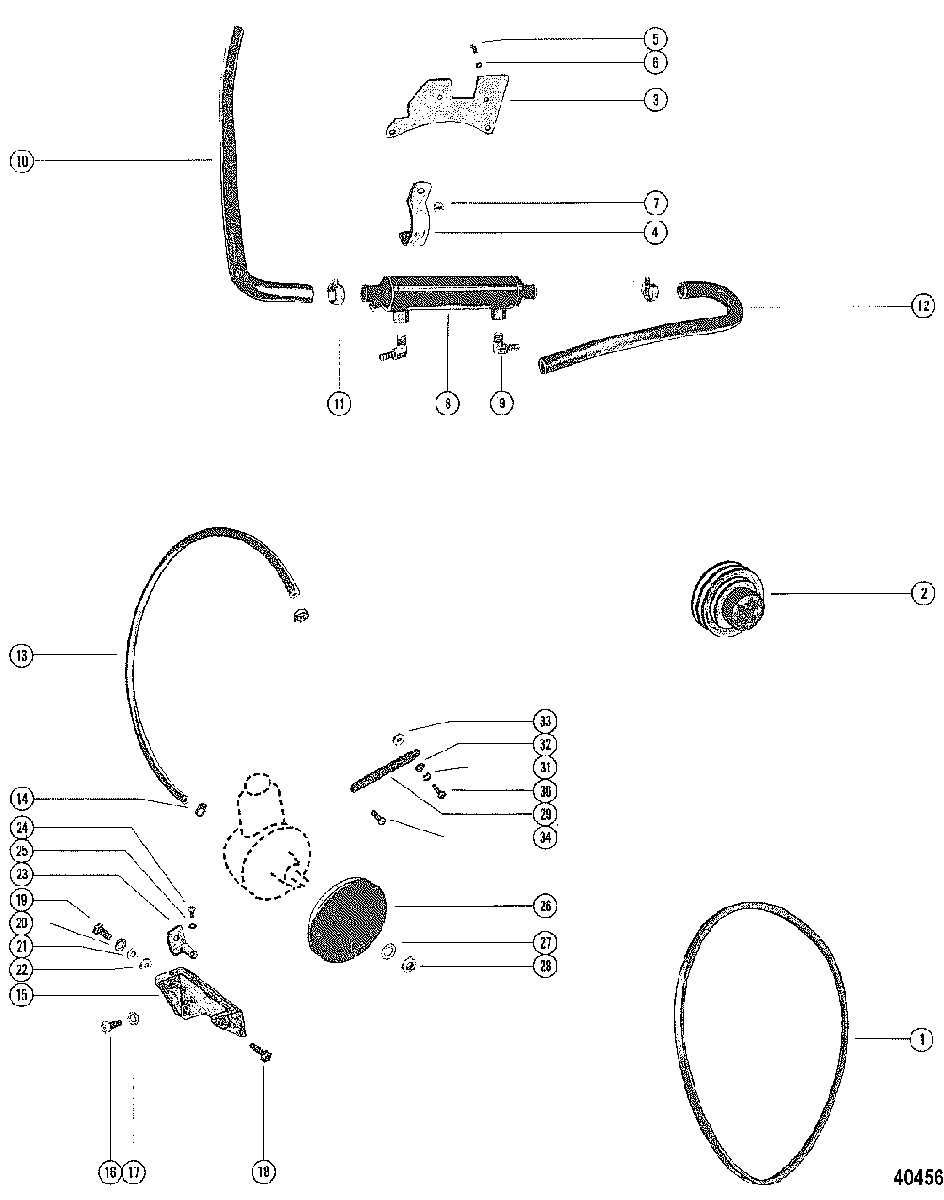

POWER STEERING MOUNTING, With Closed Cooling Kit для Mercruiser - 120 GM 153 I/L4 1979-1982 5192049 THRU 6229717

  • №
    Артикул
    Название
  • -
    65897A2 MOUNTING KIT, Power Steering
    (Marine 120,140 & 165 engines equipped with Closing Cooling Kit 61086A 2)
    MOUNTING KIT, Power Steering
    (Marine 120,140 & 165 engines equipped with Closing Cooling Kit 61086A 2)
  • -
    65897A2 MOUNTING KIT, Power Steering
    (Marine 120,140 & 165 engines equipped with Closing Cooling Kit 61086A 2)
    MOUNTING KIT, Power Steering
    (Marine 120,140 & 165 engines equipped with Closing Cooling Kit 61086A 2)
  • 1
    57-68038 V BELT, HYDRAULIC PUMP DRIVE (34")
    V BELT, HYDRAULIC PUMP DRIVE (34")
  • 1
    57-69143Q V BELT, ALTERNATOR DRIVE (40")
    V BELT, ALTERNATOR DRIVE (40")
  • 2
    73483T PULLEY, WATER CIRCULATING PUMP (1-3/4" PULLE BOLT PATTERN)
    PULLEY, WATER CIRCULATING PUMP (1-3/4" PULLE BOLT PATTERN)
  • 2
    73483T PULLEY, WATER CIRCULATING PUMP (2-1/8" PULLEY BOLT PATTERN)
    PULLEY, WATER CIRCULATING PUMP (2-1/8" PULLEY BOLT PATTERN)
  • 3
    62253 BRACKET, OIL COOLER
    BRACKET, OIL COOLER
  • 4
    54-37631 CLAMP, OIL COOLER TO ENGINE
    CLAMP, OIL COOLER TO ENGINE
  • 5
    10-98261 SCREW, (.375-16 x .75), CLAMP FASTENING
    SCREW, (.375-16 x .75), CLAMP FASTENING
  • 6
    13-35048 LOCKWASHER, (.375), OIL COOLER CLAMP SCREW
    LOCKWASHER, (.375), OIL COOLER CLAMP SCREW
  • 7
    11-32219 NUT, (.375-16), OIL COOLER CLAMP SCREW
    NUT, (.375-16), OIL COOLER CLAMP SCREW
  • 8
    49535 COOLER, Oil
    COOLER, Oil
  • 9
    22-37760 ELBOW, RETURN HOSE TO OIL COOLER
    ELBOW, RETURN HOSE TO OIL COOLER
  • 10
    32-66348 HOSE, OUTLET - OIL COOLER TO HEAT EXCHANGER (26")
    HOSE, OUTLET - OIL COOLER TO HEAT EXCHANGER (26")
  • 11
    54-815504220 CLAMP, INTAKE AND OUTLET HOSE TO OIL COOLER
    CLAMP, INTAKE AND OUTLET HOSE TO OIL COOLER
  • 12
    32-64909 HOSE, INTAKE - OIL COOLER TO TRANSOM PLATE (22")
    HOSE, INTAKE - OIL COOLER TO TRANSOM PLATE (22")
  • 13
    32-8M0062341 HOSE, RETURN - OIL COOLER TO HYDRAULIC PUMP (48")
    HOSE, RETURN - OIL COOLER TO HYDRAULIC PUMP (48")
  • 14
    54-815504206 CLAMP, RETURN HOSE TO OIL COOLER AND HYDRAULIC PUMP
    CLAMP, RETURN HOSE TO OIL COOLER AND HYDRAULIC PUMP
  • 15
    68040 BRACKET, MOUNTING - HYDRAULIC PUMP
    BRACKET, MOUNTING - HYDRAULIC PUMP
  • 16
    10-34354 SCREW, (.375-16 x 1.50), MOUNTING BRACKET TO ENGINE
    SCREW, (.375-16 x 1.50), MOUNTING BRACKET TO ENGINE
  • 17
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
  • 18
    10-34353 SCREW, (.375-16 x 1.00), BRACKET TO HYDRAULIC PUMP
    SCREW, (.375-16 x 1.00), BRACKET TO HYDRAULIC PUMP
  • 19
    10-34354 SCREW, (.375-16 x 1.50), BRACKET TO HYDRAULIC PUMP
    SCREW, (.375-16 x 1.50), BRACKET TO HYDRAULIC PUMP
  • 20
    13-35048 LOCKWASHER, (.375), MOUNTING BRACKET SCREW
    LOCKWASHER, (.375), MOUNTING BRACKET SCREW
  • 21
    12-20553 WASHER, MOUNTING BRACKET SCREW
    WASHER, MOUNTING BRACKET SCREW
  • 22
    23-90518 SPACER, MOUNTING BRACKET SCREW (1")
    SPACER, MOUNTING BRACKET SCREW (1")
  • 23
    68039 BRACKET, CIRCUIT BREAKER
    BRACKET, CIRCUIT BREAKER
  • 24
    10-98256 SCREW, (.250-28 x .50), BREAKER TO PUMP MOUNT
    SCREW, (.250-28 x .50), BREAKER TO PUMP MOUNT
  • 25
    13-26992 LOCKWASHER, (.250) Stainless Steel, CIRCUIT BREAKER SCREW
    LOCKWASHER, (.250) Stainless Steel, CIRCUIT BREAKER SCREW
  • 26
    49181T PULLEY, HYDRAULIC PUMP
    PULLEY, HYDRAULIC PUMP
  • 27
    12-21901 WASHER, HYDRAULIC PUMP PULLEY
    WASHER, HYDRAULIC PUMP PULLEY
  • 28
    11-25899 NUT, PULLEY TO HYDRAULIC PUMP
    NUT, PULLEY TO HYDRAULIC PUMP
  • 29
    90508 BRACE, TENSION - HYDRAULIC PUMP
    BRACE, TENSION - HYDRAULIC PUMP
  • 30
    10-37612 SCREW, (.375-16 x 1.250), BRACE TO HYDRAULIC PUMP
    SCREW, (.375-16 x 1.250), BRACE TO HYDRAULIC PUMP
  • 31
    13-35048 LOCKWASHER, (.375), TENSION BRACE SCREW
    LOCKWASHER, (.375), TENSION BRACE SCREW
  • 32
    12-20553 WASHER, MOUNTING BRACKET SCREW
    WASHER, MOUNTING BRACKET SCREW
  • 33
    23-90523 BUSHING, TENSION BRACE SCREW (7/16")
    BUSHING, TENSION BRACE SCREW (7/16")
  • 34
    10-63826 SCREW, (.375-16 x 2.50), BRACE TO ENGINE MOUNT
    SCREW, (.375-16 x 2.50), BRACE TO ENGINE MOUNT
  • -
    61086A4 COOLING ASSEMBLY
    COOLING ASSEMBLY
