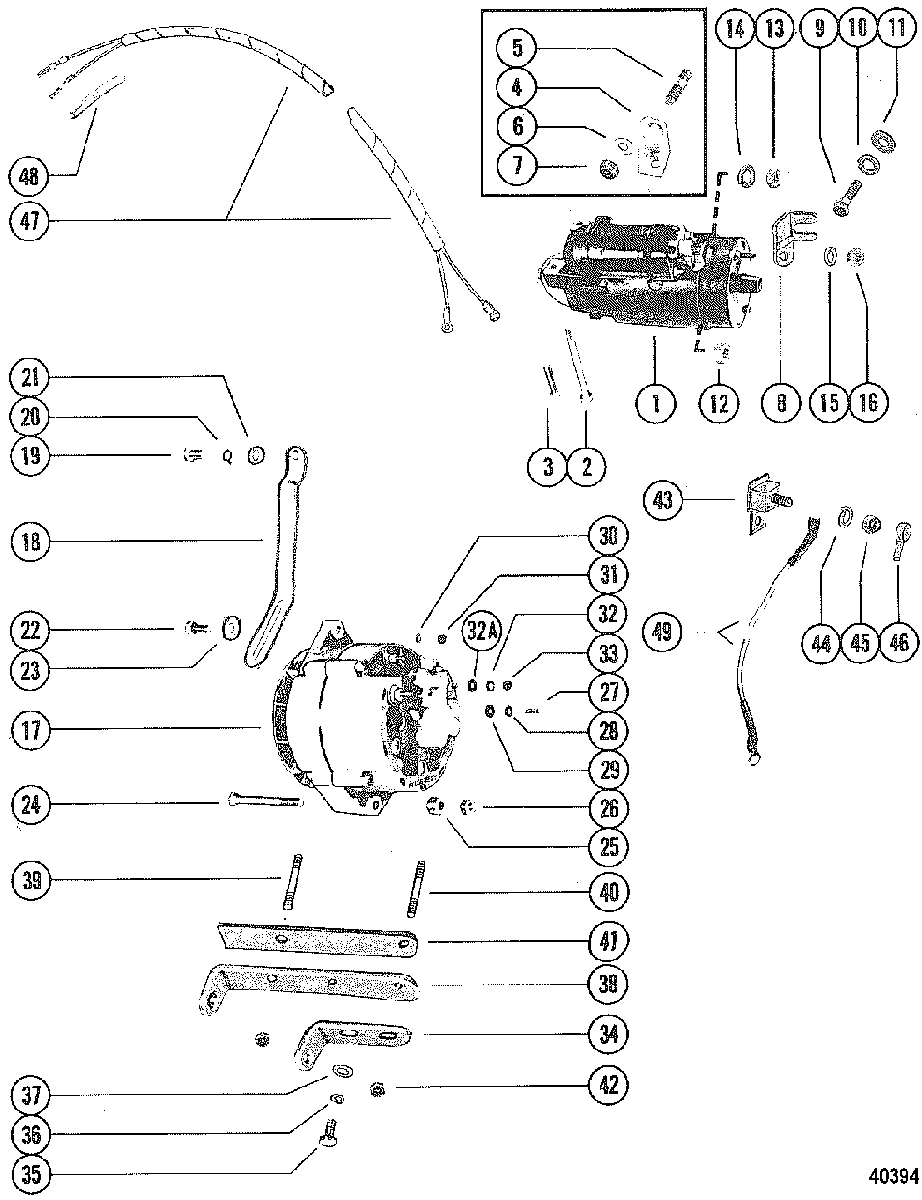

STARTER MOTOR AND ALTERNATOR для Mercruiser - 120 GM 153 I/L4 1979-1982 5192049 THRU 6229717

  • №
    Артикул
    Название
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY (DELCO REMY #1108756)
    STARTER MOTOR ASSEMBLY (DELCO REMY #1108756)
  • 1
    50-8M0090697 STARTER MOTOR ASSEMBLY (DELCO REMY #1109490)
    STARTER MOTOR ASSEMBLY (DELCO REMY #1109490)
  • 2
    10-94435001 BOLT, (.375-16 x 4.600)
    BOLT, (.375-16 x 4.600)
  • 3
    10-8053433 BOLT, (1 15/16)
    BOLT, (1 15/16)
  • 4
    54671T BRACE, STARTER MOTOR
    USED WITH 50-69863A1 STARTER MOTOR
    BRACE, STARTER MOTOR
    USED WITH 50-69863A1 STARTER MOTOR
  • 5
    16-52387 STUD, BRACE TO MOTOR AND CYLINDER BLOCK
    USED WITH 50-69863A1 STARTER MOTOR
    STUD, BRACE TO MOTOR AND CYLINDER BLOCK
    USED WITH 50-69863A1 STARTER MOTOR
  • 6
    12-26168 WASHER
    USED WITH 50-69863A1 STARTER MOTOR
    WASHER
    USED WITH 50-69863A1 STARTER MOTOR
  • 7
    11-82670911 NUT, (.312-24) Stainless Steel, BRACE STUD
    USED WITH 50-69863A1 STARTER MOTOR
    NUT, (.312-24) Stainless Steel, BRACE STUD
    USED WITH 50-69863A1 STARTER MOTOR
  • 8
    87300T BRACKET, STARTED MOTOR
    USED WITH 50-79821A2 STARTER MOTOR
    BRACKET, STARTED MOTOR
    USED WITH 50-79821A2 STARTER MOTOR
  • 9
    10-26487 SCREW, (.375-16 x 1.12), BRACKET TO CYLINDER BLOCK
    USED WITH 50-79821A2 STARTER MOTOR
    SCREW, (.375-16 x 1.12), BRACKET TO CYLINDER BLOCK
    USED WITH 50-79821A2 STARTER MOTOR
  • 10
    13-35048 LOCKWASHER, (.375), BRACKET SCREW
    USED WITH 50-79821A2 STARTER MOTOR
    LOCKWASHER, (.375), BRACKET SCREW
    USED WITH 50-79821A2 STARTER MOTOR
  • 11
    12-55149 WASHER, BRACKET SCREW
    USED WITH 50-79821A2 STARTER MOTOR
    WASHER, BRACKET SCREW
    USED WITH 50-79821A2 STARTER MOTOR
  • 12
    11-32219 NUT, (.375-16), SOLENOID SWITCH TERMINAL
    NUT, (.375-16), SOLENOID SWITCH TERMINAL
  • 12
    11-400214 NUT, (M10 x 1.5), SOLENOID SWITCH TERMINAL (METRIC)
    NUT, (M10 x 1.5), SOLENOID SWITCH TERMINAL (METRIC)
  • 13
    11-26419 NUT, (#8-32) Brass, SOLENOID SWITCH TERMINAL
    NUT, (#8-32) Brass, SOLENOID SWITCH TERMINAL
  • 14
    13-26995 LOCKWASHER, (#8) Stainless Steel, SOLENOID SWITCH TERMINAL
    LOCKWASHER, (#8) Stainless Steel, SOLENOID SWITCH TERMINAL
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel, STARTER MOTOR TERMINAL
    USED WITH 50-69863A1 STARTER MOTOR
    LOCKWASHER, (#10) Stainless Steel, STARTER MOTOR TERMINAL
    USED WITH 50-69863A1 STARTER MOTOR
  • 15
    12-27985 WASHER, (1/4 Inch), STARTER MOTOR TERMINAL
    USE WITH 50-79821A2 STARTER MOTOR
    WASHER, (1/4 Inch), STARTER MOTOR TERMINAL
    USE WITH 50-79821A2 STARTER MOTOR
  • 16
    11-68219 NUT, (#10-32) Stainless Steel, STARTER MOTOR TERMINAL
    USED WITH 50-69863A1 STARTER MOTOR
    NUT, (#10-32) Stainless Steel, STARTER MOTOR TERMINAL
    USED WITH 50-69863A1 STARTER MOTOR
  • 16
    11-29031 NUT, (1/4-20), STARTER MOTOR TERMINAL
    USE WITH 50-79821A2 STARTER MOTOR
    NUT, (1/4-20), STARTER MOTOR TERMINAL
    USE WITH 50-79821A2 STARTER MOTOR
  • 17
    78403A2 ALTERNATOR ASSEMBLY
    ALTERNATOR ASSEMBLY
  • 18
    32754T BRACE, ALTERNATOR TO CYLINDER BLOCK (FRONT)
    BRACE, ALTERNATOR TO CYLINDER BLOCK (FRONT)
  • 19
    10-98261 SCREW, (.375-16 x .75), ALTERNATOR BRACE TO CYLINDER BLOCK
    SCREW, (.375-16 x .75), ALTERNATOR BRACE TO CYLINDER BLOCK
  • 20
    13-35048 LOCKWASHER, (3/8), ALTERATOR BRACE SCREW
    LOCKWASHER, (3/8), ALTERATOR BRACE SCREW
  • 21
    12-20553 WASHER, (.406 x .734 x .063), ALTERNATOR BRACE SCREW
    WASHER, (.406 x .734 x .063), ALTERNATOR BRACE SCREW
  • 22
    10-30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00), ALTERNATOR BRACE TO ALTERNATOR
    SCREW WITH LOCKWASHER, (.312-18 x 1.00), ALTERNATOR BRACE TO ALTERNATOR
  • 23
    12-26168 WASHER, ALTERNATOR BRACE SCREW
    WASHER, ALTERNATOR BRACE SCREW
  • 24
    10-48308 SCREW, (3.75), ALTERNATOR TO BRACKET (3 3/4")
    SCREW, (3.75), ALTERNATOR TO BRACKET (3 3/4")
  • 25
    23-45353 SPACER, ALTERNATOR SCREW
    SPACER, ALTERNATOR SCREW
  • 26
    11-23161 NUT, (.375-24), ALBERNATOR SCREW
    NUT, (.375-24), ALBERNATOR SCREW
  • 27
    10-20055 SCREW, (#10-32 x .375), LEAD TO ALTERNATOR TERMINAL
    SCREW, (#10-32 x .375), LEAD TO ALTERNATOR TERMINAL
  • 28
    13-26996 LOCKWASHER, (#10) Stainless Steel, ALTERNATOR TERMINAL
    LOCKWASHER, (#10) Stainless Steel, ALTERNATOR TERMINAL
  • 29
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, ALTERNATOR GROUND TERMINAL
    WASHER, (.192 x .375 x .0312) Stainless Steel, ALTERNATOR GROUND TERMINAL
  • 30
    12-20553 WASHER, (.406 x .734 x .063), ALTERNATOR GROUND TERMINAL
    WASHER, (.406 x .734 x .063), ALTERNATOR GROUND TERMINAL
  • 31
    11-32219 NUT, (.375-16), ALTERNATOR GROUND TERMINAL
    NUT, (.375-16), ALTERNATOR GROUND TERMINAL
  • 32
    13-26992 LOCKWASHER, (.250) Stainless Steel, ALTERNATOR STUD
    LOCKWASHER, (.250) Stainless Steel, ALTERNATOR STUD
  • 32A
    12-96457 WASHER, Phenolic (.27 x .81 x .062), BOOT ATTACHING
    WASHER, Phenolic (.27 x .81 x .062), BOOT ATTACHING
  • 33
    11-20890 NUT, (.250-20), HARNESS TO ALTERNATOR STUD
    NUT, (.250-20), HARNESS TO ALTERNATOR STUD
  • 34
    52817 BRACKET, ALTERNATOR MOUNTING
    BRACKET, ALTERNATOR MOUNTING
  • 35
    10-33524 SCREW, (.312-24 x .620), ALTERNATOR BRACKET TO CYLINDER BLOCK
    SCREW, (.312-24 x .620), ALTERNATOR BRACKET TO CYLINDER BLOCK
  • 36
    13-26993 LOCKWASHER, (.312), ALTERNATOR MOUNTING BRACKET SCREW
    LOCKWASHER, (.312), ALTERNATOR MOUNTING BRACKET SCREW
  • 37
    12-26825 WASHER, (.328 x .750 x .06), ALTERNATOR MOUNTING BRACKET SCREW
    WASHER, (.328 x .750 x .06), ALTERNATOR MOUNTING BRACKET SCREW
  • 38
    52818 BRACKET, ALTERNATOR MOUNTING
    BRACKET, ALTERNATOR MOUNTING
  • 39
    16-54177 STUD, (1 3/8), MOUNTING BRACKET TO CYLINDER BLOCK (1 3/8")
    STUD, (1 3/8), MOUNTING BRACKET TO CYLINDER BLOCK (1 3/8")
  • 40
    16-54176 STUD, (1 5/8), MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8")
    STUD, (1 5/8), MOUNTING BRACKET TO CYLINDER BLOCK (1 5/8")
  • 41
    27-53502 GASKET, ALTERNATOR MOUNTING BRACKET
    GASKET, ALTERNATOR MOUNTING BRACKET
  • 42
    11-23161 NUT, (.375-24), MOUNTING BRACKET STUD
    NUT, (.375-24), MOUNTING BRACKET STUD
  • 43
    88-79023T90 FUSE ASSEMBLY, 90 Ampere
    USE WITH 84-66962A1 WIRING HARNESS
    FUSE ASSEMBLY, 90 Ampere
    USE WITH 84-66962A1 WIRING HARNESS
  • 44
    13-26992 LOCKWASHER, (.250) Stainless Steel, FUSE STUD
    USE WITH 84-66962A1 WIRING HARNESS
    LOCKWASHER, (.250) Stainless Steel, FUSE STUD
    USE WITH 84-66962A1 WIRING HARNESS
  • 45
    11-21825 NUT, (.250-28), FUSE STUD
    USE WITH 84-66962A1 WIRING HARNESS
    NUT, (.250-28), FUSE STUD
    USE WITH 84-66962A1 WIRING HARNESS
  • 46
    85-79695T BOOT, Insulator - Black, FUSE STUD
    USE WITH 84-66962A1 WIRING HARNESS
    BOOT, Insulator - Black, FUSE STUD
    USE WITH 84-66962A1 WIRING HARNESS
  • 47
    84-78581A1 HARNESS ASSEMBLY, ALTERNATOR
    USE WITH 84-66962A1 WIRING HARNESS
    HARNESS ASSEMBLY, ALTERNATOR
    USE WITH 84-66962A1 WIRING HARNESS
  • 48
    5790811 SLEEVE, WIRING HARNESS
    USE WITH 84-66962A1 WIRING HARNESS
    SLEEVE, WIRING HARNESS
    USE WITH 84-66962A1 WIRING HARNESS
  • 49
    84-79139A5 WIRE ASSEMBLY, Jumper, 90 AMP FUSE TO CIRCUIT BREAKER
    USE WITH 84-66962A1 WIRING HARNESS
    WIRE ASSEMBLY, Jumper, 90 AMP FUSE TO CIRCUIT BREAKER
    USE WITH 84-66962A1 WIRING HARNESS
