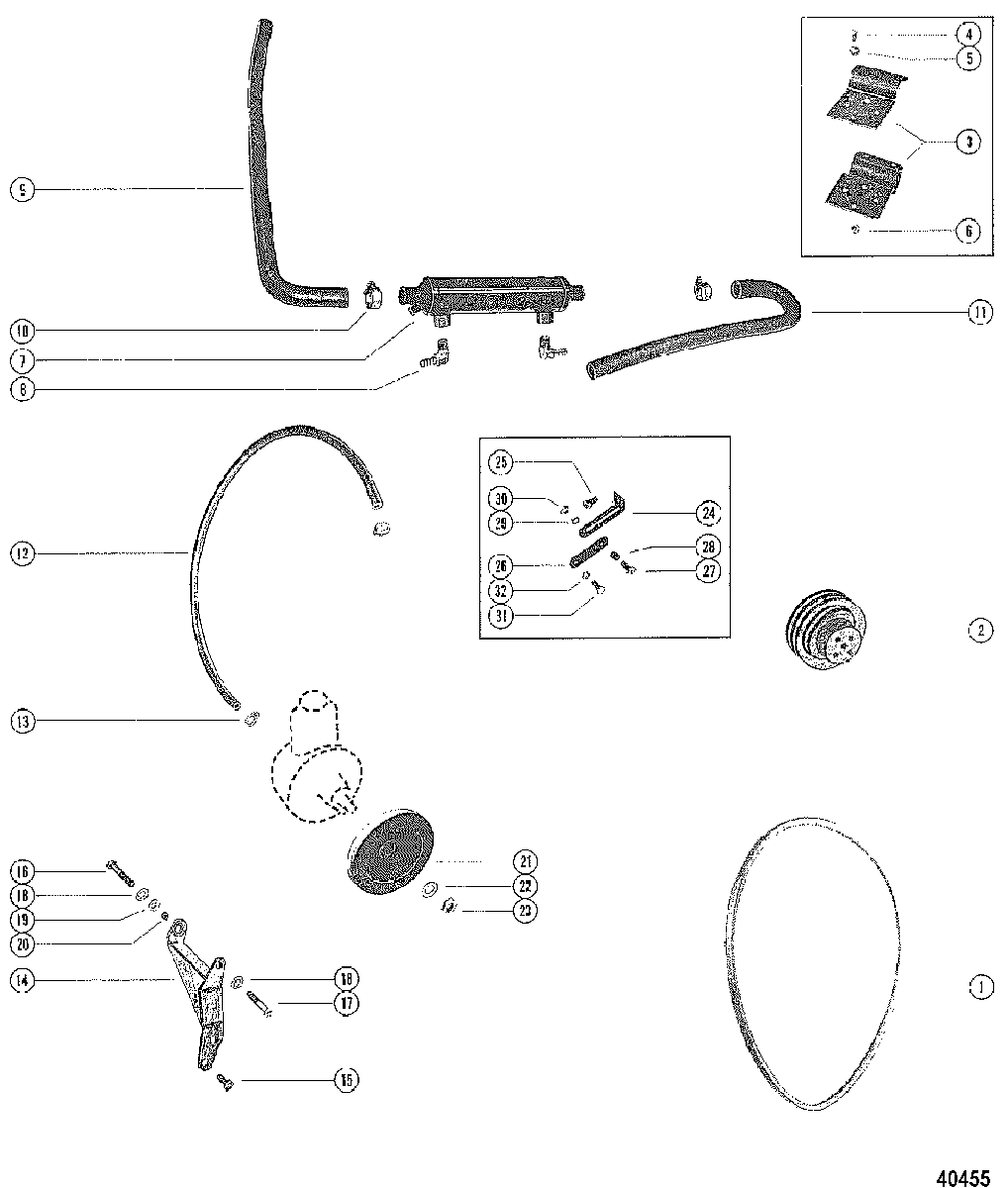

POWER STEERING MOUNTING, Without Closed Cooling для Mercruiser - 120 GM 153 I/L4 1979-1982 5192049 THRU 6229717

  • №
    Артикул
    Название
  • -
    65515A2 MOUNTING KIT, Power Steering
    (Marine 120, 140 & 165 engines not equipped with Closed Cooling Kit.)
    MOUNTING KIT, Power Steering
    (Marine 120, 140 & 165 engines not equipped with Closed Cooling Kit.)
  • -
    65515A2 MOUNTING KIT, Power Steering
    (Marine 120, 140 & 165 engines not equipped with Closed Cooling Kit.)
    MOUNTING KIT, Power Steering
    (Marine 120, 140 & 165 engines not equipped with Closed Cooling Kit.)
  • 1
    57-65607Q V BELT, HYDRAULIC PUMP DRIVE (37")
    V BELT, HYDRAULIC PUMP DRIVE (37")
  • 1
    57-69143Q V BELT, HYDRAULIC PUMP DRIVE (40")
    V BELT, HYDRAULIC PUMP DRIVE (40")
  • 2
    73483T PULLEY, WATER CIRCULATING PUMP (1-3/4" PULLEY BOLT PATTERN)
    PULLEY, WATER CIRCULATING PUMP (1-3/4" PULLEY BOLT PATTERN)
  • 2
    73483T PULLEY, WATER CIRCULATING PUMP (2-1/8" PULLEY BOLT PATTERN)
    PULLEY, WATER CIRCULATING PUMP (2-1/8" PULLEY BOLT PATTERN)
  • 3
    56430 BRACKET, OIL COOLER
    BRACKET, OIL COOLER
  • 4
    10-35765A1 SCREW, (5/8), COOLER MOUNTING
    120 & 140
    SCREW, (5/8), COOLER MOUNTING
    120 & 140
  • 4
    10-60300 SCREW, (.250-28 x .750), COOLER MOUNTING
    165
    SCREW, (.250-28 x .750), COOLER MOUNTING
    165
  • 5
    13-26992 LOCKWASHER, (.250) Stainless Steel, OIL COOLER MOUNTING SCREW
    LOCKWASHER, (.250) Stainless Steel, OIL COOLER MOUNTING SCREW
  • 4
    10-35765A1 SCREW, (5/8), OIL COOLER BRACKET
    SCREW, (5/8), OIL COOLER BRACKET
  • 6
    11-26484 NUT, (.312-18), OIL COOLER BRACKET SCREW
    NUT, (.312-18), OIL COOLER BRACKET SCREW
  • 7
    49535 COOLER, Oil
    COOLER, Oil
  • 8
    22-37760 ELBOW, RETURN HOSE TO OIL COOLER
    ELBOW, RETURN HOSE TO OIL COOLER
  • 9
    32-49528 HOSE, OUTLET - ENGINE TO OIL COOLER (33")
    HOSE, OUTLET - ENGINE TO OIL COOLER (33")
  • 10
    54-815504412 CLAMP, INTAKE AND OUTLET HOSE TO OIL COOLER
    CLAMP, INTAKE AND OUTLET HOSE TO OIL COOLER
  • 11
    32-64909 HOSE, INTAKE - OIL COOLER TO TRANSOM PLATE (18")
    HOSE, INTAKE - OIL COOLER TO TRANSOM PLATE (18")
  • 12
    32-8M0062341 HOSE, RETURN - OIL COOLER TO HYDRAULIC PUMP (48")
    HOSE, RETURN - OIL COOLER TO HYDRAULIC PUMP (48")
  • 13
    54-815504206 CLAMP, RETURN HOSE TO OIL COOLER AND HYDRAULIC PUMP
    CLAMP, RETURN HOSE TO OIL COOLER AND HYDRAULIC PUMP
  • 14
    65606T BRACKET, MOUNTING - HYDRAULIC PUMP
    BRACKET, MOUNTING - HYDRAULIC PUMP
  • 15
    10-47688 SCREW, (.375-16 x 2.750), MOUNTING BRACKET TO ENGINE
    SCREW, (.375-16 x 2.750), MOUNTING BRACKET TO ENGINE
  • 16
    10-37612 SCREW, (.375-16 x 1.250), BRACKET TO HYDRAULIC PUMP
    SCREW, (.375-16 x 1.250), BRACKET TO HYDRAULIC PUMP
  • 17
    10-34353 SCREW, (.375-16 x 1.00), BRACKET TO HYDRAULIC PUMP
    SCREW, (.375-16 x 1.00), BRACKET TO HYDRAULIC PUMP
  • 18
    13-35048 LOCKWASHER, (3/8), MOUNTING BRACKET SCREW
    LOCKWASHER, (3/8), MOUNTING BRACKET SCREW
  • 19
    12-25909 WASHER, (.406 x .812 x .065), MOUNTING BRACKET SCREW
    WASHER, (.406 x .812 x .065), MOUNTING BRACKET SCREW
  • 20
    23-33186 BUSHING, MOUNTING BRACKET SCREW (1/4")
    BUSHING, MOUNTING BRACKET SCREW (1/4")
  • 21
    49181T PULLEY, HYDRAULIC PUMP
    PULLEY, HYDRAULIC PUMP
  • 22
    10-21907 WASHER, HYDRAULIC PUMP PULLEY
    WASHER, HYDRAULIC PUMP PULLEY
  • 23
    11-25899 NUT, PULLEY TO HYDRAULIC PUMP
    NUT, PULLEY TO HYDRAULIC PUMP
  • 24
    48786 BRACKET, MOUNTING - HYDRAULIC PUMP (90)
    BRACKET, MOUNTING - HYDRAULIC PUMP (90)
  • 25
    10-37612 SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
    SCREW, (.375-16 x 1.250), MOUNTING BRACKET TO ENGINE
  • 26
    48787 BRACE, ADJUSTING - HYDRAULIC PUMP
    BRACE, ADJUSTING - HYDRAULIC PUMP
  • 27
    10-54689 SCREW, BRACKET TO ADJUSTING BRACE (3/8-24 X 1 3/4")
    SCREW, BRACKET TO ADJUSTING BRACE (3/8-24 X 1 3/4")
  • 28
    23-90523 BUSHING, MOUNTING BRACKET SCREW
    BUSHING, MOUNTING BRACKET SCREW
  • 29
    13-35048 LOCKWASHER, (3/8), MOUNTING BRACKET SCREW
    LOCKWASHER, (3/8), MOUNTING BRACKET SCREW
  • 30
    11-25269 NUT, (.375-24), MOUNTING BRACKET SCREW
    NUT, (.375-24), MOUNTING BRACKET SCREW
  • 31
    10-34353 SCREW, (.375-16 x 1.00), ADJ. BRACE TO HYDRAULIC PUMP
    SCREW, (.375-16 x 1.00), ADJ. BRACE TO HYDRAULIC PUMP
  • 32
    13-35048 LOCKWASHER, (3/8), ADJUSTING BRACE SCREW
    LOCKWASHER, (3/8), ADJUSTING BRACE SCREW
