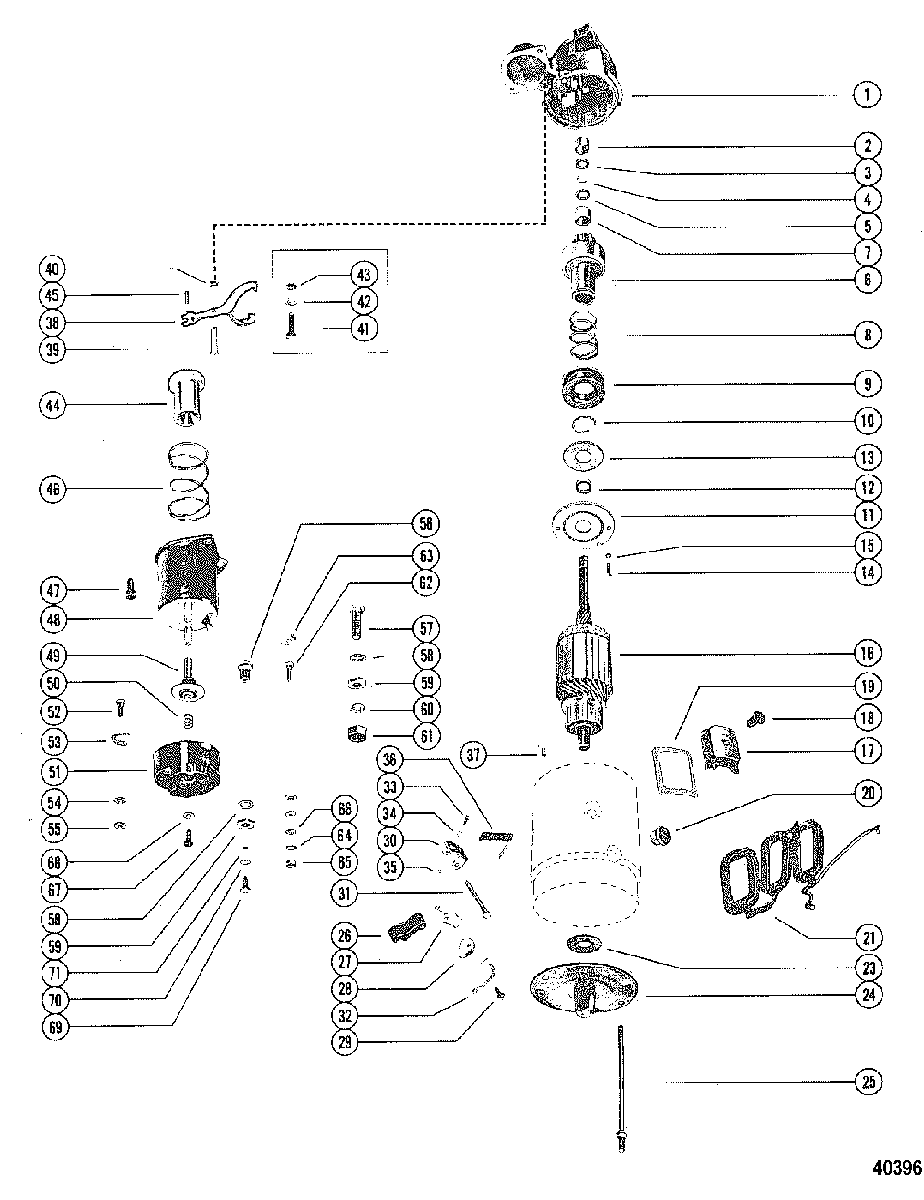

STARTER MOTOR ASSEMBLY(DELCO REMY 1109484/85/88/90) для Mercruiser - 120 GM 153 I/L4 1979-1982 5192049 THRU 6229717

  • №
    Артикул
    Название
  • -
    50-808011A05 STARTER MOTOR ASSEMBLY, Complete
    (DELCO REMY #1109485)
    STARTER MOTOR ASSEMBLY, Complete
    (DELCO REMY #1109485)
  • -
    50-97499R3 STARTER MOTOR ASSEMBLY, Complete
    (DELCO REMY #1109484)
    STARTER MOTOR ASSEMBLY, Complete
    (DELCO REMY #1109484)
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY, Complete
    (DELCO REMY #1109488)
    STARTER MOTOR ASSEMBLY, Complete
    (DELCO REMY #1109488)
  • -
    50-8M0090697 STARTER MOTOR ASSEMBLY, Complete
    (DELCO REMY #1109490)
    STARTER MOTOR ASSEMBLY, Complete
    (DELCO REMY #1109490)
  • 1
    79206 HOUSING ASSEMBLY, Drive End
    (50- 76965A 3 & 50- 79604A 3)
    HOUSING ASSEMBLY, Drive End
    (50- 76965A 3 & 50- 79604A 3)
  • 1
    71696 HOUSING, DRIVE END
    (50- 79822A 2 & 50- 79821A 2)
    HOUSING, DRIVE END
    (50- 79822A 2 & 50- 79821A 2)
  • 2
    23-33369 BUSHING, DRIVE END HOUSING
    BUSHING, DRIVE END HOUSING
  • 3
    23-809457 COLLAR, THRUST - DRIVE END HOUSING
    COLLAR, THRUST - DRIVE END HOUSING
  • 4
    53-33290 RING, Retaining, PINION STOP COLLAR
    RING, Retaining, PINION STOP COLLAR
  • 5
    33291 COLLAR, PINION STOP - DRIVE END HOUSING
    COLLAR, PINION STOP - DRIVE END HOUSING
  • 6
    68608 DRIVE ASSEMBLY, CLUTCH - ARMATURE
    (50- 76965A 3)
    DRIVE ASSEMBLY, CLUTCH - ARMATURE
    (50- 76965A 3)
  • 6
    68609 DRIVE ASSEMBLY, CLUTCH - ARMATURE
    (50- 79604A 3)
    DRIVE ASSEMBLY, CLUTCH - ARMATURE
    (50- 79604A 3)
  • 6
    79205T DRIVE ASSEMBLY, CLUTCH - ARMATURE
    (50- 79822A 2 & 50- 79821A 2)
    DRIVE ASSEMBLY, CLUTCH - ARMATURE
    (50- 79822A 2 & 50- 79821A 2)
  • 7
    23-33369 BUSHING, GEAR END - CLUTCH DRIVE (1 9/16")
    BUSHING, GEAR END - CLUTCH DRIVE (1 9/16")
  • 8
    24-33368 SPRING, CLUTCH DRIVE
    SPRING, CLUTCH DRIVE
  • 9
    N.S.S. Not Sold Separate, COLLAR, Clutch Drive
    (DELCO REMY #1904443)
    Not Sold Separate, COLLAR, Clutch Drive
    (DELCO REMY #1904443)
  • 10
    33367 LOCKWIRE, COLLAR AND SPRING RETAINING
    LOCKWIRE, COLLAR AND SPRING RETAINING
  • 11
    79396 PLATE, BEARING
    (50- 76965A 3 & 50- 79604A 3)
    PLATE, BEARING
    (50- 76965A 3 & 50- 79604A 3)
  • 11
    N.S.S. Not Sold Separate, PLATE, Bearing
    (50- 79822A 2 & 50- 79821A 2) (DELCO REMY #1956939)
    Not Sold Separate, PLATE, Bearing
    (50- 79822A 2 & 50- 79821A 2) (DELCO REMY #1956939)
  • 12
    23-71694 BUSHING, BEARING PLATE
    BUSHING, BEARING PLATE
  • 13
    12-68614 WASHER, BEARING PLATE
    WASHER, BEARING PLATE
  • 14
    10-75659 SCREW, BEARING PLATE ATTACHING
    (50- 76965A 3 & 50- 79604A 3)
    SCREW, BEARING PLATE ATTACHING
    (50- 76965A 3 & 50- 79604A 3)
  • 14
    10-79209 SCREW, BEARING PLATE ATTACHING
    (50- 79822A 2 & 50- 79821A 2)
    SCREW, BEARING PLATE ATTACHING
    (50- 79822A 2 & 50- 79821A 2)
  • 15
    13-26996 LOCKWASHER, (#10) Stainless Steel, BEARING PLATE SCREW
    LOCKWASHER, (#10) Stainless Steel, BEARING PLATE SCREW
  • 16
    75665 ARMATURE
    (50- 79822A 2)
    ARMATURE
    (50- 79822A 2)
  • 16
    68606 ARMATURE
    (50- 76965A 3)
    ARMATURE
    (50- 76965A 3)
  • 16
    68607 ARMATURE
    (50- 79604A 3)
    ARMATURE
    (50- 79604A 3)
  • 16
    71693 ARMATURE
    (50- 79821A 2)
    ARMATURE
    (50- 79821A 2)
  • 17
    N.S.S. Not Sold Separate, SHOE, Pole -FIeld Coil
    (DELCO REMY #810601)
    Not Sold Separate, SHOE, Pole -FIeld Coil
    (DELCO REMY #810601)
  • 17
    N.S.S. Not Sold Separate, SHOE, Pole -FIeld Coil
    (DELCO REMY #1931129) ( 50- 79821A 2)
    Not Sold Separate, SHOE, Pole -FIeld Coil
    (DELCO REMY #1931129) ( 50- 79821A 2)
  • 18
    N.S.S. Not Sold Separate, SCREW, Pole Shoe to Field Coil
    (DELC O REMY #1968396)
    Not Sold Separate, SCREW, Pole Shoe to Field Coil
    (DELC O REMY #1968396)
  • 19
    33293 INSULATION, FIELD COIL
    ( 50- 79821A 2)
    INSULATION, FIELD COIL
    ( 50- 79821A 2)
  • 20
    25-68619 GROMMET, FIELD COIL - FIELD FRAME
    (All except 50- 79821A 2)
    GROMMET, FIELD COIL - FIELD FRAME
    (All except 50- 79821A 2)
  • 20
    25-79208 GROMMET, FIELD COIL - FIELD FRAME
    (50- 79822A 2 & 50- 79821A 2)
    GROMMET, FIELD COIL - FIELD FRAME
    (50- 79822A 2 & 50- 79821A 2)
  • 21
    75664 COIL ASSEMBLY
    (50- 79604A 3 & 50- 79822A 2)
    COIL ASSEMBLY
    (50- 79604A 3 & 50- 79822A 2)
  • 21
    48272 COIL ASSEMBLY
    (50- 76965A 3)
    COIL ASSEMBLY
    (50- 76965A 3)
  • 21
    79212 COIL ASSEMBLY
    (50- 79821A 2)
    COIL ASSEMBLY
    (50- 79821A 2)
  • 23
    12-33258 WASHER, Leather, COMMUTATOR END FRAME
    (50- 79822A 2 & 50- 79821A 2)
    WASHER, Leather, COMMUTATOR END FRAME
    (50- 79822A 2 & 50- 79821A 2)
  • 24
    79211 FRAME, COMMUTATOR END - LOWER
    (50- 76965A 3 & 50- 79604A 3)
    FRAME, COMMUTATOR END - LOWER
    (50- 76965A 3 & 50- 79604A 3)
  • 24
    79211 FRAME, COMMUTATOR END - LOWER
    (50- 79822A 2 & 50- 79821A 2)
    FRAME, COMMUTATOR END - LOWER
    (50- 79822A 2 & 50- 79821A 2)
  • 25
    10-33296 BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING
    (50- 79822A 2 & 50- 79821A 2)
    BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING
    (50- 79822A 2 & 50- 79821A 2)
  • 25
    10-33286 BOLT
    (50- 79822A 2 & 50- 79821A 2)
    BOLT
    (50- 79822A 2 & 50- 79821A 2)
  • 25
    10-33286 BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING
    ( 50- 76965A 3 & 50- 79604A3)
    BOLT, THRU - COMMUTATOR END TO DRIVE END HOUSING
    ( 50- 76965A 3 & 50- 79604A3)
  • 26
    33284 HOLDER, INSULATED - FIELD FRAME BRUSH
    HOLDER, INSULATED - FIELD FRAME BRUSH
  • 27
    33283 HOLDER, FIELD FRAME BRUSH GROUND
    HOLDER, FIELD FRAME BRUSH GROUND
  • 28
    33270 BRUSH, FIELD FRAME
    BRUSH, FIELD FRAME
  • 29
    10-52904 SCREW, (8-18 x 5/8), BRUSH LEAD TO FIELD FRAME BRUSH
    SCREW, (8-18 x 5/8), BRUSH LEAD TO FIELD FRAME BRUSH
  • 29
    10-60685 SCREW, BRUSH LEAD TO FIELD FRAME BRUSH
    SCREW, BRUSH LEAD TO FIELD FRAME BRUSH
  • 30
    33294 SUPPORT, GROUND AND INSULATED HOLDERS
    SUPPORT, GROUND AND INSULATED HOLDERS
  • 31
    17-33280 PIN, GROUND AND INSULATED HOLDER TO SUPPORT
    PIN, GROUND AND INSULATED HOLDER TO SUPPORT
  • 32
    33294 LEAD, FIELD FRAME BRUSH
    LEAD, FIELD FRAME BRUSH
  • 33
    N.S.S. Not Sold Separate, SCREW, Support to Field Frame
    (DELCO REMY # 274738)
    Not Sold Separate, SCREW, Support to Field Frame
    (DELCO REMY # 274738)
  • 34
    13-26996 LOCKWASHER, (#10) Stainless Steel, SUPPORT SCREW
    LOCKWASHER, (#10) Stainless Steel, SUPPORT SCREW
  • 35
    11-30968 NUT, (10-24), SUPPORT SCREW
    NUT, (10-24), SUPPORT SCREW
  • 36
    24-33285 SPRING, FIELD FRAME BRUSH
    SPRING, FIELD FRAME BRUSH
  • 37
    17-33257 PIN, DOWEL - FIELD FRAME TO DRIVE END HOUSING
    PIN, DOWEL - FIELD FRAME TO DRIVE END HOUSING
  • 38
    71698 LEVER
    (50- 79821A 2)
    LEVER
    (50- 79821A 2)
  • 38
    33297 LEVER
    (All Except 50- 79604A 3)
    LEVER
    (All Except 50- 79604A 3)
  • 39
    33310 SHAFT, Shift Lever to Drive End Housing
    (50- 79821A 2)
    SHAFT, Shift Lever to Drive End Housing
    (50- 79821A 2)
  • 40
    53-33354 RING, Retaining
    (All Except 50- 79604A 3)
    RING, Retaining
    (All Except 50- 79604A 3)
  • 41
    N.S.S. Not Sold Separate, STUD, Shift Lever to Drive End Housing
    Not Sold Separate, STUD, Shift Lever to Drive End Housing
  • 42
    12-68615 WASHER, Shift Lever Stud
    WASHER, Shift Lever Stud
  • 43
    11-26484 NUT, (.312-18), Shift Lever Stud
    NUT, (.312-18), Shift Lever Stud
  • 44
    33317 PLUNGER, Shift Lever - Solenoid Switch
    PLUNGER, Shift Lever - Solenoid Switch
  • 45
    17-79207 PIN, Plunger to Shift Lever
    PIN, Plunger to Shift Lever
  • 46
    24-46889 SPRING, Plunger Return - Solenoid Switch
    SPRING, Plunger Return - Solenoid Switch
  • 47
    10-28713 SCREW, Solenoid Switch to Drive End Housing
    (50- 76965A 3 & 50- 79604A 3)
    SCREW, Solenoid Switch to Drive End Housing
    (50- 76965A 3 & 50- 79604A 3)
  • 47
    10-76621 SCREW, Solenoid Switch to Drive End Housing
    (50- 79822A 2 & 50- 79821A 2)
    SCREW, Solenoid Switch to Drive End Housing
    (50- 79822A 2 & 50- 79821A 2)
  • 48
    33261 SOLENOID SWITCH ASSEMBLY
    (All Except 50- 79821A 2)
    SOLENOID SWITCH ASSEMBLY
    (All Except 50- 79821A 2)
  • 48
    33261 SWITCH ASSEMBLY, Solenoid
    (50- 79821A 2)
    SWITCH ASSEMBLY, Solenoid
    (50- 79821A 2)
  • 49
    33261 CONTACT/ROD ASSEMBLY
    (All Except 50- 79821A 2)
    CONTACT/ROD ASSEMBLY
    (All Except 50- 79821A 2)
  • 50
    24-33265 SPRING, Contact & Push Rod Tension
    (All Except 50- 79821A 2)
    SPRING, Contact & Push Rod Tension
    (All Except 50- 79821A 2)
  • 51
    45537 COVER, Solenoid Switch
    (All Except 50- 79821A 2)
    COVER, Solenoid Switch
    (All Except 50- 79821A 2)
  • 52
    16-33304 STUD, (10-32), Resistor Terminal
    (All Except 50- 79821A 2)
    STUD, (10-32), Resistor Terminal
    (All Except 50- 79821A 2)
  • 53
    33305 CONTACT, Resistor Terminal Stud
    (All Except 50- 79821A 2)
    CONTACT, Resistor Terminal Stud
    (All Except 50- 79821A 2)
  • 54
    13-26996 LOCKWASHER, (#10) Stainless Steel
    (All Except 50- 79821A 2)
    LOCKWASHER, (#10) Stainless Steel
    (All Except 50- 79821A 2)
  • 55
    11-68219 NUT, (#10-32) Stainless Steel
    (All Except 50- 79821A 2)
    NUT, (#10-32) Stainless Steel
    (All Except 50- 79821A 2)
  • 56
    16-33299 STUD, (3/8-16), Motor Terminal
    (All Except 50- 79821A 2)
    STUD, (3/8-16), Motor Terminal
    (All Except 50- 79821A 2)
  • 57
    16-45536 STUD, (3/8-16), Battery Terminal
    (All Except 50- 79821A 2)
    STUD, (3/8-16), Battery Terminal
    (All Except 50- 79821A 2)
  • 58
    12-33289 WASHER, (3/8-16), Battery & Motor Terminal Stud
    (All Except 50- 79821A 2)
    WASHER, (3/8-16), Battery & Motor Terminal Stud
    (All Except 50- 79821A 2)
  • 59
    11-32219 NUT, (.375-16), Battery & Motor Terminal Stud
    (All Except 50- 79821A 2)
    NUT, (.375-16), Battery & Motor Terminal Stud
    (All Except 50- 79821A 2)
  • 60
    13-35048 LOCKWASHER, (3/8), Battery Terminal Stud
    (All Except 50- 79821A 2)
    LOCKWASHER, (3/8), Battery Terminal Stud
    (All Except 50- 79821A 2)
  • 61
    11-32219 NUT, (.375-16), Battery Terminal Stud
    (All Except 50- 79821A 2)
    NUT, (.375-16), Battery Terminal Stud
    (All Except 50- 79821A 2)
  • 62
    16-33262 STUD, (8/32), Switch Terminal
    (All Except 50- 79821A 2)
    STUD, (8/32), Switch Terminal
    (All Except 50- 79821A 2)
  • 63
    54-33307 CLIP, Switch Terminal Stud
    (All Except 50- 79821A 2)
    CLIP, Switch Terminal Stud
    (All Except 50- 79821A 2)
  • 64
    12-33279 WASHER, (#8), Switch Terminal Stud
    (All Except 50- 79821A 2)
    WASHER, (#8), Switch Terminal Stud
    (All Except 50- 79821A 2)
  • 65
    11-21923T NUT, ( 8-32), Switch Terminal Stud
    (All Except 50- 79821A 2)
    NUT, ( 8-32), Switch Terminal Stud
    (All Except 50- 79821A 2)
  • 66
    13-26995 LOCKWASHER, (#8) Stainless Steel, Switch Terminal Stud
    (All Except 50- 79821A 2)
    LOCKWASHER, (#8) Stainless Steel, Switch Terminal Stud
    (All Except 50- 79821A 2)
  • 67
    10-33248 SCREW, (7/16), Cover to Solenoid Switch
    (All Except 50- 79821A 2)
    SCREW, (7/16), Cover to Solenoid Switch
    (All Except 50- 79821A 2)
  • 68
    12-33279 WASHER, (#8), Cover Screw
    (All Except 50- 79821A 2)
    WASHER, (#8), Cover Screw
    (All Except 50- 79821A 2)
  • 69
    10-48266 SCREW, (7/16), Field Coil Lead to Solenoid Switch
    (All Except 50- 79821A 2)
    SCREW, (7/16), Field Coil Lead to Solenoid Switch
    (All Except 50- 79821A 2)
  • 69
    10-45546 SCREW, (1 Inch), Field Coil Lead to Solenoid Switch
    (All Except 50- 79821A 2)
    SCREW, (1 Inch), Field Coil Lead to Solenoid Switch
    (All Except 50- 79821A 2)
  • 70
    13-26995 LOCKWASHER, (#8) Stainless Steel, Field Coil
    (All Except 50- 79821A 2)
    LOCKWASHER, (#8) Stainless Steel, Field Coil
    (All Except 50- 79821A 2)
  • 71
    N.S.S. Not Sold Separate, CONNECTOR, Field Coil Lead Screw
    (DELCO REMY # 1963519) (All Except 50- 79821A 2)
    Not Sold Separate, CONNECTOR, Field Coil Lead Screw
    (DELCO REMY # 1963519) (All Except 50- 79821A 2)

Все узлы модели:
