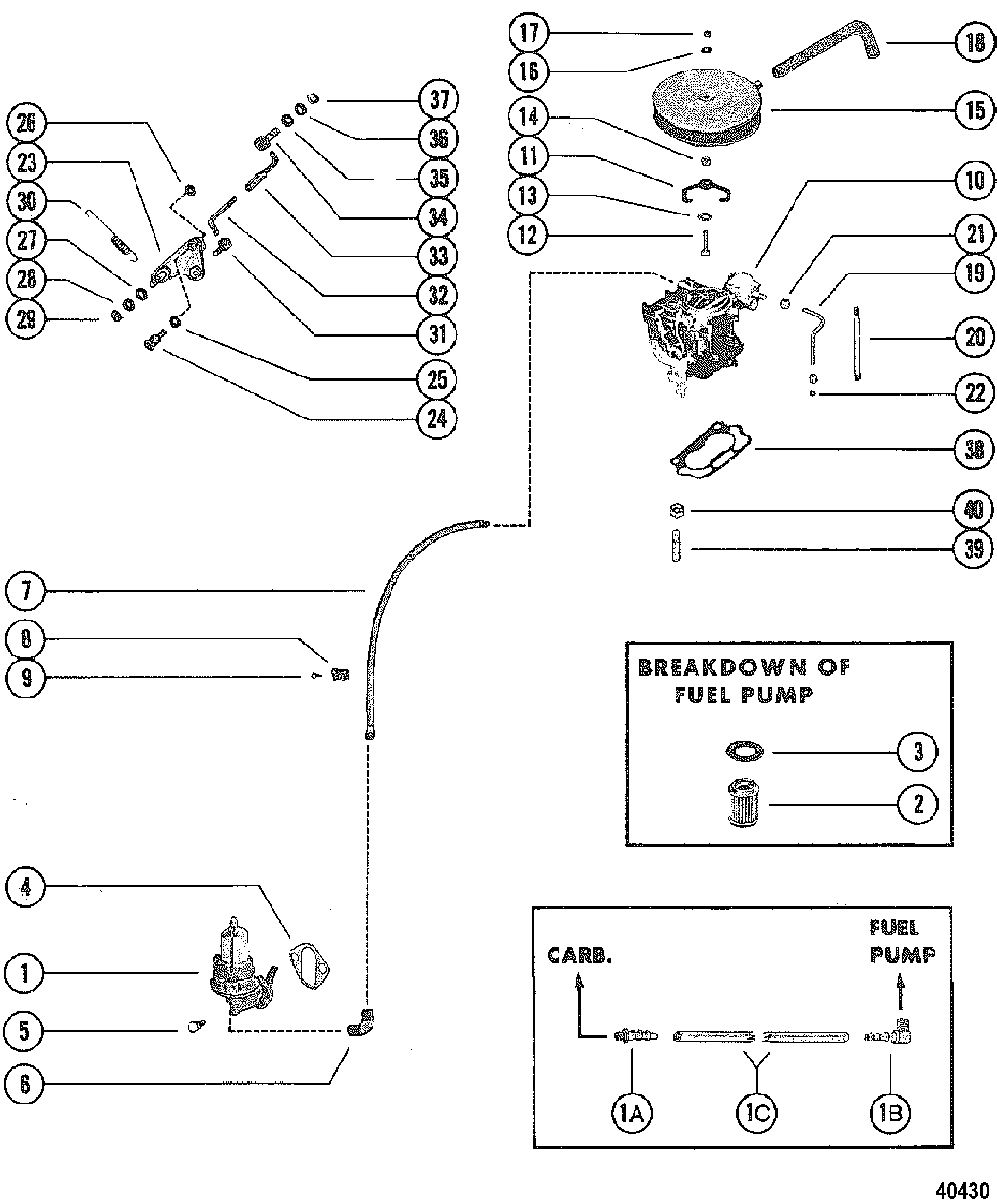

FUEL PUMP, CARBURETOR AND LINK ROD для Mercruiser - 120 GM 153 I/L4 1979-1982 5192049 THRU 6229717

  • №
    Артикул
    Название
  • 1
    86234A05 PUMP ASSEMBLY, Fuel
    PUMP ASSEMBLY, Fuel
  • 1A
    22-73816 CONNECTOR, VENT TUBE TO CARBURETOR
    CONNECTOR, VENT TUBE TO CARBURETOR
  • 1B
    22-73817 CONNECTOR, (90 Degree), VENT TUBE TO FUEL PUMP
    CONNECTOR, (90 Degree), VENT TUBE TO FUEL PUMP
  • 1C
    32-7381567 TUBE, VENT
    TUBE, VENT
  • 2
    35-49088Q2 FILTER, FUEL - FUEL PUMP
    FILTER, FUEL - FUEL PUMP
  • 3
    49089A1 DIAPHRAGM KIT, FUEL PUMP
    DIAPHRAGM KIT, FUEL PUMP
  • 4
    27-34213 GASKET, FUEL PUMP MOUNTING
    GASKET, FUEL PUMP MOUNTING
  • 5
    10-45488 BOLT, (7/8 In.), FUEL PUMP TO CYLINDER BLOCK
    BOLT, (7/8 In.), FUEL PUMP TO CYLINDER BLOCK
  • 6
    22-98646 FITTING, FUEL LINE
    FITTING, FUEL LINE
  • 7
    32-69145A1 LINE, Fuel, PUMP TO CARBURETOR
    LINE, Fuel, PUMP TO CARBURETOR
  • 8
    54-65653 CLIP, FUEL LINE TO ROCKER COVER
    CLIP, FUEL LINE TO ROCKER COVER
  • 9
    10-32079 SCREW, (.250-20 x .560), CLAMB TO ROCKER COVER
    SCREW, (.250-20 x .560), CLAMB TO ROCKER COVER
  • 10
    1347-818619R02 CARBURETOR ASSEMBLY
    CARBURETOR ASSEMBLY
  • 11
    52734 BAIL, FLAME ARRESTOR TO CARBURETOR
    BAIL, FLAME ARRESTOR TO CARBURETOR
  • 12
    10-65027 SCREW, (.250-28 x 1.00), FLAME ARRESTOR TO CARBURETOR BAIL
    SCREW, (.250-28 x 1.00), FLAME ARRESTOR TO CARBURETOR BAIL
  • 13
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, FLAME ARRESTOR SCREW
    WASHER, (.281 x .500 x .060) Stainless Steel, FLAME ARRESTOR SCREW
  • 14
    11-8267139 NUT, FLAME ARRESTOR SCREW
    NUT, FLAME ARRESTOR SCREW
  • 15
    86270 FLAME ARRESTOR
    FLAME ARRESTOR
  • 16
    12-86400 WASHER, FLAME ARRESTOR MOUNTING STUD
    WASHER, FLAME ARRESTOR MOUNTING STUD
  • 17
    11-826709109 NUT, (.250-28), FLAME ARRESTOR MOUNTING STUD (TOP)
    NUT, (.250-28), FLAME ARRESTOR MOUNTING STUD (TOP)
  • 18
    32-62060 HOSE, VENT - CARBURETOR TO ROCKER COVER
    HOSE, VENT - CARBURETOR TO ROCKER COVER
  • 19
    32-62578A1 PIPE ASSEMBLY, CHOKE - CARB, AND CHOKE OVEN CONNECTOR
    PIPE ASSEMBLY, CHOKE - CARB, AND CHOKE OVEN CONNECTOR
  • 20
    32-57831 COVERING, CHOKE PIPE
    COVERING, CHOKE PIPE
  • 21
    22-70583 NUT, CHOKE PIPE TO CARB. AND CHOKE OVEN CONNECTOR
    NUT, CHOKE PIPE TO CARB. AND CHOKE OVEN CONNECTOR
  • 22
    23-21309 SLEEVE, CHOKE PIPE TO CHOKE OVEN CONNECTOR NUT
    SLEEVE, CHOKE PIPE TO CHOKE OVEN CONNECTOR NUT
  • 23
    78890T LEVER, THROTTLE - INTAKE MANIFOLD COVER
    LEVER, THROTTLE - INTAKE MANIFOLD COVER
  • 24
    10-38507 SCREW, (5/16-18 x 1.313), STEP - THROTTLE LEVER TO MOUNTING PLATE
    SCREW, (5/16-18 x 1.313), STEP - THROTTLE LEVER TO MOUNTING PLATE
  • 25
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE LEVER STEP SCREW
    WASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE LEVER STEP SCREW
  • 26
    12-20553 WASHER, (.406 x .734 x .063), THROTTLE LEVER STEP SCREW
    WASHER, (.406 x .734 x .063), THROTTLE LEVER STEP SCREW
  • 27
    12-35950 WASHER, (.273 x .437 x .031) Stainless Steel, THROTTLE LEVER STEP SCREW
    WASHER, (.273 x .437 x .031) Stainless Steel, THROTTLE LEVER STEP SCREW
  • 28
    12-57792 WASHER, THROTTLE LEVER STEP SCREW
    WASHER, THROTTLE LEVER STEP SCREW
  • 29
    11-20110 NUT, (#10-32), THROTTLE LEVER STEP SCREW
    NUT, (#10-32), THROTTLE LEVER STEP SCREW
  • 30
    24-63330 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 31
    27947 SWIVEL, LINK ROD TO THROTTLE LEVER
    SWIVEL, LINK ROD TO THROTTLE LEVER
  • 32
    64804 LINK ROD, THROTTLE LEVER
    LINK ROD, THROTTLE LEVER
  • 33
    63145A1 LINK ROD ASSEMBLY, CARBURETOR
    LINK ROD ASSEMBLY, CARBURETOR
  • 34
    38983 SWIVEL, LINK ROD ASSEMBLY TO CARBURETOR
    SWIVEL, LINK ROD ASSEMBLY TO CARBURETOR
  • 35
    12-35950 WASHER, (.273 x .437 x .031) Stainless Steel, LINK ROD TO CARBURETOR SWIVEL
    WASHER, (.273 x .437 x .031) Stainless Steel, LINK ROD TO CARBURETOR SWIVEL
  • 36
    12-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, LINK ROD TO CARBURETOR SWIVEL
    WASHER, (.192 x .375 x .0312) Stainless Steel, LINK ROD TO CARBURETOR SWIVEL
  • 37
    11-20110 NUT, (#10-32), LINK ROD TO CARBURETOR SWIVEL
    NUT, (#10-32), LINK ROD TO CARBURETOR SWIVEL
  • 38
    27-64692 GASKET, CARBURETOR TO INTAKE MANIFOLD COVER
    GASKET, CARBURETOR TO INTAKE MANIFOLD COVER
  • 39
    16-8M0113177 STUD, (.312 x 1.500), CARBURETOR MOUNTING - INTAKE MANIFOLD COVER
    STUD, (.312 x 1.500), CARBURETOR MOUNTING - INTAKE MANIFOLD COVER
  • 40
    11-29250 NUT, (.312-24), CARBURETOR MOUNTING STUD
    NUT, (.312-24), CARBURETOR MOUNTING STUD
