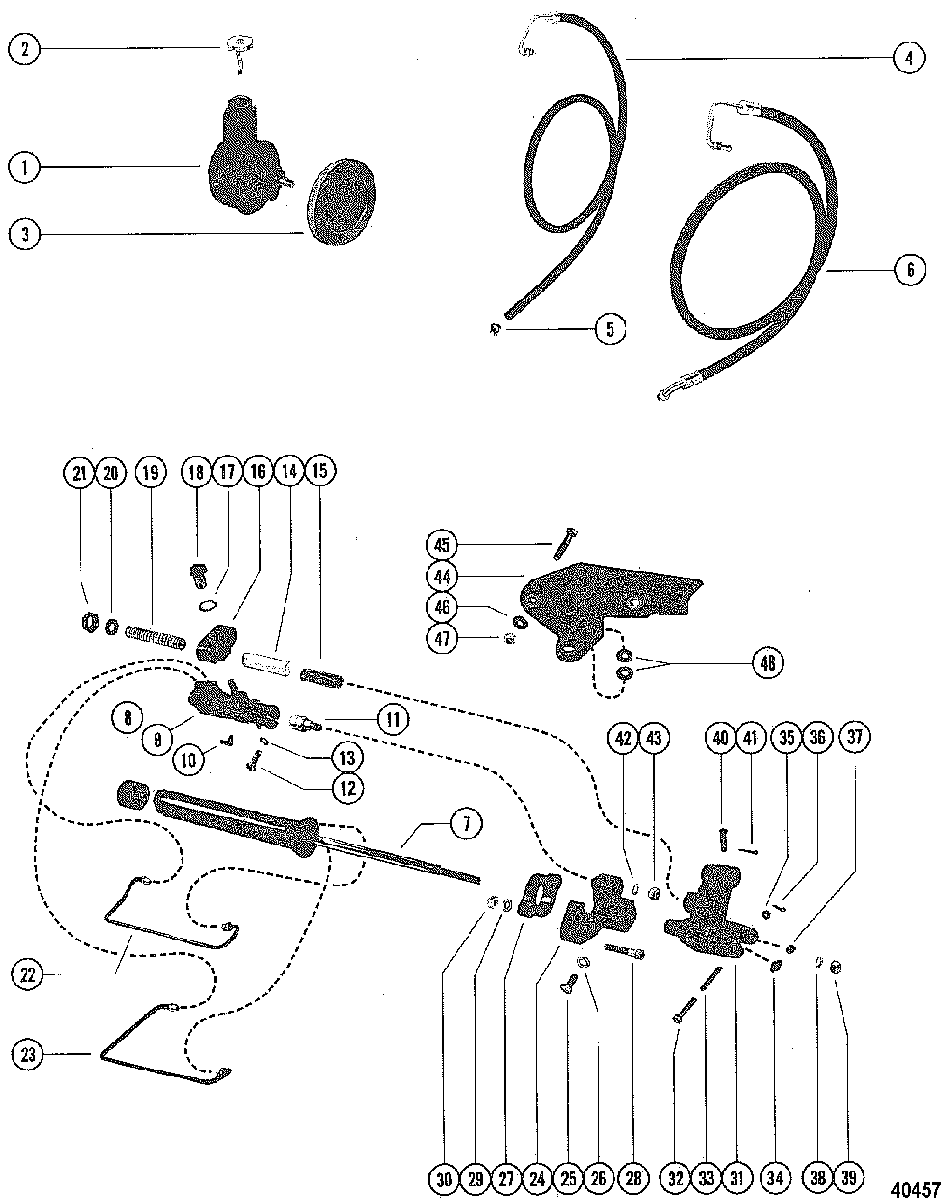

POWER STEERING KIT(MERCRUISER I) для Mercruiser - 120 GM 153 I/L4 1979-1982 5192049 THRU 6229717

  • №
    Артикул
    Название
  • -
    71333A1 POWER STEERING KIT (MERCRUISER I - TRANSOM MOUNTED)
    POWER STEERING KIT (MERCRUISER I - TRANSOM MOUNTED)
  • 1
    90507A3 PUMP ASSEMBLY, Power-Assisted Steering
    PUMP ASSEMBLY, Power-Assisted Steering
  • 2
    19-39924 CAP, FULLER - HYDRAULIC PUMP
    CAP, FULLER - HYDRAULIC PUMP
  • 3
    73873A1 PULLEY, HYDRAULIC PUMP
    PULLEY, HYDRAULIC PUMP
  • 4
    32-9884339 HOSE, (72 Inches), RETURN - POWER STEERING - NOT AS SHOWN
    HOSE, (72 Inches), RETURN - POWER STEERING - NOT AS SHOWN
  • 5
    54-815504206 CLAMP, RETURN HOSE TO HYDRAULIC PUMP
    CLAMP, RETURN HOSE TO HYDRAULIC PUMP
  • 6
    32-55116 HOSE, (72 Inches), PRESSURE POWER STEERING - NOT AS SHOWN
    HOSE, (72 Inches), PRESSURE POWER STEERING - NOT AS SHOWN
  • 7
    85618T CYLINDER, BOOSTER (25-58224A1 SEAL REPAIR KIT)
    CYLINDER, BOOSTER (25-58224A1 SEAL REPAIR KIT)
  • 8
    26059 CAP, RUBBER - BOOSTER CYLINDER
    CAP, RUBBER - BOOSTER CYLINDER
  • 9
    816458A1 VALVE, POWER STEERING (25-58226A1 SEAL REPAIR KIT)
    VALVE, POWER STEERING (25-58226A1 SEAL REPAIR KIT)
  • 10
    22-67305 FITTING, Grease
    FITTING, Grease
  • 11
    16-55109T STUD, ADAPTOR - POWER STEERING VALVE
    STUD, ADAPTOR - POWER STEERING VALVE
  • 12
    10-37612 SCREW, (.375-16 x 1.250), CLAMPING
    SCREW, (.375-16 x 1.250), CLAMPING
  • 13
    13-35048 LOCKWASHER, (3/8), CLAMPING SCREW
    LOCKWASHER, (3/8), CLAMPING SCREW
  • 14
    23-60775 SLEEVE, SPACER
    SLEEVE, SPACER
  • 15
    23-60652 SLEEVE, ADJUSTING - CABLE GUIDE TUBE
    SLEEVE, ADJUSTING - CABLE GUIDE TUBE
  • 16
    55110T ADAPTOR, CABLE GUIDE TUBE (DUAL)
    ADAPTOR, CABLE GUIDE TUBE (DUAL)
  • 17
    13-20897 LOCKWASHER, DUAL ADAPTOR NUT
    LOCKWASHER, DUAL ADAPTOR NUT
  • 18
    11-55111 NUT, DUAL ADAPTOR TO POWER STEERING VALVE
    NUT, DUAL ADAPTOR TO POWER STEERING VALVE
  • 19
    32-55112 TUBE, CABLE GUIDE
    TUBE, CABLE GUIDE
  • 20
    12-37985 WASHER, CALBE GUIDE TUBE
    WASHER, CALBE GUIDE TUBE
  • 21
    11-8M0041651 NUT, (.875-14), CABLE GUIDE TUBE
    NUT, (.875-14), CABLE GUIDE TUBE
  • 22
    32-78895 TUBE, EXTENDING - POWER STEERING
    TUBE, EXTENDING - POWER STEERING
  • 23
    32-78896 TUBE, RETRACTING - POWER STEERING
    TUBE, RETRACTING - POWER STEERING
  • 24
    55106 BRACKET, MOUNTING - TRANSOM PLATE
    BRACKET, MOUNTING - TRANSOM PLATE
  • 25
    10-31832 BOLT, (.500-20 x 1.00), MOUNTING BRACKET TO TRANSOM PLATE
    BOLT, (.500-20 x 1.00), MOUNTING BRACKET TO TRANSOM PLATE
  • 26
    13-31848 LOCKWASHER, (.500), MOUNTING BRACKET SCREW
    LOCKWASHER, (.500), MOUNTING BRACKET SCREW
  • 27
    93520 COLLAR, CLAMPING
    COLLAR, CLAMPING
  • 28
    10-55108 SCREW, (.375-24 x 2.00), MOUNTING BRACKET TO COLLAR
    SCREW, (.375-24 x 2.00), MOUNTING BRACKET TO COLLAR
  • 29
    12-20086 WASHER, (.390 x .620 x .060), MOUNTING BRACKET SCREW
    WASHER, (.390 x .620 x .060), MOUNTING BRACKET SCREW
  • 30
    11-69254 NUT, MOUNTING BRACKET SCREW
    NUT, MOUNTING BRACKET SCREW
  • 31
    79988A1 CLEVIS, ROD END
    CLEVIS, ROD END
  • 32
    10-67462 SCREW, (.250-28 x 2.250), ROD END CLEVIS TO STEERING ARM
    SCREW, (.250-28 x 2.250), ROD END CLEVIS TO STEERING ARM
  • 33
    23-55118 SPACER, ROD END CLEVIS SCREW
    SPACER, ROD END CLEVIS SCREW
  • 34
    23-60776 BUSHING, CLEVIS
    BUSHING, CLEVIS
  • 35
    11-49662 NUT, ROD EDN CLEVIS SCREW
    NUT, ROD EDN CLEVIS SCREW
  • 36
    18-32665 COTTER PIN, CLEVIS SCREW NUT
    COTTER PIN, CLEVIS SCREW NUT
  • 37
    23-60503 BUSHING, STEERING ARM
    BUSHING, STEERING ARM
  • 38
    12-20086 WASHER, (.390 x .620 x .060), BOOTER CYLINDER SHAFT
    WASHER, (.390 x .620 x .060), BOOTER CYLINDER SHAFT
  • 39
    11-69254 NUT, BOOSTER CYLINDER SHAFT
    NUT, BOOSTER CYLINDER SHAFT
  • 40
    17-52798 PIN, Clevis, STEERING CABLE ATTACHING
    PIN, Clevis, STEERING CABLE ATTACHING
  • 41
    18-46950 COTTER PIN, CLEVIS PIN RETAINING
    COTTER PIN, CLEVIS PIN RETAINING
  • 42
    12-20959 WASHER, VALVE ADAPTOR STUD
    WASHER, VALVE ADAPTOR STUD
  • 43
    11-898832 NUT, (.500-20), VALVE ADAPTOR STUD
    NUT, (.500-20), VALVE ADAPTOR STUD
  • 44
    60502A1 BRACKET, MOUNTING - POWER STEERING
    BRACKET, MOUNTING - POWER STEERING
  • 45
    10-60504 BOLT, POWER STEERING BRACKET TO TRANSOM PLATE
    BOLT, POWER STEERING BRACKET TO TRANSOM PLATE
  • 46
    12-20959 WASHER, POWER STEERING BRACKET SCREW
    WASHER, POWER STEERING BRACKET SCREW
  • 47
    11-20958 NUT, POWER STEERING BRACKET SCREW
    NUT, POWER STEERING BRACKET SCREW
  • 48
    12-47533 WASHER, Thermostat, SHIM - PIVOT SHAFT
    WASHER, Thermostat, SHIM - PIVOT SHAFT
