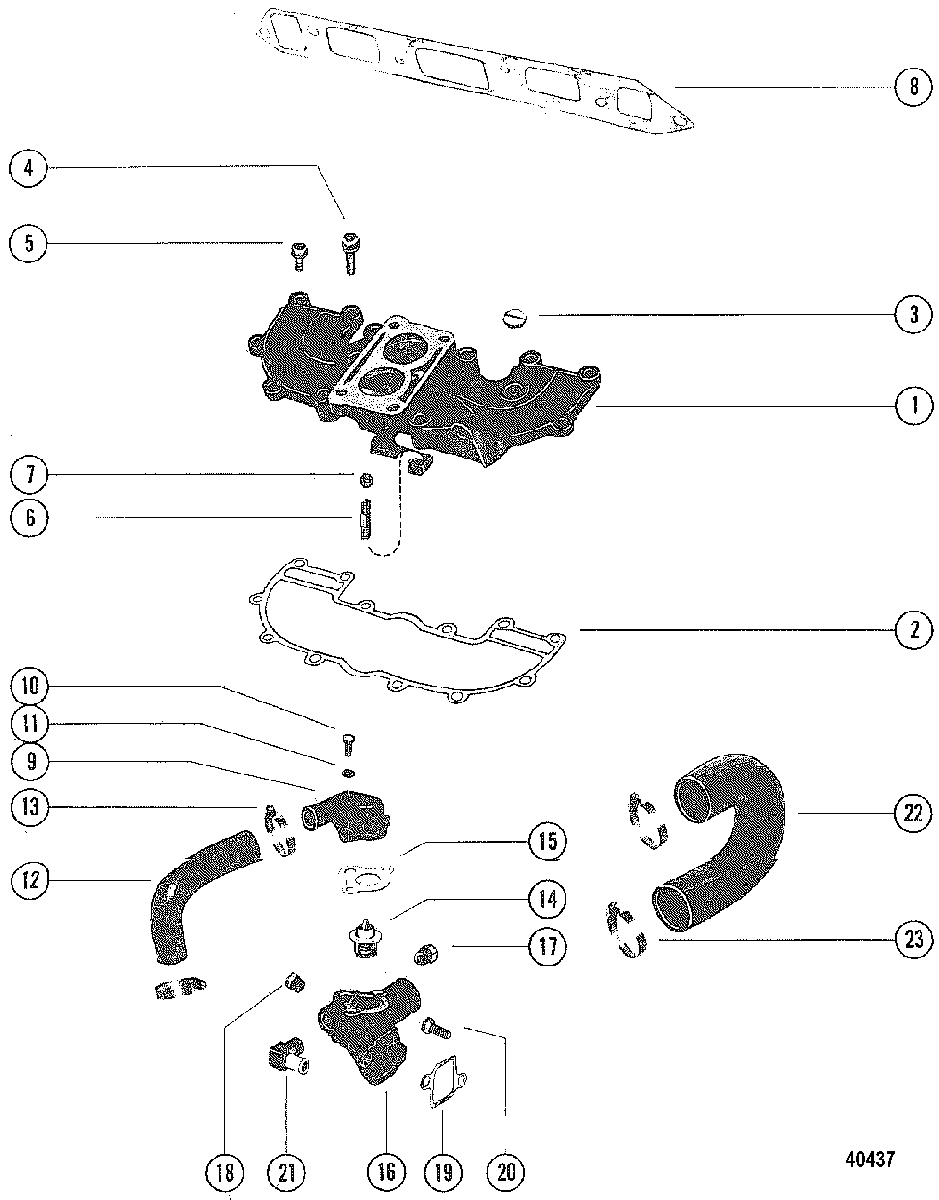

INTAKE MANIFOLD COVER AND THERMOSTAT COVER для Mercruiser - 120 GM 153 I/L4 1979-1982 5192049 THRU 6229717

  • №
    Артикул
    Название
  • 1
    62575T COVER, INTAKE MANIFOLD
    COVER, INTAKE MANIFOLD
  • 2
    27-35898T GASKET, INTAKE MANIFOLD COVER
    GASKET, INTAKE MANIFOLD COVER
  • 3
    22-36382 FITTING, (.250-18 x .62) Brass, PIPE - INTAKE MANIFOLD COVER
    FITTING, (.250-18 x .62) Brass, PIPE - INTAKE MANIFOLD COVER
  • 4
    10-35385 SCREW, (1.75 In.), INTAKE MANIFOLD COVER TO EXH. MANIFOLD
    SCREW, (1.75 In.), INTAKE MANIFOLD COVER TO EXH. MANIFOLD
  • 5
    10-39970 SCREW, (1 In.), INTAKE MANIFOLD COVER TO EXH. MANIFOLD
    SCREW, (1 In.), INTAKE MANIFOLD COVER TO EXH. MANIFOLD
  • 6
    10-64969 SCREW, SET - THROTTLE STOP
    SCREW, SET - THROTTLE STOP
  • 7
    11-33122 NUT, SET SCREW
    NUT, SET SCREW
  • 8
    27-52546 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 9
    861493A07 COVER, THERMOSTAT - WATER DISTRIBUTION BLOCK
    COVER, THERMOSTAT - WATER DISTRIBUTION BLOCK
  • 10
    10-881892 SCREW, (1.75 In.), THERM. COVER TO WATER DIST. BLOCK
    SCREW, (1.75 In.), THERM. COVER TO WATER DIST. BLOCK
  • 11
    12-36533 WASHER, (.328 x .562 x .0312) Copper, THERMOSTAT COVER SCREW
    WASHER, (.328 x .562 x .0312) Copper, THERMOSTAT COVER SCREW
  • 12
    32-47639 HOSE, WATER DISTRIBUTION BLOCK TO END CAP/CONNECTOR
    HOSE, WATER DISTRIBUTION BLOCK TO END CAP/CONNECTOR
  • 13
    54-815504220 CLAMP, HOSE TO WATER DIST. BLOCK AND END CAP/CONNECTOR
    CLAMP, HOSE TO WATER DIST. BLOCK AND END CAP/CONNECTOR
  • 14
    59078 THERMOSTAT
    THERMOSTAT
  • 15
    27-475901 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 16
    861493A07 HOUSING ASSEMBLY, Thermostat - WATER DISTRIBUTION - CYLINDER HEAD
    HOUSING ASSEMBLY, Thermostat - WATER DISTRIBUTION - CYLINDER HEAD
  • 17
    22-32803 PLUG, Pipe (.375-18) Brass, WATER DISTRIBUTION BLOCK
    PLUG, Pipe (.375-18) Brass, WATER DISTRIBUTION BLOCK
  • 18
    22-328022 PLUG, Pipe (.125-27), WATER DISTRIBUTION BLOCK
    PLUG, Pipe (.125-27), WATER DISTRIBUTION BLOCK
  • 19
    27-8146801 GASKET, WATER DISTRIBUTION BLOCK
    GASKET, WATER DISTRIBUTION BLOCK
  • 20
    10-21077 SCREW, (.375-16 x .88), WATER DIESTRIBUTION BLOCK TO CYLINDER HEAD
    SCREW, (.375-16 x .88), WATER DIESTRIBUTION BLOCK TO CYLINDER HEAD
  • 21
    22-53509 ELBOW, WATER DISTRIBUTION BLOCK TO INLET HOSE
    ELBOW, WATER DISTRIBUTION BLOCK TO INLET HOSE
  • 22
    32-8M0071007 HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
    HOSE, WATER DISTRIBUTION BLOCK TO WATER PUMP
  • 23
    54-815504228 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMP
    CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND WATER PUMP
