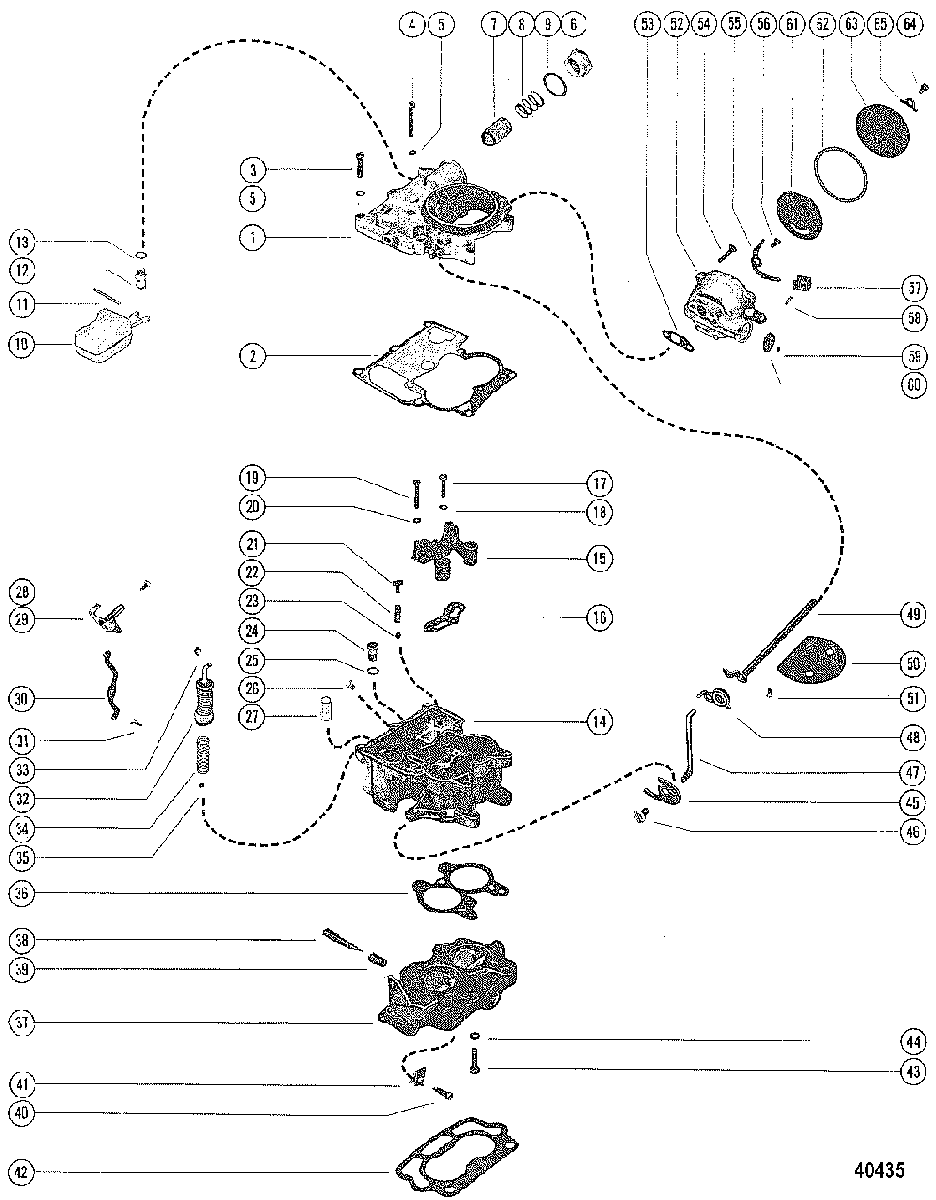

CARBURETOR ASSEMBLY для Mercruiser - 120 GM 153 I/L4 1979-1982 5192049 THRU 6229717

  • №
    Артикул
    Название
  • -
    1347-818619R02 CARBURETOR ASSEMBLY, COMPLETE
    CARBURETOR ASSEMBLY, COMPLETE
  • 1
    N.S.S. Not Sold Separate, AIR HORN
    (ROCHESTER #7041370)
    Not Sold Separate, AIR HORN
    (ROCHESTER #7041370)
  • 2
    N.S.S. Not Sold Separate, GASKET, Air Horn
    Not Sold Separate, GASKET, Air Horn
  • 3
    10-33043 SCREW, Air Horn to Float Bowl (SHORT)
    SCREW, Air Horn to Float Bowl (SHORT)
  • 4
    10-33048 SCREW, Air Horn to Float Bowl (LONG)
    SCREW, Air Horn to Float Bowl (LONG)
  • 5
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 6
    1397-3330 NUT, Fuel Inlet - Air Horn
    NUT, Fuel Inlet - Air Horn
  • 7
    35-53336Q STRAINER, Fuel Inlet
    STRAINER, Fuel Inlet
  • 8
    3302-9032 SPRING, Fuel Filter
    SPRING, Fuel Filter
  • 9
    N.S.S. Not Sold Separate, GASKET, Fuel Inlet Nut
    Not Sold Separate, GASKET, Fuel Inlet Nut
  • 10
    1397-2060 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 11
    N.S.S. Not Sold Separate, PIN, Hinge - Float to Air Horn
    (ROCHESTER #7002081)
    Not Sold Separate, PIN, Hinge - Float to Air Horn
    (ROCHESTER #7002081)
  • 12
    N.S.S. Not Sold Separate, INLET NEEDLE & SEAT ASSEMBLY
    Not Sold Separate, INLET NEEDLE & SEAT ASSEMBLY
  • 13
    N.S.S. Not Sold Separate, GASKET, Inlet Needle & Seat
    Not Sold Separate, GASKET, Inlet Needle & Seat
  • 14
    1397-2636 FLOAT BOWL ASSEMBLY
    FLOAT BOWL ASSEMBLY
  • 15
    N.S.S. Not Sold Separate, VENTURI CLUSTER ASSEMBLY, Float Bowl
    (ROCHESTER #7031949)
    Not Sold Separate, VENTURI CLUSTER ASSEMBLY, Float Bowl
    (ROCHESTER #7031949)
  • 16
    N.S.S. Not Sold Separate, Gasket, Venturi Cluster
    Not Sold Separate, Gasket, Venturi Cluster
  • 17
    N.S.S. Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (CENTER)
    ROCHESTER #7000294
    Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (CENTER)
    ROCHESTER #7000294
  • 18
    N.S.S. Not Sold Separate, GASKET, Venturi Cluster Screw (Center)
    Not Sold Separate, GASKET, Venturi Cluster Screw (Center)
  • 19
    N.S.S. Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (Outer)
    ROCHESTER #7000293
    Not Sold Separate, SCREW, Venturi Cluster to Float Bowl (Outer)
    ROCHESTER #7000293
  • 20
    13-26995 LOCKWASHER, (#8) Stainless Steel, Venturi Cluster Screw (OUTER)
    LOCKWASHER, (#8) Stainless Steel, Venturi Cluster Screw (OUTER)
  • 21
    N.S.S. Not Sold Separate, GUIDE, Pump Discharge - Float Bowl
    Not Sold Separate, GUIDE, Pump Discharge - Float Bowl
  • 22
    N.S.S. Not Sold Separate, SPRING, Pump Discharge - Float Bow
    Not Sold Separate, SPRING, Pump Discharge - Float Bow
  • 23
    N.S.S. Not Sold Separate, BALL, Pump Discharge - Float Bow
    Not Sold Separate, BALL, Pump Discharge - Float Bow
  • 24
    N.S.S. Not Sold Separate, VALVE POWER ASSEMBLY, Float Bowl
    Not Sold Separate, VALVE POWER ASSEMBLY, Float Bowl
  • 25
    N.S.S. Not Sold Separate, GASKET, Power Valve
    Not Sold Separate, GASKET, Power Valve
  • 26
    1397-2447 JET, Float Bowl (STANDARD)
    JET, Float Bowl (STANDARD)
  • 27
    N.S.S. Not Sold Separate, STRAINER, Pump Inlet
    Not Sold Separate, STRAINER, Pump Inlet
  • 28
    10-33047 SCREW, Air Horn Pump Lever
    SCREW, Air Horn Pump Lever
  • 29
    N.S.S. Not Sold Separate, PUMP SHAFT & LEVER ASSEMBLY, Air Horn
    (ROCHESTER #7036764)
    Not Sold Separate, PUMP SHAFT & LEVER ASSEMBLY, Air Horn
    (ROCHESTER #7036764)
  • 30
    N.S.S. Not Sold Separate, ROD, Pump
    (ROCHESTER #7036759)
    Not Sold Separate, ROD, Pump
    (ROCHESTER #7036759)
  • 31
    N.S.S. Not Sold Separate, CUP, Retainer - Pump Rod
    Not Sold Separate, CUP, Retainer - Pump Rod
  • 32
    N.S.S. Not Sold Separate, PUMP ASSEMBLY, Float Bowl
    Not Sold Separate, PUMP ASSEMBLY, Float Bowl
  • 33
    N.S.S. Not Sold Separate, CLIP, Retainer - Float Bowl Pump
    Not Sold Separate, CLIP, Retainer - Float Bowl Pump
  • 34
    N.S.S. Not Sold Separate, SPRING, Pump Return - Float Bowl
    Not Sold Separate, SPRING, Pump Return - Float Bowl
  • 35
    N.S.S. Not Sold Separate, BALL, Check - Pump Inlet - Float Bowl
    Not Sold Separate, BALL, Check - Pump Inlet - Float Bowl
  • 36
    N.S.S. Not Sold Separate, GASKET, Throttle Body
    Not Sold Separate, GASKET, Throttle Body
  • 37
    1397-2639 THROTTLE BODY ASSEMBLY
    THROTTLE BODY ASSEMBLY
  • 38
    N.S.S. Not Sold Separate, IDLE ADJUSTING NEEDLE
    Not Sold Separate, IDLE ADJUSTING NEEDLE
  • 39
    24-33050 SPRING
    SPRING
  • 40
    1397-2638 SCREW, Idle Stop
    SCREW, Idle Stop
  • 41
    54-39108 CLIP
    CLIP
  • 42
    N.S.S. Not Sold Separate, GASKET, Carburetor Flange
    Not Sold Separate, GASKET, Carburetor Flange
  • 43
    10-33052 SCREW, Throttle Body to Float Bowl
    SCREW, Throttle Body to Float Bowl
  • 44
    13-21547 LOCKWASHER, Throttle Body Screw
    LOCKWASHER, Throttle Body Screw
  • 45
    1397-8877 CAM, Fast Idle - Float Bowl
    CAM, Fast Idle - Float Bowl
  • 46
    10-33042 SCREW, Fast Idle Cam to Float Bowl
    SCREW, Fast Idle Cam to Float Bowl
  • 47
    N.S.S. Not Sold Separate, ROD, Choke
    (ROCHESTER #7025667)
    Not Sold Separate, ROD, Choke
    (ROCHESTER #7025667)
  • 48
    1397-4257 LEVER/COLLAR ASSEMBLY, Choke
    LEVER/COLLAR ASSEMBLY, Choke
  • 49
    1397-2632 SHAFT ASSEMBLY, Choke
    SHAFT ASSEMBLY, Choke
  • 50
    1397-4358 VALVE, Choke - Choke Shaft
    VALVE, Choke - Choke Shaft
  • 51
    10-33045 SCREW, Choke Valve to Choke Shaft
    SCREW, Choke Valve to Choke Shaft
  • 52
    N.S.S. Not Sold Separate, CHOKE HOUSING ASSEMBLY
    (ROCHESTER #7028837)
    Not Sold Separate, CHOKE HOUSING ASSEMBLY
    (ROCHESTER #7028837)
  • 53
    N.S.S. Not Sold Separate, GASKET, Choke Housing
    Not Sold Separate, GASKET, Choke Housing
  • 54
    10-33053 SCREW, Choke Housing to Air Horn
    SCREW, Choke Housing to Air Horn
  • 55
    N.S.S. Not Sold Separate, LEVER ASSEMBLY, Choke Piston
    (ROCHESTER #7045814)
    Not Sold Separate, LEVER ASSEMBLY, Choke Piston
    (ROCHESTER #7045814)
  • 56
    10-33056 SCREW, Choke Piston Lever to Choke Housing
    SCREW, Choke Piston Lever to Choke Housing
  • 57
    N.S.S. Not Sold Separate, CHOKE PISTON, Choke Housing
    (ROCHESTER #7021502)
    Not Sold Separate, CHOKE PISTON, Choke Housing
    (ROCHESTER #7021502)
  • 58
    17-33049 PIN, Choke Piston to Choke Piston Lever
    PIN, Choke Piston to Choke Piston Lever
  • 59
    1397-2050 PLUG, Ball - Choke Housing
    PLUG, Ball - Choke Housing
  • 60
    19-33041 WELCH PLUG, Choke Housing
    WELCH PLUG, Choke Housing
  • 61
    1397-2110 PLATE, Baffle - Choke Housing
    PLATE, Baffle - Choke Housing
  • 62
    N.S.S. Not Sold Separate, GASKET, Stat Cover & Coil
    Not Sold Separate, GASKET, Stat Cover & Coil
  • 63
    1397-4340 COIL ASSEMBLY
    COIL ASSEMBLY
  • 64
    10-33047 SCREW, Stat Cover & Coil to Choke Housing
    SCREW, Stat Cover & Coil to Choke Housing
  • 65
    54-33036 RETAINER, Stat Cover & Coil to Choke Housing Scew
    RETAINER, Stat Cover & Coil to Choke Housing Scew
  • --
    823427A1 OVERHAUL KIT
    OVERHAUL KIT
  • --
    823427A1 GASKET KIT
    GASKET KIT
