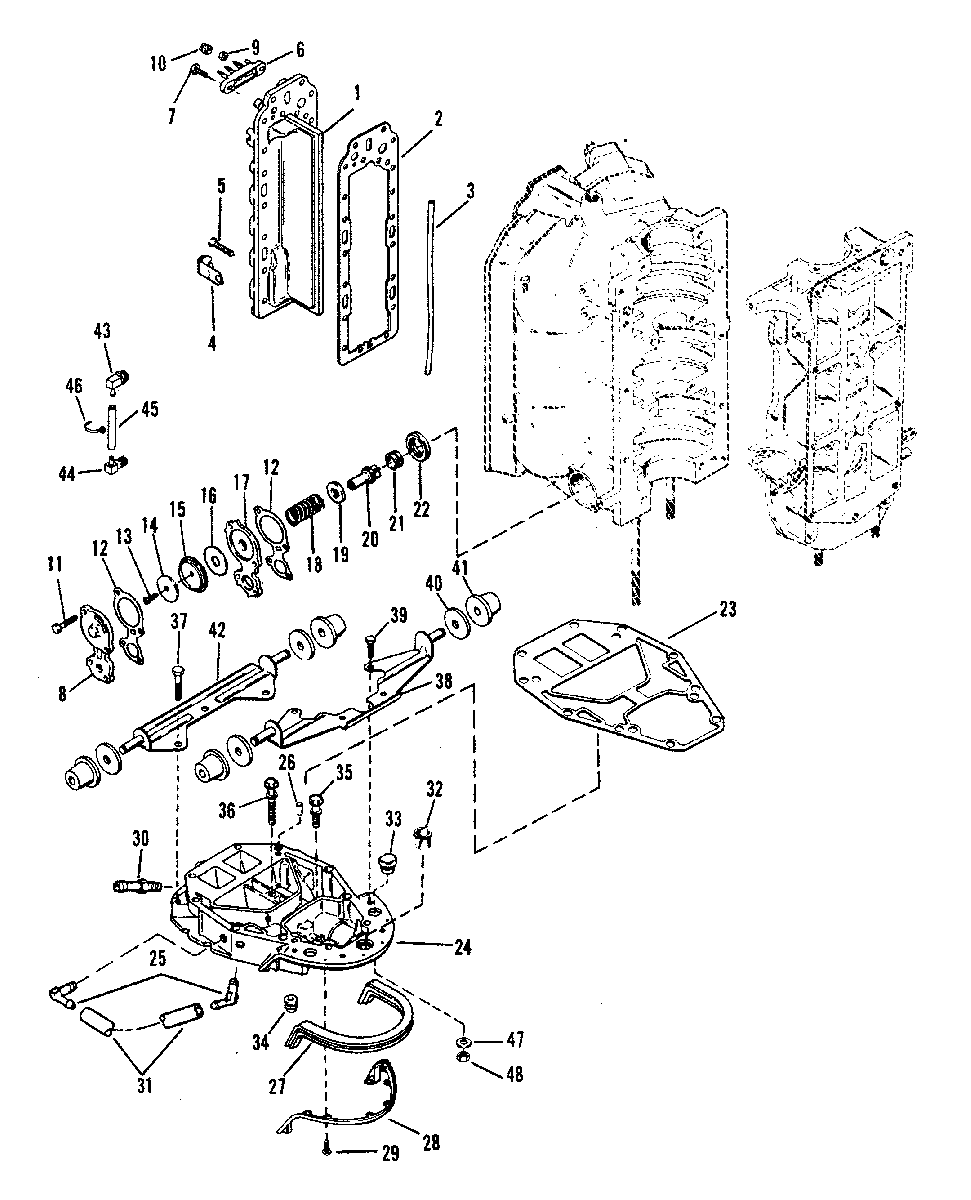

EXHAUST MANIFOLD AND EXHAUST PLATE для Mariner - V-175 (SKI) 0C239553 THRU 0D081999
-
№АртикулНазвание
-
119036T1 PLATE, DIVIDERPLATE, DIVIDER
-
227-190503 GASKET, DIVIDER PLATEGASKET, DIVIDER PLATE
-
326-814754 SEAL, DIVIDER PLATESEAL, DIVIDER PLATE
-
454-814634 CLAMPCLAMP
-
510-31984 SCREW, DIVIDER PLATE (1-3/8")SCREW, DIVIDER PLATE (1-3/8")
-
510-53167T SCREW, DIVIDER PLATE (9/10" 0)SCREW, DIVIDER PLATE (9/10" 0)
-
686-194373 TERMINAL BLOCKTERMINAL BLOCK
-
710-90192 SCREW, TERMINAL BLOCKSCREW, TERMINAL BLOCK
-
88M0039767 COVER, RELIEF VALVECOVER, RELIEF VALVE
-
911-45076 NUT, TERMINAL BLOCKNUT, TERMINAL BLOCK
-
1011-813938 NUT, TERMINAL BLOCKNUT, TERMINAL BLOCK
-
1110-74824 SCREW, COVER TO CYLINDER BLOCK (1-1/4")SCREW, COVER TO CYLINDER BLOCK (1-1/4")
-
1227-78690002 GASKET, RELIEF VALVE PLATEGASKET, RELIEF VALVE PLATE
-
1310-69570 SCREW, DIAPHRAGM TO PLATE (3/4")SCREW, DIAPHRAGM TO PLATE (3/4")
-
1412-76451 WASHER, DIAPHRAGM SCREWWASHER, DIAPHRAGM SCREW
-
15144791 DIAPHRAGMDIAPHRAGM
-
1616496 WATER DEFLECTORWATER DEFLECTOR
-
1716497A1 PLATE, RELIEF VALVEPLATE, RELIEF VALVE
-
1824-64878 SPRING, COMPRESSION POPPET VALVESPRING, COMPRESSION POPPET VALVE
-
1912-85303 WASHER, POPPET SPRINGWASHER, POPPET SPRING
-
2014480 POPPET, VALVEPOPPET, VALVE
-
2125-64872 GROMMET, POPPET VALVEGROMMET, POPPET VALVE
-
2265848 CARRIER, POPPET VALVECARRIER, POPPET VALVE
-
2327-991764 GASKET, EXHAUST PLATEGASKET, EXHAUST PLATE
-
2418260A3 PLATE ASSEMBLY, EXHAUSTPLATE ASSEMBLY, EXHAUST
-
2522-687271 ELBOW, EXHAUST PLATEELBOW, EXHAUST PLATE
-
2617-43044 DOWEL PIN, LOCATING, EXHAUST PLATEDOWEL PIN, LOCATING, EXHAUST PLATE
-
278M0043164 SEAL, EXHAUST PLATESEAL, EXHAUST PLATE
-
28680101 BRACKETBRACKET
-
2910-878608 SCREW, BRACKET TO EXHAUST PLATE (1/2")SCREW, BRACKET TO EXHAUST PLATE (1/2")
-
3022-89772 CONNECTOR (STRAIGHT)CONNECTOR (STRAIGHT)
-
3132-77653101 HOSEHOSE
-
3223-27132 BUSHING, EXHAUST PLATEBUSHING, EXHAUST PLATE
-
3325-19564001 GROMMETGROMMET
-
3425-12602002 GROMMET, EXHAUST PLATEGROMMET, EXHAUST PLATE
-
3510-66727 SCREW, EXHAUST PLATE ATTACHING (1-1/4")SCREW, EXHAUST PLATE ATTACHING (1-1/4")
-
3610-68783 SCREW, EXHAUST PLATE ATTACHING (2-1/2")SCREW, EXHAUST PLATE ATTACHING (2-1/2")
-
3710-898833 SCREW, EXHAUST PLATE ATTACHING (3-1/2")SCREW, EXHAUST PLATE ATTACHING (3-1/2")
-
38812905T BRACKET ASSEMBLY, FRONTBRACKET ASSEMBLY, FRONT
-
3910-90285 SCREW, FRONT BRACKETSCREW, FRONT BRACKET
-
4012-187031 WASHERWASHER
-
4125-18778001 GROMMETGROMMET
-
4218578T09 BRACKET ASSEMBLY, REARBRACKET ASSEMBLY, REAR
-
4322-8144301 FITTINGFITTING
-
4422-920071 FITTING (90)FITTING (90)
-
4532-8M0108355 HOSEHOSE
-
4654-816311T STA-STRAPSTA-STRAP
-
4712-20553 WASHER, POWERHEAD STUDWASHER, POWERHEAD STUD
-
4811-69254 NUT, POWERHEAD STUDNUT, POWERHEAD STUD
