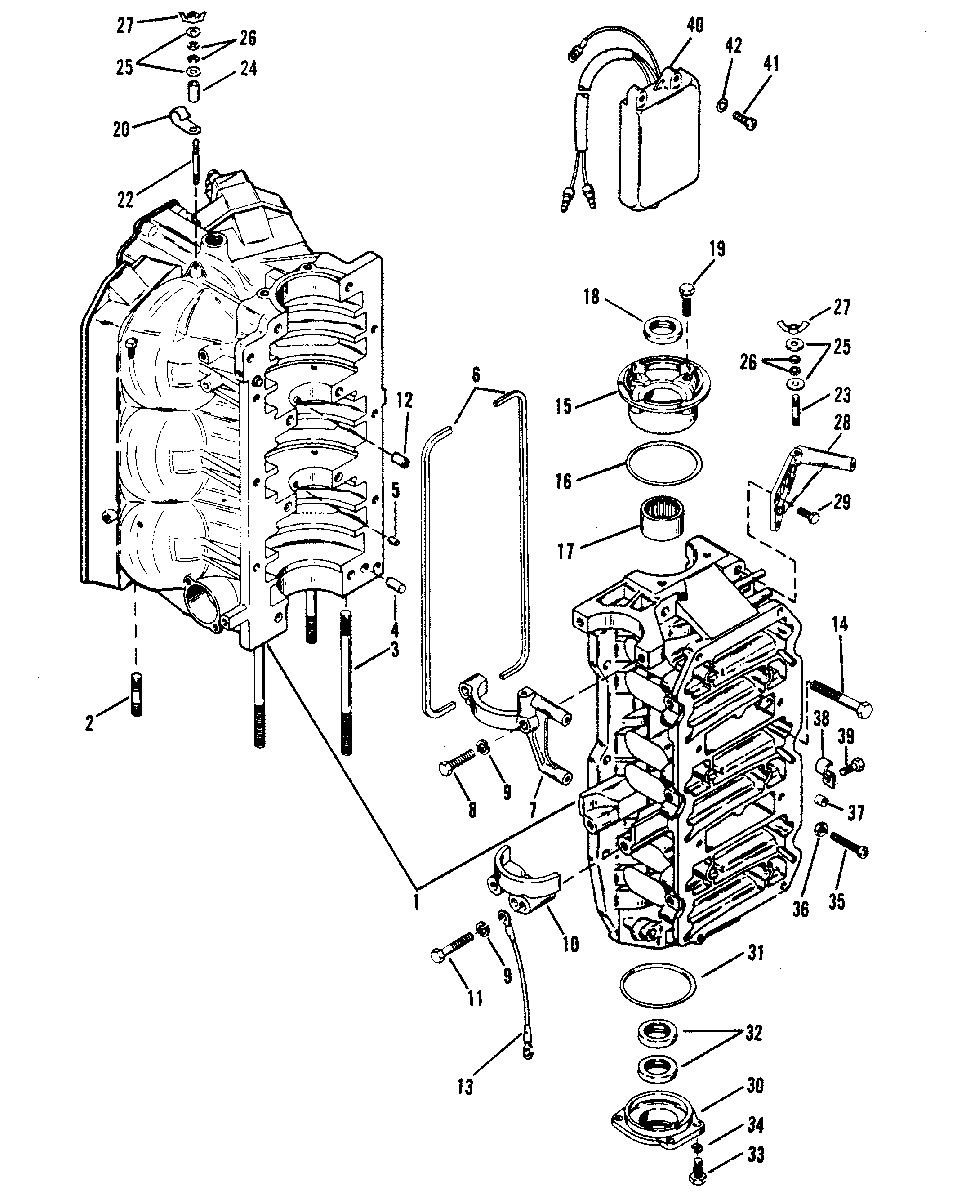

CYLINDER BLOCK AND END CAPS для Mariner - V-175 (SKI) 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    884-9764T12 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    16-76175 STUD, POWERHEAD
    (1-7/8")
    STUD, POWERHEAD
    (1-7/8")
  • 3
    16-670654 STUD, POWERHEAD
    (5-1/2")
    STUD, POWERHEAD
    (5-1/2")
  • 3
    16-8M0034454 STUD, POWERHEAD
    (6-3/4")
    STUD, POWERHEAD
    (6-3/4")
  • 4
    17-43044 DOWEL PIN, LOCATING
    DOWEL PIN, LOCATING
  • 5
    17-8M0036405 DOWEL PIN, CYLINDER BLOCK (BEARING RACE)
    DOWEL PIN, CYLINDER BLOCK (BEARING RACE)
  • 6
    27-11338 GASKET, SEALING
    GASKET, SEALING
  • 7
    8M0088723 COVER, STARTER MOTOR (UPPER)
    COVER, STARTER MOTOR (UPPER)
  • 8
    10-73657 SCREW, COVER TO CRANKCASE
    (1-1/2")
    SCREW, COVER TO CRANKCASE
    (1-1/2")
  • 9
    13-26993 LOCKWASHER, STARTER MOTOR COVER SCREW
    LOCKWASHER, STARTER MOTOR COVER SCREW
  • 10
    76867 COVER, STARTER MOTOR (LOWER)
    COVER, STARTER MOTOR (LOWER)
  • 11
    10-815549 SCREW, COVER TO CRANKCASE
    (2")
    SCREW, COVER TO CRANKCASE
    (2")
  • 12
    23-99448 BUSHING
    BUSHING
  • 13
    84-88807A20 CABLE ASSEMBLY, COVER
    CABLE ASSEMBLY, COVER
  • 14
    10-66717 SCREW, CRANKCASE TO CYLINDER BLOCK
    (3-1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK
    (3-1/4")
  • 14
    10-74824 SCREW, CRANKCASE TO CYLINDER BLOCK
    (1-1/4")
    SCREW, CRANKCASE TO CYLINDER BLOCK
    (1-1/4")
  • 15
    1159-858521T1 END CAP ASSEMBLY, UPPER
    END CAP ASSEMBLY, UPPER
  • 16
    25-54029 "O" RING, END CAP
    "O" RING, END CAP
  • 17
    31-16756A4 ROLLER BEARING, END CAP
    ROLLER BEARING, END CAP
  • 18
    26-41953 OIL SEAL, END CAP
    OIL SEAL, END CAP
  • 19
    10-30225 SCREW, UPPER END CAP TO CYLINDER BLOCK
    (1")
    SCREW, UPPER END CAP TO CYLINDER BLOCK
    (1")
  • 20
    54-63153 'J' CLIP
    'J' CLIP
  • 22
    16-15094 STUD, FLYWHEEL COVER TO CYLINDER BLOCK
    (1-7/8")
    STUD, FLYWHEEL COVER TO CYLINDER BLOCK
    (1-7/8")
  • 23
    16-8M0034435 STUD, FLYWHEEL COVER TO BRACKET
    (1")
    STUD, FLYWHEEL COVER TO BRACKET
    (1")
  • 24
    23-67269 SPACER, FLYWHEEL COVER STUD
    SPACER, FLYWHEEL COVER STUD
  • 25
    12-49221 WASHER, FLYWHEEL COVER STUD
    WASHER, FLYWHEEL COVER STUD
  • 26
    12-72761 WASHER, FLYWHEEL COVER STUD
    WASHER, FLYWHEEL COVER STUD
  • 27
    11-816874 NUT, FLYWHEEL COVER STUD
    NUT, FLYWHEEL COVER STUD
  • 28
    422482 BRACKET, FLYWHEEL COVER
    BRACKET, FLYWHEEL COVER
  • 29
    10-49668 SCREW, BRACKET TO CRANKCASE
    (3/4")
    SCREW, BRACKET TO CRANKCASE
    (3/4")
  • 30
    1156-7809T1 END CAP ASSEMBLY, LOWER
    END CAP ASSEMBLY, LOWER
  • 31
    25-62700 "O" RING, END CAP (3-1/4" I.D.)
    "O" RING, END CAP (3-1/4" I.D.)
  • 32
    26-41953 OIL SEAL, END CAP
    OIL SEAL, END CAP
  • 33
    10-28636 SCREW, LOWER END CAP TO CYLINDER BLOCK
    (3/4")
    SCREW, LOWER END CAP TO CYLINDER BLOCK
    (3/4")
  • 34
    13-26992 LOCKWASHER, LOWER END CAP SCREW
    LOCKWASHER, LOWER END CAP SCREW
  • 35
    10-64022 SCREW, ADJUSTING-CYLINDER BLOCK
    SCREW, ADJUSTING-CYLINDER BLOCK
  • 36
    11-64015 NUT, JAM-ADJUSTING SCREW
    NUT, JAM-ADJUSTING SCREW
  • 37
    26852 CAP, NYLON-ADJUSTING SCREW
    CAP, NYLON-ADJUSTING SCREW
  • 38
    54-16793 CLAMP
    CLAMP
  • 39
    10-73286 SCREW
    SCREW
  • 40
    87076A10 IDLE SPEED CONTROL ASSEMBLY
    IDLE SPEED CONTROL ASSEMBLY
  • 41
    10-690201 SCREW, IDLE SPEED CONTROL
    SCREW, IDLE SPEED CONTROL
  • 42
    12-38833 WASHER, IDLE SPEED CONTROL SCREW
    WASHER, IDLE SPEED CONTROL SCREW
  • -
    812817T90 POWERHEAD ASSEMBLY - COMPLETE
    INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING RODS AND BEARINGS, ETC.
    POWERHEAD ASSEMBLY - COMPLETE
    INCLUDES CYLINDER BLOCK AND CRANKCASE, PISTONS, CONNECTING RODS AND BEARINGS, ETC.
