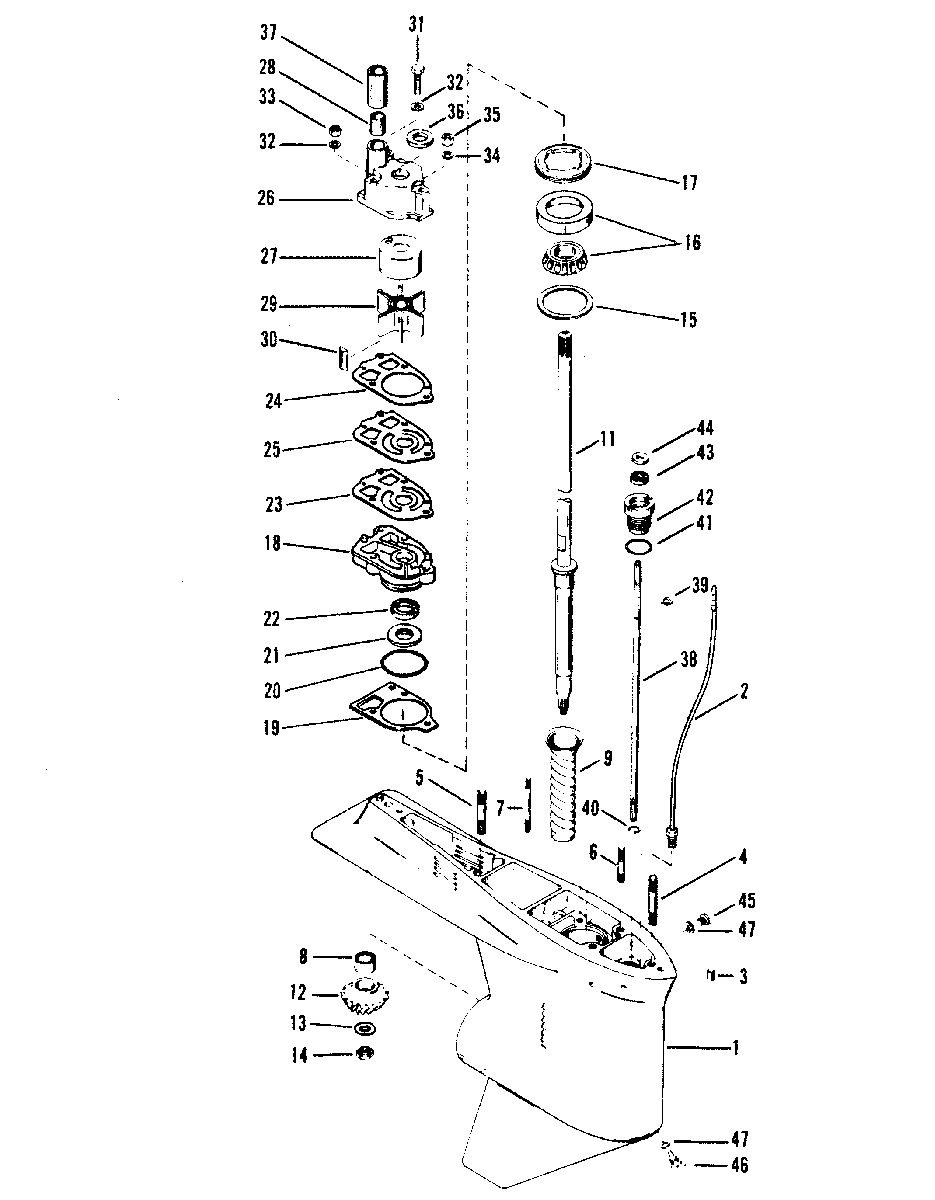

GEAR HOUSING (DRIVE SHAFT) для Mariner - V-175 (SKI) 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • -
    1647-9148T81 GEAR HOUSING
    GEAR HOUSING
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    22-85822A10 CONNECTOR ASSEMBLY, SPEEDOMETER
    CONNECTOR ASSEMBLY, SPEEDOMETER
  • 3
    17-43044 DOWEL PIN, GEAR HOUSING LOCATING
    DOWEL PIN, GEAR HOUSING LOCATING
  • 4
    16-786382 STUD, GEAR HOUSING (3-1/8")
    STUD, GEAR HOUSING (3-1/8")
  • 5
    16-8M0133358 STUD, GEAR HOUSING (2-1/16")
    STUD, GEAR HOUSING (2-1/16")
  • 6
    16-8M0034463 STUD, WATER PUMP (3-3/8")
    STUD, WATER PUMP (3-3/8")
  • 7
    16-306671 STUD, WATER PUMP (3-1/8")
    STUD, WATER PUMP (3-1/8")
  • 8
    31-42647A1 ROLLER BEARING, DRIVE SHAFT
    ROLLER BEARING, DRIVE SHAFT
  • 9
    23-43998 SLEEVE, LUBRICATION
    SLEEVE, LUBRICATION
  • 11
    45-897624T DRIVE SHAFT
    DRIVE SHAFT
  • 12
    N.S.S. PINION GEAR (PART OF 43-44102A2)
    PINION GEAR (PART OF 43-44102A2)
  • 13
    12-92721 WASHER, PINION GEAR
    WASHER, PINION GEAR
  • 14
    11-35921 NUT, PINION GEAR TO DRIVE SHAFT
    NUT, PINION GEAR TO DRIVE SHAFT
  • 15
    15-8M0063267 SHIM ASSEMBLY
    ROLLER BEARING TO GEAR HOUSING
    SHIM ASSEMBLY
    ROLLER BEARING TO GEAR HOUSING
  • 16
    31-36387A1 ROLLER BEARING, DRIVE SHAFT
    ROLLER BEARING, DRIVE SHAFT
  • 17
    8245191 NUT, DRIVE SHAFT BEARING
    NUT, DRIVE SHAFT BEARING
  • 18
    46-8M0077147 WATER PUMP BASE ASSEMBLY
    WATER PUMP BASE ASSEMBLY
  • 19
    27-426311 GASKET, WATER PUMP TO GEAR HSG
    GASKET, WATER PUMP TO GEAR HSG
  • 20
    25-896523 "O" RING, WATER PUMP
    "O" RING, WATER PUMP
  • 21
    26-89238 OIL SEAL, WATER PUMP
    OIL SEAL, WATER PUMP
  • 22
    26-16977 OIL SEAL, WATER PUMP
    OIL SEAL, WATER PUMP
  • 23
    27-8M0090319 GASKET, LOWER - WATER PUMP
    GASKET, LOWER - WATER PUMP
  • 24
    27-858524 GASKET, UPPER - WATER PUMP
    GASKET, UPPER - WATER PUMP
  • 25
    324351 PLATE, FACE - WATER PUMP
    PLATE, FACE - WATER PUMP
  • 26
    46-96148T1 WATER PUMP BODY ASSEMBLY
    WATER PUMP BODY ASSEMBLY
  • 27
    48752T INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 28
    26-38970 SEAL, RUBBER - WATER INLET TUBE
    SEAL, RUBBER - WATER INLET TUBE
  • 29
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 30
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 31
    10-96411 SCREW, WATER PUMP (2-1/4")
    SCREW, WATER PUMP (2-1/4")
  • 32
    12-29245 WASHER, WATER PUMP SCREW AND STUD
    WASHER, WATER PUMP SCREW AND STUD
  • 33
    11-8267119 NUT, WATER PUMP STUD
    NUT, WATER PUMP STUD
  • 34
    12-36001 WASHER, WATER PUMP STUD
    WASHER, WATER PUMP STUD
  • 35
    11-13436 NUT, WATER PUMP STUD
    NUT, WATER PUMP STUD
  • 36
    25-30271 RING, RUBBER (DRIVE SHAFT)
    RING, RUBBER (DRIVE SHAFT)
  • 37
    23-29804T SLEEVE, GUIDE - WATER INLET TUBE
    SLEEVE, GUIDE - WATER INLET TUBE
  • 38
    789022 SHAFT, SHIFT - LOWER
    SHAFT, SHIFT - LOWER
  • 39
    53-29641 "E" RING, RETAINING - SHIFT SHAFT
    "E" RING, RETAINING - SHIFT SHAFT
  • 40
    53-78907 RETAINER RING
    RETAINER RING
  • 41
    25-25439 "O" RING, SHIFT SHAFT BUSHING
    "O" RING, SHIFT SHAFT BUSHING
  • 42
    23-77631A2 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 43
    26-8164641 OIL SEAL, SHIFT SHAFT BUSHING
    OIL SEAL, SHIFT SHAFT BUSHING
  • 44
    12-77674 WASHER, RUBBER - SHIFT SHAFT BUSHING
    WASHER, RUBBER - SHIFT SHAFT BUSHING
  • 45
    10-79953Q04 SCREW, GREASE FILLER
    SCREW, GREASE FILLER
  • 46
    22-8M0058389 SCREW, DRAIN (MAGNETIC)
    SCREW, DRAIN (MAGNETIC)
  • 47
    12-191833 WASHER, GREASE FILLER AND DRAIN SCREW
    WASHER, GREASE FILLER AND DRAIN SCREW
  • -
    46-96148A8 WATER PUMP REBUILD KIT
    CONTENTS INDICATED BY FOOTNOTE 3
    WATER PUMP REBUILD KIT
    CONTENTS INDICATED BY FOOTNOTE 3
  • -
    26-89238A2 SEAL KIT
    CONTENTS INDICATED BY FOOTNOTE 4
    SEAL KIT
    CONTENTS INDICATED BY FOOTNOTE 4
