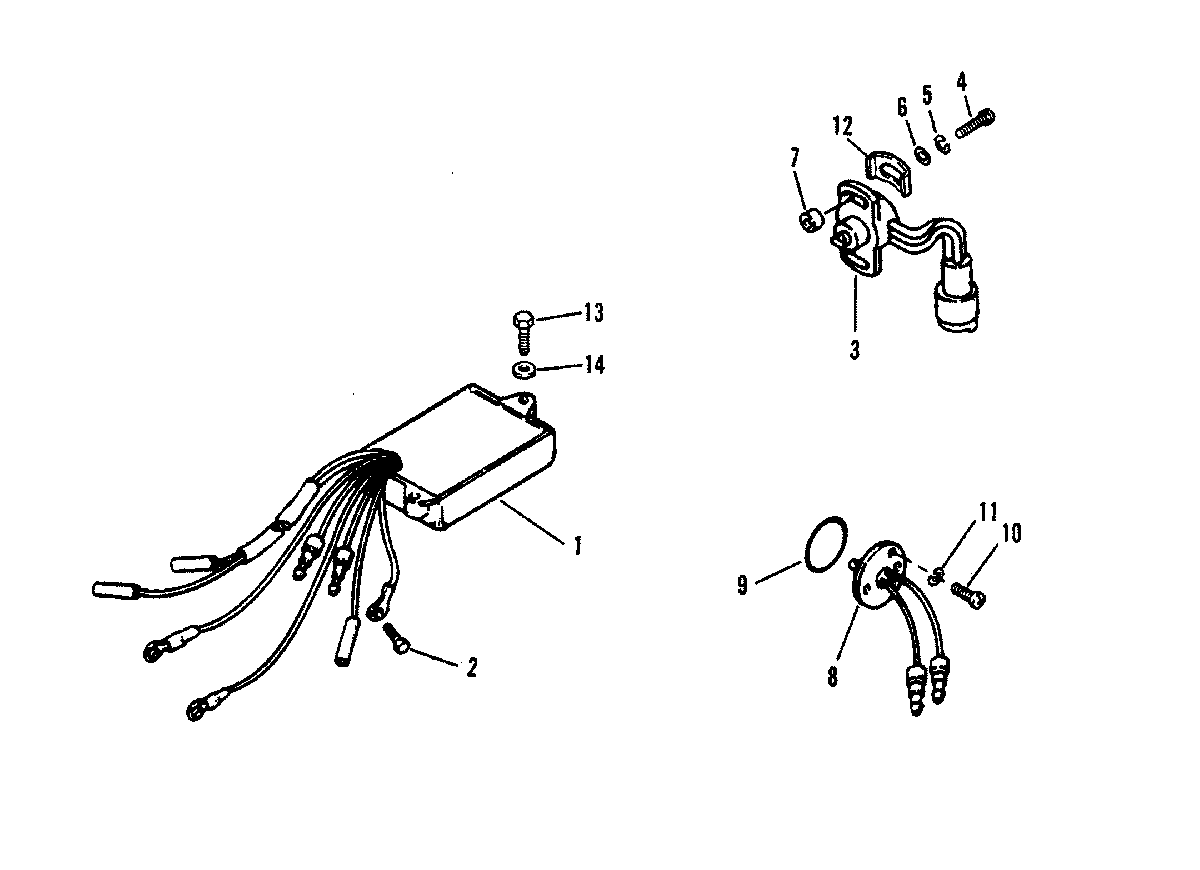

TEMPERATURE SENSOR для Mariner - V-175 (SKI) 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    41470A25 OIL INJECTION WARNING MODULE ASSEMLBY
    OIL INJECTION WARNING MODULE ASSEMLBY
  • 2
    10-42813 SCREW
    SCREW
  • 3
    14851T03 INDICATOR, THROTTLE POSITION
    INDICATOR, THROTTLE POSITION
  • 4
    10-15150 SCREW, INDICATOR
    SCREW, INDICATOR
  • 5
    13-26995 LOCKWASHER, INDICATOR SCREW
    LOCKWASHER, INDICATOR SCREW
  • 6
    12-30164 WASHER, INDICATOR SCREW (5/16")
    WASHER, INDICATOR SCREW (5/16")
  • 6
    12-30164 WASHER, INDICATOR SCREW (3/8")
    WASHER, INDICATOR SCREW (3/8")
  • 7
    23-15885 SLEEVE
    SLEEVE
  • 8
    13221T01 TEMPERATURE SENSOR ASSEMBLY
    TEMPERATURE SENSOR ASSEMBLY
  • 9
    25-45711 "O" RING
    "O" RING
  • 10
    10-57583T SCREW, TEMPERATURE SENSOR
    SCREW, TEMPERATURE SENSOR
  • 11
    13-26995 LOCKWASHER, TEMPERATURE SENSOR SCREW
    LOCKWASHER, TEMPERATURE SENSOR SCREW
  • 12
    813501 PLATE
    PLATE
  • 13
    10-690201 SCREW
    SCREW
  • 14
    12-38833 WASHER
    WASHER
