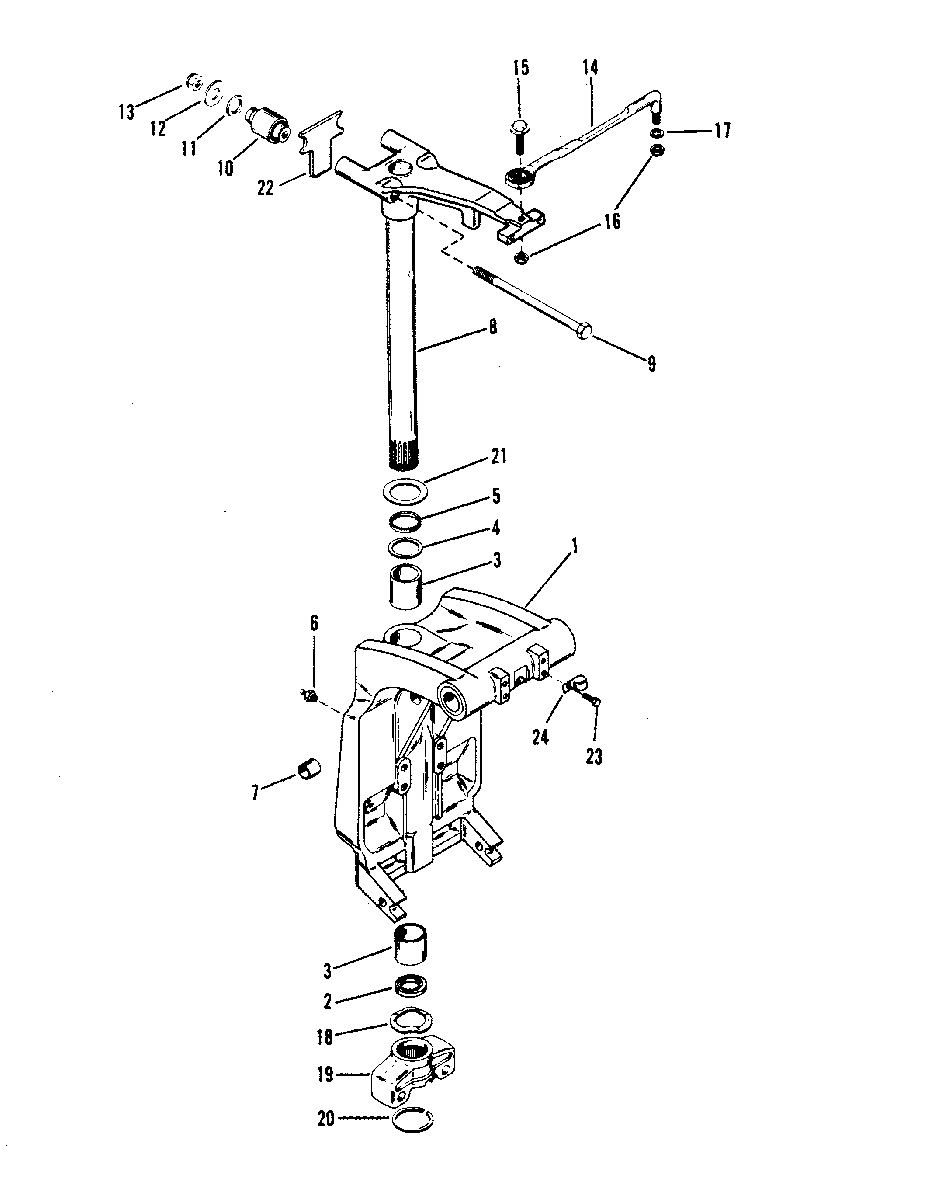

SWIVEL BRACKET AND STEERING ARM для Mariner - V-175 (SKI) 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    1499-8M0102865 SWIVEL BRACKET ASSEMBLY
    SWIVEL BRACKET ASSEMBLY
  • 2
    26-87735 OIL SEAL, SWIVEL BRACKET (LOWER)
    OIL SEAL, SWIVEL BRACKET (LOWER)
  • 3
    23-818764 BUSHING, SWIVEL BRACKET (LOWER AND UPPER)
    BUSHING, SWIVEL BRACKET (LOWER AND UPPER)
  • 4
    25-33466 "O" RING, SWIVEL BRACKET (UPPER)
    "O" RING, SWIVEL BRACKET (UPPER)
  • 5
    23-67668 SPACER, SWIVEL BRACKET (UPPER)
    SPACER, SWIVEL BRACKET (UPPER)
  • 6
    22-74036 FITTING, GREASE
    FITTING, GREASE
  • 7
    23-821207 BUSHING, SWIVEL BRACKET
    BUSHING, SWIVEL BRACKET
  • 8
    17-8M0132731 SWIVEL PIN AND STEERING ARM
    SWIVEL PIN AND STEERING ARM
  • 9
    10-8M0000491 SCREW, STEERING ARM TO UPPER MOUNT
    SCREW, STEERING ARM TO UPPER MOUNT
  • 10
    77326 MOUNT, RUBBER (UPPER)
    MOUNT, RUBBER (UPPER)
  • 11
    12-66921 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 12
    12-78688 WASHER, UPPER MOUNT BOLT
    WASHER, UPPER MOUNT BOLT
  • 13
    11-34933 NUT, UPPER MOUNT BOLT
    NUT, UPPER MOUNT BOLT
  • 14
    92876A12 STEERING LINK ASSEMBLY
    STEERING LINK ASSEMBLY
  • 15
    10-849838 SCREW, STEERING LINK TO STEERING ARM
    SCREW, STEERING LINK TO STEERING ARM
  • 16
    11-8M0042636 NUT, STEERING LINK SCREW
    NUT, STEERING LINK SCREW
  • 17
    12-34931 WASHER, STEERING LINK TO STEERING ARM
    WASHER, STEERING LINK TO STEERING ARM
  • 18
    13-78854 WAVE WASHER, BOTTOM YOKE
    WAVE WASHER, BOTTOM YOKE
  • 19
    878182T01 BOTTOM YOKE
    BOTTOM YOKE
  • 20
    53-67684 RETAINING RING, BOTTOM YOKE
    RETAINING RING, BOTTOM YOKE
  • 21
    12-67670 WASHER, THRUST - SWIVEL BRACKET
    WASHER, THRUST - SWIVEL BRACKET
  • 22
    88882 BUMPER, TOP YOKE
    BUMPER, TOP YOKE
  • 23
    10-64014 SCREW, SWIVEL BRACKET
    SCREW, SWIVEL BRACKET
  • 24
    54-54457 "J" CLAMP
    "J" CLAMP
