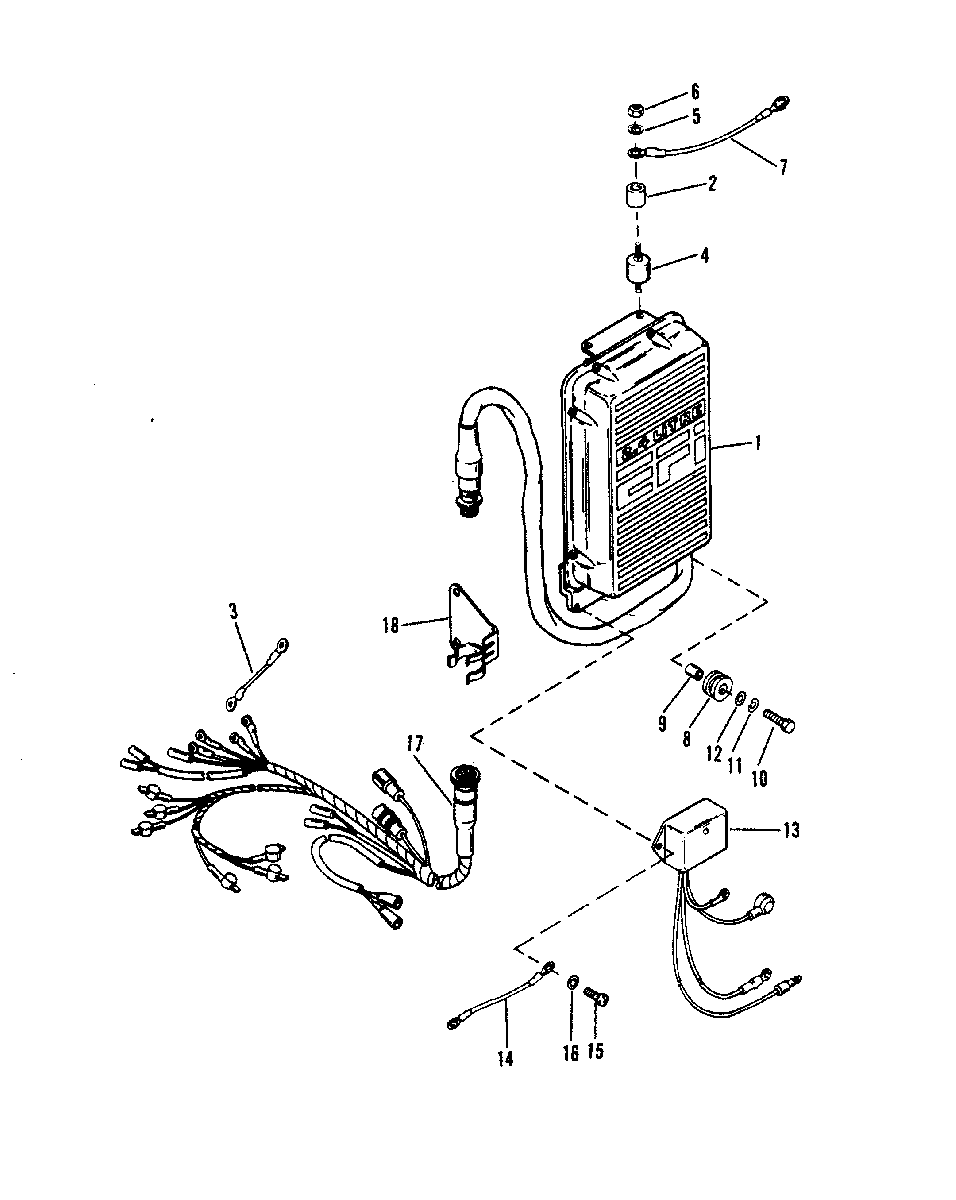

E.C.U. ASSEMBLY для Mariner - V-175 (SKI) 0C239553 THRU 0D081999
-
№АртикулНазвание
-
114632A12 E.C.U. ASSEMBLYE.C.U. ASSEMBLY
-
223-34948 SPACERSPACER
-
384-87895A4 CABLECABLE
-
490435 MOUNT, COWL MOUNTING BRACKETMOUNT, COWL MOUNTING BRACKET
-
512-21249 WASHER, MOUNT ATTACHINGWASHER, MOUNT ATTACHING
-
611-8267089 NUT, MOUNT ATTACHINGNUT, MOUNT ATTACHING
-
784-88807A19 CABLE ASSEMBLYCABLE ASSEMBLY
-
814637 GROMMETGROMMET
-
923-14636 BUSHINGBUSHING
-
1010-28667 SCREWSCREW
-
1113-26992 LOCKWASHERLOCKWASHER
-
1212-65567 WASHERWASHER
-
1313202A2 WATER SENSOR MODULE ASSEMLBYWATER SENSOR MODULE ASSEMLBY
-
1484-88807A18 WIRE ASSEMBLY (BLACK)WIRE ASSEMBLY (BLACK)
-
1510-37571 SCREW, WATER SENSOR MODULESCREW, WATER SENSOR MODULE
-
1612-89302 WASHER, WATER SENSOR MODULE SCREWWASHER, WATER SENSOR MODULE SCREW
-
1784-98866A14 WIRING HARNESS, E.C.U. AND INJECTORSWIRING HARNESS, E.C.U. AND INJECTORS
-
1854-146951 CLIPCLIP
