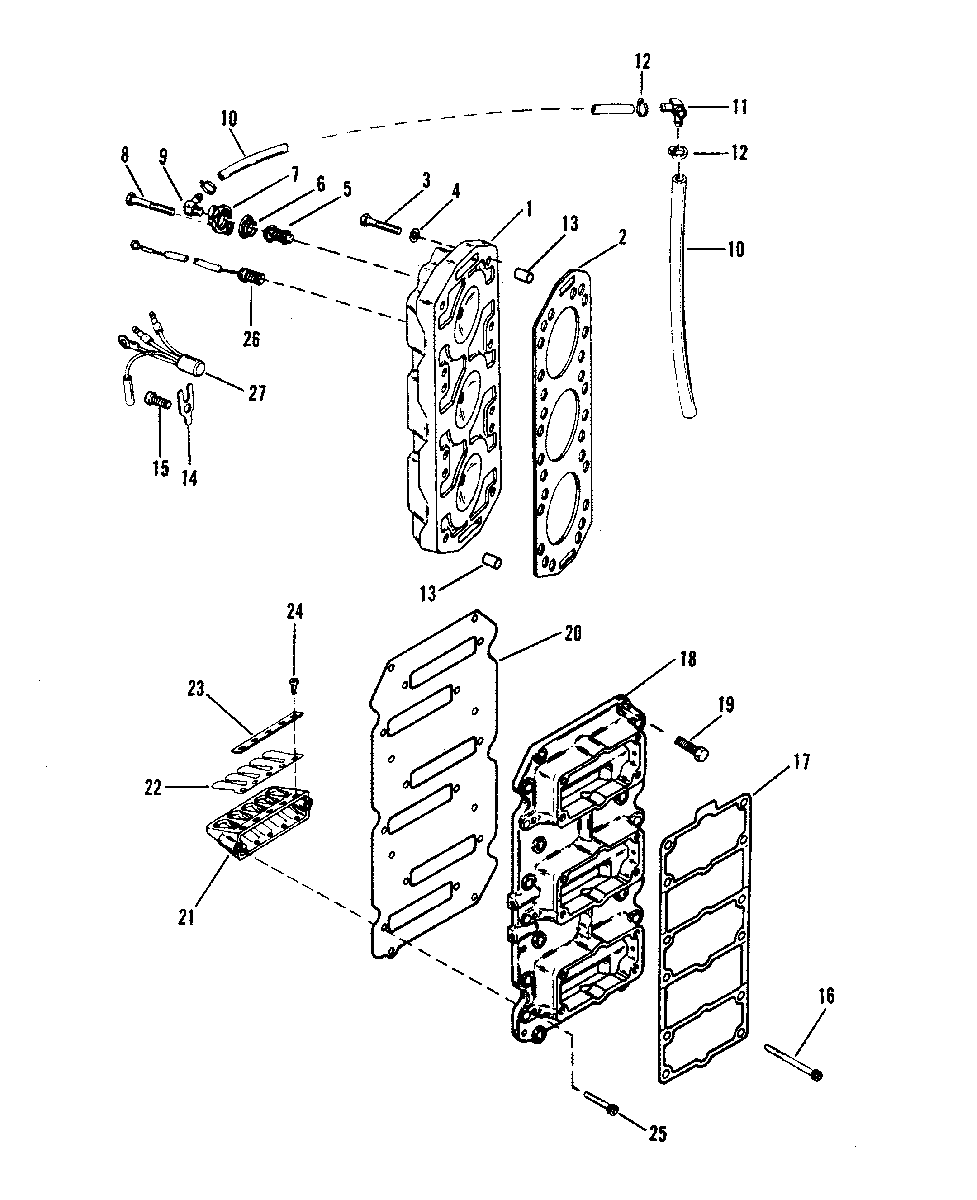

REED BLOCK AND CYLINDER HEAD для Mariner - V-175 (SKI) 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    18789F1 CYLINDER HEAD
    CYLINDER HEAD
  • 2
    27-18786T GASKET, CYLINDER HEAD
    GASKET, CYLINDER HEAD
  • 3
    10-98534 SCREW, CYLINDER HEAD (2")
    SCREW, CYLINDER HEAD (2")
  • 4
    12-25909 WASHER, CYLINDER HEAD SCREW
    WASHER, CYLINDER HEAD SCREW
  • 5
    75692 THERMOSTAT
    THERMOSTAT
  • 6
    27-62386001 GASKET, THERMOSTAT
    GASKET, THERMOSTAT
  • 7
    90390A1 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 8
    10-35386 SCREW, THERMOSTAT COVER (1")
    SCREW, THERMOSTAT COVER (1")
  • 9
    22-687271 FITTING, ELBOW-WATER HOSES
    FITTING, ELBOW-WATER HOSES
  • 10
    32-77653101 HOSE, WATER DISTRIBUTION
    HOSE, WATER DISTRIBUTION
  • 11
    22-68728 FITTING, THERMOSTAT COVER TO WATER HOSES
    FITTING, THERMOSTAT COVER TO WATER HOSES
  • 12
    54-816311T STA-STRAP, WATER HOSES
    STA-STRAP, WATER HOSES
  • 13
    17-63779 DOWEL PIN
    DOWEL PIN
  • 14
    137151 RETAINER, SENSOR AND SENDER
    RETAINER, SENSOR AND SENDER
  • 15
    10-98257 SCREW, RETAINER
    SCREW, RETAINER
  • 16
    10-90197 SCREW, REED BLOCK ATTACHING (2")
    SCREW, REED BLOCK ATTACHING (2")
  • 17
    27-167371 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 18
    17735A2 ADAPTOR PLATE
    ADAPTOR PLATE
  • 19
    10-28668 SCREW, ADAPTOR PLATE
    SCREW, ADAPTOR PLATE
  • 20
    27-146972 GASKET, ADAPTOR PLATE
    GASKET, ADAPTOR PLATE
  • 21
    75953 REED BLOCK
    REED BLOCK
  • 22
    34-75362A1 REED ASSEMBLY
    REED ASSEMBLY
  • 23
    961832 REED CLAMP
    REED CLAMP
  • 24
    10-823588 SCREW, REEDS TO REED BLOCK
    SCREW, REEDS TO REED BLOCK
  • 25
    10-92160 SCREW, REED BLOCK ATTACHING (3/4")
    SCREW, REED BLOCK ATTACHING (3/4")
  • 26
    97465 TEMPERATURE SENDER (STARBOARD)
    TEMPERATURE SENDER (STARBOARD)
  • 27
    13536A6 TEMPERATURE SENSOR (PORT)
    TEMPERATURE SENSOR (PORT)
