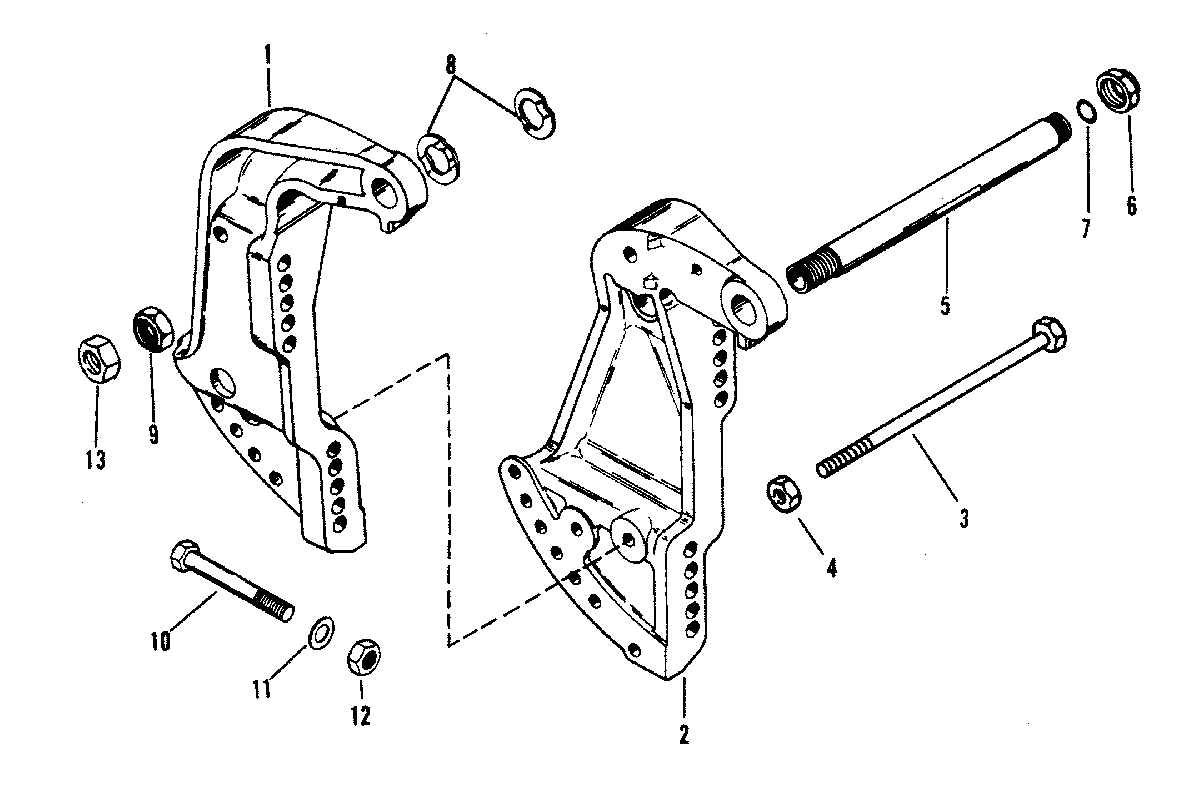

TRANSOM BRACKETS для Mariner - V-175 (SKI) 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    3401-8718F8 TRANSOM BRACKET (STARBOARD)
    TRANSOM BRACKET (STARBOARD)
  • 2
    3400-8716A9 TRANSOM BARCKET (PORT)
    TRANSOM BARCKET (PORT)
  • 3
    10-96930A1 BOLT ASSEMBLY, TILT LOCK
    BOLT ASSEMBLY, TILT LOCK
  • 4
    11-23161 NUT, BOLT
    NUT, BOLT
  • 5
    826125A1 TILT TUBE
    TILT TUBE
  • 6
    11-82671327 NUT, TILT TUBE (1"-14)
    NUT, TILT TUBE (1"-14)
  • 7
    25-45711 "O" RING, TILT TUBE
    "O" RING, TILT TUBE
  • 8
    13-88750 WAVE WASHER, TILT TUBE
    WAVE WASHER, TILT TUBE
  • 9
    11-858869 NUT, TILT TUBE (7/8"-14)
    NUT, TILT TUBE (7/8"-14)
  • 10
    10-677551 BOLT, TRANSOM BRACKET TO TRANSOM
    BOLT, TRANSOM BRACKET TO TRANSOM
  • 11
    12-28421 WASHER, TRANSOM BRACKET BOLT
    WASHER, TRANSOM BRACKET BOLT
  • 12
    11-35000 NUT, TRANSOM BRACKET BOLT
    NUT, TRANSOM BRACKET BOLT
  • 13
    11-8M0041651 JAM NUT
    JAM NUT
