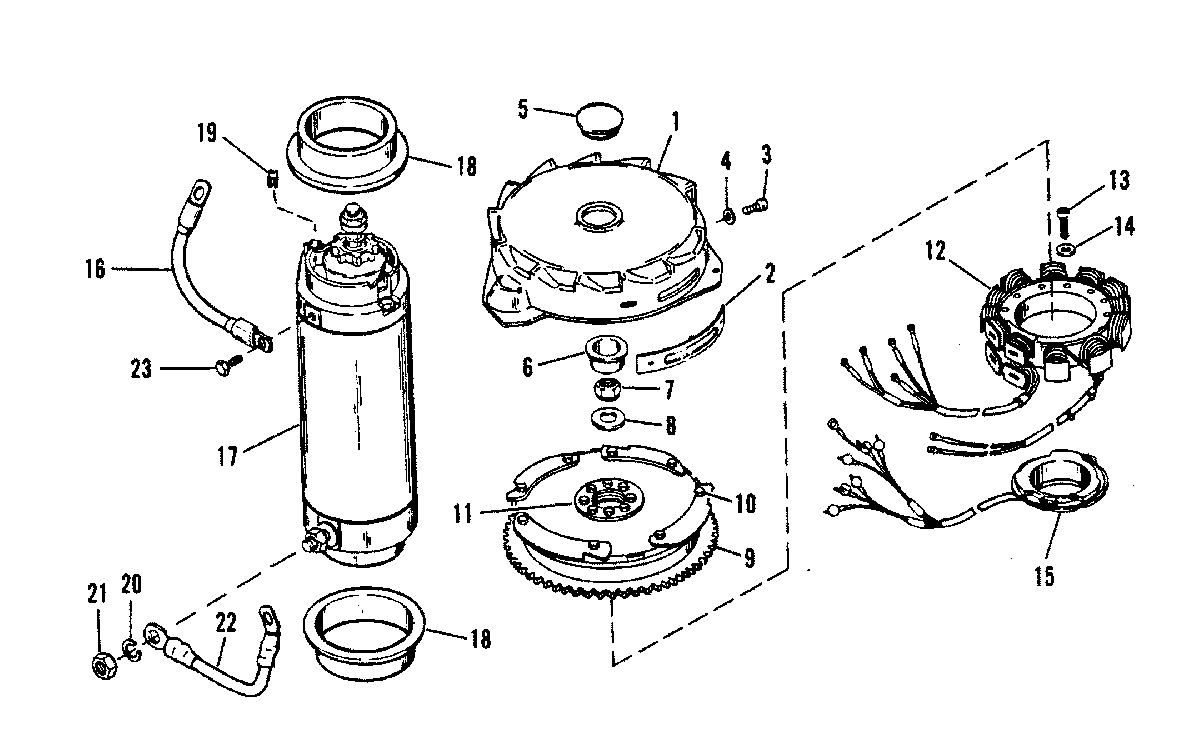

FLYWHEEL/STARTER MOTOR для Mariner - V-175 (SKI) 0C239553 THRU 0D081999

  • №
    Артикул
    Название
  • 1
    18896A1 COVER ASSEMBLY, FLYWHEEL
    COVER ASSEMBLY, FLYWHEEL
  • 2
    79022 MARKER, TIMING
    MARKER, TIMING
  • 3
    10-37572 SCREW, TIMING MARKER
    SCREW, TIMING MARKER
  • 4
    12-72761 WASHER, TIMING MARKER SCREW
    WASHER, TIMING MARKER SCREW
  • 5
    19-89219001 PLUB, FLYWHEEL COVER
    PLUB, FLYWHEEL COVER
  • 6
    19-45907 PLUB, FLYWHEEL
    PLUB, FLYWHEEL
  • 7
    11-52901 NUT, FLYWHEEL
    NUT, FLYWHEEL
  • 8
    12-33001 WASHER, FLYWHEEL
    WASHER, FLYWHEEL
  • 9
    271-859238T16 FLYWHEEL
    FLYWHEEL
  • 10
    10-32417 SCREW, FLYWHEEL PLATE
    SCREW, FLYWHEEL PLATE
  • 11
    10-68997 SCREW, FLYWHEEL HUB
    SCREW, FLYWHEEL HUB
  • 12
    398-9610A5 STATOR
    STATOR
  • 13
    10-90045 SCREW, STATOR
    SCREW, STATOR
  • 14
    13-26996 WASHER, STATOR SCREW
    WASHER, STATOR SCREW
  • 15
    96455A9 TRIGGER PLATE ASSEMBLY
    TRIGGER PLATE ASSEMBLY
  • 16
    84-93388A1 WIRE ASSEMBLY, PLATE TO STARTER MOTOR
    (BLACK)
    WIRE ASSEMBLY, PLATE TO STARTER MOTOR
    (BLACK)
  • 17
    50-893893 STARTER MOTOR
    STARTER MOTOR
  • 18
    23-8M0034918 COLLAR, STARTER MOTOR
    COLLAR, STARTER MOTOR
  • 19
    8M0043376 STOP, RUBBER-STARTER MOTOR
    STOP, RUBBER-STARTER MOTOR
  • 20
    13-26992 LOCKWASHER, STARTER MOTOR TERMINAL
    LOCKWASHER, STARTER MOTOR TERMINAL
  • 21
    11-20890 NUT, STARTER MOTOR TERMINAL
    NUT, STARTER MOTOR TERMINAL
  • 22
    84-93388A14 WIRE ASSEMBLY, SOLENOID TO STARTER MOTOT
    (BLACK)
    WIRE ASSEMBLY, SOLENOID TO STARTER MOTOT
    (BLACK)
  • 23
    10-69035 SCREW, CABLE TO STARTER MOTOR
    SCREW, CABLE TO STARTER MOTOR
