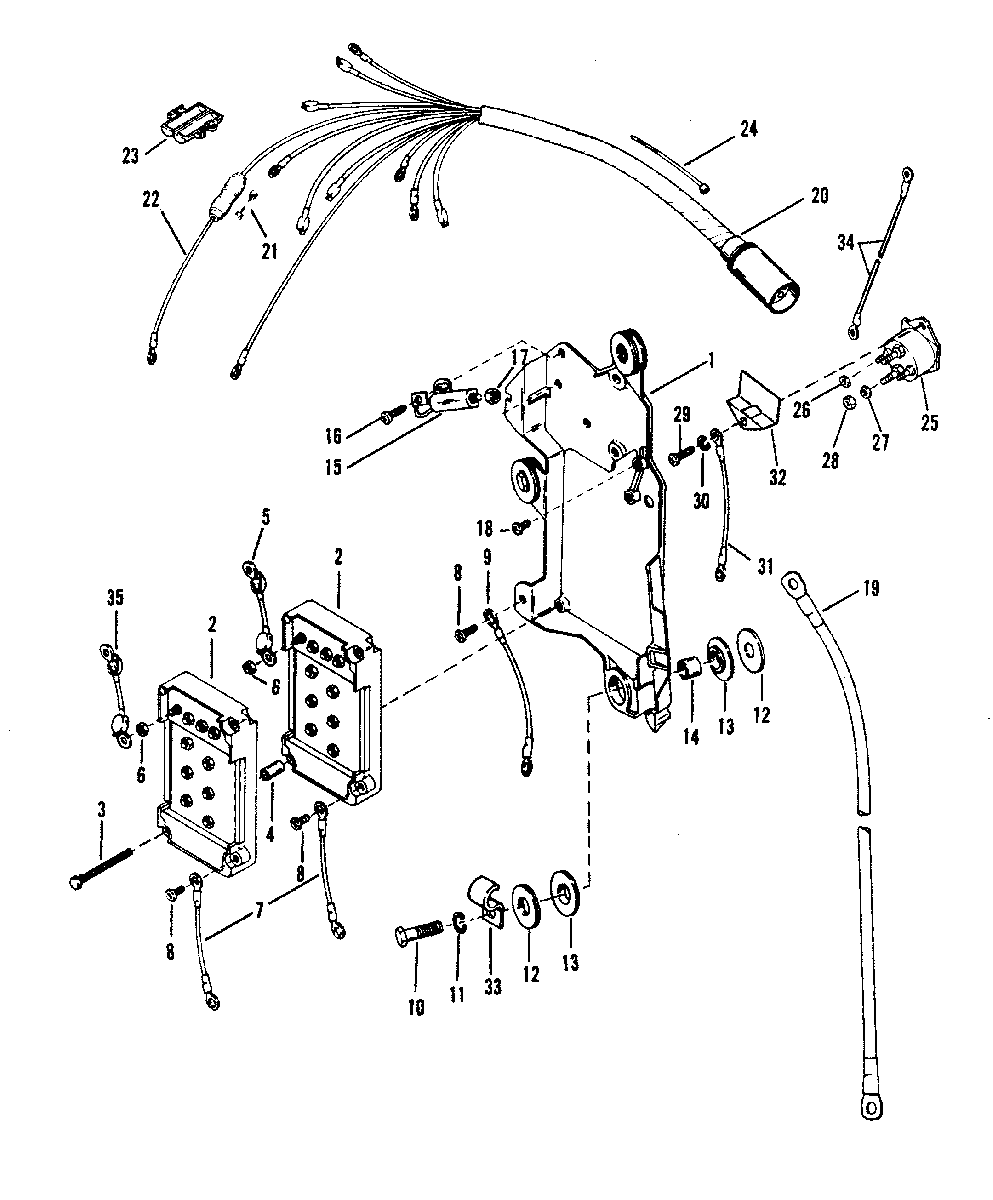

WIRING HARNESS / STARTER SOLENOID для Mariner - V-175 (SKI) 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    434292 PLATE, IGNITION
    PLATE, IGNITION
  • 2
    332-7778A12 SWITCH BOX
    SWITCH BOX
  • 3
    10-13669 SCREW, SWITCH BOX TO IGINTION PLATE
    (2-1/2")
    SCREW, SWITCH BOX TO IGINTION PLATE
    (2-1/2")
  • 4
    23-94453 BUSHING, SWITCH BOX SCREW
    BUSHING, SWITCH BOX SCREW
  • 5
    84-62310A2 CABLE ASSEMBLY, SWITCH BOX TO SWITCH BOX
    CABLE ASSEMBLY, SWITCH BOX TO SWITCH BOX
  • 6
    11-45076 NUT, SWITCH BOX TERMINAL
    NUT, SWITCH BOX TERMINAL
  • 7
    84-60871A10 WIRE, SWITCH BOX
    WIRE, SWITCH BOX
  • 8
    10-62568 SCREW, WIRE ATTACHING
    SCREW, WIRE ATTACHING
  • 9
    84-65999A3 CABLE ASSEMBLY, BLACK
    CABLE ASSEMBLY, BLACK
  • 10
    10-60411 SCREW/ IGNITION PLATE
    (1-1/4")
    SCREW/ IGNITION PLATE
    (1-1/4")
  • 11
    13-26993 LOCKWASHER, IGNITION PLATE SCREW
    LOCKWASHER, IGNITION PLATE SCREW
  • 12
    12-36042 WASHER, IGNITION PLATE SCREW
    WASHER, IGNITION PLATE SCREW
  • 13
    12-67264 WASHER, IGNITION PLATE SCREW (RUBBER)
    WASHER, IGNITION PLATE SCREW (RUBBER)
  • 14
    23-67268 BUSHING, IGNITION PLATE SCREW
    BUSHING, IGNITION PLATE SCREW
  • 15
    87-33386A3 MERCURY SWITHCH
    MERCURY SWITHCH
  • 16
    10-38055 SCREW, MERCURY SWITCH TO IGNITION PLATE
    (5/8")
    SCREW, MERCURY SWITCH TO IGNITION PLATE
    (5/8")
  • 17
    11-45076 NUT, MERCURY SWITCH TERMINAL
    NUT, MERCURY SWITCH TERMINAL
  • 18
    10-87926 SCREW, LEAD ATTACHING
    (1/2")
    SCREW, LEAD ATTACHING
    (1/2")
  • 19
    84-88439A3 BATTERY CABLE, POSITIVE
    BATTERY CABLE, POSITIVE
  • 20
    84-96220A12 HARNESS, ENGINE
    HARNESS, ENGINE
  • 21
    88-79091 FUSE
    FUSE
  • 22
    84-95084A2 WIRE ASSEMBLY, FUSE
    WIRE ASSEMBLY, FUSE
  • 23
    134731 FUSE HOLDER
    FUSE HOLDER
  • 24
    54-816311T STA-STRAP, HARNESS AND CABLES
    STA-STRAP, HARNESS AND CABLES
  • 25
    89-853654A1 STARTER SOLENOID
    STARTER SOLENOID
  • 26
    11-45076 NUT, SOLENOID TERMINALS (10-32)
    NUT, SOLENOID TERMINALS (10-32)
  • 27
    13-53166 LOCKWASHER, SOLENOID TERMINALS (5/16")
    LOCKWASHER, SOLENOID TERMINALS (5/16")
  • 28
    11-68292 NUT, SOLENOID TERMINALS (5/16-18)
    NUT, SOLENOID TERMINALS (5/16-18)
  • 29
    10-31716 SCREW, SOLENOID TO IGNITION PLATE
    (5/8")
    SCREW, SOLENOID TO IGNITION PLATE
    (5/8")
  • 30
    13-26992 LOCKWASHER
    SOLENOID TO IGNITION PLATE SCREW
    LOCKWASHER
    SOLENOID TO IGNITION PLATE SCREW
  • 31
    84-65999A2 CABLE ASSEMBLY, UPPER MOUNT (BLACK)
    CABLE ASSEMBLY, UPPER MOUNT (BLACK)
  • 32
    85-78866 INSULATOR, SOLENOID
    INSULATOR, SOLENOID
  • 33
    54-47483 "J" CLIP
    "J" CLIP
  • 34
    84-88528A2 CABLE ASSEMBLY (6"- RED/WHITE)
    CABLE ASSEMBLY (6"- RED/WHITE)
  • 34
    84-91865A1 CABLE ASSEMBLY (3" WHITE/BLACK)
    CABLE ASSEMBLY (3" WHITE/BLACK)
