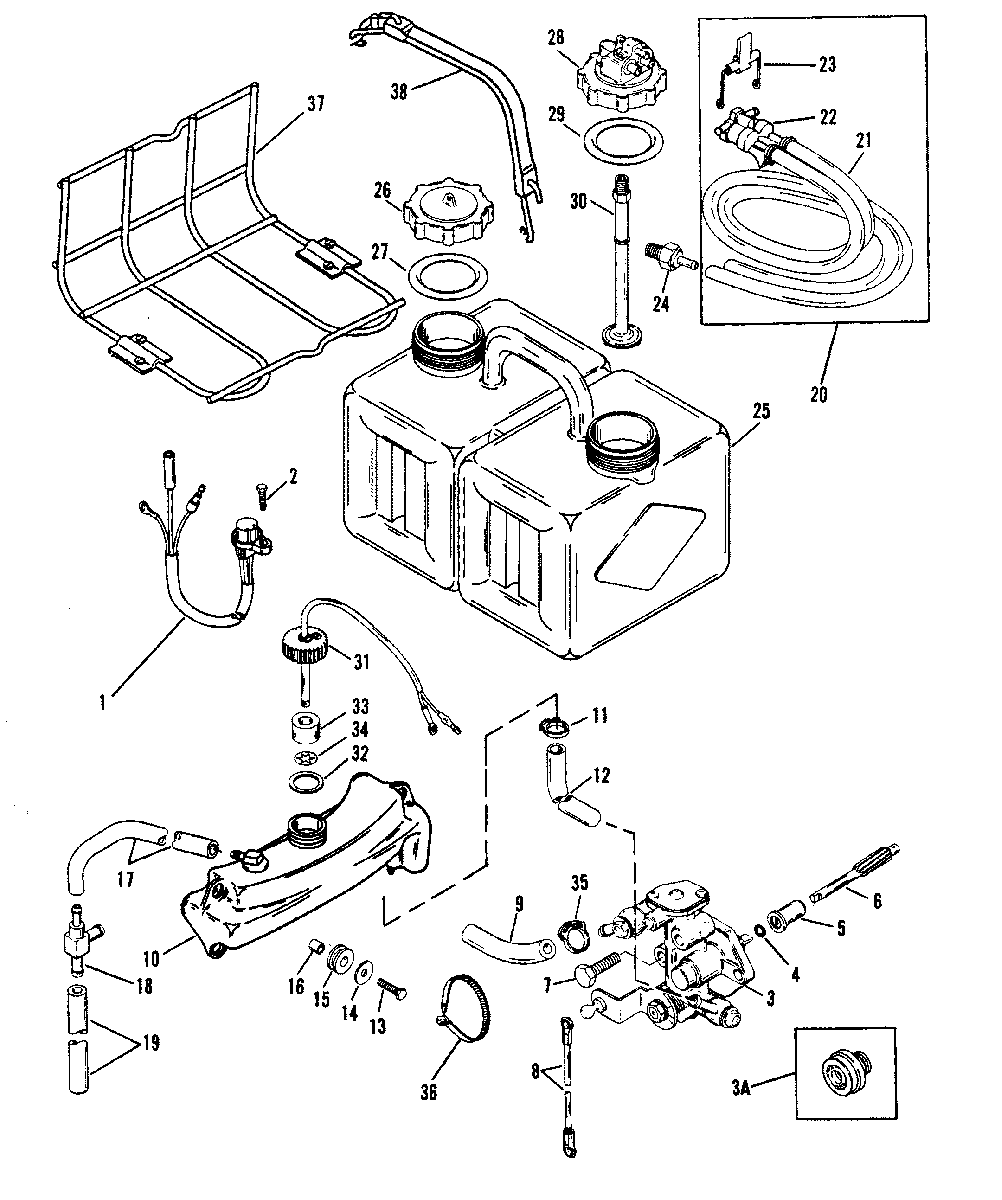

OIL INJECTION COMPONENTS для Mariner - V-175 (SKI) 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    12430A4 SENSOR ASSEMBLY
    SENSOR ASSEMBLY
  • 2
    10-48409 SCREW, SENSOR ATTACHING (5/8")
    SCREW, SENSOR ATTACHING (5/8")
  • 3
    815698T OIL PUMP
    OIL PUMP
  • 3A
    8141032 BEARING
    BEARING
  • 4
    25-11379 "O" RING, OIL PUMP
    "O" RING, OIL PUMP
  • 5
    23-41429A2 BEARING ASSEMBLY, DRIVE GEAR
    BEARING ASSEMBLY, DRIVE GEAR
  • 6
    43-14563 DRIVEN GEAR
    DRIVEN GEAR
  • 7
    10-32228 SCREW, OIL PUMP TO CRANKCASE (5/8")
    SCREW, OIL PUMP TO CRANKCASE (5/8")
  • 7
    10-41507 SCREW, OIL PUMP TO CRANKCASE (1-1/8")
    SCREW, OIL PUMP TO CRANKCASE (1-1/8")
  • 8
    1938512 LINK, THROTTLE LEVER TO OIL PUMP
    LINK, THROTTLE LEVER TO OIL PUMP
  • 9
    32-82381335 TUBING, OIL PUMP
    TUBING, OIL PUMP
  • 10
    994436 OIL RESERVOIR
    OIL RESERVOIR
  • 11
    54-415823 CLAMP, OIL HOSE (LARGE)
    CLAMP, OIL HOSE (LARGE)
  • 12
    32-82381455 TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")
    TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")
  • 13
    10-690201 SCREW, OIL RESERVOIR ATTACHING (7/8")
    SCREW, OIL RESERVOIR ATTACHING (7/8")
  • 14
    12-42118 WASHER, OIL RESERVOIR SCREW
    WASHER, OIL RESERVOIR SCREW
  • 15
    25-42117 GROMMET, OIL RESERVOIR SCREW
    GROMMET, OIL RESERVOIR SCREW
  • 16
    23-42116 BUSHING, OIL RESERVOIR SCREW
    BUSHING, OIL RESERVOIR SCREW
  • 17
    32-8M0108355 TUBING, OIL
    TUBING, OIL
  • 18
    22-42425 FITTING, OIL TUBING
    FITTING, OIL TUBING
  • 19
    32-9072925 HOSE, OIL (6-3/4")
    HOSE, OIL (6-3/4")
  • 20
    90-8M0143356 QUICK DISCONNECT KIT
    (Kit - NLA)(Order parts separately)
    QUICK DISCONNECT KIT
    (Kit - NLA)(Order parts separately)
  • 21
    32-99439 HOSE, OIL
    HOSE, OIL
  • 22
    12540A3 HOUSING
    HOUSING
  • 23
    12242A1 LATCH
    LATCH
  • 24
    21-8781051 FITTING, CHECK VALVE (CRANKCASE)
    FITTING, CHECK VALVE (CRANKCASE)
  • 25
    1257-87421 OIL TANK
    OIL TANK
  • 26
    36-43298A2 CAP ASSEMBLY, OIL TANK
    CAP ASSEMBLY, OIL TANK
  • 27
    25-11332 "O"RING, CAP
    "O"RING, CAP
  • 28
    816190A4 ADAPTOR HOUSING ASSEMBLY
    ADAPTOR HOUSING ASSEMBLY
  • 29
    25-11332 "O"RING, ADAPTOR HOUSING
    "O"RING, ADAPTOR HOUSING
  • 30
    32-99802 TUBE, OIL PICK-UP
    TUBE, OIL PICK-UP
  • 31
    36-43300A9 CAP ASSEMBLY, OIL RESERVOIR
    CAP ASSEMBLY, OIL RESERVOIR
  • 32
    27-43307T GASKET, RESERVOIR CAP
    GASKET, RESERVOIR CAP
  • 33
    99022A1 FLOAT ASSEMBLY
    FLOAT ASSEMBLY
  • 34
    11-99265 PUSHNUT
    PUSHNUT
  • 35
    54-415821 CLAMP, OIL HOSE (SMALL)
    CLAMP, OIL HOSE (SMALL)
  • 36
    54-816311T STA-STRAP
    STA-STRAP
  • 37
    12335A1 HOLD DOWN KIT
    HOLD DOWN KIT
  • 38
    12323A1 BUNGY CORD ASSEMBLY
    BUNGY CORD ASSEMBLY
