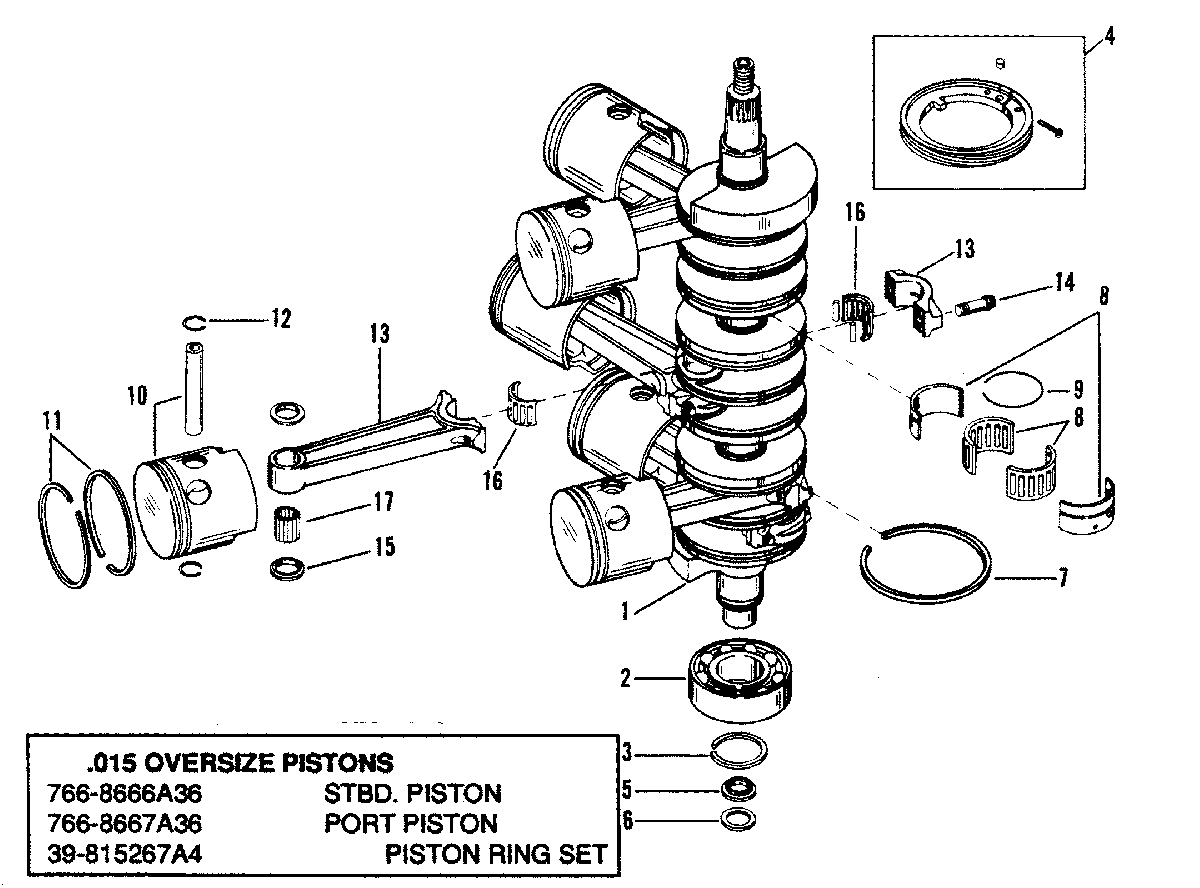

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mariner - V-175 (SKI) 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    455-8745T5 CRANKSHAFT ASSEMBLY
    CRANKSHAFT ASSEMBLY
  • 2
    30-67923T BALL BEARING, CRANKSHAFT (LOWER)
    BALL BEARING, CRANKSHAFT (LOWER)
  • 3
    53-67446 RETAINING RING, BALL BEARING
    RETAINING RING, BALL BEARING
  • 4
    43-99727A1 DRIVE CAR
    DRIVE CAR
  • 5
    54196A6 CARRIER ASSEMBLY, SEAL
    CARRIER ASSEMBLY, SEAL
  • 6
    65800 SEAL CARRIER
    SEAL CARRIER
  • 7
    39-67377T RING, SEALING - CRANKSHAFT (.124 THICK)
    RING, SEALING - CRANKSHAFT (.124 THICK)
  • 7
    39-78633 RING, SEALING - CRANKSHAFT (.139 THICK)
    RING, SEALING - CRANKSHAFT (.139 THICK)
  • 8
    31-93495T ROLLER BEARING, CRANKSHAFT
    ROLLER BEARING, CRANKSHAFT
  • 9
    53-67444 RETAINING RING, ROLLER BEARING
    RETAINING RING, ROLLER BEARING
  • 10
    766-8666T42 PISTON ASSEMBLY (STARBOARD)
    PISTON ASSEMBLY (STARBOARD)
  • 10
    766-8667T42 PISTON ASSEMBLY (PORT)
    PISTON ASSEMBLY (PORT)
  • 11
    39-18487A12 PISTON RING ASSEMBLY
    PISTON RING ASSEMBLY
  • 12
    53-857196 LOCK RING, PISTON
    LOCK RING, PISTON
  • 13
    636-8119A6 CONNECTING ROD ASSEMBLY
    CONNECTING ROD ASSEMBLY
  • 14
    10-93886 SCREW, CONNECTING ROD
    SCREW, CONNECTING ROD
  • 15
    12-8M0032839 WASHER, NEEDLE LOCATING
    WASHER, NEEDLE LOCATING
  • 16
    31-8M0045428 ROLLER BEARING ASSEMBLY, CRANKSHAFT END
    ROLLER BEARING ASSEMBLY, CRANKSHAFT END
  • 17
    29-67483 NEEDLE BEARING, PISTON END
    NEEDLE BEARING, PISTON END
  • 766-8666A43 PISTON
    .015 OVERSIZE PISTONS AND RINGS
    PISTON
    .015 OVERSIZE PISTONS AND RINGS
  • 766-8667A43 PORT PISTON
    .015 OVERSIZE PISTONS AND RINGS
    PORT PISTON
    .015 OVERSIZE PISTONS AND RINGS
  • 39-815267A4 PISTON RING SET
    .015 OVERSIZE PISTONS AND RINGS
    PISTON RING SET
    .015 OVERSIZE PISTONS AND RINGS
