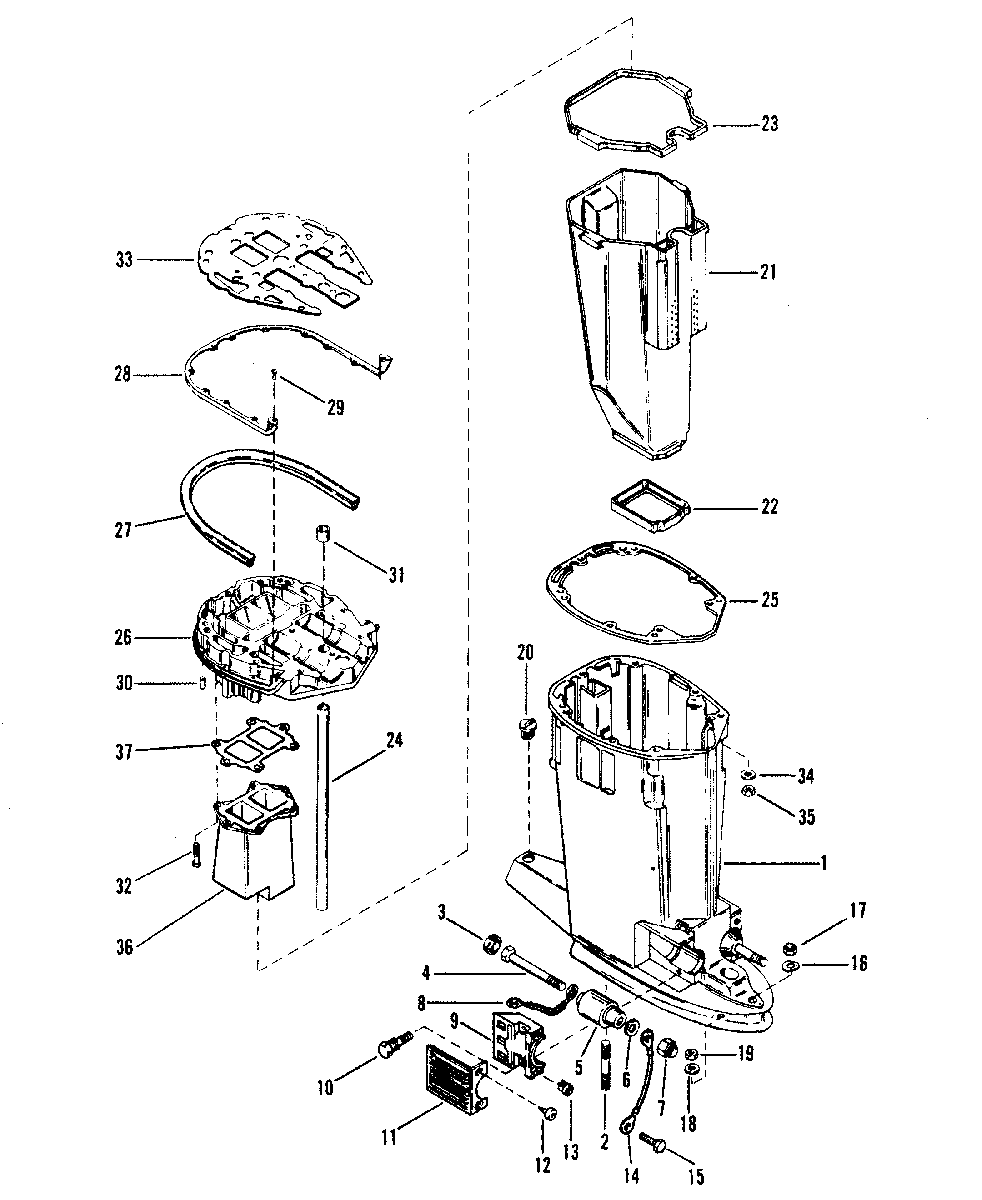

DRIVE SHAFT HOUSING AND EXHAUST TUBE для Mariner - V-175 (SKI) 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    1590-8343A8 DRIVE SHAFT HOUSING
    DRIVE SHAFT HOUSING
  • 2
    16-56295 STUD, DRIVE SHAFT HSG./GEAR HSG.
    STUD, DRIVE SHAFT HSG./GEAR HSG.
  • 3
    25067 BUMPER, LOWER MOUNT SCREW
    BUMPER, LOWER MOUNT SCREW
  • 4
    10-898831 SCREW, LOWER MOUNT
    SCREW, LOWER MOUNT
  • 5
    77327 MOUNT, LOWER (LONG)
    MOUNT, LOWER (LONG)
  • 6
    12-49339 WASHER, LOWER MOUNT SCREW
    WASHER, LOWER MOUNT SCREW
  • 7
    11-25096 NUT, LOWER MOUNT SCREW
    NUT, LOWER MOUNT SCREW
  • 8
    88238A10 GROUND WIRE ASSEMBLY
    GROUND WIRE ASSEMBLY
  • 9
    54-8M0036782 CLAMP, LOWER MOUNT
    CLAMP, LOWER MOUNT
  • 10
    10-66727 SCREW, LOWER MOUNT CLAMP ATTACHING (1-1/4")
    SCREW, LOWER MOUNT CLAMP ATTACHING (1-1/4")
  • 11
    100-8M4500752 COVER, LOWER MOUNT CLAMP
    COVER, LOWER MOUNT CLAMP
  • 12
    10-88417 SCREW, COVER ATTACHING (5/8")
    SCREW, COVER ATTACHING (5/8")
  • 13
    11-35521 NUT, NYLON-COVER TO CLAMP SCREW
    NUT, NYLON-COVER TO CLAMP SCREW
  • 14
    88238A10 GROUND WIRE ASSEMBLY
    GROUND WIRE ASSEMBLY
  • 15
    10-41508 SCREW, GROUND WIRE
    SCREW, GROUND WIRE
  • 16
    12-73862 WASHER, GEAR HOUSING STUD
    WASHER, GEAR HOUSING STUD
  • 17
    11-29489 NUT, GEAR HOUSING STUD (CAP)
    NUT, GEAR HOUSING STUD (CAP)
  • 18
    12-45176 WASHER, GEAR HOUSING STUD
    WASHER, GEAR HOUSING STUD
  • 19
    11-34933 NUT, GEAR HOUSING STUD
    NUT, GEAR HOUSING STUD
  • 20
    19-64649 PLUG, DRIVE SHAFT HOUSING
    PLUG, DRIVE SHAFT HOUSING
  • 21
    89743 EXHAUST TUBE
    EXHAUST TUBE
  • 22
    66350001 SEAL, EXHAUST TUBE (LOWER)
    SEAL, EXHAUST TUBE (LOWER)
  • 23
    86027 SEAL, EXHAUST TUBE (UPPER)
    SEAL, EXHAUST TUBE (UPPER)
  • 24
    32-8M0042788 TUBE, WATER
    TUBE, WATER
  • 25
    27-991734 GASKET, DRIVE SHAFT HOUSING TO PLATE
    GASKET, DRIVE SHAFT HOUSING TO PLATE
  • 26
    41945A7 PLATE ASSEMBLY, DRIVE SHAFT HOUSING
    PLATE ASSEMBLY, DRIVE SHAFT HOUSING
  • 27
    8M0043165 SEAL, BRACKET
    SEAL, BRACKET
  • 28
    68011 BRACKET, SEAL RETAINING
    BRACKET, SEAL RETAINING
  • 29
    10-48408 SCREW, BRACKET TO PLATE (1/2")
    SCREW, BRACKET TO PLATE (1/2")
  • 30
    17-43044 DOWEL PIN, LOCATING
    DOWEL PIN, LOCATING
  • 31
    26-38970 SEAL, WATER TUBE
    SEAL, WATER TUBE
  • 32
    10-90192 SCREW, EXTENSION TO PLATE
    SCREW, EXTENSION TO PLATE
  • 33
    27-991772 GASKET
    DRIVE SHAFT HOUSING PLATE TO EXHAUST PLATE
    GASKET
    DRIVE SHAFT HOUSING PLATE TO EXHAUST PLATE
  • 34
    12-20553 WASHER, POWER HEAD STUD
    WASHER, POWER HEAD STUD
  • 35
    11-69254 NUT, POWER HEAD STUD
    NUT, POWER HEAD STUD
  • 36
    17303T1 EXTENSION, EXHAUST
    EXTENSION, EXHAUST
  • 37
    27-782461 GASKET, EXHAUST EXTENSION
    GASKET, EXHAUST EXTENSION
