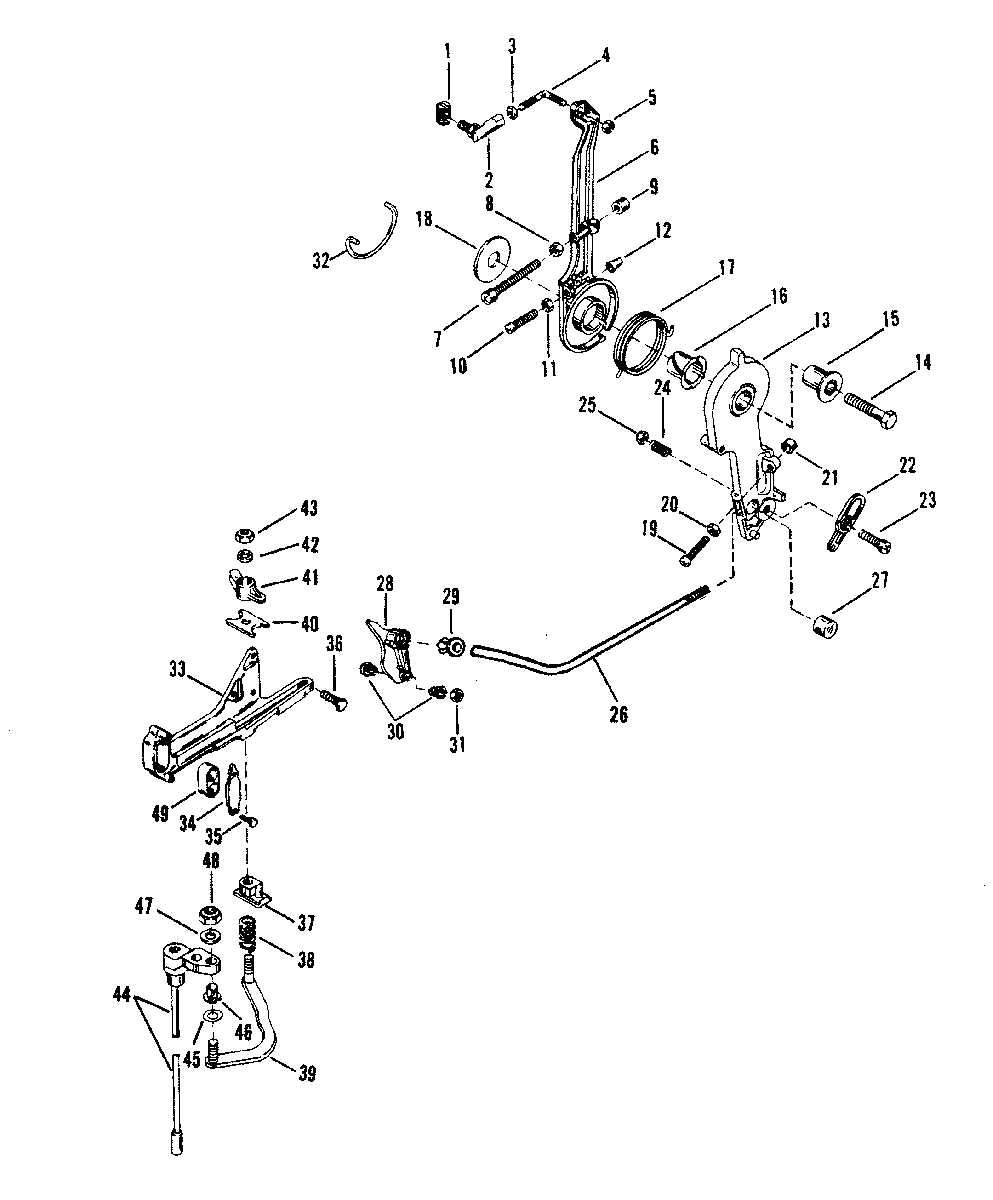

THROTTLE LEVER AND SHIFT SHAFT для Mariner - V-175 (SKI) 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    74897T PIVOT, TRIGGER PLATE
    PIVOT, TRIGGER PLATE
  • 2
    62459T BALL JOINT, TRIGGER PLATE
    BALL JOINT, TRIGGER PLATE
  • 3
    11-45076 NUT, LINK ROD
    NUT, LINK ROD
  • 4
    76035 LINK ROD, TRIGGER PLATE
    LINK ROD, TRIGGER PLATE
  • 5
    11-46438 NUT, BALL JOINT
    NUT, BALL JOINT
  • 6
    41094A3 LEVER, SPARK ADVANCE
    LEVER, SPARK ADVANCE
  • 7
    10-64022 SCREW, SPARK ADVANCE LEVER - STOP
    SCREW, SPARK ADVANCE LEVER - STOP
  • 8
    11-64015 NUT, SPARK ADVANCE STOP SCREW
    NUT, SPARK ADVANCE STOP SCREW
  • 9
    26852 CAP, SPARK ADVANCE LEVER STOP SCREW
    CAP, SPARK ADVANCE LEVER STOP SCREW
  • 10
    10-13627 SCREW, SPARK ADVANCE LEVER - STOP (1-1/4")
    SCREW, SPARK ADVANCE LEVER - STOP (1-1/4")
  • 11
    11-68219 NUT, SPARK ADVANCE LEVER STOP SCREW
    NUT, SPARK ADVANCE LEVER STOP SCREW
  • 12
    48039 CAP, SPARK ADVANCE LEVER STOP SCREW
    CAP, SPARK ADVANCE LEVER STOP SCREW
  • 13
    410952 LEVER, THROTTLE CONTROL
    LEVER, THROTTLE CONTROL
  • 14
    10-818165 SCREW
    THROTTLE LEVER/ADVANCE LEVER (1-3/4")
    SCREW
    THROTTLE LEVER/ADVANCE LEVER (1-3/4")
  • 15
    23-55164 BUSHING, THROTTLE LEVER
    BUSHING, THROTTLE LEVER
  • 16
    23-55171 BUSHING, SPARK ADVANCE LEVER
    BUSHING, SPARK ADVANCE LEVER
  • 17
    24-68784 SPRING, THROTTLE AND SPARK ADVANCE LEVER
    SPRING, THROTTLE AND SPARK ADVANCE LEVER
  • 18
    12-46765 WASHER, SPARK ADVANCE LEVER
    WASHER, SPARK ADVANCE LEVER
  • 19
    10-64022 SCREW, THROTTLE LEVER - STOP (2-1/8")
    SCREW, THROTTLE LEVER - STOP (2-1/8")
  • 20
    11-64015 NUT, THROTTLE LEVER STOP SCREW
    NUT, THROTTLE LEVER STOP SCREW
  • 21
    26852 CAP, THROTTLE LEVER STOP SCREW
    CAP, THROTTLE LEVER STOP SCREW
  • 22
    39483 LATCH, CABLE
    LATCH, CABLE
  • 23
    10-69026 SCREW, CABLE LATCH TO THROTTLE LEVER
    SCREW, CABLE LATCH TO THROTTLE LEVER
  • 24
    24-20099 SPRING, CABLE LATCH TO THROTTLE LEVER
    SPRING, CABLE LATCH TO THROTTLE LEVER
  • 25
    11-826709109 NUT, CABLE LATCH SCREW
    NUT, CABLE LATCH SCREW
  • 26
    14634 ROD, THROTTLE CONTROL
    ROD, THROTTLE CONTROL
  • 27
    14638 BARRELL, THROTTLE CONTROL ROD
    BARRELL, THROTTLE CONTROL ROD
  • 28
    146351 THROTTLE CAM
    THROTTLE CAM
  • 29
    23-932481 SWIVEL BUSHING
    SWIVEL BUSHING
  • 30
    23-26856 BUSHING, THROTTLE CAM
    BUSHING, THROTTLE CAM
  • 31
    11-36069 NUT, THROTTLE CAM STUD
    NUT, THROTTLE CAM STUD
  • 32
    24-41050 SPRING, THROTTLE RETURN
    SPRING, THROTTLE RETURN
  • 33
    814283A2 BRACKET, ANCHOR-CONTROL CABLES
    BRACKET, ANCHOR-CONTROL CABLES
  • 34
    98889 LATCH, CONTROL CABLE
    LATCH, CONTROL CABLE
  • 35
    10-42975 SCREW, LATCH
    SCREW, LATCH
  • 36
    10-53167T SCREW, ANCHOR BRACKET ATTACHING
    SCREW, ANCHOR BRACKET ATTACHING
  • 37
    37896 GUIDE BLOCK, LINK ROD
    GUIDE BLOCK, LINK ROD
  • 38
    24-20099 SPRING, LINK ROD TO GUIDE BLOCK
    SPRING, LINK ROD TO GUIDE BLOCK
  • 39
    67073A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 40
    52100 WEAR PLATE, LINK ROD
    WEAR PLATE, LINK ROD
  • 41
    8M0036768 LATCH, CONTROL CABLE FASTENING
    ANCHOR BRACKET
    LATCH, CONTROL CABLE FASTENING
    ANCHOR BRACKET
  • 42
    12-35462 WASHER, LATCH
    WASHER, LATCH
  • 43
    11-36069 NUT, LINK ROD
    NUT, LINK ROD
  • 44
    79932A16 SHIFT SHAFT ASSEMBLY
    SHIFT SHAFT ASSEMBLY
  • 45
    13-29720 WAVE WASHER, LINK ROD
    WAVE WASHER, LINK ROD
  • 46
    23-26600 BUSHING, NYLON-LINK ROD
    BUSHING, NYLON-LINK ROD
  • 47
    12-35462 WASHER, LINK ROD
    WASHER, LINK ROD
  • 48
    11-36069 NUT, LINK ROD TO SHIFT SHAFT
    NUT, LINK ROD TO SHIFT SHAFT
  • 49
    39519 CAP, BARREL RETAINER - ANCHOR BAR
    CAP, BARREL RETAINER - ANCHOR BAR
