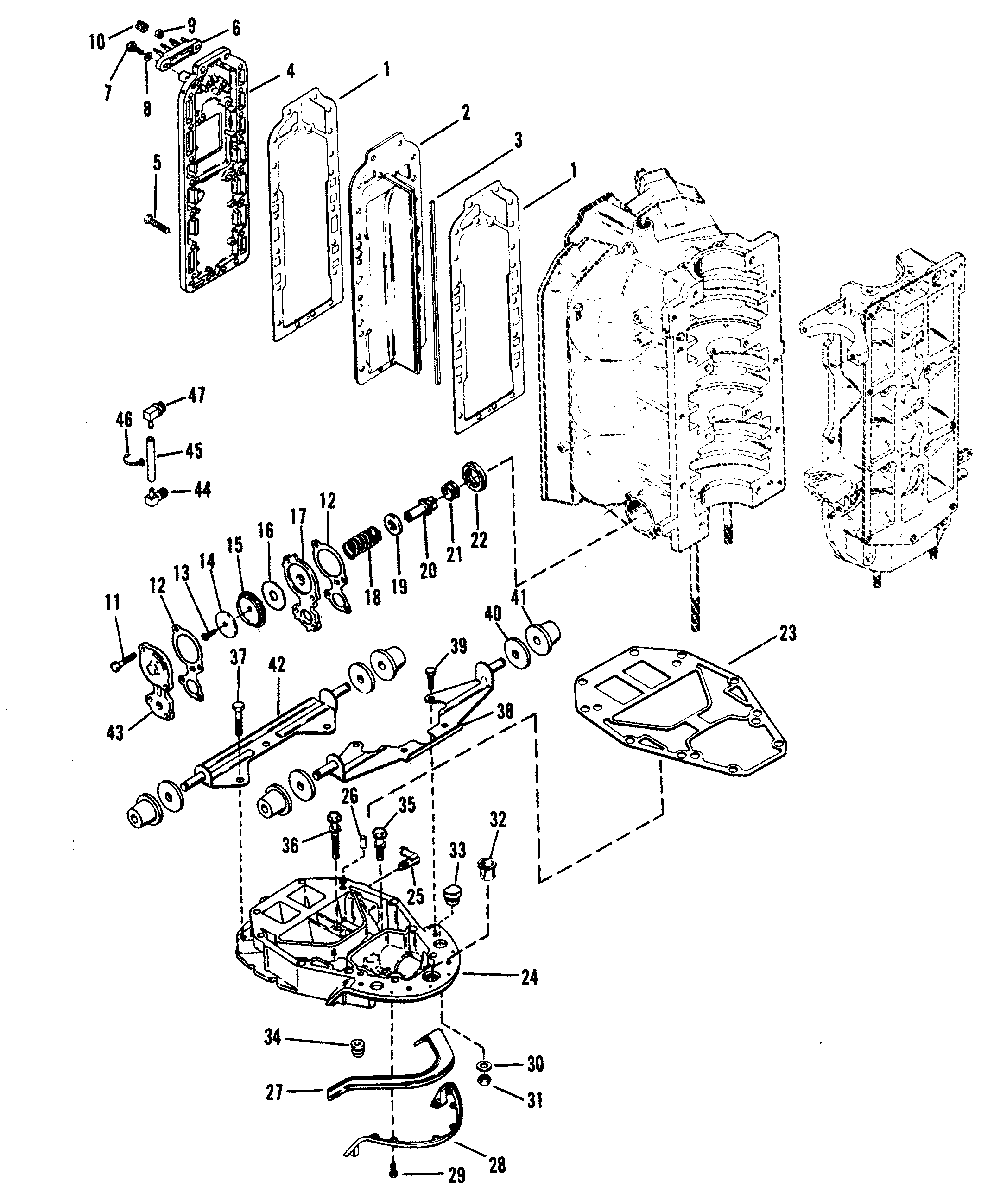

EXHAUST MANIFOLD AND EXHAUST PLATE для Mariner - V-175 (SKI) 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    27-904841 GASKET, DIVIDER PLATE
    GASKET, DIVIDER PLATE
  • 2
    99169A1 PLATE, DIVIDER
    PLATE, DIVIDER
  • 3
    26-814754 SEAL, DIVIDER PLATE
    SEAL, DIVIDER PLATE
  • 4
    193071 COVER, EXHAUST MANIFOLD
    COVER, EXHAUST MANIFOLD
  • 5
    10-74824 SCREW
    COVER AND PLATE TO CYLINDER BLOCK (1-1/4")
    SCREW
    COVER AND PLATE TO CYLINDER BLOCK (1-1/4")
  • 6
    86-194373 TERMINAL BLOCK (3 TERMINALS)
    TERMINAL BLOCK (3 TERMINALS)
  • 7
    10-31716 SCREW, TERMINAL BLOCK
    SCREW, TERMINAL BLOCK
  • 8
    12-29245 WASHER, TERMINAL BLOCK SCREW
    WASHER, TERMINAL BLOCK SCREW
  • 9
    11-45076 NUT, TERMINAL BLOCK
    NUT, TERMINAL BLOCK
  • 10
    11-813938 NUT, TERMINAL BLOCK
    NUT, TERMINAL BLOCK
  • 11
    10-74824 SCREW, COVER TO CYLINDER BLOCK
    (1-1/4")
    SCREW, COVER TO CYLINDER BLOCK
    (1-1/4")
  • 12
    1326-1119 GASKET, RELIEF VALVE PLATE
    GASKET, RELIEF VALVE PLATE
  • 13
    10-69570 SCREW, DIAPHRAGM TO PLATE
    (3/4")
    SCREW, DIAPHRAGM TO PLATE
    (3/4")
  • 14
    12-76451 WASHER, DIAPHRAGM SCREW
    WASHER, DIAPHRAGM SCREW
  • 15
    144791 DIAPHRAGM
    DIAPHRAGM
  • 16
    16496 WATER DEFLECTOR
    WATER DEFLECTOR
  • 17
    16497A1 PLATE, RELIEF VALVE
    PLATE, RELIEF VALVE
  • 18
    24-64878 SPRING, COMPRESSION POPPET VALVE
    SPRING, COMPRESSION POPPET VALVE
  • 19
    12-85303 WASHER, POPPET SPRING
    WASHER, POPPET SPRING
  • 20
    14480 POPPET, VALVE
    POPPET, VALVE
  • 21
    25-64872 GROMMET, POPPET VALVE
    GROMMET, POPPET VALVE
  • 22
    65848 CARRIER, POPPET VALVE
    CARRIER, POPPET VALVE
  • 23
    27-991764 GASKET, EXHAUST PLATE
    GASKET, EXHAUST PLATE
  • 24
    41944A5 PLATE ASSEMBLY, EXHAUST
    PLATE ASSEMBLY, EXHAUST
  • 25
    22-996642 ELBOW EXHAUST PLATE
    ELBOW EXHAUST PLATE
  • 26
    17-43044 DOWEL PIN LOCATING - EXHAUST PLATE
    DOWEL PIN LOCATING - EXHAUST PLATE
  • 27
    8M0043165 SEAL, EXHAUST PLATE
    SEAL, EXHAUST PLATE
  • 28
    680101 BRACKET, SEAL RETAINING
    BRACKET, SEAL RETAINING
  • 29
    10-48408 SCREW, BRACKET TO EXHAUST PLATE
    (1/2")
    SCREW, BRACKET TO EXHAUST PLATE
    (1/2")
  • 30
    12-20553 WASHER, POWERHEAD STUD
    WASHER, POWERHEAD STUD
  • 31
    11-69254 NUT, POWERHEAD STUD
    NUT, POWERHEAD STUD
  • 32
    23-27132 BUSHING, EXHAUST PLATE
    BUSHING, EXHAUST PLATE
  • 33
    25-19564001 GROMMET
    GROMMET
  • 34
    25-12602002 GROMMET, EXHAUST PLATE
    GROMMET, EXHAUST PLATE
  • 35
    10-66727 SCREW, EXHAUST PLATE ATTACHING
    (1-1/4")
    SCREW, EXHAUST PLATE ATTACHING
    (1-1/4")
  • 36
    10-68783 SCREW, EXHAUST PLATE ATTACHING
    (2-1/2")
    SCREW, EXHAUST PLATE ATTACHING
    (2-1/2")
  • 37
    10-898833 SCREW, EXHAUST PLATE ATTACHING
    (3-1/2")
    SCREW, EXHAUST PLATE ATTACHING
    (3-1/2")
  • 38
    812905T BRACKET ASSEMBLY, FRONT
    BRACKET ASSEMBLY, FRONT
  • 39
    10-90285 SCREW, FRONT BRACKET
    SCREW, FRONT BRACKET
  • 40
    12-187031 WASHER
    WASHER
  • 41
    25-18778001 GROMMET
    GROMMET
  • 42
    18578T09 BRACKET ASSEMBLY, REAR
    BRACKET ASSEMBLY, REAR
  • 43
    14462A1 COVER RELIEF VALVE (OLD DESIGN)
    COVER RELIEF VALVE (OLD DESIGN)
  • 43
    8M0039767 COVER, RELIEF VALVE (NEW DESIGN)
    COVER, RELIEF VALVE (NEW DESIGN)
  • 44
    22-920071 FITTING (90 DEGREE) (NEW DESIGN)
    FITTING (90 DEGREE) (NEW DESIGN)
  • 45
    32-8M0108355 HOSE (NEW DESIGN)
    HOSE (NEW DESIGN)
  • 46
    54-816311T STA-STRAP (NEW DESIGN)
    STA-STRAP (NEW DESIGN)
  • 47
    22-8144301 FITTING (NEW DESIGN)
    FITTING (NEW DESIGN)
