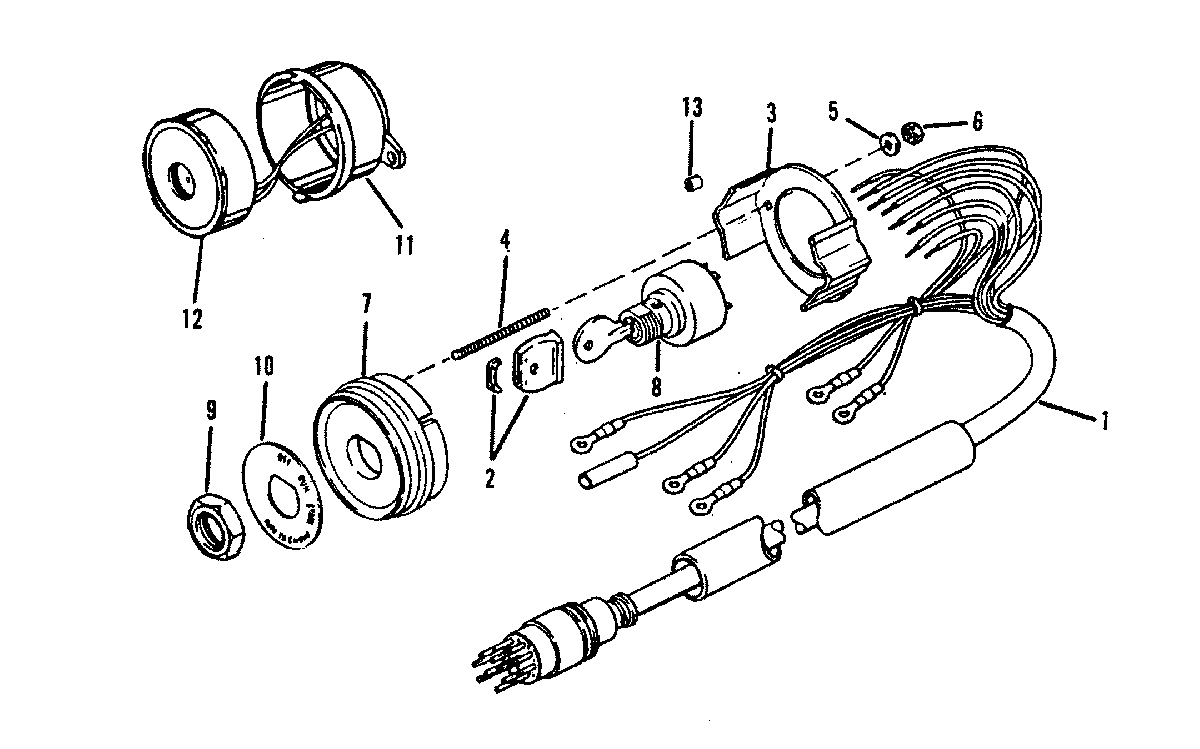

KEY SWITCH ASSEMBLY для Mariner - V-175 (SKI) 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    84-816626A15 KEY SWITCH ASSEMBLY
    KEY SWITCH ASSEMBLY
  • 2
    90468A1 COVER, IGNITION SWITCH KEYS
    COVER, IGNITION SWITCH KEYS
  • 3
    76424 BRACKET, IGNITION SWITCH
    BRACKET, IGNITION SWITCH
  • 4
    16-55422 STUD, SWITCH ATTACHING
    STUD, SWITCH ATTACHING
  • 5
    12-24676 WASHER, SWITCH ATTACHING STUD
    WASHER, SWITCH ATTACHING STUD
  • 6
    11-68219 NUT, SWITCH ATTACHING STUD
    NUT, SWITCH ATTACHING STUD
  • 7
    816479A3 PLATE, SWITCH MOUNT
    PLATE, SWITCH MOUNT
  • 8
    87-88107A5 SWITCH, IGNITION (SEE BELOW FOR KEY)
    SWITCH, IGNITION (SEE BELOW FOR KEY)
  • 9
    11-879755 NUT, IGNITION SWITCH
    NUT, IGNITION SWITCH
  • 10
    38-90311 INSERT, SWITCH PLATE
    INSERT, SWITCH PLATE
  • 11
    68878A6 ALARM HORN ASSEMBLY
    ALARM HORN ASSEMBLY
  • 12
    68879 COVER, ALARM HORN
    COVER, ALARM HORN
  • 13
    23-8127111 SPACER (3/8")
    SPACER (3/8")
  • 13
    23-812711 SPACER (1/4")
    SPACER (1/4")
  • -
    894911 KEY 1A
    KEY 1A
  • -
    894912 KEY 1B
    KEY 1B
  • -
    894913 KEY 1C
    KEY 1C
  • -
    894914 KEY 1D
    KEY 1D
  • -
    894915 KEY 1E
    KEY 1E
  • -
    894916 KEY 1F
    KEY 1F
  • -
    894917 KEY 2A
    KEY 2A
  • -
    894918 KEY 2B
    KEY 2B
  • -
    894919 KEY 2C
    KEY 2C
  • -
    8949110 KEY 2D
    KEY 2D
  • -
    8949111 KEY 2E
    KEY 2E
  • -
    8949112 KEY 2F
    KEY 2F
