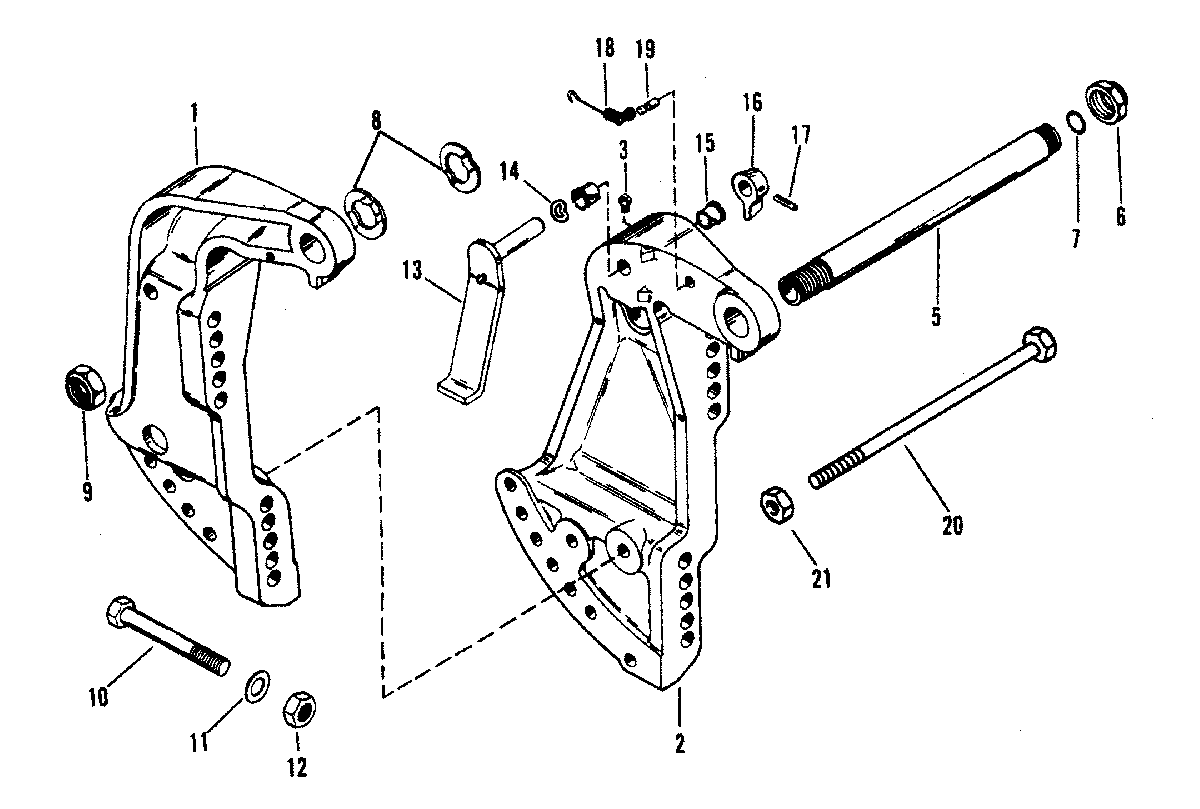

TRANSOM BRACKETS для Mariner - V-175 (SKI) 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1
    3401-8718F8 TRANSOM BRACKET (STARBOARD)
    TRANSOM BRACKET (STARBOARD)
  • 2
    3400-8716A9 TRANSOM BRACKET (PORT)
    TRANSOM BRACKET (PORT)
  • 3
    22-98727 GREASE FITTING, PORT TRANSOM BRACKET
    GREASE FITTING, PORT TRANSOM BRACKET
  • 5
    826125A1 TILT TUBE
    TILT TUBE
  • 6
    11-82671327 NUT, TILT TUBE (1"-14)
    NUT, TILT TUBE (1"-14)
  • 7
    25-45711 "O" RING, TILT TUBE
    "O" RING, TILT TUBE
  • 8
    13-88750 WAVE WASHER, TILT TUBE
    WAVE WASHER, TILT TUBE
  • 9
    11-858869 NUT, TILT TUBE (7/8-14)
    NUT, TILT TUBE (7/8-14)
  • 10
    10-677551 BOLT, TRANSOM BRACKET TO TRANSOM
    BOLT, TRANSOM BRACKET TO TRANSOM
  • 11
    12-28421 WASHER, TRANSOM BRACKET BOLT
    WASHER, TRANSOM BRACKET BOLT
  • 12
    11-91962 NUT, TRANSOM BRACKET BOLT
    NUT, TRANSOM BRACKET BOLT
  • 13
    8M0115104 LEVER ASSEMBLY, TILT LOCK
    LEVER ASSEMBLY, TILT LOCK
  • 14
    13-99611 WAVE WASHER, TILT LEVER
    WAVE WASHER, TILT LEVER
  • 15
    23-65830 BUSHING, TILT LEVER
    BUSHING, TILT LEVER
  • 16
    99633 KNOB, TILT LOCK LEVER
    KNOB, TILT LOCK LEVER
  • 17
    17-99615 GROOVE PIN
    GROOVE PIN
  • 18
    24-99622 SPRING
    SPRING
  • 19
    17-99604 GROOVE PIN
    GROOVE PIN
  • 20
    10-96930A1 BOLT ASSEMBLY, TILT LOCK
    BOLT ASSEMBLY, TILT LOCK
  • 21
    11-23161 NUT, BOLT
    NUT, BOLT
