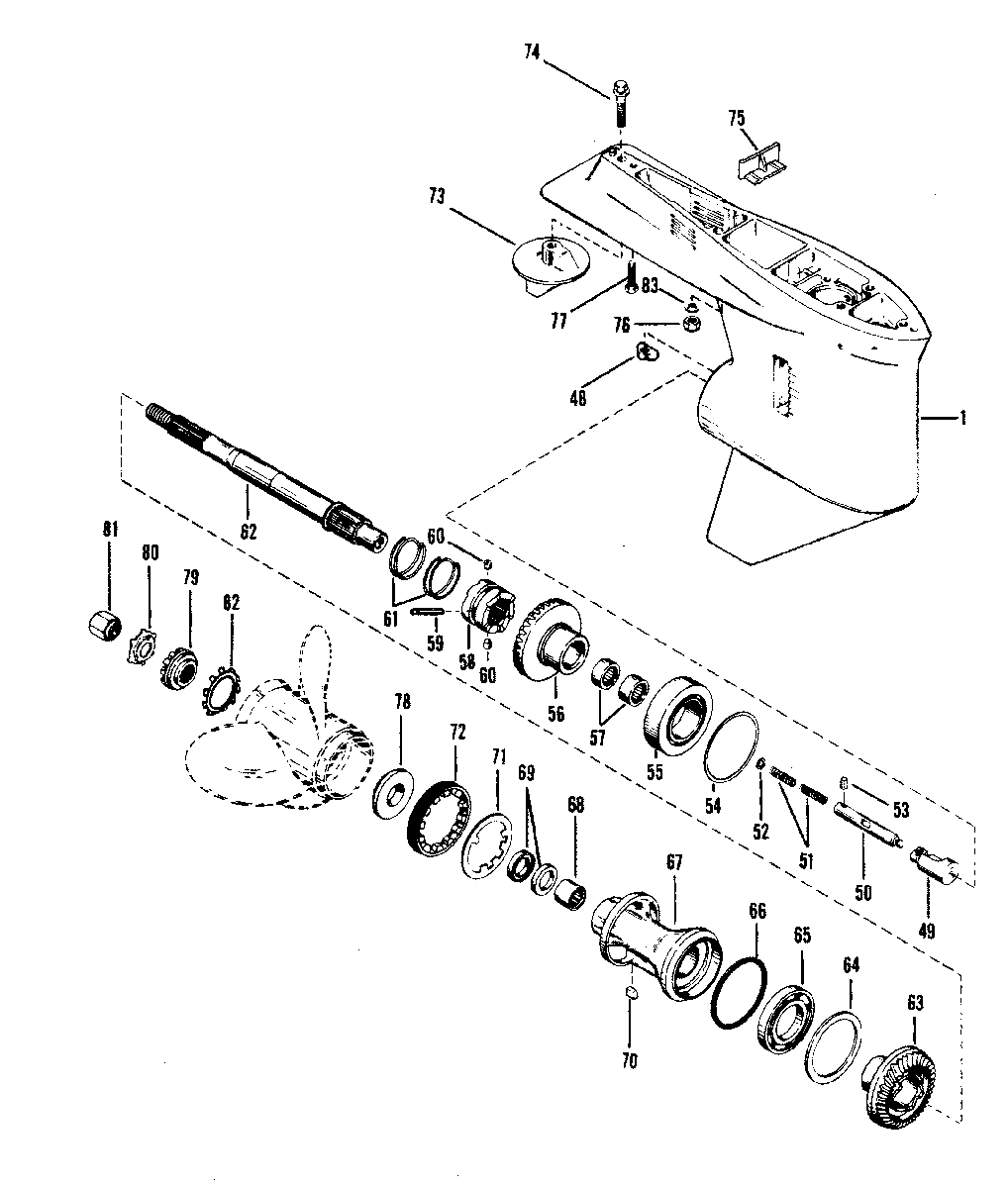

GEAR HOUSING (PROPELLER SHAFT) для Mariner - V-175 (SKI) 0C100861 THRU 0C239552

  • №
    Артикул
    Название
  • 1647-9148T81 GEAR HOUSING
    GEAR HOUSING
  • 1
    1647-9148T47 GEAR HOUSING ASSEMBLY (BASIC)
    GEAR HOUSING ASSEMBLY (BASIC)
  • 48
    789562 SHIFT CAM
    SHIFT CAM
  • 49
    89594A1 FOLLOWR, CAM
    FOLLOWR, CAM
  • 50
    79911A1 ROD, CLUTCH ACTUATOR
    ROD, CLUTCH ACTUATOR
  • 51
    24-79910 SPRING, COMPRESSION
    SPRING, COMPRESSION
  • 52
    12-78910 WASHER, COMPRESSION SPRING
    WASHER, COMPRESSION SPRING
  • 53
    17-8M0084245 PIN, SPRING LOCATOR
    PIN, SPRING LOCATOR
  • 54
    15-47397A1 SHIM, BEARING OUTER RACE (.002-3-5-10)
    SHIM, BEARING OUTER RACE (.002-3-5-10)
  • 55
    31-78172A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 56
    43-44102A2 FORWARD GEAR ASSEMBLY
    FORWARD GEAR ASSEMBLY
  • 57
    31-73363T ROLLER BEARING, FORWARD GEAR
    ROLLER BEARING, FORWARD GEAR
  • 58
    52-8M0100493 RATCHET, SLIDING CLUTCH
    RATCHET, SLIDING CLUTCH
  • 59
    17-8M0084243 CROSS PIN, RATCHET TO PROPELLER SHAFT
    CROSS PIN, RATCHET TO PROPELLER SHAFT
  • 60
    17-78909 DETENT PIN, RATCHET
    DETENT PIN, RATCHET
  • 61
    24-78962 SPRING, RETAINING-CROSS PIN
    SPRING, RETAINING-CROSS PIN
  • 62
    44-94148 PROPELLER SHAFT
    PROPELLER SHAFT
  • 63
    N.S.S. REVERSE GEAR (PART OF 43-44102A2)
    REVERSE GEAR (PART OF 43-44102A2)
  • 64
    681001 RING, THRUST
    BEARING CARRIER TO GEAR HOUSING
    RING, THRUST
    BEARING CARRIER TO GEAR HOUSING
  • 65
    30-88957T BEARING, BALL-REVERSE GEAR
    BEARING, BALL-REVERSE GEAR
  • 66
    25-31534 "O" RING, BEARING CARRIER
    "O" RING, BEARING CARRIER
  • 67
    43567T1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 68
    31-30956T ROLLER BEARING, BEARING CARRIER
    ROLLER BEARING, BEARING CARRIER
  • 69
    26-76868 OIL SEAL, BEARING CARRIER
    OIL SEAL, BEARING CARRIER
  • 70
    28-30281 KEY, LOCATING - BEARING CARRIER
    KEY, LOCATING - BEARING CARRIER
  • 71
    14-79447 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 72
    8M2000347 COVER, GEAR HOUSING
    COVER, GEAR HOUSING
  • 73
    97-31640Q4 TRIM TAB, GEAR HOUSING
    TRIM TAB, GEAR HOUSING
  • 74
    10-66024 SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")
  • 75
    8M0039169 FILLER BLOCK
    FILLER BLOCK
  • 76
    11-34933 NUT, DRIVE SHAFT HOUSING STUDS
    NUT, DRIVE SHAFT HOUSING STUDS
  • 77
    10-65210 SCREW, GEAR HOUSING
    SCREW, GEAR HOUSING
  • 78
    12-835467Q01 THRUST HUB
    THRUST HUB
  • 79
    12-31211Q03 WASHER, SPLINED - PROPELLER NUT
    WASHER, SPLINED - PROPELLER NUT
  • 80
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 81
    11-52707Q1 PROPELLER NUT
    PROPELLER NUT
  • 82
    13-423511 LOCKWASHER, PROPELLER SHAFT
    LOCKWASHER, PROPELLER SHAFT
  • 83
    12-45176 WASHER, DRIVE SHAFT HOUSING STUDS
    WASHER, DRIVE SHAFT HOUSING STUDS
