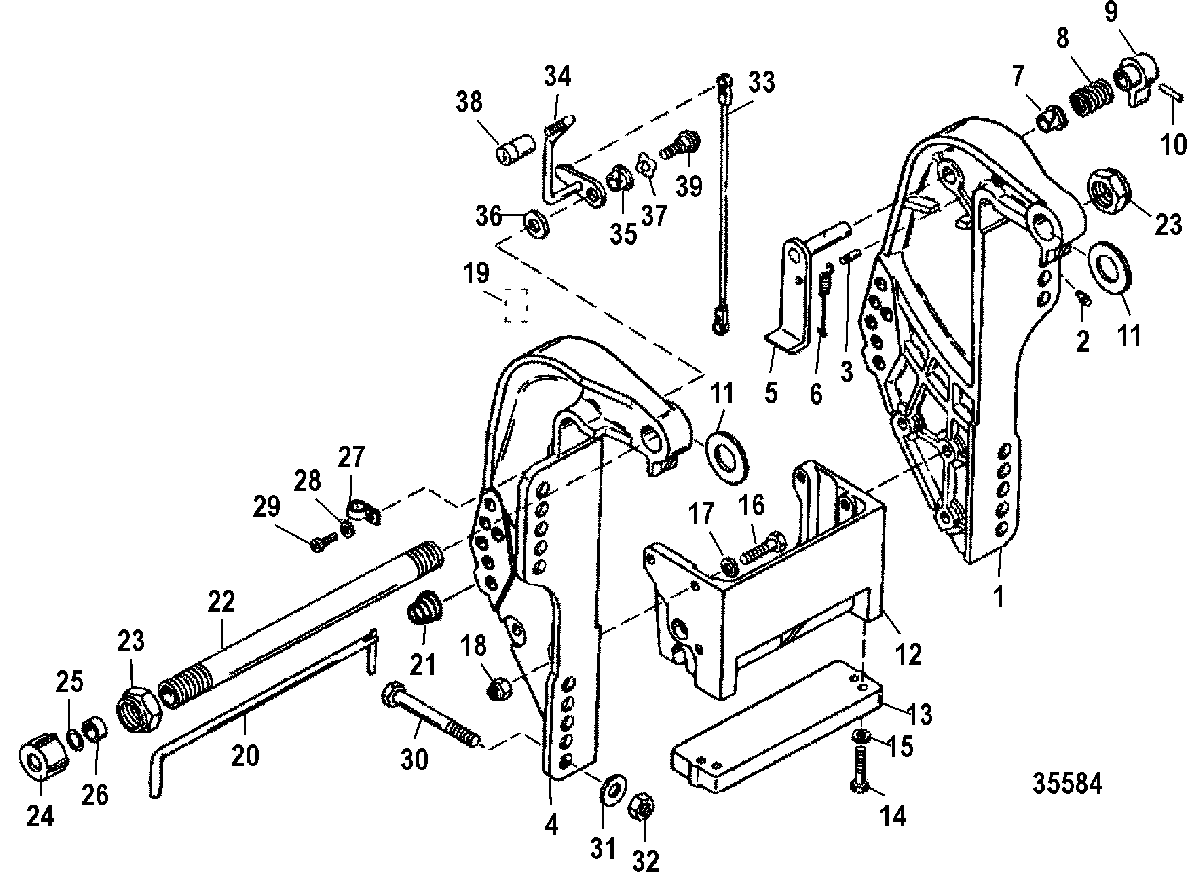

Transom Bracket, Electric для Mariner - 60 (3 CYL.) BIGFOOT 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    3418-822866T04 BRACKET ASSEMBLY, Transom
    (BLACK) PORT
    BRACKET ASSEMBLY, Transom
    (BLACK) PORT
  • 1
    3418-822866A2 BRACKET ASSEMBLY, Transom
    (GRAY) PORT
    BRACKET ASSEMBLY, Transom
    (GRAY) PORT
  • 2
    22-98727 FITTING, Grease
    PORT
    FITTING, Grease
    PORT
  • 3
    17-99604 PIN, Groove
    PORT
    PIN, Groove
    PORT
  • 4
    3418-822865T05 BRACKET, Transom
    (BLACK) STARBOARD
    BRACKET, Transom
    (BLACK) STARBOARD
  • 4
    3418-822865F3 BRACKET, Transom
    (GRAY) STARBOARD
    BRACKET, Transom
    (GRAY) STARBOARD
  • 5
    893704T01 LEVER ASSEMBLY, Tilt Lock
    (BLACK)
    LEVER ASSEMBLY, Tilt Lock
    (BLACK)
  • 5
    893704T01 LEVER ASSEMBLY, Tilt Lock
    (GRAY)
    LEVER ASSEMBLY, Tilt Lock
    (GRAY)
  • 6
    24-99622 SPRING
    SPRING
  • 7
    23-65830 NYLINER
    NYLINER
  • 8
    24-812708 SPRING
    SPRING
  • 9
    812709 KNOB
    (BLACK)
    KNOB
    (BLACK)
  • 9
    812709 KNOB
    (GRAY)
    KNOB
    (GRAY)
  • 10
    17-99615 PIN, Groove
    PIN, Groove
  • 11
    12-19619 WASHER
    WASHER
  • 12
    18486A08 BRACKET, Anchor
    (BLACK)
    BRACKET, Anchor
    (BLACK)
  • 12
    18486A08 BRACKET, Anchor
    (GRAY)
    BRACKET, Anchor
    (GRAY)
  • 13
    97-818298Q1 ANODE KIT
    ANODE KIT
  • 14
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 16
    10-4000354 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 16
    10-4000355 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 17
    13-400257 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 18
    11-401388 NUT, (M8)
    NUT, (M8)
  • 19
    NSS NOT SOLD SEPARATE, Decal-Tilt Lock
    NON POWER TRIM
    NOT SOLD SEPARATE, Decal-Tilt Lock
    NON POWER TRIM
  • 20
    17-8M0026068 PIN ASSEMBLY, Tilt Lock
    NON POWER TRIM
    PIN ASSEMBLY, Tilt Lock
    NON POWER TRIM
  • 21
    24-821461 SPRING
    NON POWER TRIM
    SPRING
    NON POWER TRIM
  • 22
    8M0041938 TILT TUBE
    TILT TUBE
  • 23
    11-858869 NUT, (7/8-14)
    NUT, (7/8-14)
  • 24
    19624A1 SEAL KIT
    SEAL KIT
  • 25
    25-29619 O-RING, (.583 x .103)
    O-RING, (.583 x .103)
  • 26
    23-78861 SPACER
    SPACER
  • 27
    54-22740 CLIP
    POWER TRIM
    CLIP
    POWER TRIM
  • 28
    8M0084613 C WASHER
    POWER TRIM
    C WASHER
    POWER TRIM
  • 29
    10-878608 SCREW, (#10-16 x .500)
    POWER TRIM
    SCREW, (#10-16 x .500)
    POWER TRIM
  • 30
    10-814259 SCREW, (.500-20 x 4.00)
    SCREW, (.500-20 x 4.00)
  • 31
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 32
    11-91962 NUT, (.500-20)
    NUT, (.500-20)
  • 33
    8M0084737 LINK
    NON POWER TRIM
    LINK
    NON POWER TRIM
  • 34
    19615A05 LEVER ASSEMBLY, Tilt
    NON POWER TRIM
    LEVER ASSEMBLY, Tilt
    NON POWER TRIM
  • 35
    23-812707 BUSHING
    NON POWER TRIM
    BUSHING
    NON POWER TRIM
  • 36
    12-8M0042643 WASHER, (.520 x .850 x .060) Nylon - Black
    NON POWER TRIM
    WASHER, (.520 x .850 x .060) Nylon - Black
    NON POWER TRIM
  • 37
    13-99611 WAVE WASHER
    NON POWER TRIM
    WAVE WASHER
    NON POWER TRIM
  • 38
    8M0007469 TILT KNOB
    NON POWER TRIM
    TILT KNOB
    NON POWER TRIM
  • 39
    10-19611 SCREW, (.375-16 x .62)
    NON POWER TRIM
    SCREW, (.375-16 x .62)
    NON POWER TRIM
