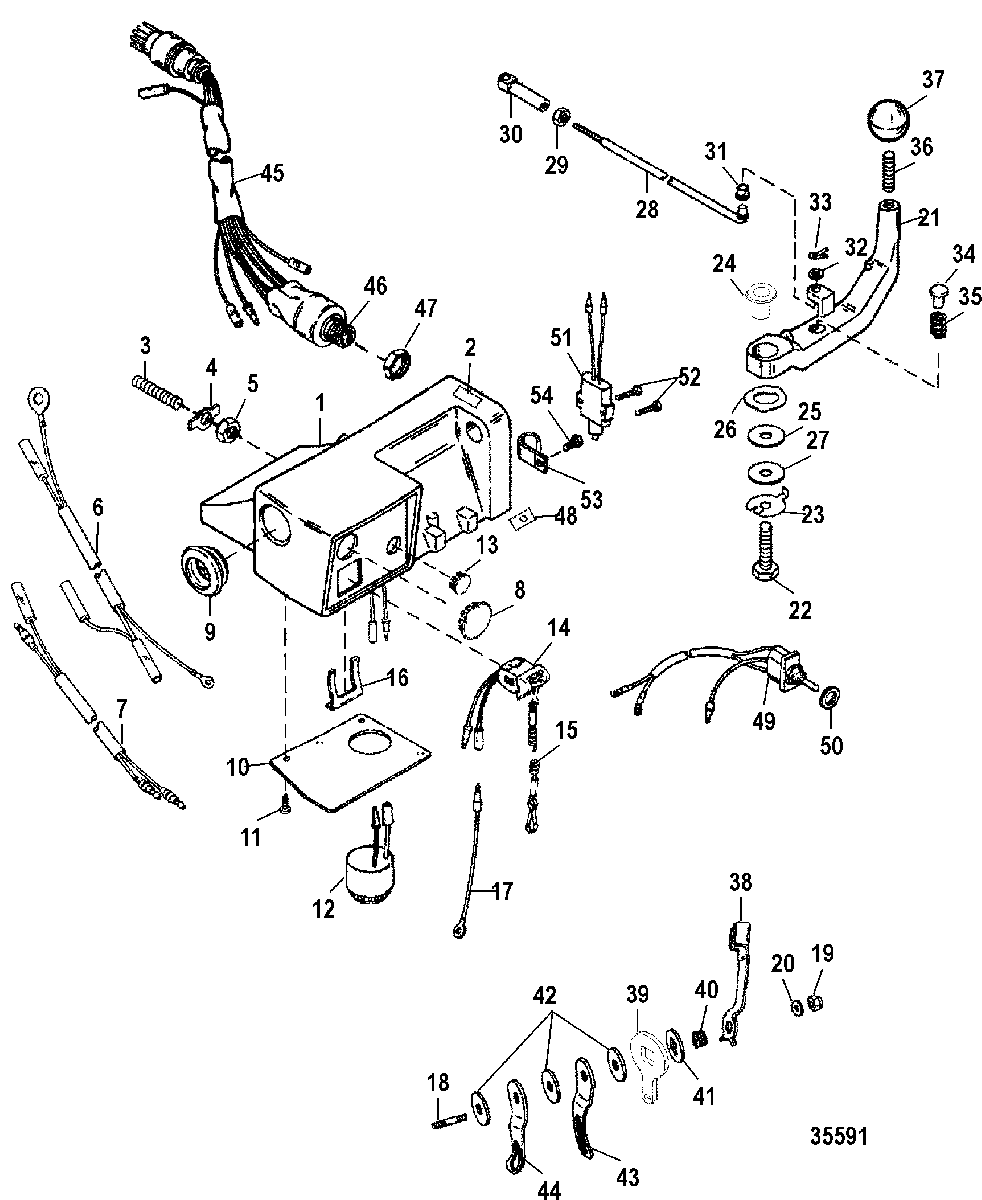

Steering Handle Kit для Mariner - 60 (3 CYL.) BIGFOOT 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    816366T3 HANDLE
    (BLACK)
    HANDLE
    (BLACK)
  • 1
    816366F4 HANDLE
    (GRAY)
    HANDLE
    (GRAY)
  • 2
    NSS NOT SOLD SEPARATE, Decal-Shift
    NOT SOLD SEPARATE, Decal-Shift
  • 3
    16-815802 STUD, (M10 x 150 x 58)
    STUD, (M10 x 150 x 58)
  • 4
    14-815806 TAB WASHER
    TAB WASHER
  • 5
    11-40125100 NUT, (M10)
    NUT, (M10)
  • 6
    84-815851A2 HARNESS ASSEMBLY, Stop
    MANUAL
    HARNESS ASSEMBLY, Stop
    MANUAL
  • 7
    84-821028A2 CABLE ASSEMBLY
    MANUAL
    CABLE ASSEMBLY
    MANUAL
  • 8
    815803 PLUG
    MANUAL
    PLUG
    MANUAL
  • 9
    121051 GROMMET
    GROMMET
  • 10
    8158041 COVER
    COVER
  • 11
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • 12
    816051A2 HORN ASSEMBLY
    HORN ASSEMBLY
  • 13
    19-889730 PLUG
    (MANUAL)
    PLUG
    (MANUAL)
  • 14
    87-11083A4 SWITCH ASSEMBLY, Stop
    POWER TRIM
    SWITCH ASSEMBLY, Stop
    POWER TRIM
  • 15
    8M0092850 LANYARD ASSEMBLY
    POWER TRIM
    LANYARD ASSEMBLY
    POWER TRIM
  • 16
    8M0032846 RETAINER, Brass
    RETAINER, Brass
  • 17
    84-11149A3 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 18
    16-8M0034440 STUD, (M10 x 2.12)
    STUD, (M10 x 2.12)
  • 19
    11-400636 NUT
    NUT
  • 20
    12-823933 WASHER, (.405 x .760 x .060) Delrin
    WASHER, (.405 x .760 x .060) Delrin
  • 21
    816367F5 LEVER
    (BLACK)
    LEVER
    (BLACK)
  • 21
    816367F6 LEVER
    (GRAY)
    LEVER
    (GRAY)
  • 22
    10-4000357 SCREW, (M8 x 45)
    SCREW, (M8 x 45)
  • 23
    14-8158051 TAB WASHER
    TAB WASHER
  • 24
    23-8159831 BUSHING
    BUSHING
  • 25
    12-824610 WASHER, Plastic
    WASHER, Plastic
  • 26
    12-823970 WASHER
    (BELLEVILLE)
    WASHER
    (BELLEVILLE)
  • 27
    12-814803 WASHER
    WASHER
  • 28
    495636 SHIFT ROD
    SHIFT ROD
  • 29
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 30
    48419T ROD END
    ROD END
  • 31
    23-26856 BUSHING
    BUSHING
  • 32
    12-35950 WASHER, (.273 x .437 x .031) Stainless Steel
    WASHER, (.273 x .437 x .031) Stainless Steel
  • 33
    18-25191 COTTER PIN
    COTTER PIN
  • 34
    8M0091388 DETENT/SPRING KIT
    DETENT/SPRING KIT
  • 35
    NSS NOT SOLD SEPARATE, Spring
    NOT SOLD SEPARATE, Spring
  • 36
    16-8M0034452 STUD, (.375-24 x 1.125)
    STUD, (.375-24 x 1.125)
  • 37
    98530 KNOB
    KNOB
  • 38
    816416A3 LEVER KIT
    LEVER KIT
  • 39
    NSS NOT SOLD SEPARATE, Brake
    NOT SOLD SEPARATE, Brake
  • 40
    816564 DRIVER
    DRIVER
  • 41
    12-816576 WASHER
    WASHER
  • 42
    8165621 DISC
    DISC
  • 43
    816413 ARM (TOP)
    ARM (TOP)
  • 44
    816414 ARM (BOTTOM)
    ARM (BOTTOM)
  • 45
    84-12649A5 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 46
    87-88107A5 SWITCH KIT, Key
    SWITCH KIT, Key
  • 47
    11-879755 NUT, Special - Chrome Brass
    NUT, Special - Chrome Brass
  • 48
    NSS NOT SOLD SEPARATE, Decal-Trim
    POWER TRIM
    NOT SOLD SEPARATE, Decal-Trim
    POWER TRIM
  • 49
    87-14645A4 TRIM SWITCH
    POWER TRIM
    TRIM SWITCH
    POWER TRIM
  • 50
    49440 NUT, (.468-32)
    POWER TRIM
    NUT, (.468-32)
    POWER TRIM
  • 51
    87-8M0052927 SWITCH
    POWER TRIM
    SWITCH
    POWER TRIM
  • 52
    10-12110 SCREW, (#6-32 x .750)
    POWER TRIM
    SCREW, (#6-32 x .750)
    POWER TRIM
  • 53
    54-648551 CLAMP
    CLAMP
  • 54
    10-878608 SCREW, (#10-16 x .500)
    SCREW, (#10-16 x .500)
  • -
    894911 KEY, Ignition (1A)
    KEY, Ignition (1A)
  • -
    894912 KEY, Ignition (1B)
    KEY, Ignition (1B)
  • -
    894913 KEY, Ignition (1C)
    KEY, Ignition (1C)
  • -
    894914 KEY, Ignition (1D)
    KEY, Ignition (1D)
  • -
    894915 KEY, Ignition (1E)
    KEY, Ignition (1E)
  • -
    894916 KEY, Ignition (1F)
    KEY, Ignition (1F)
  • -
    894917 KEY, Ignition (2A)
    KEY, Ignition (2A)
  • -
    894918 KEY, Ignition (2B)
    KEY, Ignition (2B)
  • -
    894919 KEY, Ignition (2C)
    KEY, Ignition (2C)
  • -
    8949110 KEY, Ignition (2D)
    KEY, Ignition (2D)
  • -
    8949111 KEY, Ignition (2E)
    KEY, Ignition (2E)
  • -
    8949112 KEY, Ignition (2F)
    KEY, Ignition (2F)
