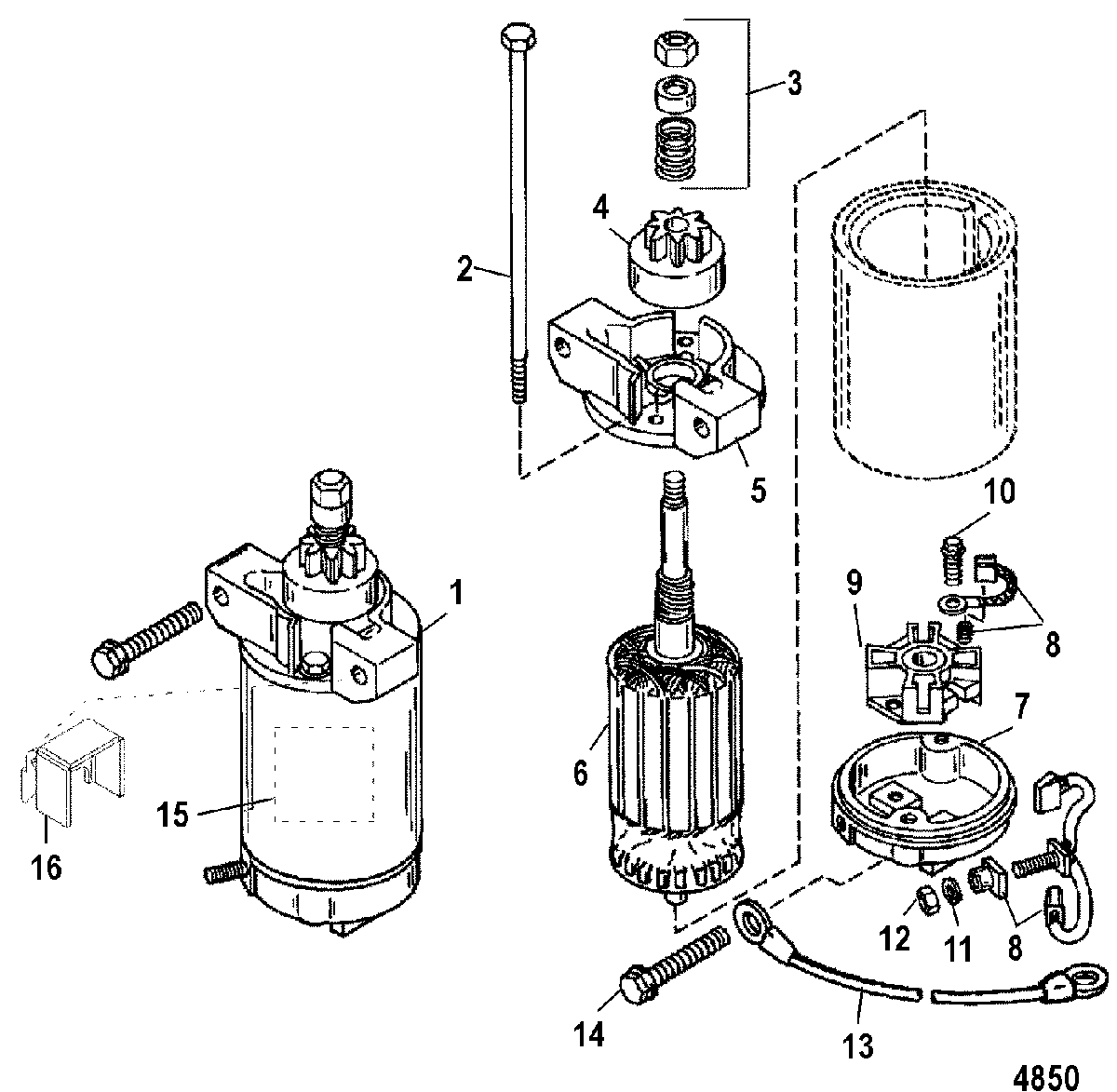

Starter Motor для Mariner - 60 (3 CYL.) BIGFOOT 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    50-893890T STARTER MOTOR ASSEMBLY
    STARTER MOTOR ASSEMBLY
  • 2
    10-965661 THRU BOLT
    THRU BOLT
  • 3
    90643 DRIVE KIT
    DRIVE KIT
  • 4
    685753 DRIVE ASSEMBLY
    DRIVE ASSEMBLY
  • 5
    8236392 DRIVE CAP
    DRIVE CAP
  • 6
    965651 ARMATURE
    ARMATURE
  • 7
    8119011 CAP, Commutator
    CAP, Commutator
  • 8
    898265016 BRUSH/SPRING KIT
    BRUSH/SPRING KIT
  • 9
    898265014 HOLDER
    HOLDER
  • 10
    F15158 SCREW
    SCREW
  • 11
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 12
    11-64015 NUT, (.250-20)
    NUT, (.250-20)
  • 13
    84-88439A9 CABLE ASSEMBLY, Battery - Positive
    CABLE ASSEMBLY, Battery - Positive
  • 14
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    SCREW, (M8 x 45) Stainless Steel
  • 15
    NSS NOT SOLD SEPARATE, Decal-Warning
    NOT SOLD SEPARATE, Decal-Warning
  • 16
    823989 BRACKET, Oil Tank
    BRACKET, Oil Tank
