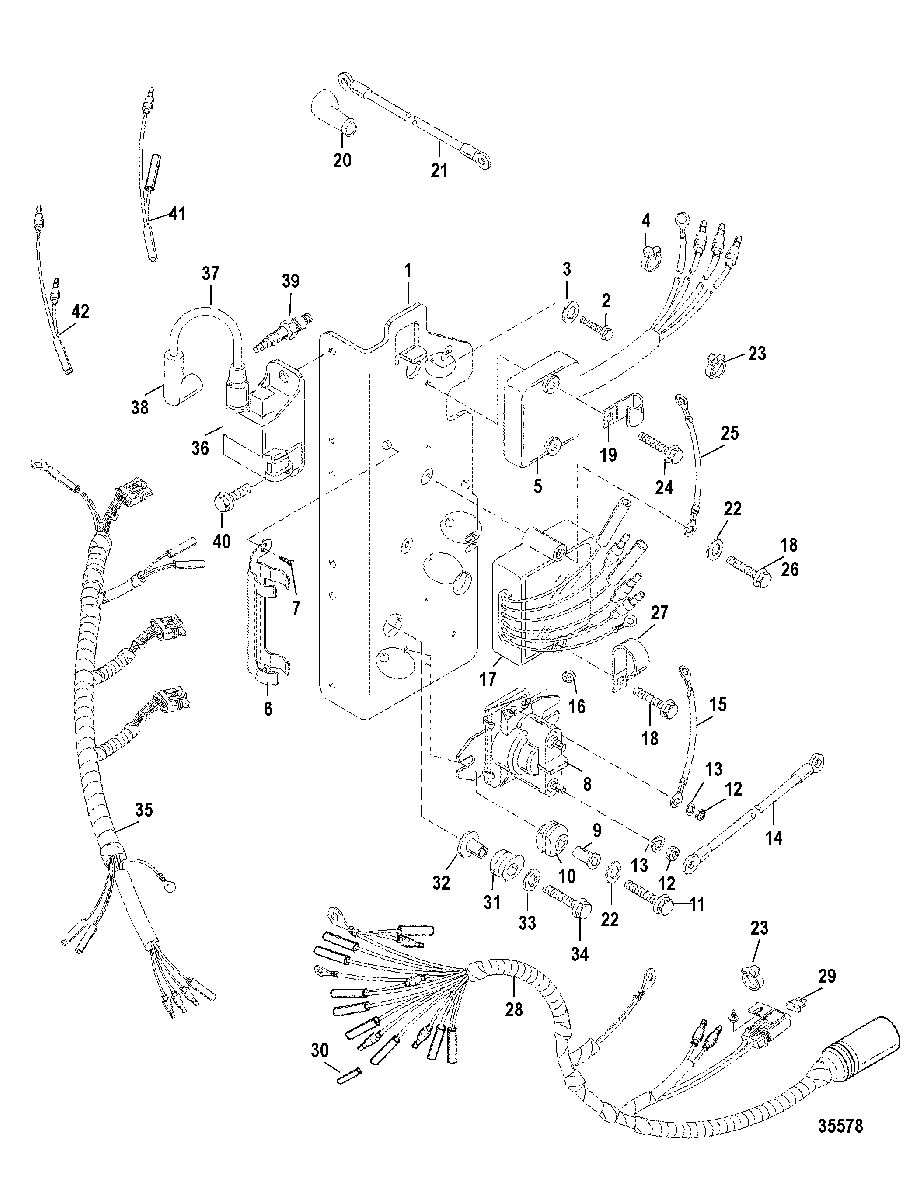

Electrical Components для Mariner - 60 (3 CYL.) BIGFOOT 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    8302351 PLATE, Electrical
    PLATE, Electrical
  • 2
    10-82239312 SCREW, (M5 x 12)
    SCREW, (M5 x 12)
  • 3
    12-89302 WASHER, (.203 x .406 x .040)
    WASHER, (.203 x .406 x .040)
  • 4
    56762 TIE STRAP, (4.00 Inches)
    TIE STRAP, (4.00 Inches)
  • 5
    821889A49 REV LIMITER
    MANUAL
    REV LIMITER
    MANUAL
  • 5
    821889A50 REV LIMITER
    ELECTRIC
    REV LIMITER
    ELECTRIC
  • 6
    8266241 CLAMP
    ELECTRIC
    CLAMP
    ELECTRIC
  • 7
    10-82239312 SCREW, (M5 x 12)
    ELECTRIC
    SCREW, (M5 x 12)
    ELECTRIC
  • 8
    89-850187T1 SOLENOID ASSEMBLY
    ELECTRIC
    SOLENOID ASSEMBLY
    ELECTRIC
  • 9
    23-818968 BUSHING
    ELECTRIC
    BUSHING
    ELECTRIC
  • 10
    25-818967 GROMMET
    ELECTRIC
    GROMMET
    ELECTRIC
  • 11
    10-82129125 SCREW, (M6 x 25)
    ELECTRIC
    SCREW, (M6 x 25)
    ELECTRIC
  • 12
    11-64015 NUT, (.250-20)
    ELECTRIC
    NUT, (.250-20)
    ELECTRIC
  • 13
    13-26992 LOCKWASHER, (.250) Stainless Steel
    ELECTRIC
    LOCKWASHER, (.250) Stainless Steel
    ELECTRIC
  • 14
    84-88807A33 CABLE ASSEMBLY
    ELECTRIC
    CABLE ASSEMBLY
    ELECTRIC
  • 15
    84-88807A16 CABLE ASSEMBLY, (4.00 Inches) Black
    ELECTRIC
    CABLE ASSEMBLY, (4.00 Inches) Black
    ELECTRIC
  • 16
    11-26419 NUT, (#8-32) Brass
    ELECTRIC
    NUT, (#8-32) Brass
    ELECTRIC
  • 17
    8M0084173 REGULATOR, Voltage
    ELECTRIC
    REGULATOR, Voltage
    ELECTRIC
  • 18
    10-82129135 SCREW, (M6 x 35)
    ELECTRIC
    SCREW, (M6 x 35)
    ELECTRIC
  • 19
    54-55098 J CLIP
    ELECTRIC
    J CLIP
    ELECTRIC
  • 20
    85-830233 BOOT, Insulator - Red
    ELECTRIC
    BOOT, Insulator - Red
    ELECTRIC
  • 21
    84-88439A4 CABLE ASSEMBLY, Battery - Negative
    ELECTRIC
    CABLE ASSEMBLY, Battery - Negative
    ELECTRIC
  • 22
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 23
    54-816311T TIE STRAP, (8.00 Inches)
    TIE STRAP, (8.00 Inches)
  • 24
    10-82129125 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 25
    84-88807A31 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 26
    10-82129110 SCREW, (M6 x 10)
    MANUAL
    SCREW, (M6 x 10)
    MANUAL
  • 27
    54-54457 J CLIP (QTY. OF 2 REQUIRED ON MANUAL)
    J CLIP (QTY. OF 2 REQUIRED ON MANUAL)
  • 28
    84-850220A2 HARNESS ASSEMBLY, Engine
    ELECTRIC
    HARNESS ASSEMBLY, Engine
    ELECTRIC
  • 29
    88-812619 FUSE, Yellow - 20 Ampere
    ELECTRIC
    FUSE, Yellow - 20 Ampere
    ELECTRIC
  • 30
    13541 PLUG, Male
    ELECTRIC
    PLUG, Male
    ELECTRIC
  • 31
    25-822002 GROMMET
    GROMMET
  • 32
    23-822003 BUSHING
    BUSHING
  • 33
    12-4002316 WASHER
    WASHER
  • 34
    10-40011129 SCREW, (M6 x 25) Stainless Steel
    SCREW, (M6 x 25) Stainless Steel
  • 35
    84-850221A2 HARNESS ASSEMBLY, Ignition
    HARNESS ASSEMBLY, Ignition
  • 36
    827509T7 CDM ASSEMBLY
    CDM ASSEMBLY
  • 37
    84-821945A61 CABLE ASSEMBLY, Hi Tension
    CABLE ASSEMBLY, Hi Tension
  • 38
    85-63709A1 BOOT/TERMINAL KIT
    BOOT/TERMINAL KIT
  • 39
    33-816737Q SPARK PLUG (NGK# BP8H-N-10)
    SPARK PLUG (NGK# BP8H-N-10)
  • 39
    33-816837Q SPARK PLUG (NGK#BPZ-8H-N-10)
    SPARK PLUG (NGK#BPZ-8H-N-10)
  • 39
    33-14103568 SPARK PLUG (NGK#BUZ8H)
    SPARK PLUG (NGK#BUZ8H)
  • 39
    33-8M0114745 SPARK PLUG (NGK#BP8HS-10)
    SPARK PLUG (NGK#BP8HS-10)
  • 40
    10-82129116 SCREW, (M6 x 16)
    SCREW, (M6 x 16)
  • 41
    84-850052A1 HARNESS ASSEMBLY, Power
    MANUAL
    HARNESS ASSEMBLY, Power
    MANUAL
  • 42
    84-11149T31 HARNESS ASSEMBLY
    MANUAL
    HARNESS ASSEMBLY
    MANUAL
