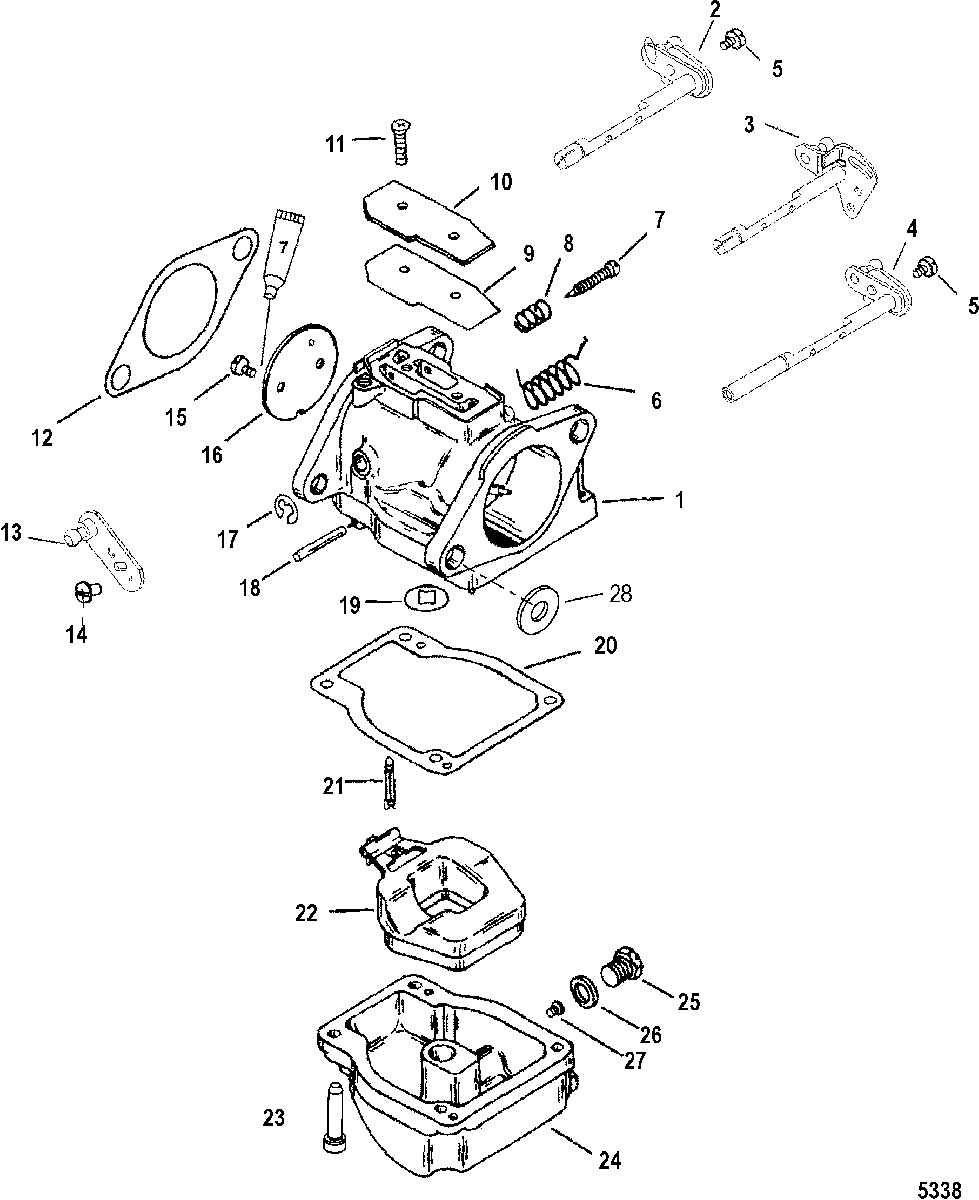

Carburetor для Mariner - 60 (3 CYL.) BIGFOOT 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    3301-821854T22 CARBURETOR
    (TOP) 60 ELECTRIC - WME-58
    CARBURETOR
    (TOP) 60 ELECTRIC - WME-58
  • 1
    3301-821854T23 CARBURETOR
    (CENTER) 60 ELECTRIC - WME-58
    CARBURETOR
    (CENTER) 60 ELECTRIC - WME-58
  • 1
    3301-821854T24 CARBURETOR
    (BOTTOM) 60 ELECTRIC - WME-58
    CARBURETOR
    (BOTTOM) 60 ELECTRIC - WME-58
  • 1
    3301-821854T19 CARBURETOR
    (TOP) 55/60 MANUAL - WME-57
    CARBURETOR
    (TOP) 55/60 MANUAL - WME-57
  • 1
    3301-821854T20 CARBURETOR
    (CENTER) 55/60 MANUAL - WME-57
    CARBURETOR
    (CENTER) 55/60 MANUAL - WME-57
  • 1
    3301-821854T21 CARBURETOR
    (BOTTOM) 55/60 MANUAL - WME-57
    CARBURETOR
    (BOTTOM) 55/60 MANUAL - WME-57
  • 2
    1395-823632 SHAFT, Throttle
    (UPPER) WME-58
    SHAFT, Throttle
    (UPPER) WME-58
  • 3
    1395-823633 SHAFT, Throttle
    (CENTER) WME-58
    SHAFT, Throttle
    (CENTER) WME-58
  • 4
    1395-823636 SHAFT, Throttle
    (BOTTOM) WME-58
    SHAFT, Throttle
    (BOTTOM) WME-58
  • 2
    1395-823632 SHAFT, Throttle
    (UPPER/BOTTOM) WME-57
    SHAFT, Throttle
    (UPPER/BOTTOM) WME-57
  • 3
    1395-823633 SHAFT, Throttle
    (CENTER) WME-57
    SHAFT, Throttle
    (CENTER) WME-57
  • 5
    1395-823634 SCREW
    (UPPER/BOTTOM)
    SCREW
    (UPPER/BOTTOM)
  • 6
    NSS NOT SOLD SEPARATE, Spring-Throttle Return
    NOT SOLD SEPARATE, Spring-Throttle Return
  • 7
    NSS NOT SOLD SEPARATE, Idle Needle
    NOT SOLD SEPARATE, Idle Needle
  • 8
    NSS NOT SOLD SEPARATE, Spring-Idle Needle
    NOT SOLD SEPARATE, Spring-Idle Needle
  • 9
    NSS NOT SOLD SEPARATE, Gasket-cover Plate
    NOT SOLD SEPARATE, Gasket-cover Plate
  • 10
    1395-811221 COVER PLATE
    COVER PLATE
  • 11
    1395-811220 SCREW, Cover Plate
    SCREW, Cover Plate
  • 12
    27-8144461 GASKET, Flange
    GASKET, Flange
  • 13
    1395-8113522 LEVER, Oil Pump
    WME-58 - BOTTOM
    LEVER, Oil Pump
    WME-58 - BOTTOM
  • 14
    1395-8086121 SCREW, Lever Retainer
    WME-58 - BOTTOM
    SCREW, Lever Retainer
    WME-58 - BOTTOM
  • 15
    10-F10155 SCREW, Throttle Valve
    SCREW, Throttle Valve
  • 16
    97246 VALVE, Throttle
    VALVE, Throttle
  • 17
    NSS NOT SOLD SEPARATE, Retaining Ring
    NOT SOLD SEPARATE, Retaining Ring
  • 18
    F10064 SHAFT
    SHAFT
  • 19
    1395-808738 GASKET
    GASKET
  • 20
    NSS NOT SOLD SEPARATE, Gasket-Fuel Bowl
    NOT SOLD SEPARATE, Gasket-Fuel Bowl
  • 21
    10-95951 VALVE, Inlet Needle
    VALVE, Inlet Needle
  • 22
    1395-9594 FLOAT
    FLOAT
  • 23
    1395-808612 SCREW AND WASHER, (#8-32 x .750)
    SCREW AND WASHER, (#8-32 x .750)
  • 24
    1395-811695 BOWL, Fuel
    (UPPER) WME-57
    BOWL, Fuel
    (UPPER) WME-57
  • 24
    1395-811693 BOWL, Fuel
    (CENTER/BOTTOM) WME-57
    BOWL, Fuel
    (CENTER/BOTTOM) WME-57
  • 24
    1395-811693 BOWL, Fuel
    (WME-58)
    BOWL, Fuel
    (WME-58)
  • 25
    1395-811694 PLUG KIT
    PLUG KIT
  • 26
    1395-802731 SEAL (CONSISTS OF 4 SEALS)
    SEAL (CONSISTS OF 4 SEALS)
  • 27
    1395-7831 JET, Main Fuel (.058)
    WME-57
    JET, Main Fuel (.058)
    WME-57
  • 27
    1395-6487 JET, Main (.060)
    WME-58
    JET, Main (.060)
    WME-58
  • -
    27-812867A97 GASKET SET
    GASKET SET
  • -
    1395-8236354 REPAIR KIT, Carburetor
    REPAIR KIT, Carburetor
  • -
    1395-8112231 GASKET SET, Carburetor
    GASKET SET, Carburetor
