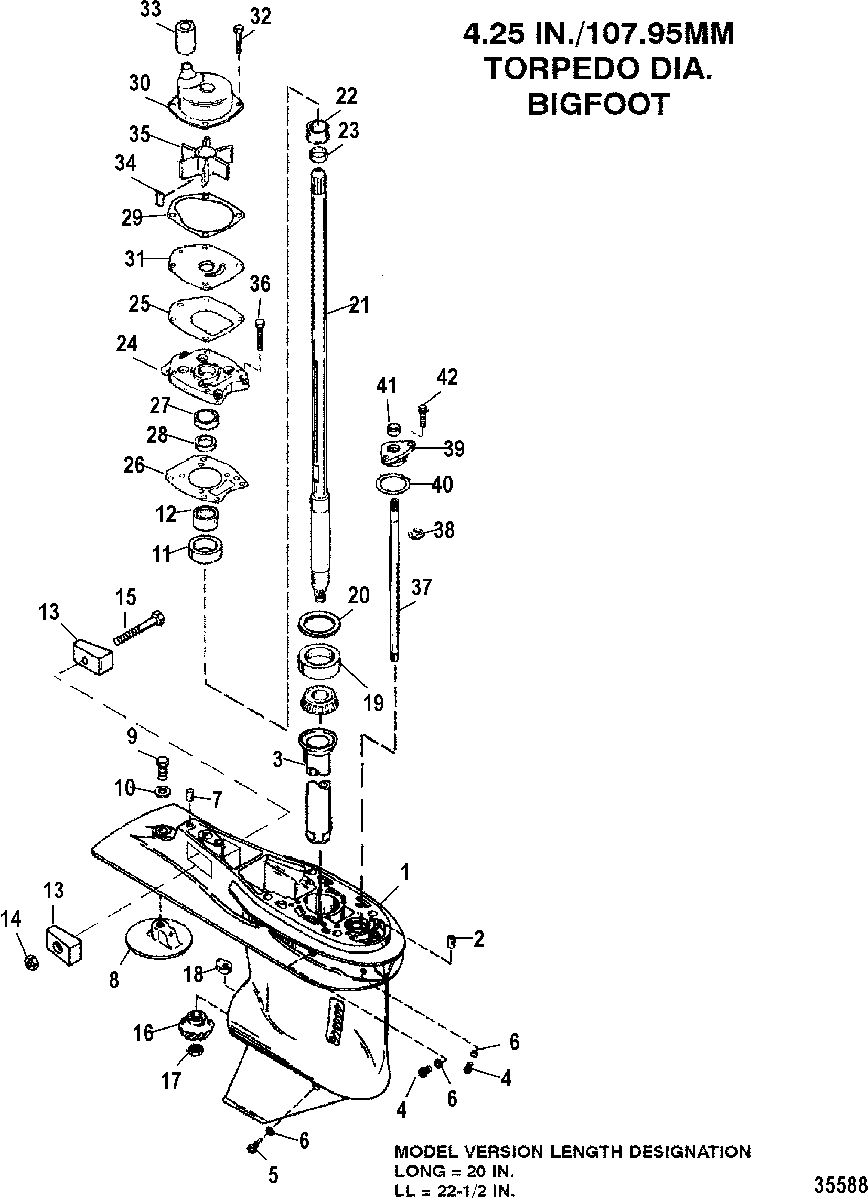

Gear Housing, Driveshaft - 2.31:1 Gear Ratio для Mariner - 60 (3 CYL.) BIGFOOT 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • -
    1667-9011G92 GEAR HOUSING ASSEMBLY
    (LONG) BLACK
    GEAR HOUSING ASSEMBLY
    (LONG) BLACK
  • -
    1667-9011G94 GEAR HOUSING ASSEMBLY
    (LL) BLACK
    GEAR HOUSING ASSEMBLY
    (LL) BLACK
  • -
    1667-9011G92 GEAR HOUSING ASSEMBLY
    (LONG) GRAY
    GEAR HOUSING ASSEMBLY
    (LONG) GRAY
  • -
    1667-9011G48 GEAR HOUSING ASSEMBLY
    (LL) GRAY
    GEAR HOUSING ASSEMBLY
    (LL) GRAY
  • 1
    1667-9011G59 GEAR HOUSING ASSEMBLY
    (BLACK)
    GEAR HOUSING ASSEMBLY
    (BLACK)
  • 1
    1667-9011G59 GEAR HOUSING ASSEMBLY
    (GRAY)
    GEAR HOUSING ASSEMBLY
    (GRAY)
  • 2
    17-8M0084244 PIN, Dowel - With Hole (.375 x .625) (FRONT)
    PIN, Dowel - With Hole (.375 x .625) (FRONT)
  • 3
    43046 TUBE, Oiler
    TUBE, Oiler
  • 4
    10-79953Q04 SCREW KIT, (.375-16 x .250)
    SCREW KIT, (.375-16 x .250)
  • 5
    22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
    FITTING KIT, Magnetic, Plug Fill/Drain
  • 6
    12-191833 WASHER, Fiber
    WASHER, Fiber
  • 7
    17-43044 PIN, Dowel - Without Hole (.375 x .625) (REAR)
    PIN, Dowel - Without Hole (.375 x .625) (REAR)
  • 8
    31640T07 TRIM TAB
    TRIM TAB
  • 9
    10-825427 SCREW, (.437-14 x 1.250) Stainless Steel
    SCREW, (.437-14 x 1.250) Stainless Steel
  • 10
    12-45176 WASHER, (.453 x .812 x .105) Stainless Steel
    WASHER, (.453 x .812 x .105) Stainless Steel
  • 11
    43040T1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 12
    NSS NOT SOLD SEPARATE, Needle Bearing
    NOT SOLD SEPARATE, Needle Bearing
  • 13
    97-826134Q ANODE
    ANODE
  • 14
    11-401386 NUT, (M6)
    NUT, (M6)
  • 15
    10-4000333 SCREW, (M6 x 40)
    SCREW, (M6 x 40)
  • 16
    43-44484T GEAR, Pinion (13 Teeth) (ALSO PART OF 43-850033A2)
    GEAR, Pinion (13 Teeth) (ALSO PART OF 43-850033A2)
  • 17
    11-35921 NUT, (.625-18)
    NUT, (.625-18)
  • 18
    850307 CAM, Shift Control
    CAM, Shift Control
  • 19
    31-42677A1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 20
    15-8M0063265 SHIM SET
    SHIM SET
  • 21
    45-826736A1 DRIVESHAFT ASSEMBLY
    (LONG)
    DRIVESHAFT ASSEMBLY
    (LONG)
  • 21
    45-826737A1 DRIVESHAFT ASSEMBLY
    (LL)
    DRIVESHAFT ASSEMBLY
    (LL)
  • 22
    42461A1 SLEEVE/RING KIT
    SLEEVE/RING KIT
  • 23
    NSS NOT SOLD SEPARATE, Ring Seal
    NOT SOLD SEPARATE, Ring Seal
  • 24
    46-8M0113262 COVER ASSEMBLY, Water Pump
    COVER ASSEMBLY, Water Pump
  • 25
    27-430331 GASKET
    GASKET
  • 26
    27-430472 GASKET
    GASKET
  • 27
    26-43036 SEAL, Oil
    (LOWER)
    SEAL, Oil
    (LOWER)
  • 28
    26-43035 SEAL, Oil
    (UPPER)
    SEAL, Oil
    (UPPER)
  • 29
    27-8172771 GASKET
    GASKET
  • 30
    817275A2 HOUSING KIT, Upper Water Pump
    HOUSING KIT, Upper Water Pump
  • 31
    8172761 FACEPLATE
    FACEPLATE
  • 32
    10-8248327 SCREW, (M6 x 30)
    SCREW, (M6 x 30)
  • 33
    826763A1 COUPLING
    (LONG)
    COUPLING
    (LONG)
  • 33
    826762A1 COUPLING
    (LL)
    COUPLING
    (LL)
  • 34
    28-8M0032833 KEY
    KEY
  • 35
    47-43026T2 IMPELLER
    IMPELLER
  • 36
    10-8248326 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 37
    853906A1 SHIFT SHAFT ASSEMBLY
    (LONG)
    SHIFT SHAFT ASSEMBLY
    (LONG)
  • 37
    853907A1 SHIFT SHAFT ASSEMBLY
    (LL)
    SHIFT SHAFT ASSEMBLY
    (LL)
  • 38
    53-29641 E RING
    E RING
  • 39
    23-43052A4 BUSHING ASSEMBLY
    BUSHING ASSEMBLY
  • 40
    25-457101 O-RING, (1.424 x .103)
    O-RING, (1.424 x .103)
  • 41
    26-8164641 SEAL, Oil
    SEAL, Oil
  • 42
    10-8248326 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • -
    46-8M0113799 REPAIR KIT, Water Pump
    REPAIR KIT, Water Pump
  • -
    26-43035A4 SEAL KIT, Gear Housing
    SEAL KIT, Gear Housing
