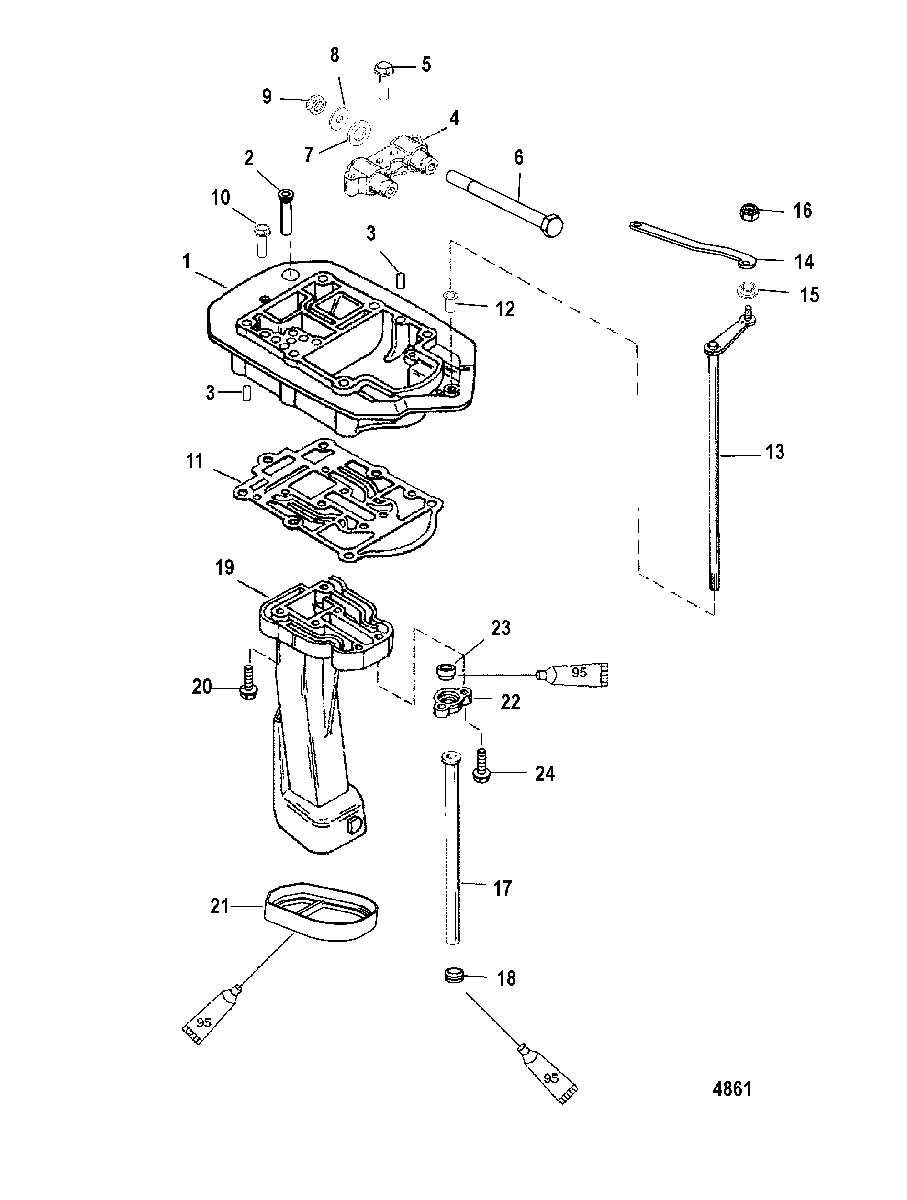

Exhaust Plate для Mariner - 60 (3 CYL.) BIGFOOT 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    19653T3 PLATE ASSEMBLY, Exhaust
    PLATE ASSEMBLY, Exhaust
  • 2
    21-817519A1 CHECK VALVE ASSEMBLY, Drain
    CHECK VALVE ASSEMBLY, Drain
  • 3
    17-23784 PIN, Dowel
    PIN, Dowel
  • 4
    1400-8M4501491 MOUNT, Upper
    MOUNT, Upper
  • 5
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    SCREW, (M8 x 45) Stainless Steel
  • 6
    10-898835001 BOLT, (M12 x 154)
    BOLT, (M12 x 154)
  • 7
    12-32834 WASHER, Neoprene
    WASHER, Neoprene
  • 8
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 9
    11-896963 NUT, (M12)
    NUT, (M12)
  • 10
    10-40011158 SCREW, (M8 x 70) Stainless Steel
    SCREW, (M8 x 70) Stainless Steel
  • 11
    27-8M0000820 GASKET
    NOT USED ON JET MODELS
    GASKET
    NOT USED ON JET MODELS
  • 12
    23-48237 BUSHING
    NOT USED ON JET MODELS
    BUSHING
    NOT USED ON JET MODELS
  • 13
    815639A10 SHIFT SHAFT
    (UPPER)(SHORT) NOT USED ON JET MODELS
    SHIFT SHAFT
    (UPPER)(SHORT) NOT USED ON JET MODELS
  • 13
    812891A7 SHIFT SHAFT
    (UPPER)(LONG - ELECTRIC) NOT USED ON JET MODELS
    SHIFT SHAFT
    (UPPER)(LONG - ELECTRIC) NOT USED ON JET MODELS
  • 13
    815639A9 SHIFT SHAFT
    (UPPER)(LONG/LL - MANUAL) NOT USED ON JET MODELS
    SHIFT SHAFT
    (UPPER)(LONG/LL - MANUAL) NOT USED ON JET MODELS
  • 14
    812872A1 SHIFT LINK
    NOT USED ON JET MODELS
    SHIFT LINK
    NOT USED ON JET MODELS
  • 14
    812872A2 SHIFT LINK
    (BIGFOOT) NOT USED ON JET MODELS
    SHIFT LINK
    (BIGFOOT) NOT USED ON JET MODELS
  • 15
    23-48475 BUSHING
    NOT USED ON JET MODELS
    BUSHING
    NOT USED ON JET MODELS
  • 16
    11-401386 NUT, (M6)
    NOT USED ON JET MODELS
    NUT, (M6)
    NOT USED ON JET MODELS
  • 17
    32-8M0042795 TUBE, Water
    (SHORT)
    TUBE, Water
    (SHORT)
  • 17
    32-8M0042794 TUBE, Water
    (LONG)
    TUBE, Water
    (LONG)
  • 18
    25-93221002 GROMMET
    GROMMET
  • 19
    8M0045214 TUBE, Exhaust
    TUBE, Exhaust
  • 20
    10-40011153 SCREW, (M8 x 45) Stainless Steel
    SCREW, (M8 x 45) Stainless Steel
  • 21
    812886001 SEAL
    SEAL
  • 22
    99019 CLAMP
    CLAMP
  • 23
    42941001 SEAL, Water Tube (UPPER)
    SEAL, Water Tube (UPPER)
  • 24
    10-40011155 SCREW, (M8 x 55) Stainless Steel
    SCREW, (M8 x 55) Stainless Steel
  • -
    27-812867A97 GASKET SET
    GASKET SET
