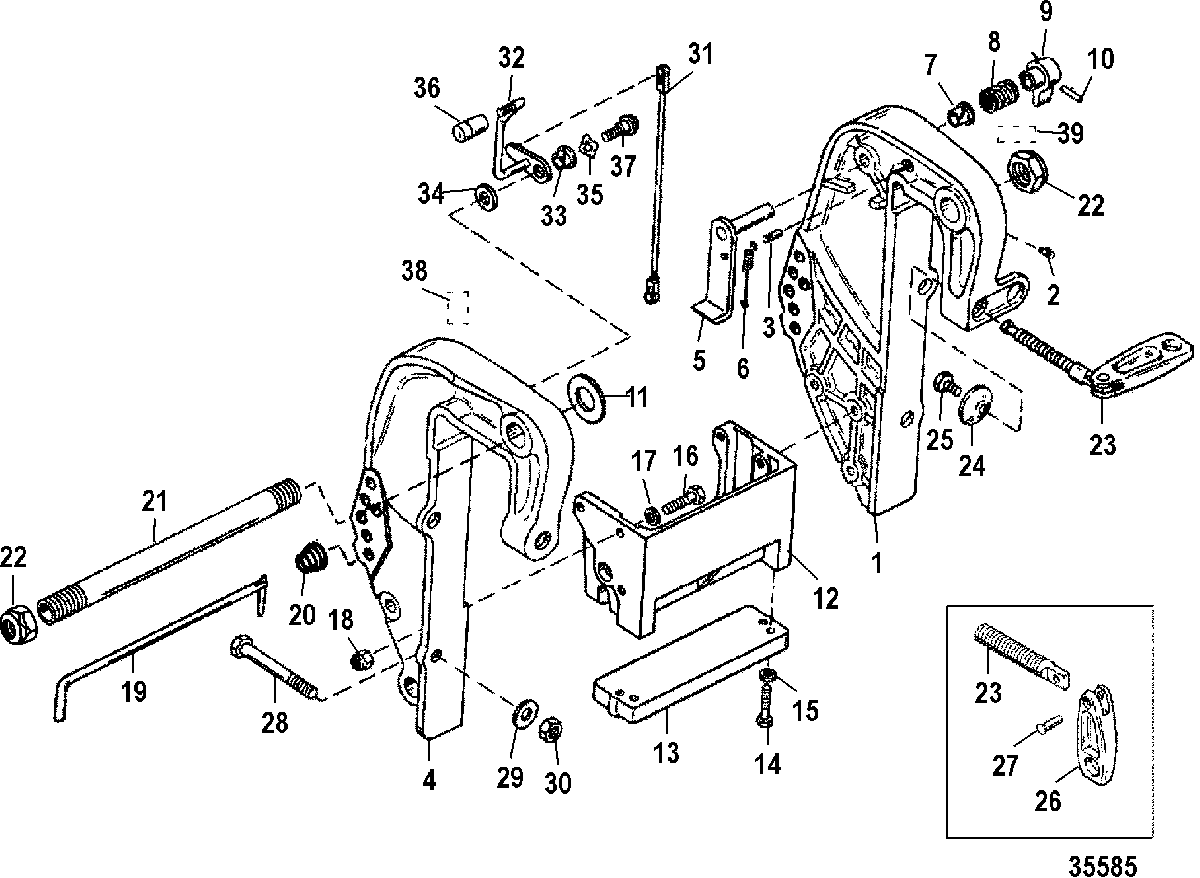

Clamp Bracket, Manual для Mariner - 60 (3 CYL.) BIGFOOT 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    3420-8M0084195 CLAMP BRACKET ASSEMBLY
    (BLACK) PORT
    CLAMP BRACKET ASSEMBLY
    (BLACK) PORT
  • 1
    3420-822868A2 CLAMP BRACKET ASSEMBLY
    (GRAY) PORT
    CLAMP BRACKET ASSEMBLY
    (GRAY) PORT
  • 2
    22-98727 FITTING, Grease
    FITTING, Grease
  • 3
    17-99604 PIN, Groove
    PIN, Groove
  • 4
    3419-822867F1 CLAMP BRACKET
    (BLACK) STARBOARD
    CLAMP BRACKET
    (BLACK) STARBOARD
  • 4
    3419-822867F2 CLAMP BRACKET
    (GRAY) STARBOARD
    CLAMP BRACKET
    (GRAY) STARBOARD
  • 5
    893704T01 LEVER ASSEMBLY, Tilt Lock
    (BLACK)
    LEVER ASSEMBLY, Tilt Lock
    (BLACK)
  • 5
    893704T01 LEVER ASSEMBLY, Tilt Lock
    (GRAY)
    LEVER ASSEMBLY, Tilt Lock
    (GRAY)
  • 6
    24-99622 SPRING
    SPRING
  • 7
    23-65830 NYLINER
    NYLINER
  • 8
    24-812708 SPRING
    SPRING
  • 9
    812709 KNOB
    (BLACK)
    KNOB
    (BLACK)
  • 9
    812709 KNOB
    (GRAY)
    KNOB
    (GRAY)
  • 10
    17-99615 PIN, Groove
    PIN, Groove
  • 11
    12-19619 WASHER
    WASHER
  • 12
    18486A08 BRACKET, Anchor
    (BLACK)
    BRACKET, Anchor
    (BLACK)
  • 12
    18486A08 BRACKET, Anchor
    (GRAY)
    BRACKET, Anchor
    (GRAY)
  • 13
    97-818298Q1 ANODE KIT
    ANODE KIT
  • 14
    10-4000330 SCREW, (M6 x 25)
    SCREW, (M6 x 25)
  • 15
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
    WASHER, (.281 x .500 x .060) Stainless Steel
  • 16
    10-4000354 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 16
    10-4000355 SCREW, (M8 x 35)
    SCREW, (M8 x 35)
  • 17
    13-400257 LOCKWASHER, (M8)
    LOCKWASHER, (M8)
  • 18
    11-401388 NUT, (M8)
    NUT, (M8)
  • 19
    17-8M0026068 PIN ASSEMBLY, Tilt Lock
    PIN ASSEMBLY, Tilt Lock
  • 20
    24-821461 SPRING
    SPRING
  • 21
    8M0041938 TILT TUBE
    TILT TUBE
  • 22
    11-858869 NUT, (7/8-14)
    NUT, (7/8-14)
  • 23
    10-818883A1 THUMB SCREW ASSEMBLY
    THUMB SCREW ASSEMBLY
  • 24
    12-818884 WASHER
    WASHER
  • 25
    10-768042 SHOULDER SCREW, Hex
    SHOULDER SCREW, Hex
  • 26
    NSS NOT SOLD SEPARATE, Handle
    NOT SOLD SEPARATE, Handle
  • 27
    NSS NOT SOLD SEPARATE, Rivet
    NOT SOLD SEPARATE, Rivet
  • 28
    10-814259 SCREW, (.500-20 x 4.00)
    SCREW, (.500-20 x 4.00)
  • 29
    12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
    WASHER, (1.5 x 3.05 x 0.13) Stainless Steel
  • 30
    11-91962 NUT, (.500-20)
    NUT, (.500-20)
  • 31
    8M0084737 LINK
    LINK
  • 32
    19615A05 LEVER ASSEMBLY, Tilt
    LEVER ASSEMBLY, Tilt
  • 33
    23-812707 BUSHING
    BUSHING
  • 34
    12-8M0042643 WASHER, (.520 x .850 x .060) Nylon - Black
    WASHER, (.520 x .850 x .060) Nylon - Black
  • 35
    13-99611 WAVE WASHER
    WAVE WASHER
  • 36
    8M0007469 TILT KNOB
    TILT KNOB
  • 37
    10-19611 SCREW, (.375-16 x .62)
    SCREW, (.375-16 x .62)
  • 38
    NSS NOT SOLD SEPARATE, Decal-Tilt Lock
    NOT SOLD SEPARATE, Decal-Tilt Lock
  • 39
    NSS NOT SOLD SEPARATE, Decal-Warning
    NOT SOLD SEPARATE, Decal-Warning
