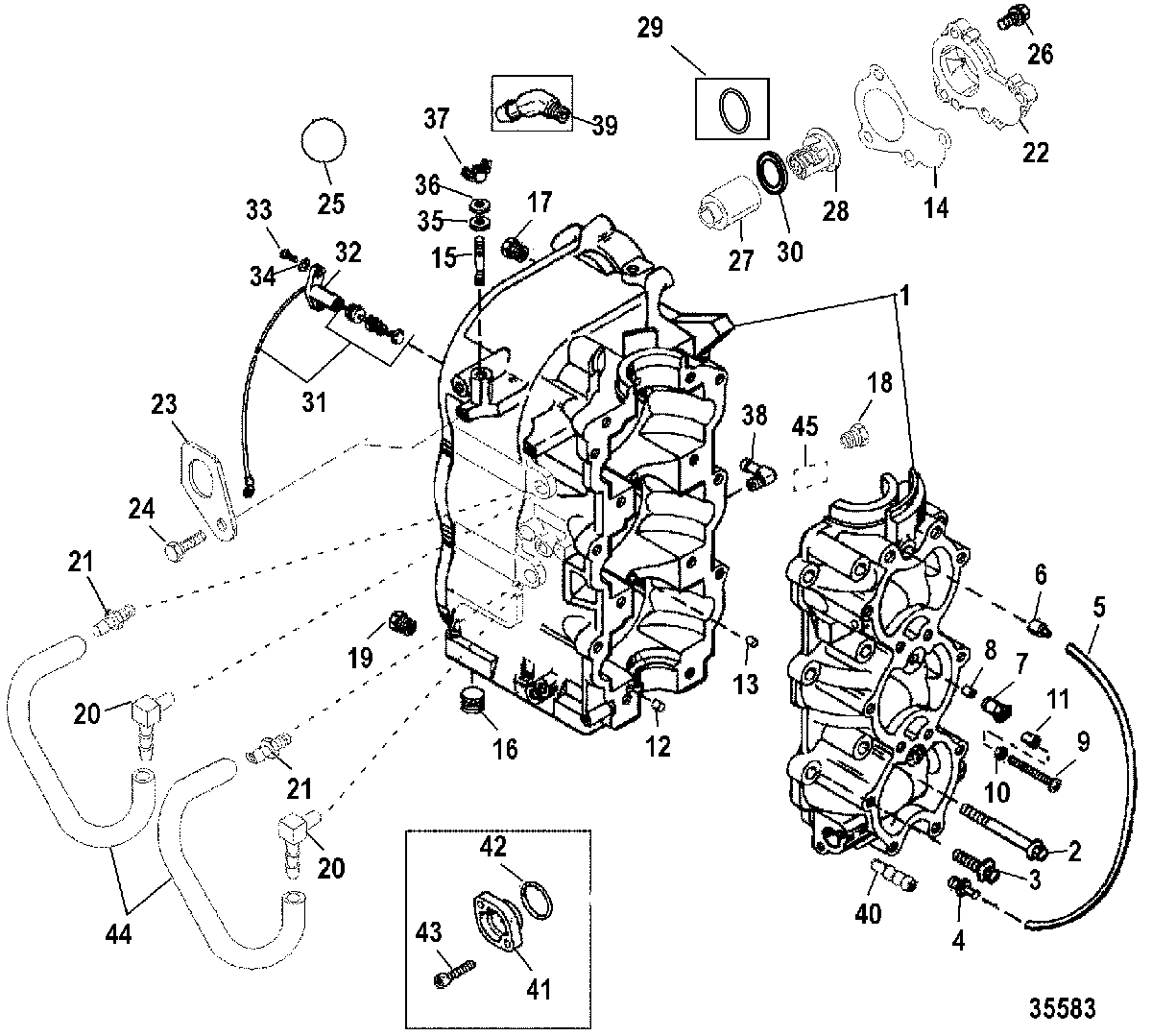

Cylinder Block для Mariner - 60 (3 CYL.) BIGFOOT 9973100 THRU 0P016999

  • №
    Артикул
    Название
  • 1
    2801-827953T4 CYLINDER BLOCK
    CYLINDER BLOCK
  • 2
    10-81742780 SCREW, (M8 x 80)
    SCREW, (M8 x 80)
  • 3
    10-81742730 SCREW, (M8 x 30)
    SCREW, (M8 x 30)
  • 4
    21-426585 CHECK VALVE
    CHECK VALVE
  • 5
    32-892024122 TUBING, (20.00 Feet Bulk) (15 IN.)
    TUBING, (20.00 Feet Bulk) (15 IN.)
  • 6
    21-426232 CHECK VALVE (PRESS-IN)
    CHECK VALVE (PRESS-IN)
  • 7
    812888A2 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 8
    21-42657A4 CHECK VALVE
    CHECK VALVE
  • 9
    10-814776 SCREW, Adjusting (M6 x 55)
    SCREW, Adjusting (M6 x 55)
  • 10
    11-400212 NUT, (M6) Stainless Steel
    NUT, (M6) Stainless Steel
  • 11
    42942 CAP
    CAP
  • 12
    17-43044 PIN, Dowel - Without Hole (.375 x .625) (LOCATING)
    PIN, Dowel - Without Hole (.375 x .625) (LOCATING)
  • 13
    17-8M0084653 PIN (BEARING RACE)
    PIN (BEARING RACE)
  • 14
    27-827284 GASKET
    GASKET
  • 15
    16-8161949 STUD
    STUD
  • 16
    22-185981 PLUG, Pipe (.375-18)
    PLUG, Pipe (.375-18)
  • 17
    22-328022 PLUG, Pipe (.125-27) Brass
    (ELECTRIC)
    PLUG, Pipe (.125-27) Brass
    (ELECTRIC)
  • 18
    22-328022 PLUG, Pipe (.125-27) Brass
    (MANUAL)
    PLUG, Pipe (.125-27) Brass
    (MANUAL)
  • 19
    22-328022 PLUG, Pipe (.125-27) Brass
    PLUG, Pipe (.125-27) Brass
  • 20
    22-19725 ELBOW
    ELBOW
  • 21
    21-426585 CHECK VALVE
    CHECK VALVE
  • 22
    827251A1 COVER
    COVER
  • 23
    850897 LIFTING EYE
    MANUAL
    LIFTING EYE
    MANUAL
  • 24
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    MANUAL
    SCREW, (M8 x 25) Stainless Steel
    MANUAL
  • 25
    NSS NOT SOLD SEPARATE, Plug-Serial Number
    NOT SOLD SEPARATE, Plug-Serial Number
  • 26
    10-40011149 SCREW, (M8 x 25) Stainless Steel
    SCREW, (M8 x 25) Stainless Steel
  • 27
    889735 CARRIER
    ELECTRIC
    CARRIER
    ELECTRIC
  • 28
    850055001 THERMOSTAT, 43A°C (110A°F)
    ELECTRIC
    THERMOSTAT, 43A°C (110A°F)
    ELECTRIC
  • 29
    25-62701 O-RING
    ELECTRIC SN# 0G662182 & Below
    O-RING
    ELECTRIC SN# 0G662182 & Below
  • 30
    26-854639001 SEAL
    ELECTRIC SN# 0G662183 & Up
    SEAL
    ELECTRIC SN# 0G662183 & Up
  • 31
    787992 SENDER, Temperature
    SENDER, Temperature
  • 32
    889733 RETAINER
    RETAINER
  • 33
    10-878609 SCREW, (#10-16 x .600)
    SCREW, (#10-16 x .600)
  • 34
    12-56681 WASHER, (.203 x .500 x .032)
    WASHER, (.203 x .500 x .032)
  • 35
    12-49221 WASHER, (.187 x .500 x .062) Neoprene
    ELECTRIC
    WASHER, (.187 x .500 x .062) Neoprene
    ELECTRIC
  • 36
    12-69056 WASHER, (.255 x .620 x .030) Stainless Steel
    ELECTRIC
    WASHER, (.255 x .620 x .030) Stainless Steel
    ELECTRIC
  • 37
    11-816872 WING NUT
    ELECTRIC
    WING NUT
    ELECTRIC
  • 38
    22-996642 ELBOW
    ELECTRIC
    ELBOW
    ELECTRIC
  • 39
    22-782792 ELBOW
    (MANUAL)
    ELBOW
    (MANUAL)
  • 40
    22-56759 CONNECTOR
    (ELECTRIC)
    CONNECTOR
    (ELECTRIC)
  • 41
    8129962 COVER
    MANUAL
    COVER
    MANUAL
  • 42
    25-48462 O-RING, (.614 x .070)
    MANUAL
    O-RING, (.614 x .070)
    MANUAL
  • 43
    10-40011108 SCREW, (M5 x 20) Stainless Steel
    MANUAL
    SCREW, (M5 x 20) Stainless Steel
    MANUAL
  • 44
    32-892024122 TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
    TUBING, (20.00 Feet Bulk) (5-1/2 IN.)
  • 45
    37-881865 DECAL, Caution, Start In Gear, (ELECTRIC-NON-HANDLE)
    DECAL, Caution, Start In Gear, (ELECTRIC-NON-HANDLE)
  • -
    852071T97 POWERHEAD ASSEMBLY
    POWERHEAD ASSEMBLY
  • -
    27-812867A97 GASKET SET
    GASKET SET
