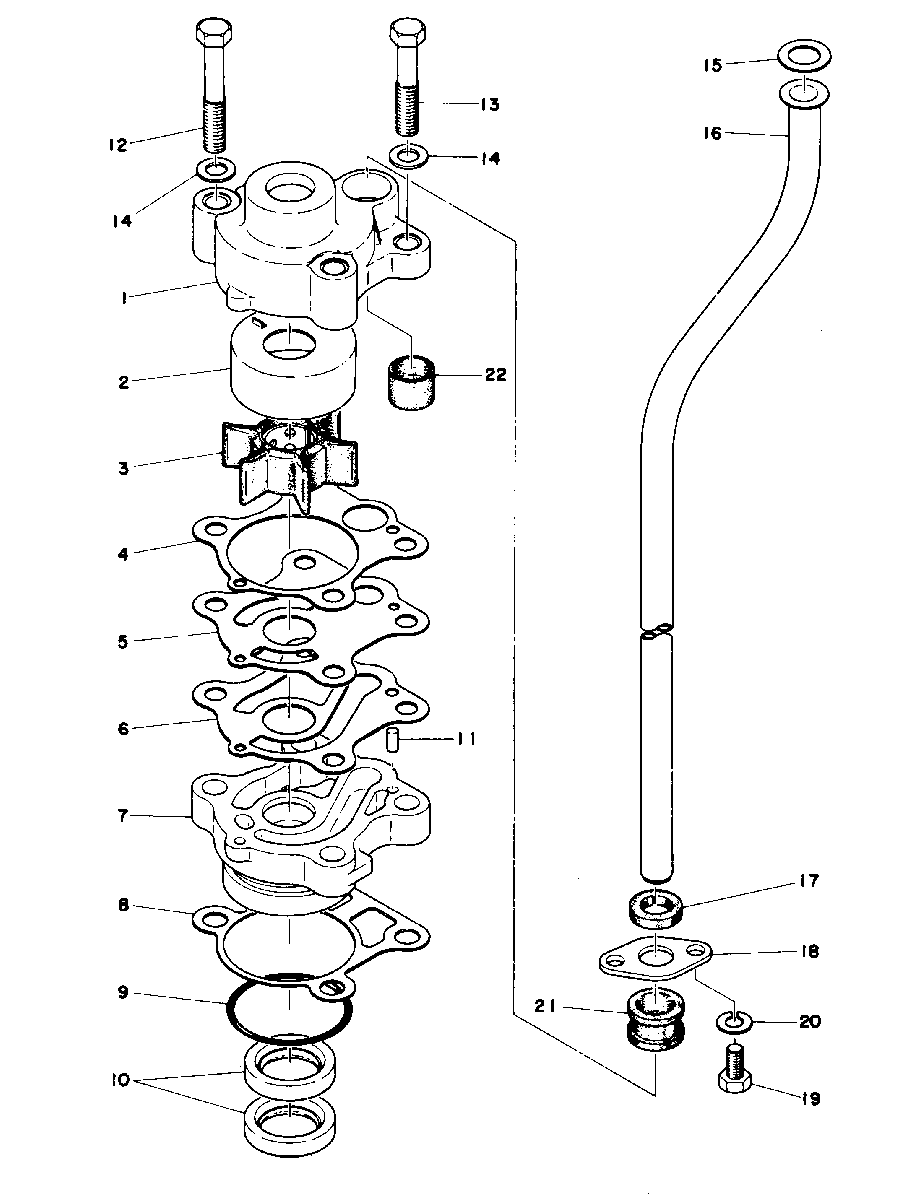

WATER PUMP для Mariner - 55 663-36475 AND BELOW

  • №
    Артикул
    Название
  • 1
    46-81416M BODY, WATER PUMP
    BODY, WATER PUMP
  • 2
    81419M INSERT, CARTRIDGE
    INSERT, CARTRIDGE
  • 3
    47-81423M IMPELLER, WATER PUMP
    SERIAL 00000000-00002730
    IMPELLER, WATER PUMP
    SERIAL 00000000-00002730
  • 3
    47-97108M IMPELLER
    SERIAL 00002731-09999999
    IMPELLER
    SERIAL 00002731-09999999
  • 4
    27-81417 GASKET, WATER PUMP
    GASKET, WATER PUMP
  • 5
    81420M OUTER PLATE, CARTRIDGE
    OUTER PLATE, CARTRIDGE
  • 6
    27-81421M GASKER, CARTRIDGE OUTER PLATE
    GASKER, CARTRIDGE OUTER PLATE
  • 7
    46-81422M BASE< WATER PUMP
    BASE< WATER PUMP
  • 8
    27-81418M GASKET, WATER PUMP BASE
    GASKET, WATER PUMP BASE
  • 9
    25-82275M O-RING, WATER PUMP BASE
    O-RING, WATER PUMP BASE
  • 10
    26-82234M OIL SEAL,WATER PUMP
    OIL SEAL,WATER PUMP
  • 11
    17-82354M PIN, DOWEL-WATER PUMP
    PIN, DOWEL-WATER PUMP
  • 12
    10-84057M BOLT, PUMP ATTACHING
    BOLT, PUMP ATTACHING
  • 13
    10-85277614 BOLT, PUMP ATTACHING
    BOLT, PUMP ATTACHING
  • 14
    12-82217M WASHER, PUMP BELT
    WASHER, PUMP BELT
  • 15
    12-81852M WASHER, WATER TUBE
    WASHER, WATER TUBE
  • 16
    32-81424M TUBE, WATER (SHORT SHAFT)
    TUBE, WATER (SHORT SHAFT)
  • 16
    32-81425M TUBE, WATER (LONG SHAFT )
    TUBE, WATER (LONG SHAFT )
  • 17
    25-81989M GSKET, WATER TUBE
    GSKET, WATER TUBE
  • 18
    81428M SET PLATE, WATER TUBE
    SET PLATE, WATER TUBE
  • 19
    10-91772M BOLT, PLATE ATTACHING
    BOLT, PLATE ATTACHING
  • 20
    13-82212M LOCK WASHER, PLATE BOLT
    LOCK WASHER, PLATE BOLT
  • 21
    10-82417M SEAL, WATER TUBE-LOWER
    SEAL, WATER TUBE-LOWER
  • 22
    26-81426M SEAL, WATER TUBE-UPPER
    SEAL, WATER TUBE-UPPER
