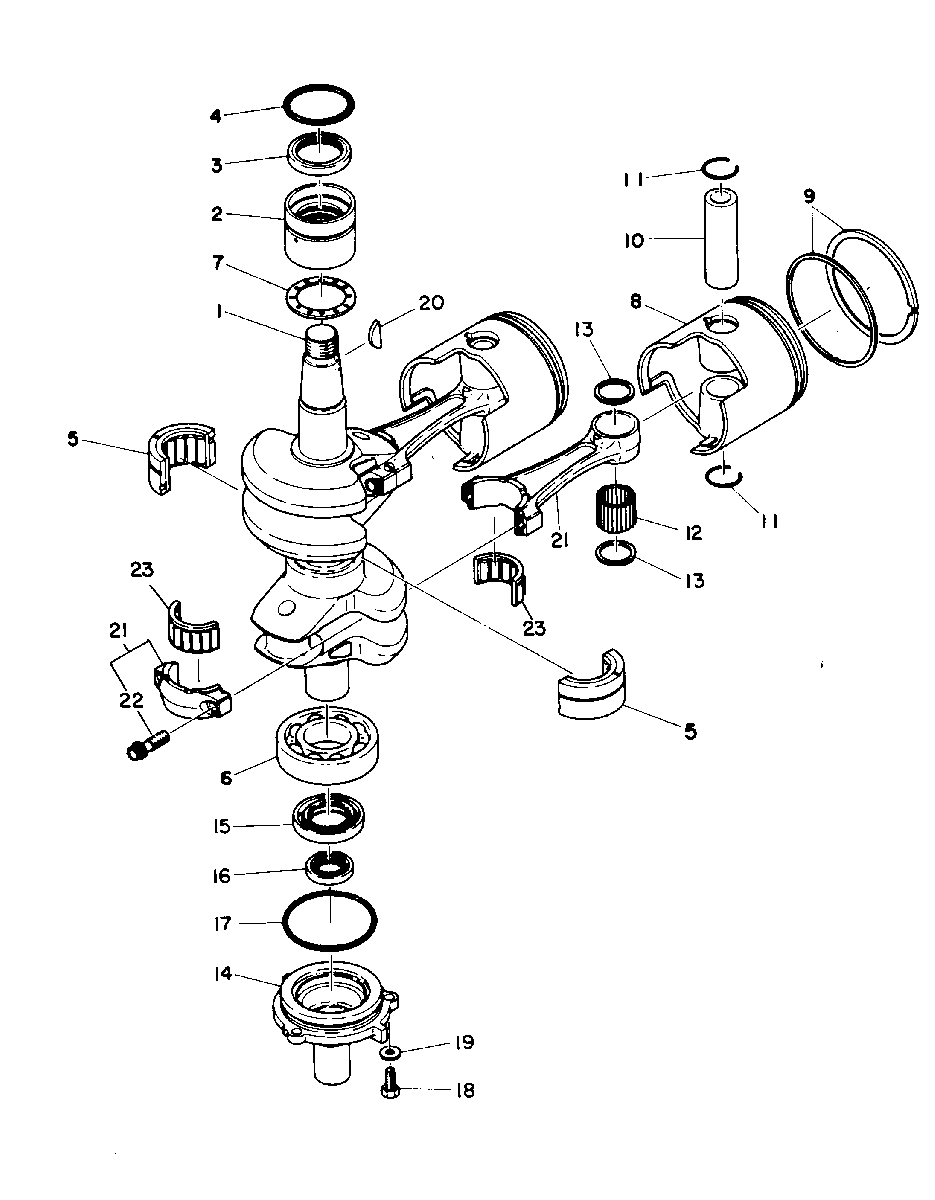

CRANKSHAFT AND PISTON для Mariner - 55 663-36475 AND BELOW
-
№АртикулНазвание
-
1463-6825M CRANKSHAFTCRANKSHAFT
-
231-82312T BEARING, NEEDLEBEARING, NEEDLE
-
326-82249M OIL SEAL, CRANKSHAFT-UPPEROIL SEAL, CRANKSHAFT-UPPER
-
425-82276M O-RING, CRANKSHAFT-UPPERO-RING, CRANKSHAFT-UPPER
-
531-97837T BEARING, CENTER MAINBEARING, CENTER MAIN
-
630-814560T BEARING, CRANKSHAFT-LOWERBEARING, CRANKSHAFT-LOWER
-
715-81259M WASHER, CRANKSHAFT PINWASHER, CRANKSHAFT PIN
-
8761-6826M PISTON(STD 81.96MM)PISTON(STD 81.96MM)
-
8761-6961M PISTON(STD 81.97 MM)PISTON(STD 81.97 MM)
-
8761-6828M PISTON(1ST O.S. 82.25 MM)PISTON(1ST O.S. 82.25 MM)
-
8761-6829M PISTON (2ND O.S. 82.50 MM)PISTON (2ND O.S. 82.50 MM)
-
939-81260M PISTON RING SET (STD)PISTON RING SET (STD)
-
939-81261M PISTON RING SET(1ST O.S. 82. MM)PISTON RING SET(1ST O.S. 82. MM)
-
939-81262M PISTON RING SET (2ND O.S. 82.50 MM)PISTON RING SET (2ND O.S. 82.50 MM)
-
1041-81263T PIN, PISTONPIN, PISTON
-
1153-81264M CLIP, PISTON PINCLIP, PISTON PIN
-
1229-82353M BEARING, SMALL ENDBEARING, SMALL END
-
1312-81831M WASHER, CONNECTING ROD BEARINGWASHER, CONNECTING ROD BEARING
-
1441828M HOUSING, OIL SEALHOUSING, OIL SEAL
-
1526-82255M OIL SEAL, CRANKSHAFT-LOWEROIL SEAL, CRANKSHAFT-LOWER
-
1626-82248M OIL SEAL, CRANKSHAFT-LOWEROIL SEAL, CRANKSHAFT-LOWER
-
1725-82286M O-RING, OIL SEAL HOUSINGO-RING, OIL SEAL HOUSING
-
1810-84368M BOLT, OIL SEAL HOUSING ATTACHINGBOLT, OIL SEAL HOUSING ATTACHING
-
1912-82214M WASHER, HOUSING BOLTWASHER, HOUSING BOLT
-
2028-81915M KEY, CRANKSHAFT TO FLYWHEELKEY, CRANKSHAFT TO FLYWHEEL
-
21629-8813M CONNECTING ROD ASS'YCONNECTING ROD ASS'Y
-
2210-81715M BOLTBOLT
-
2331-97710M BEARING, NEEDLEBEARING, NEEDLE
