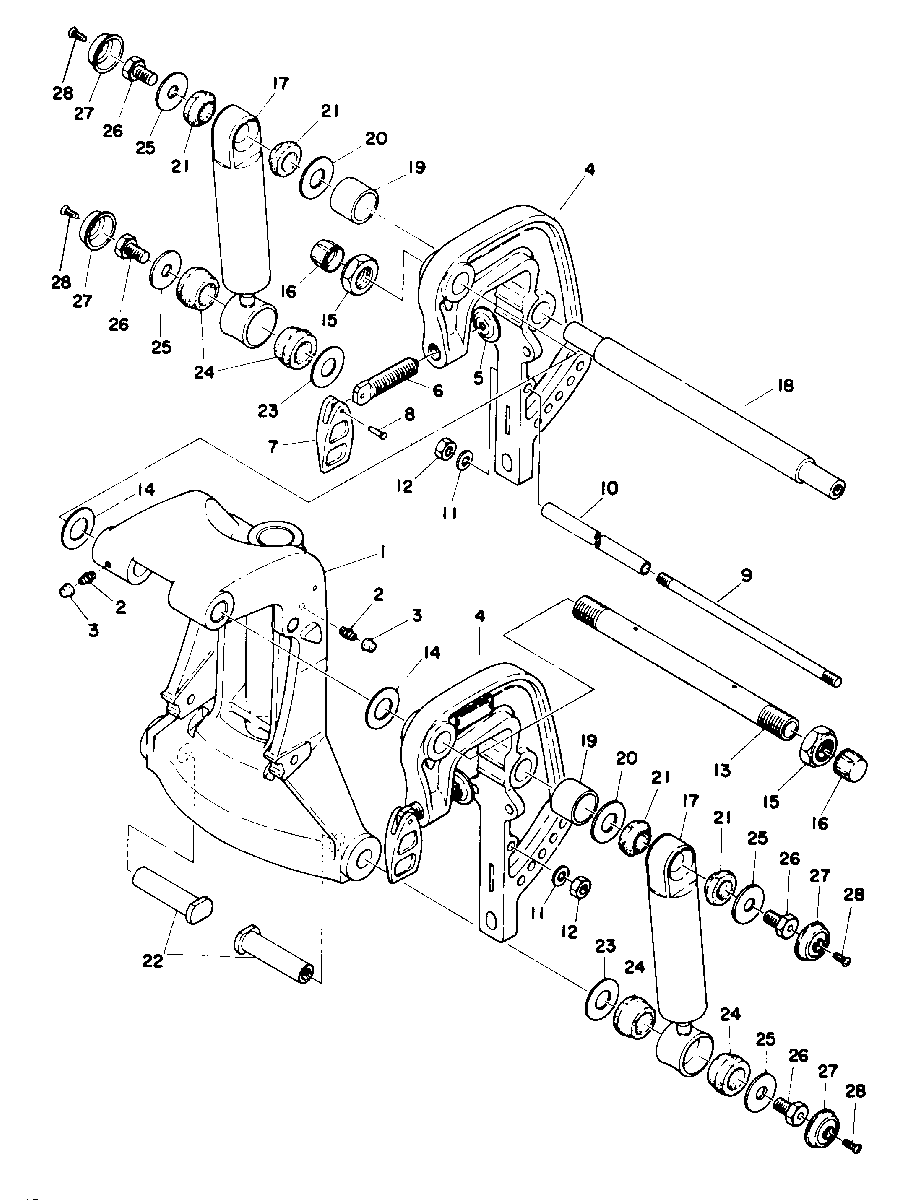

CLAMP AND SWIVEL BRACKET для Mariner - 55 663-36475 AND BELOW

  • №
    Артикул
    Название
  • 1
    1485-6840M SWIVEL BRACKER(SHORT SHAFT)
    SWIVEL BRACKER(SHORT SHAFT)
  • 1
    1485-6841M SWIVEL BRACKET (LONG SHAFT)
    SWIVEL BRACKET (LONG SHAFT)
  • 2
    22-82369M FITTING, GREASE
    FITTING, GREASE
  • 3
    81439M CAP, GREASE FITTING
    CAP, GREASE FITTING
  • 4
    1484-6839M CLAMP BRACKET
    CLAMP BRACKET
  • 5
    12-80638M PAD, TRANSO CLAMP SCREW
    PAD, TRANSO CLAMP SCREW
  • 6
    10-92649M SCREW, TRANSOM CLAMP
    SCREW, TRANSOM CLAMP
  • 7
    11868M HANDLE, TRANSOM CLAMP SCREW
    HANDLE, TRANSOM CLAMP SCREW
  • 8
    17-81889M PIN, TRANSOM CLAMP SCREW
    PIN, TRANSOM CLAMP SCREW
  • 9
    16-81383M STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 10
    23-81981M SPACER, CLAMP BRACKET
    SPACER, CLAMP BRACKET
  • 11
    12-82220M WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 12
    11-82395M NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 13
    10-41312M STUD, CLAMP BRACKET
    STUD, CLAMP BRACKET
  • 14
    12-81836M WASHER, CLAMP BRACKET STUD
    WASHER, CLAMP BRACKET STUD
  • 15
    11-879172252 NUT, CLAMP BRACKET STUD
    NUT, CLAMP BRACKET STUD
  • 16
    811914M CAP, CLAMP BRACKET STUD
    CAP, CLAMP BRACKET STUD
  • 17
    55-92650M SHOCK ABSORBER
    SHOCK ABSORBER
  • 18
    17-81386M SHAFT, UPPER SHOCK MOUNT
    SHAFT, UPPER SHOCK MOUNT
  • 19
    23-82120M SPACER, SHOCK MOUNT
    SPACER, SHOCK MOUNT
  • 20
    12-81830M WASHER, SHOCK MOUNT SPACER
    WASHER, SHOCK MOUNT SPACER
  • 21
    23-81939M BUSHING, UPPER SHOCK ABSORBER
    BUSHING, UPPER SHOCK ABSORBER
  • 22
    17-81384M PIN, LOWER SHOCK MOUNT
    PIN, LOWER SHOCK MOUNT
  • 23
    12-81859M WAHSER, LOWER SHOCK BUSHING
    WAHSER, LOWER SHOCK BUSHING
  • 24
    23-81938M BUSHING,LOWER SHOCK ABSORBER
    BUSHING,LOWER SHOCK ABSORBER
  • 25
    12-81812M WASHER, PIN BOLT
    WASHER, PIN BOLT
  • 26
    10-81718M BOLT, SHOCK PIN
    BOLT, SHOCK PIN
  • 27
    92651M COVER, SHOCK MOUNT
    COVER, SHOCK MOUNT
  • 28
    10-95467M SCREW, MOUNT ATTACHING
    SCREW, MOUNT ATTACHING
