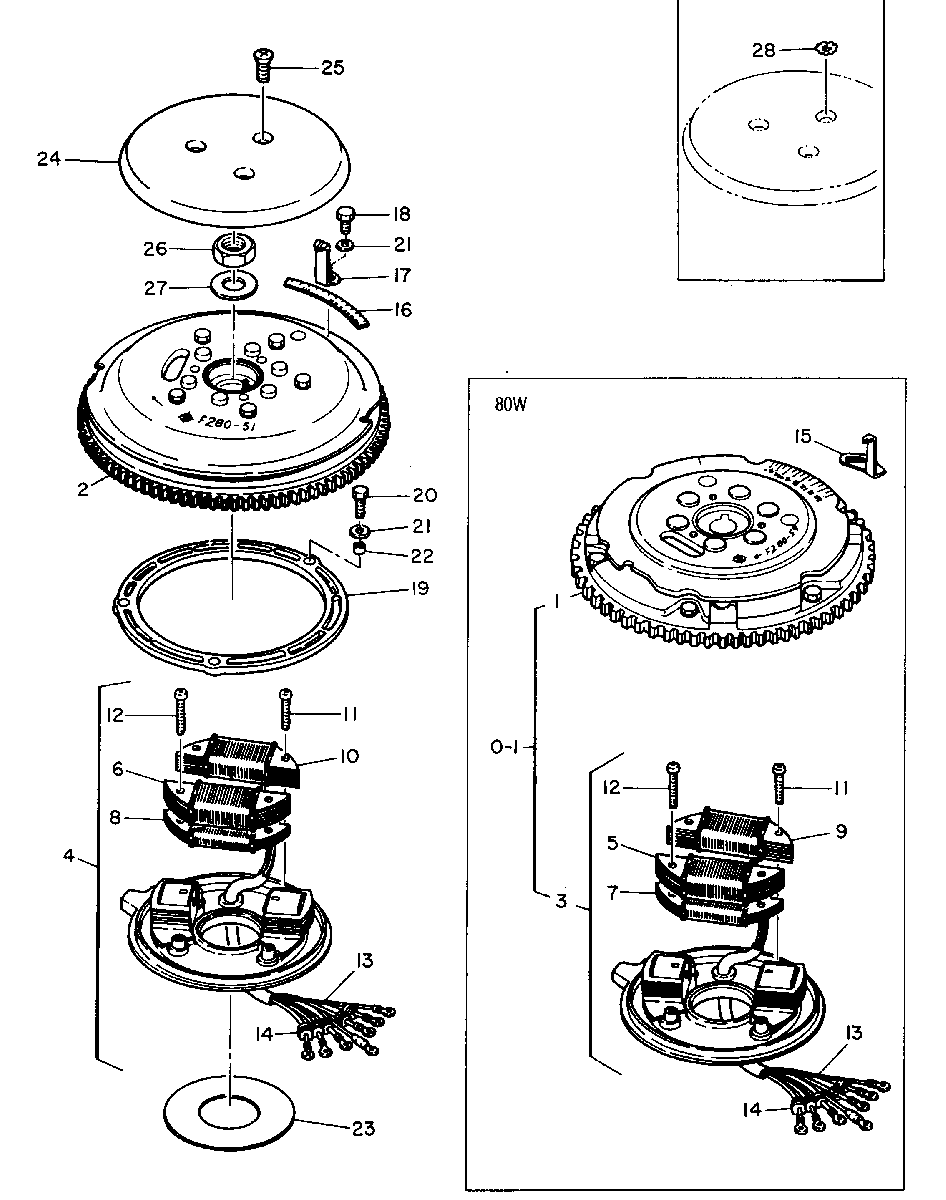

C.D.I. MAGNETO для Mariner - 55 663-36475 AND BELOW
-
№АртикулНазвание
-
0-1253-6845M I. MAGNETO ASS'Y (80 W )I. MAGNETO ASS'Y (80 W )
-
1253-6845M FLYWHEEL, (80 W)FLYWHEEL, (80 W)
-
2253-6847M FLYWHEEL, (40W)
SERIAL 00000000-00002730FLYWHEEL, (40W)
SERIAL 00000000-00002730 -
397100M MAGNETO BASE ASS'Y (80 W)MAGNETO BASE ASS'Y (80 W)
-
481545M MAGNETO BASE ASS'Y (40 W)
SERIAL 00002730-09999999MAGNETO BASE ASS'Y (40 W)
SERIAL 00002730-09999999 -
583036M COIL, CHARGE (80 W)COIL, CHARGE (80 W)
-
681546M COIL, CHARGE (40 W )
SERIAL 00000000-00002730COIL, CHARGE (40 W )
SERIAL 00000000-00002730 -
783037M COIL, CHARGE (80 W)COIL, CHARGE (80 W)
-
881548M COIL, TRIGGER (40 W)
SERIAL 00000000-00002730COIL, TRIGGER (40 W)
SERIAL 00000000-00002730 -
983038M COIL, LIGHTNING (80 W )COIL, LIGHTNING (80 W )
-
1081486M COIL, LIGHTING (40 W)
SERIAL 00000000-00002730COIL, LIGHTING (40 W)
SERIAL 00000000-00002730 -
1110-82522M SCREW, COIL ATTACHINGSCREW, COIL ATTACHING
-
1210-82568M SCREWSCREW
-
1384-95685M WIRE, LEADWIRE, LEAD
-
1425-82059M GROMMETGROMMET
-
1583031M POINTER, TIMING (WITH M-253-6935M)POINTER, TIMING (WITH M-253-6935M)
-
1637-81488M MARK, TIMING (WITH M-253-6847M)MARK, TIMING (WITH M-253-6847M)
-
1781487M POINTER, TIMING (WITH M-253-6847M)POINTER, TIMING (WITH M-253-6847M)
-
1810-826957M BOLT,POINTER ATTACHINGBOLT,POINTER ATTACHING
-
1982678M RETAINER, BASE ASS'Y
SERIAL 00002101-09999999RETAINER, BASE ASS'Y
SERIAL 00002101-09999999 -
1982678M RETAINER, BASE ASS'Y
SERIAL 00000000-00002147RETAINER, BASE ASS'Y
SERIAL 00000000-00002147 -
2010-84058M BOLT, BASE ATTACHINGBOLT, BASE ATTACHING
-
2112-82214M WASHERWASHER
-
2223-81971M COLLAR
SERIAL 00002101-09999999COLLAR
SERIAL 00002101-09999999 -
2312-81343M WASHER,BASE ASS'YWASHER,BASE ASS'Y
-
2481489M COVER, FLYWHEELCOVER, FLYWHEEL
-
2510-82569M SCREWSCREW
-
2611-893789 NUT, FLYWHEELNUT, FLYWHEEL
-
2712-893762 WASHER, FLYWHEELWASHER, FLYWHEEL
-
2812-83227M WASHER, TOOTH
SERIAL 00000000-00001955WASHER, TOOTH
SERIAL 00000000-00001955
