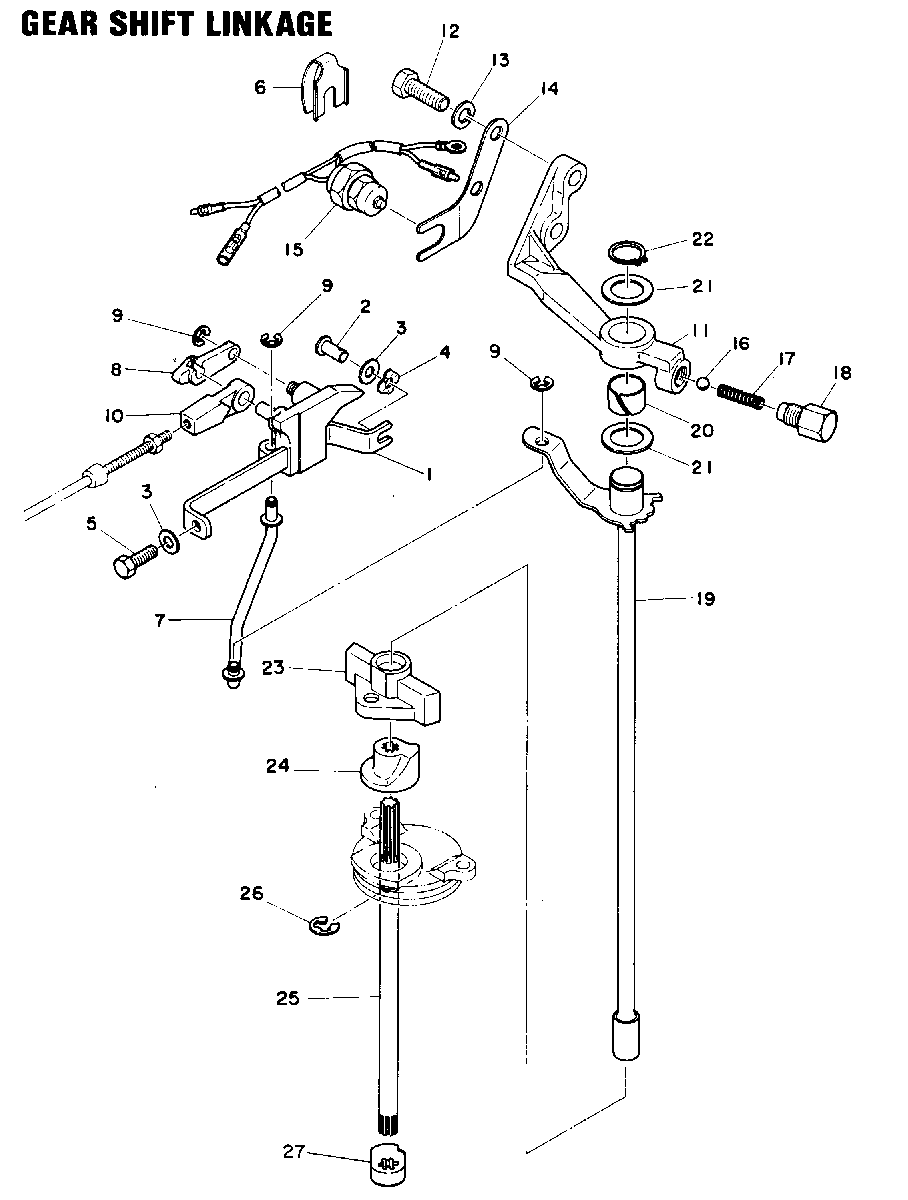

GEAR SHIFT LINKAGE для Mariner - 55 663-36475 AND BELOW

  • №
    Артикул
    Название
  • 1
    98919M BRACKET, SHIFT
    BRACKET, SHIFT
  • 2
    17-82137M PIN, CLEVIS-SHIFT BRACKET
    PIN, CLEVIS-SHIFT BRACKET
  • 3
    12-82214M WASHER
    WASHER
  • 4
    13-81866M WASHER, WAVE-CLEVIS PIN
    WASHER, WAVE-CLEVIS PIN
  • 5
    10-82423M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 6
    81530M PLATE
    PLATE
  • 7
    81407M LEVER, SHIFT ROD
    LEVER, SHIFT ROD
  • 8
    92657M RETAINER,CLEVIS
    RETAINER,CLEVIS
  • 9
    53-82330M CIRCLIP
    CIRCLIP
  • 10
    81480M CLEVIS, SHIFT CONTROL CABLE
    CLEVIS, SHIFT CONTROL CABLE
  • 11
    82556M BRACKET, SHIFT ROD
    BRACKET, SHIFT ROD
  • 12
    10-82441M BOLT, BRACKET ATTACHING
    BOLT, BRACKET ATTACHING
  • 13
    13-82215M LOCK WASHER, BRACKET BOLT
    LOCK WASHER, BRACKET BOLT
  • 14
    81529M STAY, NUETRAL SWITCH
    STAY, NUETRAL SWITCH
  • 15
    87-95631001 NUETRAL SWITCH
    NUETRAL SWITCH
  • 16
    82346M BALL, DETENT (1/4 INCH)
    BALL, DETENT (1/4 INCH)
  • 17
    24-82081M SPRING, DETENT
    SPRING, DETENT
  • 18
    23-80635M RETAINER, COMPRESSION SPRING
    RETAINER, COMPRESSION SPRING
  • 19
    81405M SHIFT ROD, UPPER-SHORT SHAFT
    SHIFT ROD, UPPER-SHORT SHAFT
  • 19
    92656M SHIFT ROD, UPPER - LONG SHAFT
    SHIFT ROD, UPPER - LONG SHAFT
  • 20
    23-81953M BUSHING, SHIFT ROD
    BUSHING, SHIFT ROD
  • 21
    12-81858M SPACER, SHIFT ROD
    SPACER, SHIFT ROD
  • 22
    53-19259M CIRCLIP, UPPER SHIFT ROD
    CIRCLIP, UPPER SHIFT ROD
  • 23
    98937M GUIDE, REVERSE ROD
    GUIDE, REVERSE ROD
  • 24
    81410M CAM, REVERSE ROD
    CAM, REVERSE ROD
  • 25
    81408M ROD, SHIFT-LOWER
    ROD, SHIFT-LOWER
  • 26
    53-82334M CIRCLIP, LOWER SHIFT ROD
    CIRCLIP, LOWER SHIFT ROD
  • 27
    81409M CAM, SHIFT
    CAM, SHIFT
