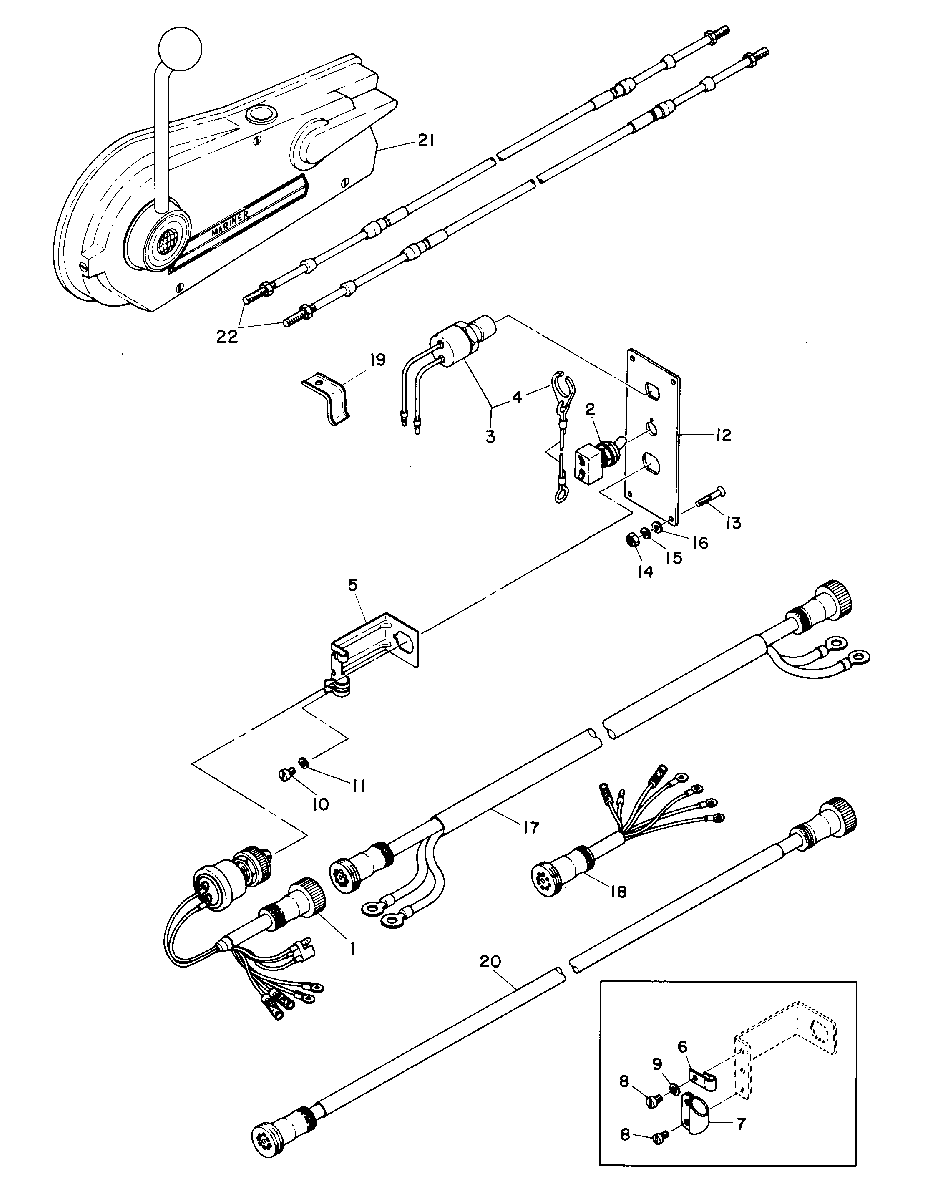

SWITCH PANEL/REMOTE CONTROL для Mariner - 55 663-36475 AND BELOW

  • №
    Артикул
    Название
  • 0-1
    82993M SWITCH PANEL ASS'Y
    SWITCH PANEL ASS'Y
  • 1
    87-82994M MAIN SWITCH
    MAIN SWITCH
  • 2
    87-81534M SWITCH, CHOKE
    SWITCH, CHOKE
  • 3
    87-97765M STOP SWITCH ASS'Y
    STOP SWITCH ASS'Y
  • 4
    97756M STOPPER
    STOPPER
  • 5
    81537M STAY, CORD CLAMP
    STAY, CORD CLAMP
  • 6
    54-82724M CLAMP, WIRE
    SERIAL 00000000-00002100
    CLAMP, WIRE
    SERIAL 00000000-00002100
  • 7
    54-80722M CLAMP, WIREHARNESS ( )
    SERIAL 00000000-00002100
    CLAMP, WIREHARNESS ( )
    SERIAL 00000000-00002100
  • 8
    10-82500M SCREW, CLAMP ATTACHING (E-02100 EL-33675)
    SCREW, CLAMP ATTACHING (E-02100 EL-33675)
  • 9
    12-82707M WASHER, CLAMP SCREW
    WASHER, CLAMP SCREW
  • 10
    10-82500M SCREW (E-02101 EL-33676)
    SCREW (E-02101 EL-33676)
  • 11
    13-82206M WASHER (E-02101 EL-33676)
    WASHER (E-02101 EL-33676)
  • 12
    81533M SWITCH PANEL
    SWITCH PANEL
  • 13
    10-80665M SCREW (E-02100 EL-33675)
    SCREW (E-02100 EL-33675)
  • 13
    10-80164M SCREW, PANEL ATTACHING (E-02101 EL-33676)
    SCREW, PANEL ATTACHING (E-02101 EL-33676)
  • 14
    11-82377M NUT, PANEL NUT
    NUT, PANEL NUT
  • 15
    13-82206M LOCK WASHER, PANEL NUT
    LOCK WASHER, PANEL NUT
  • 16
    12-82847M WASHER, PANEL NUT
    WASHER, PANEL NUT
  • 17
    84-82691M WIREHARNESS
    SERIAL 00000000-00008005
    WIREHARNESS
    SERIAL 00000000-00008005
  • 17
    84-81539M WIREHARNESS
    SERIAL 00002006-09999999
    WIREHARNESS
    SERIAL 00002006-09999999
  • 18
    84-81527M WIRE, LEAD
    WIRE, LEAD
  • 19
    81540M CLAMP
    CLAMP
  • 20
    84-81538M WIREHARNESS EXTENSION (OPTIONAL)
    WIREHARNESS EXTENSION (OPTIONAL)
  • 21
    81680M REMOTE CONTROL
    REMOTE CONTROL
  • 22
    81681M6 CABLE, REMOTE CONTROL 6 FT
    CABLE, REMOTE CONTROL 6 FT
  • 22
    81681M7 CABLE, REMOTE CONTROL 7FT
    CABLE, REMOTE CONTROL 7FT
  • 22
    81681M8 CABLE, REMOTE CONTROL 8 FT
    CABLE, REMOTE CONTROL 8 FT
  • 22
    81681M9 CABLE, REMOTE CONTROL 9FT
    CABLE, REMOTE CONTROL 9FT
  • 22
    81681M11 CABLE, REMOTE CONTROL 11 FT
    CABLE, REMOTE CONTROL 11 FT
  • 22
    81681M12 CABLE, REMOTE CONTROL 12 FT
    CABLE, REMOTE CONTROL 12 FT
  • 22
    81681M13 CABLE, REMOTE CONTROL 13 FT
    CABLE, REMOTE CONTROL 13 FT
  • 22
    81681M14 CABLE, REMOTE CONTROL 14 FT
    CABLE, REMOTE CONTROL 14 FT
  • 22
    81681M15 CABLE, REMOTE CONTROL 15 FT
    CABLE, REMOTE CONTROL 15 FT
  • 22
    81681M16 CABLE, REMOTE CONTROL 16 FT
    CABLE, REMOTE CONTROL 16 FT
  • 22
    81681M17 CABLE, REMOTE CONTROL 17 FT
    CABLE, REMOTE CONTROL 17 FT
  • 22
    81681M18 CABLE, REMOTE CONTROL 18 FT
    CABLE, REMOTE CONTROL 18 FT
