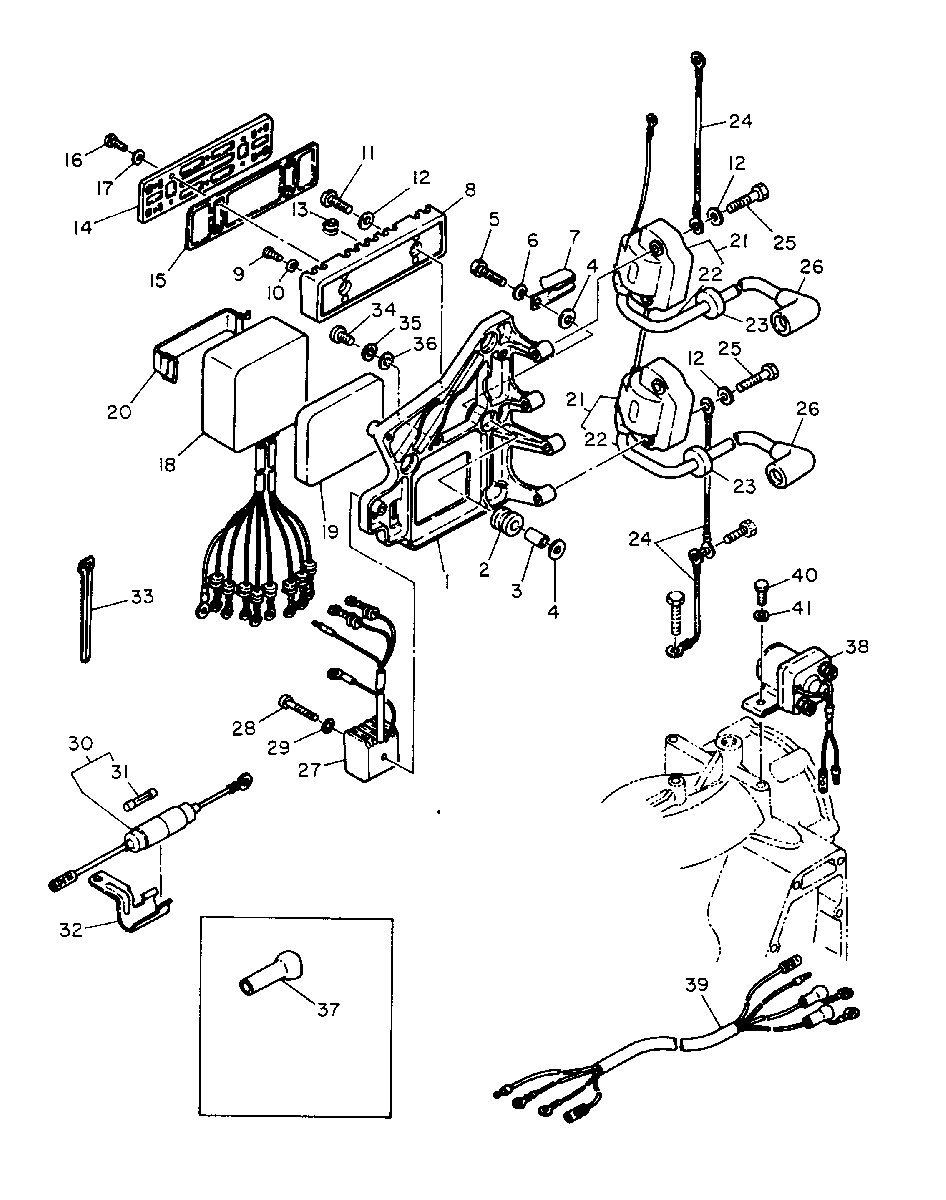

ELECTRICAL для Mariner - 55 663-36475 AND BELOW

  • №
    Артикул
    Название
  • 1
    81543M BRACKET, ELECTRICAL COMPONENT
    BRACKET, ELECTRICAL COMPONENT
  • 2
    81523M RUBBER MOUNT, MOUNTING BRACKET
    RUBBER MOUNT, MOUNTING BRACKET
  • 3
    23-81968M SLEEVE, RUBBER MOUNT
    SLEEVE, RUBBER MOUNT
  • 4
    12-83769M WASHER, BRACKET
    WASHER, BRACKET
  • 5
    10-82405M BOLT, WIRE CLAMP ATTACHING
    BOLT, WIRE CLAMP ATTACHING
  • 6
    13-82212M WASHER
    WASHER
  • 7
    10-84272M CLAMP, FULE LINE
    SERIAL 00000000-00002005
    CLAMP, FULE LINE
    SERIAL 00000000-00002005
  • 8
    81518M TERMINAL
    TERMINAL
  • 9
    10-82798M SCREW
    SCREW
  • 11
    10-82980M SCREW, TERMINAL STRIP ATTACHING
    SCREW, TERMINAL STRIP ATTACHING
  • 13
    12-82214M WASHER
    WASHER
  • 13
    25-82057M GROMMET, TERMINAL STRIP ATTACHING
    GROMMET, TERMINAL STRIP ATTACHING
  • 14
    81515M COVER, TERMINAL STRIP
    COVER, TERMINAL STRIP
  • 15
    27-81516M GASKET, TERMINAL STRIP
    GASKET, TERMINAL STRIP
  • 16
    10-80738M SCREW, TERMINAL STRIP COVER ATTACHING
    SCREW, TERMINAL STRIP COVER ATTACHING
  • 17
    13-82206M LOCK WASHER, TERMINAL STRIP COVER SCREW
    LOCK WASHER, TERMINAL STRIP COVER SCREW
  • 18
    83030T SWITCH BOX
    SWITCH BOX
  • 19
    81544M DAMPER, SWITCH BOX
    DAMPER, SWITCH BOX
  • 21
    97077M IGNITION COIL
    IGNITION COIL
  • 22
    84-82831M LEAD, HIGHTENSION
    LEAD, HIGHTENSION
  • 23
    25-80714M GROMMER
    GROMMER
  • 24
    84-81250M WIRE GORUND LEAD
    WIRE GORUND LEAD
  • 25
    10-83285M BOLT, COIL ATTACHING
    BOLT, COIL ATTACHING
  • 26
    85-63709A1 CAP, SPARK PLUG
    CAP, SPARK PLUG
  • 27
    81519M RECTIFIER
    RECTIFIER
  • 28
    10-82862M SCREW, RECTIFIER ATTACHING
    SERIAL 00000000-00002005
    SCREW, RECTIFIER ATTACHING
    SERIAL 00000000-00002005
  • 28
    10-82522M SCREW, RECTIFIER ATTACHING
    SERIAL 00002006-09999999
    SCREW, RECTIFIER ATTACHING
    SERIAL 00002006-09999999
  • 29
    13-82186M LOCK WASHER, RECTIFIER SCREW
    LOCK WASHER, RECTIFIER SCREW
  • 30
    88-82685M FUSE HOLDER ASS'Y
    SERIAL 00000000-00001835
    FUSE HOLDER ASS'Y
    SERIAL 00000000-00001835
  • 30
    88-82685M FUSE HOLDER ASS'Y
    SERIAL 00001836-09999999
    FUSE HOLDER ASS'Y
    SERIAL 00001836-09999999
  • 31
    88-81522M FUSE
    FUSE
  • 32
    54-83226M CLAMP, FUSE
    SERIAL 00000000-00001835
    CLAMP, FUSE
    SERIAL 00000000-00001835
  • 33
    81541M BAND
    SERIAL 00002006-09999999
    BAND
    SERIAL 00002006-09999999
  • 34
    10-82981M SCREW
    SERIAL 00002006-09999999
    SCREW
    SERIAL 00002006-09999999
  • 35
    12-82214M WASHER
    SERIAL 00002006-09999999
    WASHER
    SERIAL 00002006-09999999
  • 36
    12-82214M WASHER
    SERIAL 00000000-00002006
    WASHER
    SERIAL 00000000-00002006
  • 37
    83228M COVER, LEAD WIRE
    SERIAL 00000000-00002005
    COVER, LEAD WIRE
    SERIAL 00000000-00002005
  • 38
    87-83229M STARTER SWITCH
    SERIAL 00000000-00002005
    STARTER SWITCH
    SERIAL 00000000-00002005
  • 39
    84-83230M LEAD, WIRE
    SERIAL 00000000-00002005
    LEAD, WIRE
    SERIAL 00000000-00002005
  • 40
    10-826957M BOLT
    SERIAL 00000000-00002005
    BOLT
    SERIAL 00000000-00002005
  • 41
    13-82212M WASHER
    SERIAL 00000000-00002005
    WASHER
    SERIAL 00000000-00002005
